OpenMeshTriangleBSPT< Mesh > Class Template Reference

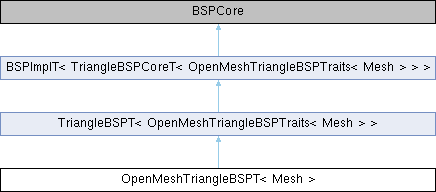

Inheritance diagram for OpenMeshTriangleBSPT< Mesh >:
TriangleBSPT< OpenMeshTriangleBSPTraits< Mesh > > BSPImplT< TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > > > TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > >

Public Types

typedef OpenMeshTriangleBSPTraits< Mesh > Traits

typedef TriangleBSPT< Traits > Base

typedef Traits::Scalar Scalar

- Public Types inherited from TriangleBSPT< OpenMeshTriangleBSPTraits< Mesh > >
typedef BSPImplT< TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > > > Base

typedef Base::Scalar Scalar

- Public Types inherited from BSPImplT< TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > > >
typedef BSPCore::Traits Traits

typedef BSPCore::Handle Handle

typedef BSPCore::Point Point

typedef BSPCore::Scalar Scalar

typedef BSPCore::Node Node

typedef BSPCore::Handles Handles

typedef BSPCore::HandleIter HandleIter

typedef std::vector< std::pair< Handle, Scalar > > RayCollision
 Store nearest neighbor information. More...

- Public Types inherited from TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > >
typedef OpenMeshTriangleBSPTraits< Mesh > Traits

typedef BSPTraits::Point Point

typedef BSPTraits::Handle Handle

typedef BSPTraits::Node Node

typedef Point::value_type Scalar

typedef ACG::Geometry::PlaneT< Scalar > Plane

typedef std::vector< Handle > Handles

typedef Handles::iterator HandleIter


Public Member Functions

 OpenMeshTriangleBSPT (const Mesh &_mesh, const Scalar &_infinity=std::numeric_limits< Scalar >::infinity())

- Public Member Functions inherited from TriangleBSPT< OpenMeshTriangleBSPTraits< Mesh > >
 TriangleBSPT (const OpenMeshTriangleBSPTraits< Mesh > &_traits, const Scalar &_infinity=std::numeric_limits< Scalar >::infinity())

- Public Member Functions inherited from BSPImplT< TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > > >
 BSPImplT (const Traits &_traits, const Scalar &_infinity=std::numeric_limits< Scalar >::infinity())

NearestNeighbor nearest (const Point &_p) const
 Return handle of the nearest neighbor face. More...

RayCollision raycollision (const Point &_p, const Point &_r) const
 intersect mesh with ray More...

RayCollision directionalRaycollision (const Point &_p, const Point &_r) const
 intersect mesh with ray More...

RayCollision nearestRaycollision (const Point &_p, const Point &_r) const
 intersect mesh with ray More...

void intersectBall (const Point &_c, Scalar _r, Callback _callback) const
 intersect mesh with open ball More...

- Public Member Functions inherited from TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > >
 TriangleBSPCoreT (const OpenMeshTriangleBSPTraits< Mesh > &_traits)

 ~TriangleBSPCoreT ()
 Destructor. More...

void reserve (size_t _n)
 Reserve memory for _n entries. More...

void push_back (Handle _h)
 Add a handle to the BSP. More...

bool empty ()

size_t size ()

void build (unsigned int _max_handles, unsigned int _max_depth)

void visualizeTree (MeshT *_object, int _max_depth)
 Create a PolyMesh object that visualizes the bounding boxes of the BSP tree. More...


Additional Inherited Members

- Protected Attributes inherited from TriangleBSPCoreT< OpenMeshTriangleBSPTraits< Mesh > >
OpenMeshTriangleBSPTraits< Mesh > traits_

Handles handles_

Node * root_

int nodes

int n_triangles


Detailed Description

template<class Mesh>
class OpenMeshTriangleBSPT< Mesh >

Definition at line 211 of file TriangleBSPT.hh.

Member Typedef Documentation

◆ Base

template<class Mesh >
typedef TriangleBSPT<Traits> OpenMeshTriangleBSPT< Mesh >::Base

Definition at line 216 of file TriangleBSPT.hh.

◆ Scalar

template<class Mesh >
typedef Traits::Scalar OpenMeshTriangleBSPT< Mesh >::Scalar

Definition at line 217 of file TriangleBSPT.hh.

◆ Traits

template<class Mesh >
typedef OpenMeshTriangleBSPTraits<Mesh> OpenMeshTriangleBSPT< Mesh >::Traits

Definition at line 215 of file TriangleBSPT.hh.

Constructor & Destructor Documentation

◆ OpenMeshTriangleBSPT()

template<class Mesh >
OpenMeshTriangleBSPT< Mesh >::OpenMeshTriangleBSPT ( const Mesh &  _mesh,
const Scalar &  _infinity = std::numeric_limits<Scalar>::infinity()
)
inline

Definition at line 218 of file TriangleBSPT.hh.

The documentation for this class was generated from the following file:
