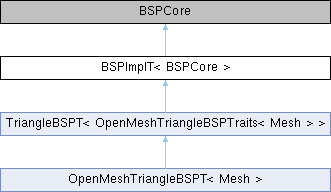

Inheritance diagram for BSPImplT< BSPCore >:

Classes
struct	less_pair_second

struct	NearestNeighbor
	Store nearest neighbor information. More...

struct	NearestNeighborData
	Store nearest neighbor information. More...

struct	RayCollisionData
	Store ray collide information. More...

Public Types
typedef BSPCore::Traits	Traits

typedef BSPCore::Handle	Handle

typedef BSPCore::Point	Point

typedef BSPCore::Scalar	Scalar

typedef BSPCore::Node	Node

typedef BSPCore::Handles	Handles

typedef BSPCore::HandleIter	HandleIter

typedef std::vector< std::pair< Handle, Scalar > >	RayCollision
	Store nearest neighbor information. More...

Public Member Functions
	BSPImplT (const Traits &_traits, const Scalar &_infinity=std::numeric_limits< Scalar >::infinity())

NearestNeighbor	nearest (const Point &_p) const
	Return handle of the nearest neighbor face. More...

RayCollision	raycollision (const Point &_p, const Point &_r) const
	intersect mesh with ray More...

RayCollision	directionalRaycollision (const Point &_p, const Point &_r) const
	intersect mesh with ray More...

RayCollision	nearestRaycollision (const Point &_p, const Point &_r) const
	intersect mesh with ray More...

template<class Callback >
void	intersectBall (const Point &_c, Scalar _r, Callback _callback) const
	intersect mesh with open ball More...

Private Member Functions
void	_nearest (Node *_node, NearestNeighborData &_data) const

void	_raycollision_non_directional (Node *_node, RayCollisionData &_data) const
	recursive part of raycollision() More...

void	_raycollision_directional (Node *_node, RayCollisionData &_data) const
	recursive part of directionalRaycollision() More...

void	_raycollision_nearest_directional (Node *_node, RayCollisionData &_data) const

template<class Callback >
void	_intersect_ball (const Node &_node, const Point &_c, Scalar _r, Callback _callback) const

Private Attributes
const Scalar	infinity_

Detailed Description

template<class BSPCore>
class BSPImplT< BSPCore >

Definition at line 64 of file BSPImplT.hh.

Member Typedef Documentation

◆ Handle

template<class BSPCore >

typedef BSPCore::Handle BSPImplT< BSPCore >::Handle

Definition at line 69 of file BSPImplT.hh.

◆ HandleIter

template<class BSPCore >

typedef BSPCore::HandleIter BSPImplT< BSPCore >::HandleIter

Definition at line 74 of file BSPImplT.hh.

◆ Handles

template<class BSPCore >

typedef BSPCore::Handles BSPImplT< BSPCore >::Handles

Definition at line 73 of file BSPImplT.hh.

◆ Node

template<class BSPCore >

typedef BSPCore::Node BSPImplT< BSPCore >::Node

Definition at line 72 of file BSPImplT.hh.

◆ Point

template<class BSPCore >

typedef BSPCore::Point BSPImplT< BSPCore >::Point

Definition at line 70 of file BSPImplT.hh.

◆ RayCollision

template<class BSPCore >

typedef std::vector< std::pair<Handle,Scalar> > BSPImplT< BSPCore >::RayCollision

Store nearest neighbor information.

Definition at line 95 of file BSPImplT.hh.

◆ Scalar

template<class BSPCore >

typedef BSPCore::Scalar BSPImplT< BSPCore >::Scalar

Definition at line 71 of file BSPImplT.hh.

◆ Traits

template<class BSPCore >

typedef BSPCore::Traits BSPImplT< BSPCore >::Traits

Definition at line 68 of file BSPImplT.hh.

Constructor & Destructor Documentation

◆ BSPImplT()

template<class BSPCore >

BSPImplT< BSPCore >::BSPImplT	(	const Traits &	_traits,
		const Scalar &	_infinity = `std::numeric_limits<Scalar>::infinity()`
	)

inline

Definition at line 79 of file BSPImplT.hh.

◆ ~BSPImplT()

template<class BSPCore >

BSPImplT< BSPCore >::~BSPImplT ( )

inline

Definition at line 82 of file BSPImplT.hh.

Member Function Documentation

◆ _intersect_ball()

template<class BSPCore >

template<class Callback >

void BSPImplT< BSPCore >::_intersect_ball	(	const Node &	_node,
		const Point &	_c,
		Scalar	_r,
		Callback	_callback
	)		const

private

Definition at line 318 of file BSPImplT_impl.hh.

◆ _nearest()

template<class BSPCore >

void BSPImplT< BSPCore >::_nearest	(	Node *	_node,
		NearestNeighborData &	_data
	)		const

private

Definition at line 85 of file BSPImplT_impl.hh.

◆ _raycollision_directional()

template<class BSPCore >

void BSPImplT< BSPCore >::_raycollision_directional	(	Node *	_node,
		RayCollisionData &	_data
	)		const

private

recursive part of directionalRaycollision()

Parameters

_node	The current node in the tree
_data	Data pointer, used to collect the collision information

Definition at line 228 of file BSPImplT_impl.hh.

◆ _raycollision_nearest_directional()

template<class BSPCore >

void BSPImplT< BSPCore >::_raycollision_nearest_directional	(	Node *	_node,
		RayCollisionData &	_data
	)		const

private

Definition at line 267 of file BSPImplT_impl.hh.

◆ _raycollision_non_directional()

template<class BSPCore >

void BSPImplT< BSPCore >::_raycollision_non_directional	(	Node *	_node,
		RayCollisionData &	_data
	)		const

private

recursive part of raycollision()

Parameters

_node	The current node in the tree
_data	Data pointer, used to collect the collision information

Definition at line 190 of file BSPImplT_impl.hh.

◆ directionalRaycollision()

template<class BSPCore >

BSPImplT< BSPCore >::RayCollision BSPImplT< BSPCore >::directionalRaycollision	(	const Point &	_p,
		const Point &	_r
	)		const

intersect mesh with ray

This function shots a ray through the mesh and collects all intersected triangles and the handle of the closest face ( directional, so the ray direction is taken into account!).

Only hits with a distance > 0.0 to the point p will be collected (_p will be skipped!)

Parameters

_p	Start point of the ray
_r	Ray direction

Returns: Collision information

Definition at line 143 of file BSPImplT_impl.hh.

◆ intersectBall()

template<class BSPCore >

template<class Callback >

void BSPImplT< BSPCore >::intersectBall	(	const Point &	_c,
		Scalar	_r,
		Callback	_callback
	)		const

intersect mesh with open ball

All triangles that have at least one vertex (!) inside the ball are given to the Callback, triangles which have no vertex inside the ball but intersect it MAY be returned. (TODO) Each triangle can be returned up to three times, make sure to handle this, e.g. by putting the values into an std::(unordered_)set.

Parameters

_c	Center of the ball
_r	Radius of the ball
_callback	Callable that accepts Handle or const Handle&, e.g. (const Handle &h) -> void

Definition at line 178 of file BSPImplT_impl.hh.

◆ nearest()

template<class BSPCore >

BSPImplT< BSPCore >::NearestNeighbor BSPImplT< BSPCore >::nearest ( const Point & _p ) const

Return handle of the nearest neighbor face.

Definition at line 67 of file BSPImplT_impl.hh.

◆ nearestRaycollision()

template<class BSPCore >

BSPImplT< BSPCore >::RayCollision BSPImplT< BSPCore >::nearestRaycollision	(	const Point &	_p,
		const Point &	_r
	)		const

intersect mesh with ray

This function shots a ray through the mesh and determines the first intersected triangle and the handle of the closest face ( directional, so the ray direction is taken into account!).

Only hits with a distance > 0.0 to the point p will be collected (_p will be skipped!). Note that for compatibility reasons the return type is still a vector of collisions.

Parameters

_p	Start point of the ray
_r	Ray direction

Returns: Collision information

Definition at line 161 of file BSPImplT_impl.hh.

◆ raycollision()

template<class BSPCore >

BSPImplT< BSPCore >::RayCollision BSPImplT< BSPCore >::raycollision	(	const Point &	_p,
		const Point &	_r
	)		const

intersect mesh with ray

This function shots a ray through the mesh and collects all intersected triangles and the handle of the closest face ( non-directional, so no matter of the ray direction, the closest face handle is returned in either direction)

Parameters

_p	Start point of the ray
_r	Ray direction

Returns: Collision information

Definition at line 126 of file BSPImplT_impl.hh.

Member Data Documentation

◆ infinity_

template<class BSPCore >

const Scalar BSPImplT< BSPCore >::infinity_

private

Definition at line 209 of file BSPImplT.hh.

The documentation for this class was generated from the following files:

OpenFlipper/libs_required/ACG/Geometry/bsp/BSPImplT.hh
OpenFlipper/libs_required/ACG/Geometry/bsp/BSPImplT_impl.hh
