#include <OpenFlipper/libs_required/ACG/GL/ShaderGenerator.hh>

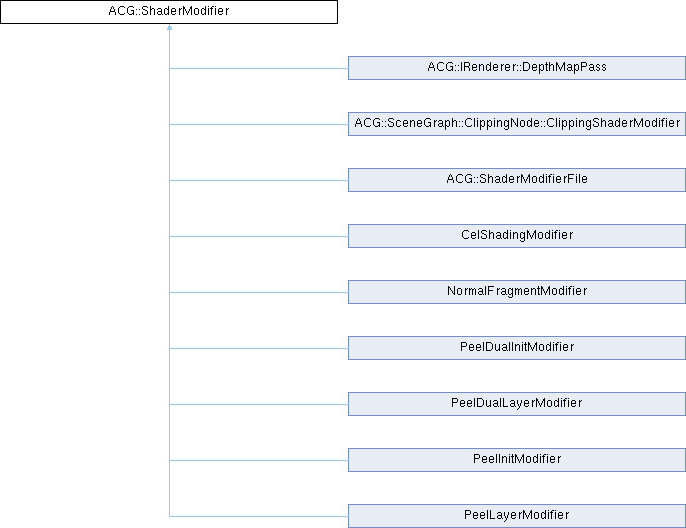

Inheritance diagram for ACG::ShaderModifier:

Public Member Functions
virtual void	modifyVertexIO (ShaderGenerator *_shader)
	Add your own inputs/outputs to the vertex shader. More...

virtual void	modifyVertexBeginCode (QStringList *_code)
	Append code the the vertex shader. More...

virtual void	modifyVertexEndCode (QStringList *_code)
	Append code the the vertex shader. More...

virtual void	modifyGeometryIO (ShaderGenerator *_shader)
	Add your own inputs/outputs to the geometry shader. More...

virtual void	modifyTessControlIO (ShaderGenerator *_shader)
	Add your own inputs/outputs to the tessellation control shader. More...

virtual void	modifyTessEvalIO (ShaderGenerator *_shader)
	Add your own inputs/outputs to the tessellation evaluation shader. More...

virtual void	modifyFragmentIO (ShaderGenerator *_shader)
	Add your own inputs/outputs to the fragment shader. More...

virtual void	modifyFragmentBeginCode (QStringList *_code)
	Append code the the fragment shader. More...

virtual void	modifyFragmentEndCode (QStringList *_code)
	Append code the the fragment shader. More...

virtual void	modifyLightingCode (QStringList *_code, int _lightId, ShaderGenLightType _lightType)
	Modify the default lighting code of the shader generator. More...

virtual bool	replaceDefaultLightingCode ()
	Specify whether this modifier replaces or extends the default lighting code. More...

unsigned int	getID ()
	Returns the modifier ID. More...

	operator std::vector< unsigned int > () const

std::vector< unsigned int >	operator\| (const std::vector< unsigned int > &_v) const

Static Public Member Functions
static ShaderModifier *	loadFromFile (QString _filename)
	Load a modifier from file. More...

Private Attributes
unsigned int	modifierID_

Friends
class	ShaderProgGenerator

Detailed Description

A shader modifier can modify uniforms, in/outputs and glsl code of vertex and fragment shaders. This is useful for global effects like shadow mapping and depth peeling, where only little changes in code are necessary.

Usage:

Derive a new subclass of ShaderModifier and implement necessary modify functions.
Allocate a static instance of your modifier and register it to ShaderProgGenerator to get it's modifier-ID
Create ShaderProgGenerator with a bitwise combination of modifier IDs to activate them.

Example:

// First modifier
class VertexShaderModifier1 : public ACG::ShaderModifier {
public:
  void modifyVertexEndCode(QStringList* _code) {
    _code->push_back("// Vertex End Code Modifier begin");
    _code->push_back("< Some glsl code >  ");
    _code->push_back("// Vertex End Code Modifier end");
  }
  static VertexShaderModifier1 instance;
};
// Static instance required!
VertexShaderModifier YarnVertexShaderModifier::instance;
class VertexShaderModifier2 : public ACG::ShaderModifier {
public:
  void modifyVertexEndCode(QStringList* _code) {
    _code->push_back("// Vertex End Code Modifier 2 begin");
    _code->push_back("< Some glsl code >  ");
    _code->push_back("// Vertex End Code Modifier 2 end");
  }
  static VertexShaderModifier2 instance;
};
VertexShaderModifier2 VertexShaderModifier2::instance;

To use the modifiers, you have to register them to the shader generator:

// Register the modifiers
ACG::ShaderProgGenerator::registerModifier(&VertexShaderModifier::instance);
ACG::ShaderProgGenerator::registerModifier(&VertexShaderModifier2::instance);
// Use them via the shader cache
GLSL::Program* prog = ACG::ShaderCache::getInstance()->getProgram(&shDesc,(VertexShaderModifier::instance.getID() | VertexShaderModifier2::instance.getID() ));

Definition at line 969 of file ShaderGenerator.hh.

Member Function Documentation

◆ getID()

unsigned int ACG::ShaderModifier::getID ( )

inline

Returns the modifier ID.

Returns: Id of the modifier

Definition at line 1132 of file ShaderGenerator.hh.

◆ loadFromFile()

ShaderModifier * ACG::ShaderModifier::loadFromFile ( QString _filename )

static

Load a modifier from file.

Shader Mod text file format:

The file can begin with a glsl version directive (optionally): #version glsl_version

The rest of the file contains glsl code blocks, which are separated by keywords. Each keyword must be at the beginning of a line. Furthermore they end on a colon ':'. The keyword defines the meaning of the following code block.

IO code blocks are specified by the keywords: VertexIO:, TessControlIO:, TessEvalIO:, GeometryIO: and FragmentIO:

example

VertexIO: in vec3 customInputName; out vec3 custumOutputName; uniform vec4 param0;

Shader code modifications are done via the keywords: VertexBeginCode:, VertexEndCode:, FragmentBeginCode: and FragmentEndCode:

The returned modifier should not be deleted manually.

Parameters

_filename absolute or relative (from shaderdir) file name

Returns: pointer to shader modifier, 0 if loading failed

Definition at line 2716 of file ShaderGenerator.cc.

◆ modifyFragmentBeginCode()

virtual void ACG::ShaderModifier::modifyFragmentBeginCode ( QStringList * _code )

inlinevirtual

Append code the the fragment shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here

Parameters

_code string list of shader code.

Reimplemented in ACG::ShaderModifierFile, PeelDualLayerModifier, and PeelLayerModifier.

Definition at line 1085 of file ShaderGenerator.hh.

◆ modifyFragmentEndCode()

virtual void ACG::ShaderModifier::modifyFragmentEndCode ( QStringList * _code )

inlinevirtual

Append code the the fragment shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here.

Parameters

_code string list of shader code.

Reimplemented in ACG::ShaderModifierFile, ACG::IRenderer::DepthMapPass, PeelDualInitModifier, PeelDualLayerModifier, PeelInitModifier, CelShadingModifier, PeelLayerModifier, and NormalFragmentModifier.

Definition at line 1101 of file ShaderGenerator.hh.

◆ modifyFragmentIO()

virtual void ACG::ShaderModifier::modifyFragmentIO ( ShaderGenerator * _shader )

inlinevirtual

Add your own inputs/outputs to the fragment shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");

_shader->addUniform("vec4 shaderParam");

Parameters

_shader shader interface

Reimplemented in ACG::ShaderModifierFile, PeelDualLayerModifier, PeelInitModifier, CelShadingModifier, and PeelLayerModifier.

Definition at line 1069 of file ShaderGenerator.hh.

◆ modifyGeometryIO()

virtual void ACG::ShaderModifier::modifyGeometryIO ( ShaderGenerator * _shader )

inlinevirtual

Add your own inputs/outputs to the geometry shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");

_shader->addUniform("vec4 shaderParam");

Parameters

_shader shader interface

Reimplemented in ACG::ShaderModifierFile.

Definition at line 1030 of file ShaderGenerator.hh.

◆ modifyLightingCode()

virtual void ACG::ShaderModifier::modifyLightingCode	(	QStringList *	_code,
		int	_lightId,
		ShaderGenLightType	_lightType
	)

inlinevirtual

Modify the default lighting code of the shader generator.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify.

Use

_code->push_back("...");

to insert your code here.

Parameters

_code	string list of shader code.
_lightId	light index, use g_vLightDir__{_lightId}, etc. in shader code to use light parameters
_lightType	light type: point, spot or directional light

Reimplemented in CelShadingModifier.

Definition at line 1120 of file ShaderGenerator.hh.

◆ modifyTessControlIO()

virtual void ACG::ShaderModifier::modifyTessControlIO ( ShaderGenerator * _shader )

inlinevirtual

Add your own inputs/outputs to the tessellation control shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");

_shader->addUniform("vec4 shaderParam");

Parameters

_shader shader interface

Reimplemented in ACG::ShaderModifierFile.

Definition at line 1043 of file ShaderGenerator.hh.

◆ modifyTessEvalIO()

virtual void ACG::ShaderModifier::modifyTessEvalIO ( ShaderGenerator * _shader )

inlinevirtual

Add your own inputs/outputs to the tessellation evaluation shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");

_shader->addUniform("vec4 shaderParam");

Parameters

_shader shader interface

Reimplemented in ACG::ShaderModifierFile.

Definition at line 1056 of file ShaderGenerator.hh.

◆ modifyVertexBeginCode()

virtual void ACG::ShaderModifier::modifyVertexBeginCode ( QStringList * _code )

inlinevirtual

Append code the the vertex shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here.

Parameters

_code string list of shader code.

Reimplemented in ACG::ShaderModifierFile.

Definition at line 1002 of file ShaderGenerator.hh.

◆ modifyVertexEndCode()

virtual void ACG::ShaderModifier::modifyVertexEndCode ( QStringList * _code )

inlinevirtual

Append code the the vertex shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here

Parameters

_code string list of shader code.

Reimplemented in ACG::ShaderModifierFile, and ACG::SceneGraph::ClippingNode::ClippingShaderModifier.

Definition at line 1017 of file ShaderGenerator.hh.

◆ modifyVertexIO()

virtual void ACG::ShaderModifier::modifyVertexIO ( ShaderGenerator * _shader )

inlinevirtual

Add your own inputs/outputs to the vertex shader.

Your implementation may look like this:

_shader->addInput("vec4 inTangent");

_shader->addUniform("vec4 shaderParam");

Parameters

_shader shader interface

Reimplemented in ACG::ShaderModifierFile, ACG::SceneGraph::ClippingNode::ClippingShaderModifier, CelShadingModifier, and NormalFragmentModifier.

Definition at line 988 of file ShaderGenerator.hh.

◆ replaceDefaultLightingCode()

virtual bool ACG::ShaderModifier::replaceDefaultLightingCode ( )

inlinevirtual

Specify whether this modifier replaces or extends the default lighting code.

Returns: return false if this modifier modifies an already computed lighting color, return true if this modifier replaces the default lighting color

Reimplemented in CelShadingModifier.

Definition at line 1126 of file ShaderGenerator.hh.

The documentation for this class was generated from the following files:

OpenFlipper/libs_required/ACG/GL/ShaderGenerator.hh
OpenFlipper/libs_required/ACG/GL/ShaderGenerator.cc
