#include <ACG/Scenegraph/StatusNodesT.hh>

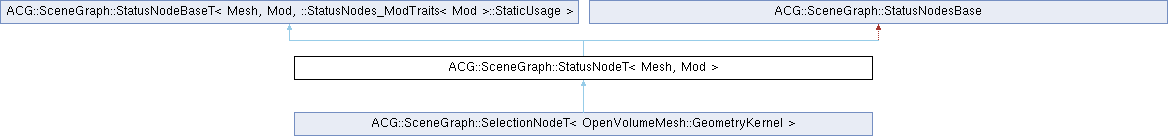

Inheritance diagram for ACG::SceneGraph::StatusNodeT< Mesh, Mod >:

Public Types
typedef StatusNodeBaseT< Mesh, Mod, ::StatusNodes_ModTraits< Mod >::StaticUsage >	BaseClass

typedef Mod	ModType

Public Member Functions
	StatusNodeT (const Mesh &_mesh, BaseNode *_parent=0, const std::string &_name="<StatusNode>")
	constructor More...

virtual	~StatusNodeT ()
	destructor More...

	ACG_CLASSNAME (StatusNode)

void	updateGeometry ()
	set geometry invalid, topology and selection is kept More...

void	updateTopology ()
	set topology invalid (updates everything) More...

void	updateSelection ()
	set selection invalid (Only selection changed, rest is kept) More...

void	setDrawMesh (DrawMeshT< Mesh > *_drawmesh)
	Set drawmesh. More...

void	getRenderObjects (IRenderer _renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const class Material _mat) override
	support for shader-pipeline More...

DrawModes::DrawMode	availableDrawModes () const override

void	boundingBox (Vec3d &_bbMin, Vec3d &_bbMax) override

void	draw (GLState &_state, const DrawModes::DrawMode &_drawMode) override

void	pick (GLState &, PickTarget) override

Private Types
typedef Mesh::Face	Face

typedef Mesh::Vertex	Vertex

typedef Mesh::Halfedge	Halfedge

typedef Mesh::Edge	Edge

typedef Mesh::FaceHandle	FaceHandle

typedef Mesh::HalfedgeHandle	HalfedgeHandle

typedef Mesh::Point	Point

typedef Mesh::Normal	Normal

Private Member Functions
void	update_cache ()

void	draw_points ()

void	draw_edges ()

void	draw_halfedges ()

void	draw_faces (bool _per_vertex)

Point	halfedge_point (const HalfedgeHandle _heh)

void	updateIBOData (GLuint &bufferName_, size_t numberOfElements_, size_t sizeOfElements_, void *data_)

void	updateHEVBOPoints (size_t numberOfElements_, size_t sizeOfElements_, void *data_)

Private Attributes
const Mesh &	mesh_

DrawMeshT< Mesh > *	drawMesh_

std::vector< unsigned int >	v_cache_

std::vector< unsigned int >	e_cache_

std::vector< unsigned int >	f_cache_

std::vector< unsigned int >	poly_cache_

std::vector< FaceHandle >	fh_cache_

std::vector< Point >	he_points_

std::vector< Normal >	he_normals_

Vec3d	bbMin_

Vec3d	bbMax_

bool	invalidGeometry_
	State variables. More...

bool	vertexIndexInvalid_

bool	halfedgeCacheInvalid_

bool	edgeIndexInvalid_

bool	faceIndexInvalid_

VertexDeclaration	pointVertexDecl_

VertexDeclaration	halfedgeVertexDecl_

Private Attributes inherited from ACG::SceneGraph::StatusNodesBase
GLuint	heVBO_

GLuint	eIBO_

GLuint	fIBO_

GLuint	vIBO_

GLuint	pIBO_

Detailed Description

template<class Mesh, class Mod>
class ACG::SceneGraph::StatusNodeT< Mesh, Mod >

Renders Status flags of Mesh Vertices/Faces/Edges

Definition at line 207 of file StatusNodesT.hh.

Member Typedef Documentation

◆ BaseClass

template<class Mesh , class Mod >

typedef StatusNodeBaseT<Mesh, Mod, ::StatusNodes_ModTraits<Mod>::StaticUsage> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::BaseClass

Definition at line 212 of file StatusNodesT.hh.

◆ Edge

template<class Mesh , class Mod >

typedef Mesh::Edge ACG::SceneGraph::StatusNodeT< Mesh, Mod >::Edge

private

Definition at line 272 of file StatusNodesT.hh.

◆ Face

template<class Mesh , class Mod >

typedef Mesh::Face ACG::SceneGraph::StatusNodeT< Mesh, Mod >::Face

private

Definition at line 269 of file StatusNodesT.hh.

◆ FaceHandle

template<class Mesh , class Mod >

typedef Mesh::FaceHandle ACG::SceneGraph::StatusNodeT< Mesh, Mod >::FaceHandle

private

Definition at line 273 of file StatusNodesT.hh.

◆ Halfedge

template<class Mesh , class Mod >

typedef Mesh::Halfedge ACG::SceneGraph::StatusNodeT< Mesh, Mod >::Halfedge

private

Definition at line 271 of file StatusNodesT.hh.

◆ HalfedgeHandle

template<class Mesh , class Mod >

typedef Mesh::HalfedgeHandle ACG::SceneGraph::StatusNodeT< Mesh, Mod >::HalfedgeHandle

private

Definition at line 274 of file StatusNodesT.hh.

◆ ModType

template<class Mesh , class Mod >

typedef Mod ACG::SceneGraph::StatusNodeT< Mesh, Mod >::ModType

Definition at line 213 of file StatusNodesT.hh.

◆ Normal

template<class Mesh , class Mod >

typedef Mesh::Normal ACG::SceneGraph::StatusNodeT< Mesh, Mod >::Normal

private

Definition at line 277 of file StatusNodesT.hh.

◆ Point

template<class Mesh , class Mod >

typedef Mesh::Point ACG::SceneGraph::StatusNodeT< Mesh, Mod >::Point

private

Definition at line 276 of file StatusNodesT.hh.

◆ Vertex

template<class Mesh , class Mod >

typedef Mesh::Vertex ACG::SceneGraph::StatusNodeT< Mesh, Mod >::Vertex

private

Definition at line 270 of file StatusNodesT.hh.

Constructor & Destructor Documentation

◆ StatusNodeT()

template<class Mesh , class Mod >

ACG::SceneGraph::StatusNodeT< Mesh, Mod >::StatusNodeT	(	const Mesh &	_mesh,
		BaseNode *	_parent = `0`,
		const std::string &	_name = `"<StatusNode>"`
	)

constructor

Definition at line 69 of file StatusNodesT_impl.hh.

◆ ~StatusNodeT()

template<class Mesh , class Mod >

virtual ACG::SceneGraph::StatusNodeT< Mesh, Mod >::~StatusNodeT ( )

inlinevirtual

destructor

Definition at line 221 of file StatusNodesT.hh.

Member Function Documentation

◆ availableDrawModes()

template<class Mesh , class Mod >

DrawModes::DrawMode ACG::SceneGraph::StatusNodeT< Mesh, Mod >::availableDrawModes

override

Definition at line 106 of file StatusNodesT_impl.hh.

◆ boundingBox()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::boundingBox	(	Vec3d &	_bbMin,
		Vec3d &	_bbMax
	)

override

Definition at line 93 of file StatusNodesT_impl.hh.

◆ draw()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::draw	(	GLState &	_state,
		const DrawModes::DrawMode &	_drawMode
	)

override

Definition at line 313 of file StatusNodesT_impl.hh.

◆ draw_edges()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::draw_edges

private

Definition at line 462 of file StatusNodesT_impl.hh.

◆ draw_faces()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::draw_faces ( bool _per_vertex )

private

Definition at line 499 of file StatusNodesT_impl.hh.

◆ draw_halfedges()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::draw_halfedges

private

Definition at line 478 of file StatusNodesT_impl.hh.

◆ draw_points()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::draw_points

private

Definition at line 446 of file StatusNodesT_impl.hh.

◆ getRenderObjects()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::getRenderObjects	(	IRenderer *	_renderer,
		GLState &	_state,
		const DrawModes::DrawMode &	_drawMode,
		const class Material *	_mat
	)

override

support for shader-pipeline

Parameters

_renderer	Render-Interface, collector for Renderobjects
_state	current OpenGL state
_drawMode	active Drawmode
_mat	active Material

Definition at line 598 of file StatusNodesT_impl.hh.

◆ halfedge_point()

template<class Mesh , class Mod >

Mesh::Point ACG::SceneGraph::StatusNodeT< Mesh, Mod >::halfedge_point ( const HalfedgeHandle _heh )

private

Definition at line 567 of file StatusNodesT_impl.hh.

◆ pick()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::pick	(	GLState &	,
		PickTarget
	)

inlineoverride

Definition at line 259 of file StatusNodesT.hh.

◆ setDrawMesh()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::setDrawMesh ( DrawMeshT< Mesh > * _drawmesh )

Set drawmesh.

Selections are then rendered with gpu buffers gathered fro the meshnode for improved performance

Parameters

_drawmesh Pointer to the drawmesh for which this status node will work

Definition at line 765 of file StatusNodesT_impl.hh.

◆ update_cache()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::update_cache

private

build/update cache of active vertices/edges/faces. This function automatically enables caching.

Definition at line 121 of file StatusNodesT_impl.hh.

◆ updateGeometry()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::updateGeometry

set geometry invalid, topology and selection is kept

Definition at line 741 of file StatusNodesT_impl.hh.

◆ updateSelection()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::updateSelection

set selection invalid (Only selection changed, rest is kept)

Definition at line 756 of file StatusNodesT_impl.hh.

◆ updateTopology()

template<class Mesh , class Mod >

void ACG::SceneGraph::StatusNodeT< Mesh, Mod >::updateTopology

set topology invalid (updates everything)

Definition at line 747 of file StatusNodesT_impl.hh.

Member Data Documentation

◆ bbMax_

template<class Mesh , class Mod >

Vec3d ACG::SceneGraph::StatusNodeT< Mesh, Mod >::bbMax_

private

Definition at line 302 of file StatusNodesT.hh.

◆ bbMin_

template<class Mesh , class Mod >

Vec3d ACG::SceneGraph::StatusNodeT< Mesh, Mod >::bbMin_

private

Definition at line 301 of file StatusNodesT.hh.

◆ drawMesh_

template<class Mesh , class Mod >

DrawMeshT<Mesh>* ACG::SceneGraph::StatusNodeT< Mesh, Mod >::drawMesh_

private

Definition at line 290 of file StatusNodesT.hh.

◆ e_cache_

template<class Mesh , class Mod >

std::vector<unsigned int> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::e_cache_

private

Definition at line 293 of file StatusNodesT.hh.

◆ edgeIndexInvalid_

template<class Mesh , class Mod >

bool ACG::SceneGraph::StatusNodeT< Mesh, Mod >::edgeIndexInvalid_

private

Definition at line 309 of file StatusNodesT.hh.

◆ f_cache_

template<class Mesh , class Mod >

std::vector<unsigned int> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::f_cache_

private

Definition at line 293 of file StatusNodesT.hh.

◆ faceIndexInvalid_

template<class Mesh , class Mod >

bool ACG::SceneGraph::StatusNodeT< Mesh, Mod >::faceIndexInvalid_

private

Definition at line 310 of file StatusNodesT.hh.

◆ fh_cache_

template<class Mesh , class Mod >

std::vector<FaceHandle> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::fh_cache_

private

Definition at line 294 of file StatusNodesT.hh.

◆ halfedgeCacheInvalid_

template<class Mesh , class Mod >

bool ACG::SceneGraph::StatusNodeT< Mesh, Mod >::halfedgeCacheInvalid_

private

Definition at line 308 of file StatusNodesT.hh.

◆ halfedgeVertexDecl_

template<class Mesh , class Mod >

VertexDeclaration ACG::SceneGraph::StatusNodeT< Mesh, Mod >::halfedgeVertexDecl_

private

Definition at line 315 of file StatusNodesT.hh.

◆ he_normals_

template<class Mesh , class Mod >

std::vector<Normal> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::he_normals_

private

Definition at line 298 of file StatusNodesT.hh.

◆ he_points_

template<class Mesh , class Mod >

std::vector<Point> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::he_points_

private

Definition at line 297 of file StatusNodesT.hh.

◆ invalidGeometry_

template<class Mesh , class Mod >

bool ACG::SceneGraph::StatusNodeT< Mesh, Mod >::invalidGeometry_

private

State variables.

Definition at line 305 of file StatusNodesT.hh.

◆ mesh_

template<class Mesh , class Mod >

const Mesh& ACG::SceneGraph::StatusNodeT< Mesh, Mod >::mesh_

private

Definition at line 289 of file StatusNodesT.hh.

◆ pointVertexDecl_

template<class Mesh , class Mod >

VertexDeclaration ACG::SceneGraph::StatusNodeT< Mesh, Mod >::pointVertexDecl_

private

Definition at line 314 of file StatusNodesT.hh.

◆ poly_cache_

template<class Mesh , class Mod >

std::vector<unsigned int> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::poly_cache_

private

Definition at line 293 of file StatusNodesT.hh.

◆ v_cache_

template<class Mesh , class Mod >

std::vector<unsigned int> ACG::SceneGraph::StatusNodeT< Mesh, Mod >::v_cache_

private

Definition at line 293 of file StatusNodesT.hh.

◆ vertexIndexInvalid_

template<class Mesh , class Mod >

bool ACG::SceneGraph::StatusNodeT< Mesh, Mod >::vertexIndexInvalid_

private

Definition at line 307 of file StatusNodesT.hh.

The documentation for this class was generated from the following files:

OpenFlipper/libs_required/ACG/Scenegraph/StatusNodesT.hh
OpenFlipper/libs_required/ACG/Scenegraph/StatusNodesT_impl.hh

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ Edge

◆ Face

◆ FaceHandle

◆ Halfedge

◆ HalfedgeHandle

◆ ModType

◆ Normal

◆ Point

◆ Vertex

Constructor & Destructor Documentation

◆ StatusNodeT()

◆ ~StatusNodeT()

Member Function Documentation

◆ availableDrawModes()

◆ boundingBox()

◆ draw()

◆ draw_edges()

◆ draw_faces()

◆ draw_halfedges()

◆ draw_points()

◆ getRenderObjects()

◆ halfedge_point()

◆ pick()

◆ setDrawMesh()

◆ update_cache()

◆ updateGeometry()

◆ updateSelection()

◆ updateTopology()

Member Data Documentation

◆ bbMax_

◆ bbMin_

◆ drawMesh_

◆ e_cache_

◆ edgeIndexInvalid_

◆ f_cache_

◆ faceIndexInvalid_

◆ fh_cache_

◆ halfedgeCacheInvalid_

◆ halfedgeVertexDecl_

◆ he_normals_

◆ he_points_

◆ invalidGeometry_

◆ mesh_

◆ pointVertexDecl_

◆ poly_cache_

◆ v_cache_

◆ vertexIndexInvalid_
