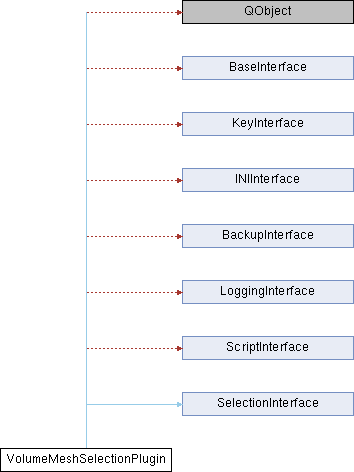

Inheritance diagram for VolumeMeshSelectionPlugin:

Public Slots
void	loadSelection (int _objId, const QString &_filename) override

QString	version () override

Signals
void	updateView () override

void	updatedObject (int, const UpdateType &) override

void	nodeVisibilityChanged (int _identifier) override

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions) override

void	log (Logtype _type, QString _message) override

void	log (QString _message) override

void	scriptInfo (QString _functionName)

void	addSelectionEnvironment (QString _modeName, QString _description, QString _icon, QString &_handleName) override

void	registerType (QString _handleName, DataType _type) override

void	addPrimitiveType (QString _handleName, QString _name, QString _icon, SelectionInterface::PrimitiveType &_typeHandle) override

void	addSelectionOperations (QString _handleName, QStringList _operationsList, QString _category, SelectionInterface::PrimitiveType _type=0u) override

void	addSelectionParameters (QString _handleName, QWidget *_widget, QString _category, SelectionInterface::PrimitiveType _type=0u) override

void	showToggleSelectionMode (QString _handleName, bool _show, SelectionInterface::PrimitiveType _associatedTypes) override

void	showVolumeLassoSelectionMode (QString _handleName, bool _show, SelectionInterface::PrimitiveType _associatedTypes) override

void	showFloodFillSelectionMode (QString _handleName, bool _show, SelectionInterface::PrimitiveType _associatedTypes) override

void	addCustomSelectionMode (QString _handleName, QString _modeName, QString _description, QString _icon, SelectionInterface::PrimitiveType _associatedTypes, QString &_customIdentifier) override

void	getActiveDataTypes (SelectionInterface::TypeList &_types) override

void	getActivePrimitiveType (SelectionInterface::PrimitiveType &_type) override

void	targetObjectsOnly (bool &_targetsOnly) override

void	registerKeyShortcut (int _key, Qt::KeyboardModifiers _modifiers=Qt::NoModifier) override

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from KeyInterface
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeFileScript (QString _filename)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from SelectionInterface
virtual void	addSelectionEnvironment (QString _modeName, QString _description, QString _icon, QString &_handleName)
	Add a selection environment in order to provide selection functions for specific data type(s) More...

virtual void	showToggleSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show toggle selection mode in a specified selection environment. More...

virtual void	addSelectionOperations (QString _handleName, QStringList _operationsList, QString _category, PrimitiveType _type=0u)
	Add non-interactive selection operations for a specific primitive type. More...

virtual void	selectionOperation (QString _operation)
	Emitted by selection base plugin when a non-interactive selection operation is requested. More...

virtual void	registerKeyShortcut (int _key, Qt::KeyboardModifiers _modifiers=Qt::NoModifier)
	Register key shortcut. More...

Public Member Functions
	VolumeMeshSelectionPlugin ()
	Default constructor. More...

	~VolumeMeshSelectionPlugin ()
	Default destructor. More...

void	set_max_angle (const double _a)
	set max angle for flood fill selection More...

double	get_max_angle ()
	get max angle for flood fill selection More...

QString	name () override
	Return a name for the plugin. More...

QString	description () override
	Return a description of what the plugin is doing. More...

Scriptable slots
bool	vertexTypeActive ()
	Is vertex type active? (for use in plugins that need mesh selection) More...

bool	edgeTypeActive ()
	Is vertex type active? (for use in plugins that need mesh selection) More...

bool	faceTypeActive ()
	Is face type active? (for use in plugins that need mesh selection) More...

bool	cellTypeActive ()
	Is cell type active? (for use in plugins that need mesh selection) More...

void	selectAllVertices (int _objectId)
	Select all vertices of a volume mesh. More...

void	deselectAllVertices (int _objectId)
	Deselect all vertices of a volume mesh. More...

void	invertVertexSelection (int _objectId)
	Invert vertex selection. More...

void	selectVertices (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific vertices of a volume mesh. More...

IdList	getVertexSelection (int _objectId)
	Get current vertex selection. More...

void	deleteSelectedVertices (int _objectId, bool _preserveManifoldness=true)
	Delete selected vertices from mesh. More...

void	selectAllEdges (int _objectId)
	Select all edges of a volume mesh. More...

void	deselectAllEdges (int _objectId)
	Deselect all edges of a volume mesh. More...

void	invertEdgeSelection (int _objectId)
	Invert edge selection. More...

void	selectEdges (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific edges of a volume mesh. More...

IdList	getEdgeSelection (int _objectId)
	Get current edge selection. More...

void	deleteSelectedEdges (int _objectId, bool _preserveManifoldness=true)
	Delete selected edges from mesh. More...

void	selectAllHalfEdges (int _objectId)
	Select all half-edges of a volume mesh. More...

void	deselectAllHalfEdges (int _objectId)
	Deselect all half-edges of a volume mesh. More...

void	invertHalfEdgeSelection (int _objectId)
	Invert half-edge selection. More...

void	selectHalfEdges (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific half-edges of a volume mesh. More...

IdList	getHalfEdgeSelection (int _objectId)
	Get current half-edge selection. More...

void	selectAllFaces (int _objectId)
	Select all faces of a volume mesh. More...

void	deselectAllFaces (int _objectId)
	Deselect all faces of a volume mesh. More...

void	invertFaceSelection (int _objectId)
	Invert face selection. More...

void	selectFaces (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific faces of a volume mesh. More...

IdList	getFaceSelection (int _objectId)
	Get current face selection. More...

void	deleteSelectedFaces (int _objectId, bool _preserveManifoldness=true)
	Delete selected faces from mesh. More...

void	selectAllHalfFaces (int _objectId)
	Select all half-faces of a volume mesh. More...

void	deselectAllHalfFaces (int _objectId)
	Deselect all half-faces of a volume mesh. More...

void	invertHalfFaceSelection (int _objectId)
	Invert half-face selection. More...

void	selectHalfFaces (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific half-faces of a volume mesh. More...

IdList	getHalfFaceSelection (int _objectId)
	Get current half-face selection. More...

void	selectAllCells (int _objectId)
	Select all cells of a volume mesh. More...

void	deselectAllCells (int _objectId)
	Deselect all cells of a volume mesh. More...

void	invertCellSelection (int _objectId)
	Invert cell selection. More...

void	selectCells (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific cells of a volume mesh. More...

IdList	getCellSelection (int _objectId)
	Get current cell selection. More...

void	deleteSelectedCells (int _objectId, bool _preserveManifoldness=true)
	Delete selected cells from mesh. More...

Private Slots
void	loadIniFile (INIFile &_ini, int _id) override

void	saveIniFile (INIFile &_ini, int _id) override

void	initializePlugin () override

void	pluginsInitialized () override

void	noguiSupported () override

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from KeyInterface
virtual void	slotKeyEvent (QKeyEvent *_event)
	Key Event from Main App. More...

Private Slots inherited from SelectionInterface
virtual void	loadSelection (int _objId, const QString &_filename)
	Scripting slot for loading selections. More...

Private Member Functions
void	slotSelectionOperation (QString _operation) override
	A specific operation is requested. More...

void	slotToggleSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, bool _deselect) override
	Called whenever the user performs a toggle selection. More...

void	slotVolumeLassoSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, bool _deselect) override
	Called whenever the user performs a volume lasso selection. More...

void	slotFloodFillSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, bool _deselect) override
	Called whenever the user performs a flood fill selection. More...

void	slotCustomSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, QString _customIdentifier, bool _deselect) override
	Called whenever the user performs a custom selection. More...

void	slotLoadSelection (const INIFile &_file) override
	Load selection for specific objects in the scene. More...

void	slotSaveSelection (INIFile &_file) override
	Save selection for all objects in the scene. More...

void	slotKeyShortcutEvent (int _key, Qt::KeyboardModifiers _modifiers) override
	One of the previously registered keys has been pressed. More...

Private methods
void	updateSlotDescriptions ()
	Set slot descriptions for scripting functions. More...

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor. More...

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from KeyInterface
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor. More...

Private Member Functions inherited from INIInterface
virtual	~INIInterface ()
	Destructor. More...

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor. More...

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor. More...

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor. More...

virtual void	showScriptInEditor (QString _filename)

virtual void	executeScript (QString _script)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from SelectionInterface
virtual	~SelectionInterface ()
	Destructor. More...

virtual void	registerType (QString _handleName, DataType _type)
	Register data type for a selection environment. More...

virtual void	addPrimitiveType (QString _handleName, QString _name, QString _icon, PrimitiveType &_typeHandle)
	Provide selection for primitives other than the standard ones. More...

virtual void	showLassoSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show lasso selection mode in a specified selection environment. More...

virtual void	showVolumeLassoSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show volume lasso selection mode in a specified selection environment. More...

virtual void	showSurfaceLassoSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show surface lasso selection mode in a specified selection environment. More...

virtual void	showSphereSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show sphere selection mode in a specified selection environment. More...

virtual void	showClosestBoundarySelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show closest boundary selection mode in a specified selection environment. More...

virtual void	showFloodFillSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show flood fill selection mode in a specified selection environment. More...

virtual void	showComponentsSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show connected components selection mode in a specified selection environment. More...

virtual void	addCustomSelectionMode (QString _handleName, QString _modeName, QString _description, QString _icon, PrimitiveType _associatedTypes, QString &_customIdentifier)
	Add a custom interactive selection mode. More...

virtual void	addCustomSelectionMode (QString _handleName, QString _modeName, QString _description, QString _icon, PrimitiveType _associatedTypes, QString &_customIdentifier, DataType _objectTypeRestriction)
	Add a custom interactive selection mode. More...

virtual void	getActiveDataTypes (TypeList &_types)
	Get the data types that the currently active selection environment supports. More...

virtual void	getActivePrimitiveType (PrimitiveType &_type)
	Get the primitive type that is selected. More...

virtual void	targetObjectsOnly (bool &_targetsOnly)
	Indicates whether selection should be performed on target objects only. More...

virtual void	addSelectionParameters (QString _handleName, QWidget *_widget, QString _category, PrimitiveType _type=0u)
	Add interactive selection parameters for a specific primitive type. More...

virtual void	toggleSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a toggle selection. More...

virtual void	lassoSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a lasso selection. More...

virtual void	volumeLassoSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a volume lasso selection. More...

virtual void	surfaceLassoSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a surface lasso selection. More...

virtual void	sphereSelection (QMouseEvent *_event, double _radius, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a sphere selection. More...

virtual void	closestBoundarySelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a closest boundary selection. More...

virtual void	floodFillSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a flood fill selection. More...

virtual void	componentsSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a connected components selection. More...

virtual void	customSelection (QMouseEvent *_event, PrimitiveType _currentType, QString _customIdentifier, bool _deselect)
	Emitted by selection base plugin whenever the user performs a custom selection. More...

virtual void	loadSelection (const INIFile &_file)
	Load selections from ini-file. More...

virtual void	saveSelection (INIFile &_file)
	Save selections into ini-file. More...

virtual void	keyShortcutEvent (int _key, Qt::KeyboardModifiers _modifiers=Qt::NoModifier)
	Key shortcut event happened. More...

Friends
class	SelectVolumeAction

Member variables
typedef std::pair< OpenVolumeMesh::HalfFaceHandle, OpenVolumeMesh::HalfFaceHandle >	HFPair
	Handle to selection environment. More...

QString	environmentHandle_
	Handle to selection environment. More...

QString	columnSelectionHandle_
	Handle to selection environment. More...

QString	sheetSelectionHandle_
	Handle to selection environment. More...

PrimitiveType	vertexType_
	Primitive type handles: More...

PrimitiveType	edgeType_
	Handle to selection environment. More...

PrimitiveType	faceType_
	Handle to selection environment. More...

PrimitiveType	cellType_
	Handle to selection environment. More...

PrimitiveType	allSupportedTypes_
	Handle to selection environment. More...

PrimitiveType	floodFillSupportedTypes_
	Handle to selection environment. More...

VolMeshParamWidget *	parameterWidget_
	Handle to selection environment. More...

double	max_angle_
	Handle to selection environment. More...

QVector< QPoint >	volumeLassoPoints_
	Keep volume lasso points. More...

OpenVolumeMesh::CellHandle	lastPickedCell_
	Handle to selection environment. More...

unsigned char	lastPickedOrientation_
	Handle to selection environment. More...

std::map< OpenVolumeMesh::CellHandle, unsigned char >	orientationMap_
	Handle to selection environment. More...

template<class MeshT >
bool	volumeSelection (MeshT _mesh, ACG::GLState &_state, QRegion _region, PrimitiveType _primitiveTypes, bool _deselection)
	Surface volume selection tool. More...

template<class MeshT >
void	floodFillSelection (MeshT *_mesh, uint _fh, double _maxAngle, PrimitiveType _primitiveTypes, bool _deselection)
	Select all entities that are connected (and do not exceed the maximum dihedral angle) More...

unsigned char	getOrthogonalOrientationOfNeighborCell (const OpenVolumeMesh::CellHandle &_ch1, const OpenVolumeMesh::CellHandle &_ch2, unsigned char _firstOrthDirection, const HexahedralMesh *_mesh) const
	Handle to selection environment. More...

HFPair	getCommonFace (const OpenVolumeMesh::CellHandle &_ch1, const OpenVolumeMesh::CellHandle &_ch2, const HexahedralMesh *_mesh) const
	Handle to selection environment. More...

OpenVolumeMesh::StatusAttrib *	getStatus (int _objectId)
	Handle to selection environment. More...

OpenVolumeMesh::StatusAttrib *	getStatus (BaseObjectData *object)
	Handle to selection environment. More...

Additional Inherited Members
Private Types inherited from SelectionInterface
typedef std::vector< DataType >	TypeList

typedef unsigned int	PrimitiveType

Detailed Description

Definition at line 69 of file VolumeMeshSelectionPlugin.hh.

Member Typedef Documentation

◆ HFPair

typedef std::pair<OpenVolumeMesh::HalfFaceHandle,OpenVolumeMesh::HalfFaceHandle> VolumeMeshSelectionPlugin::HFPair

private

Handle to selection environment.

Definition at line 345 of file VolumeMeshSelectionPlugin.hh.

Constructor & Destructor Documentation

◆ VolumeMeshSelectionPlugin()

VolumeMeshSelectionPlugin::VolumeMeshSelectionPlugin ( )

Default constructor.

Definition at line 81 of file VolumeMeshSelectionPlugin.cc.

◆ ~VolumeMeshSelectionPlugin()

VolumeMeshSelectionPlugin::~VolumeMeshSelectionPlugin ( )

Default destructor.

Definition at line 88 of file VolumeMeshSelectionPlugin.cc.

Member Function Documentation

◆ cellTypeActive()

bool VolumeMeshSelectionPlugin::cellTypeActive ( )

Is cell type active? (for use in plugins that need mesh selection)

Definition at line 225 of file VolumeMeshSelectionPlugin.cc.

◆ deleteSelectedCells()

void VolumeMeshSelectionPlugin::deleteSelectedCells	(	int	_objectId,
		bool	_preserveManifoldness = `true`
	)

Delete selected cells from mesh.

Definition at line 894 of file VolumeMeshSelectionFunctions.cc.

◆ deleteSelectedEdges()

void VolumeMeshSelectionPlugin::deleteSelectedEdges	(	int	_objectId,
		bool	_preserveManifoldness = `true`
	)

Delete selected edges from mesh.

Definition at line 329 of file VolumeMeshSelectionFunctions.cc.

◆ deleteSelectedFaces()

void VolumeMeshSelectionPlugin::deleteSelectedFaces	(	int	_objectId,
		bool	_preserveManifoldness = `true`
	)

Delete selected faces from mesh.

Definition at line 612 of file VolumeMeshSelectionFunctions.cc.

◆ deleteSelectedVertices()

void VolumeMeshSelectionPlugin::deleteSelectedVertices	(	int	_objectId,
		bool	_preserveManifoldness = `true`
	)

Delete selected vertices from mesh.

Definition at line 175 of file VolumeMeshSelectionFunctions.cc.

◆ description()

QString VolumeMeshSelectionPlugin::description ( )

inlineoverridevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 170 of file VolumeMeshSelectionPlugin.hh.

◆ deselectAllCells()

void VolumeMeshSelectionPlugin::deselectAllCells ( int _objectId )

Deselect all cells of a volume mesh.

Definition at line 791 of file VolumeMeshSelectionFunctions.cc.

◆ deselectAllEdges()

void VolumeMeshSelectionPlugin::deselectAllEdges ( int _objectId )

Deselect all edges of a volume mesh.

Definition at line 226 of file VolumeMeshSelectionFunctions.cc.

◆ deselectAllFaces()

void VolumeMeshSelectionPlugin::deselectAllFaces ( int _objectId )

Deselect all faces of a volume mesh.

Definition at line 509 of file VolumeMeshSelectionFunctions.cc.

◆ deselectAllHalfEdges()

void VolumeMeshSelectionPlugin::deselectAllHalfEdges ( int _objectId )

Deselect all half-edges of a volume mesh.

Definition at line 380 of file VolumeMeshSelectionFunctions.cc.

◆ deselectAllHalfFaces()

void VolumeMeshSelectionPlugin::deselectAllHalfFaces ( int _objectId )

Deselect all half-faces of a volume mesh.

Definition at line 663 of file VolumeMeshSelectionFunctions.cc.

◆ deselectAllVertices()

void VolumeMeshSelectionPlugin::deselectAllVertices ( int _objectId )

Deselect all vertices of a volume mesh.

Definition at line 72 of file VolumeMeshSelectionFunctions.cc.

◆ edgeTypeActive()

bool VolumeMeshSelectionPlugin::edgeTypeActive ( )

Is vertex type active? (for use in plugins that need mesh selection)

Definition at line 213 of file VolumeMeshSelectionPlugin.cc.

◆ faceTypeActive()

bool VolumeMeshSelectionPlugin::faceTypeActive ( )

Is face type active? (for use in plugins that need mesh selection)

Definition at line 219 of file VolumeMeshSelectionPlugin.cc.

◆ floodFillSelection()

template<class MeshT >

void VolumeMeshSelectionPlugin::floodFillSelection	(	MeshT *	_mesh,
		uint	_fh,
		double	_maxAngle,
		PrimitiveType	_primitiveTypes,
		bool	_deselection
	)

private

Select all entities that are connected (and do not exceed the maximum dihedral angle)

Select all primitves of a planar region surrounding the faceHandle.

Parameters

_mesh	a mesh
_fh	handle of the face that was picked
_maxAngle	the maximum dihedral angle over which the flood fill selection passes
_primitiveTypes	the currently active primitive types
_deselection	true if primitives should be deselected

Definition at line 150 of file VolumeMeshSelectionPluginT_impl.hh.

◆ get_max_angle()

double VolumeMeshSelectionPlugin::get_max_angle ( )

get max angle for flood fill selection

Definition at line 858 of file VolumeMeshSelectionPlugin.cc.

◆ getCellSelection()

IdList VolumeMeshSelectionPlugin::getCellSelection ( int _objectId )

Get current cell selection.

Definition at line 869 of file VolumeMeshSelectionFunctions.cc.

◆ getCommonFace()

VolumeMeshSelectionPlugin::HFPair VolumeMeshSelectionPlugin::getCommonFace	(	const OpenVolumeMesh::CellHandle &	_ch1,
		const OpenVolumeMesh::CellHandle &	_ch2,
		const HexahedralMesh *	_mesh
	)		const

private

Handle to selection environment.

Definition at line 791 of file VolumeMeshSelectionPlugin.cc.

◆ getEdgeSelection()

IdList VolumeMeshSelectionPlugin::getEdgeSelection ( int _objectId )

Get current edge selection.

Definition at line 304 of file VolumeMeshSelectionFunctions.cc.

◆ getFaceSelection()

IdList VolumeMeshSelectionPlugin::getFaceSelection ( int _objectId )

Get current face selection.

Definition at line 587 of file VolumeMeshSelectionFunctions.cc.

◆ getHalfEdgeSelection()

IdList VolumeMeshSelectionPlugin::getHalfEdgeSelection ( int _objectId )

Get current half-edge selection.

Definition at line 458 of file VolumeMeshSelectionFunctions.cc.

◆ getHalfFaceSelection()

IdList VolumeMeshSelectionPlugin::getHalfFaceSelection ( int _objectId )

Get current half-face selection.

Definition at line 741 of file VolumeMeshSelectionFunctions.cc.

◆ getOrthogonalOrientationOfNeighborCell()

unsigned char VolumeMeshSelectionPlugin::getOrthogonalOrientationOfNeighborCell	(	const OpenVolumeMesh::CellHandle &	_ch1,
		const OpenVolumeMesh::CellHandle &	_ch2,
		unsigned char	_firstOrthDirection,
		const HexahedralMesh *	_mesh
	)		const

private

Handle to selection environment.

Definition at line 760 of file VolumeMeshSelectionPlugin.cc.

◆ getStatus() [1/2]

OpenVolumeMesh::StatusAttrib * VolumeMeshSelectionPlugin::getStatus ( BaseObjectData * object )

private

Handle to selection environment.

Definition at line 833 of file VolumeMeshSelectionPlugin.cc.

◆ getStatus() [2/2]

OpenVolumeMesh::StatusAttrib * VolumeMeshSelectionPlugin::getStatus ( int _objectId )

private

Handle to selection environment.

Definition at line 811 of file VolumeMeshSelectionPlugin.cc.

◆ getVertexSelection()

IdList VolumeMeshSelectionPlugin::getVertexSelection ( int _objectId )

Get current vertex selection.

Definition at line 150 of file VolumeMeshSelectionFunctions.cc.

◆ initializePlugin

void VolumeMeshSelectionPlugin::initializePlugin ( )

overrideprivateslot

Definition at line 93 of file VolumeMeshSelectionPlugin.cc.

◆ invertCellSelection()

void VolumeMeshSelectionPlugin::invertCellSelection ( int _objectId )

Invert cell selection.

Definition at line 814 of file VolumeMeshSelectionFunctions.cc.

◆ invertEdgeSelection()

void VolumeMeshSelectionPlugin::invertEdgeSelection ( int _objectId )

Invert edge selection.

Definition at line 249 of file VolumeMeshSelectionFunctions.cc.

◆ invertFaceSelection()

void VolumeMeshSelectionPlugin::invertFaceSelection ( int _objectId )

Invert face selection.

Definition at line 532 of file VolumeMeshSelectionFunctions.cc.

◆ invertHalfEdgeSelection()

void VolumeMeshSelectionPlugin::invertHalfEdgeSelection ( int _objectId )

Invert half-edge selection.

Definition at line 403 of file VolumeMeshSelectionFunctions.cc.

◆ invertHalfFaceSelection()

void VolumeMeshSelectionPlugin::invertHalfFaceSelection ( int _objectId )

Invert half-face selection.

Definition at line 686 of file VolumeMeshSelectionFunctions.cc.

◆ invertVertexSelection()

void VolumeMeshSelectionPlugin::invertVertexSelection ( int _objectId )

Invert vertex selection.

Definition at line 95 of file VolumeMeshSelectionFunctions.cc.

◆ loadIniFile

void VolumeMeshSelectionPlugin::loadIniFile	(	INIFile &	_ini,
		int	_id
	)

overrideprivateslot

Definition at line 881 of file VolumeMeshSelectionPlugin.cc.

◆ loadSelection

void VolumeMeshSelectionPlugin::loadSelection	(	int	_objId,
		const QString &	_filename
	)

overrideslot

Definition at line 865 of file VolumeMeshSelectionPlugin.cc.

◆ name()

QString VolumeMeshSelectionPlugin::name ( )

inlineoverridevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 166 of file VolumeMeshSelectionPlugin.hh.

◆ noguiSupported

void VolumeMeshSelectionPlugin::noguiSupported ( )

inlineoverrideprivateslot

Definition at line 143 of file VolumeMeshSelectionPlugin.hh.

◆ pluginsInitialized

void VolumeMeshSelectionPlugin::pluginsInitialized ( )

overrideprivateslot

Definition at line 103 of file VolumeMeshSelectionPlugin.cc.

◆ saveIniFile

void VolumeMeshSelectionPlugin::saveIniFile	(	INIFile &	_ini,
		int	_id
	)

overrideprivateslot

Definition at line 926 of file VolumeMeshSelectionPlugin.cc.

◆ selectAllCells()

void VolumeMeshSelectionPlugin::selectAllCells ( int _objectId )

Select all cells of a volume mesh.

Definition at line 768 of file VolumeMeshSelectionFunctions.cc.

◆ selectAllEdges()

void VolumeMeshSelectionPlugin::selectAllEdges ( int _objectId )

Select all edges of a volume mesh.

Definition at line 203 of file VolumeMeshSelectionFunctions.cc.

◆ selectAllFaces()

void VolumeMeshSelectionPlugin::selectAllFaces ( int _objectId )

Select all faces of a volume mesh.

Definition at line 486 of file VolumeMeshSelectionFunctions.cc.

◆ selectAllHalfEdges()

void VolumeMeshSelectionPlugin::selectAllHalfEdges ( int _objectId )

Select all half-edges of a volume mesh.

Definition at line 357 of file VolumeMeshSelectionFunctions.cc.

◆ selectAllHalfFaces()

void VolumeMeshSelectionPlugin::selectAllHalfFaces ( int _objectId )

Select all half-faces of a volume mesh.

Definition at line 640 of file VolumeMeshSelectionFunctions.cc.

◆ selectAllVertices()

void VolumeMeshSelectionPlugin::selectAllVertices ( int _objectId )

Select all vertices of a volume mesh.

Definition at line 49 of file VolumeMeshSelectionFunctions.cc.

◆ selectCells()

void VolumeMeshSelectionPlugin::selectCells	(	int	_objectId,
		const IdList &	_ids,
		bool	_deselect = `false`
	)

Select specific cells of a volume mesh.

Definition at line 837 of file VolumeMeshSelectionFunctions.cc.

◆ selectEdges()

void VolumeMeshSelectionPlugin::selectEdges	(	int	_objectId,
		const IdList &	_ids,
		bool	_deselect = `false`
	)

Select specific edges of a volume mesh.

Definition at line 272 of file VolumeMeshSelectionFunctions.cc.

◆ selectFaces()

void VolumeMeshSelectionPlugin::selectFaces	(	int	_objectId,
		const IdList &	_ids,
		bool	_deselect = `false`
	)

Select specific faces of a volume mesh.

Definition at line 555 of file VolumeMeshSelectionFunctions.cc.

◆ selectHalfEdges()

void VolumeMeshSelectionPlugin::selectHalfEdges	(	int	_objectId,
		const IdList &	_ids,
		bool	_deselect = `false`
	)

Select specific half-edges of a volume mesh.

Definition at line 426 of file VolumeMeshSelectionFunctions.cc.

◆ selectHalfFaces()

void VolumeMeshSelectionPlugin::selectHalfFaces	(	int	_objectId,
		const IdList &	_ids,
		bool	_deselect = `false`
	)

Select specific half-faces of a volume mesh.

Definition at line 709 of file VolumeMeshSelectionFunctions.cc.

◆ selectVertices()

void VolumeMeshSelectionPlugin::selectVertices	(	int	_objectId,
		const IdList &	_ids,
		bool	_deselect = `false`
	)

Select specific vertices of a volume mesh.

Definition at line 118 of file VolumeMeshSelectionFunctions.cc.

◆ set_max_angle()

void VolumeMeshSelectionPlugin::set_max_angle ( const double _a )

set max angle for flood fill selection

Definition at line 853 of file VolumeMeshSelectionPlugin.cc.

◆ slotCustomSelection()

void VolumeMeshSelectionPlugin::slotCustomSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		QString	_customIdentifier,
		bool	_deselect
	)

overrideprivatevirtual

Called whenever the user performs a custom selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided.

Parameters

_event	The mouse event that currently is performed
_currentType	The currently active primitive type
_customIdentifier	Holds the identifier of the custom selection modes
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 606 of file VolumeMeshSelectionPlugin.cc.

◆ slotFloodFillSelection()

void VolumeMeshSelectionPlugin::slotFloodFillSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		bool	_deselect
	)

overrideprivatevirtual

Called whenever the user performs a flood fill selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided. The metaphor behind it is that the user clicks on an object and all primitives close to this point get selected, if the angle between the clicked point and the next point does not differ more than the specified angle.

Parameters

_event	The mouse event that currently is performed
_currentType	The currently active primitive type
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 491 of file VolumeMeshSelectionPlugin.cc.

◆ slotKeyShortcutEvent()

void VolumeMeshSelectionPlugin::slotKeyShortcutEvent	(	int	_key,
		Qt::KeyboardModifiers	_modifiers
	)

overrideprivatevirtual

One of the previously registered keys has been pressed.

This slot is called whenever the user has pressed one of the registered keys. Note that this is actually handled by the selection base plugin since the different plugins might want to register the same key multiple times.

Parameters

_key	The pressed key
_modifiers	Indicates whether mod-keys have been pressed synchronously

Reimplemented from SelectionInterface.

Definition at line 1026 of file VolumeMeshSelectionPlugin.cc.

◆ slotLoadSelection()

void VolumeMeshSelectionPlugin::slotLoadSelection ( const INIFile & _file )

overrideprivatevirtual

Load selection for specific objects in the scene.

OpenFlipper allows for saving of selections in an INI file (implemented by the different selection plugins by overriding function slotSaveSelection()). So this slot is called each time such INI file is about to be loaded.

Parameters

_file The file from which one can read the selection data

Reimplemented from SelectionInterface.

Definition at line 949 of file VolumeMeshSelectionPlugin.cc.

◆ slotSaveSelection()

void VolumeMeshSelectionPlugin::slotSaveSelection ( INIFile & _file )

overrideprivatevirtual

Save selection for all objects in the scene.

Override this slot in order to save selections for a specific data type. These selections are then stored within an INI file and can be loaded via slotLoadSelection().

Parameters

_file The file into which one can store selection data

Reimplemented from SelectionInterface.

Definition at line 998 of file VolumeMeshSelectionPlugin.cc.

◆ slotSelectionOperation()

void VolumeMeshSelectionPlugin::slotSelectionOperation ( QString _operation )

overrideprivatevirtual

A specific operation is requested.

This slot is called each time the user has pressed one of the operations buttons (for the various primitive types) offered in the tool box.

Parameters

_operation The identifier of the operation just as registered via addSelectionOperations

Reimplemented from SelectionInterface.

Definition at line 233 of file VolumeMeshSelectionPlugin.cc.

◆ slotToggleSelection()

void VolumeMeshSelectionPlugin::slotToggleSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		bool	_deselect
	)

overrideprivatevirtual

Called whenever the user performs a toggle selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided.

Parameters

_event	The mouse event that occurred
_currentType	The currently active primitive type
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 353 of file VolumeMeshSelectionPlugin.cc.

◆ slotVolumeLassoSelection()

void VolumeMeshSelectionPlugin::slotVolumeLassoSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		bool	_deselect
	)

overrideprivatevirtual

Called whenever the user performs a volume lasso selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided. The metaphor behind it is that the user draws a polygonal line and all primitives which are insinde the volume spanned by the eye position and the polygon get selected.

Parameters

_event	The mouse event that currently is performed
_currentType	The currently active primitive type
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 462 of file VolumeMeshSelectionPlugin.cc.

◆ updateSlotDescriptions()

void VolumeMeshSelectionPlugin::updateSlotDescriptions ( )

private

Set slot descriptions for scripting functions.

Definition at line 198 of file VolumeMeshSelectionPlugin.cc.

◆ version

QString VolumeMeshSelectionPlugin::version ( )

inlineoverrideslot

Definition at line 187 of file VolumeMeshSelectionPlugin.hh.

◆ vertexTypeActive()

bool VolumeMeshSelectionPlugin::vertexTypeActive ( )

Is vertex type active? (for use in plugins that need mesh selection)

Definition at line 207 of file VolumeMeshSelectionPlugin.cc.

◆ volumeSelection()

template<class MeshT >

bool VolumeMeshSelectionPlugin::volumeSelection	(	MeshT *	_mesh,
		ACG::GLState &	_state,
		QRegion *	_region,
		PrimitiveType	_primitiveType,
		bool	_deselection
	)

private

Surface volume selection tool.

Select all primitives that are entirely projected to the given region.

Parameters

_mesh	a mesh
_state	current gl state
_region	region
_primitiveType	primitive types to be selected
_deselection	true, if entities should be deselected

Returns: true, if something was selected

Definition at line 60 of file VolumeMeshSelectionPluginT_impl.hh.

Friends And Related Function Documentation

◆ SelectVolumeAction

friend class SelectVolumeAction

friend

Definition at line 91 of file VolumeMeshSelectionPlugin.hh.

Member Data Documentation

◆ allSupportedTypes_

PrimitiveType VolumeMeshSelectionPlugin::allSupportedTypes_

private

Handle to selection environment.

Definition at line 365 of file VolumeMeshSelectionPlugin.hh.

◆ cellType_

PrimitiveType VolumeMeshSelectionPlugin::cellType_

private

Handle to selection environment.

Definition at line 363 of file VolumeMeshSelectionPlugin.hh.

◆ columnSelectionHandle_

QString VolumeMeshSelectionPlugin::columnSelectionHandle_

private

Handle to selection environment.

Definition at line 356 of file VolumeMeshSelectionPlugin.hh.

◆ edgeType_

PrimitiveType VolumeMeshSelectionPlugin::edgeType_

private

Handle to selection environment.

Definition at line 361 of file VolumeMeshSelectionPlugin.hh.

◆ environmentHandle_

QString VolumeMeshSelectionPlugin::environmentHandle_

private

Handle to selection environment.

Definition at line 354 of file VolumeMeshSelectionPlugin.hh.

◆ faceType_

PrimitiveType VolumeMeshSelectionPlugin::faceType_

private

Handle to selection environment.

Definition at line 362 of file VolumeMeshSelectionPlugin.hh.

◆ floodFillSupportedTypes_

PrimitiveType VolumeMeshSelectionPlugin::floodFillSupportedTypes_

private

Handle to selection environment.

Definition at line 366 of file VolumeMeshSelectionPlugin.hh.

◆ lastPickedCell_

OpenVolumeMesh::CellHandle VolumeMeshSelectionPlugin::lastPickedCell_

private

Handle to selection environment.

Definition at line 376 of file VolumeMeshSelectionPlugin.hh.

◆ lastPickedOrientation_

unsigned char VolumeMeshSelectionPlugin::lastPickedOrientation_

private

Handle to selection environment.

Definition at line 377 of file VolumeMeshSelectionPlugin.hh.

◆ max_angle_

double VolumeMeshSelectionPlugin::max_angle_

private

Handle to selection environment.

Definition at line 370 of file VolumeMeshSelectionPlugin.hh.

◆ orientationMap_

std::map<OpenVolumeMesh::CellHandle, unsigned char> VolumeMeshSelectionPlugin::orientationMap_

private

Handle to selection environment.

Definition at line 378 of file VolumeMeshSelectionPlugin.hh.

◆ parameterWidget_

VolMeshParamWidget* VolumeMeshSelectionPlugin::parameterWidget_

private

Handle to selection environment.

Definition at line 368 of file VolumeMeshSelectionPlugin.hh.

◆ sheetSelectionHandle_

QString VolumeMeshSelectionPlugin::sheetSelectionHandle_

private

Handle to selection environment.

Definition at line 357 of file VolumeMeshSelectionPlugin.hh.

◆ vertexType_

PrimitiveType VolumeMeshSelectionPlugin::vertexType_

private

Primitive type handles:

Definition at line 360 of file VolumeMeshSelectionPlugin.hh.

◆ volumeLassoPoints_

QVector<QPoint> VolumeMeshSelectionPlugin::volumeLassoPoints_

private

Keep volume lasso points.

Definition at line 373 of file VolumeMeshSelectionPlugin.hh.

The documentation for this class was generated from the following files:

PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionPlugin.hh
PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionFunctions.cc
PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionPlugin.cc
PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionPluginT_impl.hh

Public Slots

Signals

Public Member Functions

Private Slots

Private Member Functions

Friends

Member variables

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ HFPair

Constructor & Destructor Documentation

◆ VolumeMeshSelectionPlugin()

◆ ~VolumeMeshSelectionPlugin()

Member Function Documentation

◆ cellTypeActive()

◆ deleteSelectedCells()

◆ deleteSelectedEdges()

◆ deleteSelectedFaces()

◆ deleteSelectedVertices()

◆ description()

◆ deselectAllCells()

◆ deselectAllEdges()

◆ deselectAllFaces()

◆ deselectAllHalfEdges()

◆ deselectAllHalfFaces()

◆ deselectAllVertices()

◆ edgeTypeActive()

◆ faceTypeActive()

◆ floodFillSelection()

◆ get_max_angle()

◆ getCellSelection()

◆ getCommonFace()

◆ getEdgeSelection()

◆ getFaceSelection()

◆ getHalfEdgeSelection()

◆ getHalfFaceSelection()

◆ getOrthogonalOrientationOfNeighborCell()

◆ getStatus() [1/2]

◆ getStatus() [2/2]

◆ getVertexSelection()

◆ initializePlugin

◆ invertCellSelection()

◆ invertEdgeSelection()

◆ invertFaceSelection()

◆ invertHalfEdgeSelection()

◆ invertHalfFaceSelection()

◆ invertVertexSelection()

◆ loadIniFile

◆ loadSelection

◆ name()

◆ noguiSupported

◆ pluginsInitialized

◆ saveIniFile

◆ selectAllCells()

◆ selectAllEdges()

◆ selectAllFaces()

◆ selectAllHalfEdges()

◆ selectAllHalfFaces()

◆ selectAllVertices()

◆ selectCells()

◆ selectEdges()

◆ selectFaces()

◆ selectHalfEdges()

◆ selectHalfFaces()

◆ selectVertices()

◆ set_max_angle()

◆ slotCustomSelection()

◆ slotFloodFillSelection()

◆ slotKeyShortcutEvent()

◆ slotLoadSelection()

◆ slotSaveSelection()

◆ slotSelectionOperation()

◆ slotToggleSelection()

◆ slotVolumeLassoSelection()

◆ updateSlotDescriptions()

◆ version

◆ vertexTypeActive()

◆ volumeSelection()

Friends And Related Function Documentation
