VSI::Text Class Reference

#include <Plugin-VSI/scene/text.hh>

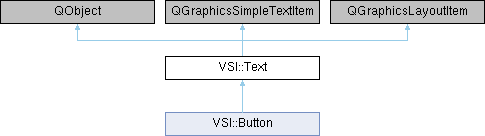

Inheritance diagram for VSI::Text:

Public Member Functions
	Text (QGraphicsItem *_parent=0)
	Constructor. More...
	Text (const QString &_text, QGraphicsItem *_parent=0)
	Constructor. More...
	~Text ()
	Destrucotr. More...
virtual void	setGeometry (const QRectF &_rect)
	Sets the geometry. More...
QPainterPath	shape () const
	Returns the shape for proper repainting/event handling. More...
virtual void	paint (QPainter *_painter, const QStyleOptionGraphicsItem *_option, QWidget *_widget=0)
	Background painting. More...
virtual QRectF	boundingRect () const
	Bounding rectangle. More...
QBrush	backgroundBrush ()
	Returns the current background brush. More...
virtual void	setBackgroundBrush (QBrush _brush)
	Sets the background brush. More...
QPen	backgroundPen ()
	Returns the current background pen. More...
virtual void	setBackgroundPen (QPen _pen)
	Sets the background pen. More...
void	setBackground (bool _leftOut, bool _rightOut)
	Enables background painting. More...
void	clearBackground ()
	Disables backgorund painting. More...
void	setHorizontalStretch (bool _stretch)
	Should this widget be stretchable in horizontal direction. More...
void	setAlignment (Qt::Alignment _alignment)
	Placement of the text in a stretched widget. More...
void	setText (QString _text)
	Set displayed text. More...
QString	text ()
	Get displayed text. More...

Protected Member Functions
virtual QSizeF	sizeHint (Qt::SizeHint _which, const QSizeF &_constraint=QSizeF()) const

Private Attributes
QString	text_
bool	backgroundSet_
QBrush	backgroundBrush_
QPen	backgroundPen_
bool	leftOut_
bool	rightOut_
Qt::Alignment	alignment_
bool	hStretch_

Detailed Description

Layoutable text widget implementation with an optional background. The background can have convex or concave sides.

Definition at line 67 of file text.hh.

Constructor & Destructor Documentation

Text() [1/2]

VSI::Text::Text ( QGraphicsItem *  _parent = 0 )

explicit

Constructor.

Definition at line 66 of file text.cc.

Text() [2/2]

VSI::Text::Text	(	const QString &	_text,
		QGraphicsItem *	_parent = 0
	)

Constructor.

Definition at line 80 of file text.cc.

~Text()

VSI::Text::~Text

(

)

Destrucotr.

Destructor.

Definition at line 95 of file text.cc.

Member Function Documentation

backgroundBrush()

QBrush VSI::Text::backgroundBrush ( )

inline

Returns the current background brush.

Definition at line 94 of file text.hh.

backgroundPen()

QPen VSI::Text::backgroundPen ( )

inline

Returns the current background pen.

Definition at line 100 of file text.hh.

boundingRect()

QRectF VSI::Text::boundingRect ( ) const

virtual

Bounding rectangle.

Bounding rect.

Reimplemented in VSI::Button.

Definition at line 342 of file text.cc.

clearBackground()

void VSI::Text::clearBackground

(

)

Disables backgorund painting.

Definition at line 333 of file text.cc.

paint()

void VSI::Text::paint ( QPainter *  _painter, const QStyleOptionGraphicsItem *  _option, QWidget *  _widget = 0  )

virtual

Background painting.

Reimplemented in VSI::Button.

Definition at line 185 of file text.cc.

setAlignment()

void VSI::Text::setAlignment

(

Qt::Alignment

_alignment

)

Placement of the text in a stretched widget.

Definition at line 311 of file text.cc.

setBackground()

void VSI::Text::setBackground	(	bool	_leftOut,
		bool	_rightOut
	)

Enables background painting.

Definition at line 300 of file text.cc.

setBackgroundBrush()

void VSI::Text::setBackgroundBrush ( QBrush  _brush )

virtual

Sets the background brush.

Reimplemented in VSI::Button.

Definition at line 379 of file text.cc.

setBackgroundPen()

void VSI::Text::setBackgroundPen ( QPen  _pen )

virtual

Sets the background pen.

Reimplemented in VSI::Button.

Definition at line 388 of file text.cc.

setGeometry()

void VSI::Text::setGeometry ( const QRectF &  _rect )

virtual

Sets the geometry.

Reimplemented in VSI::Button.

Definition at line 102 of file text.cc.

setHorizontalStretch()

void VSI::Text::setHorizontalStretch

(

bool

_stretch

)

Should this widget be stretchable in horizontal direction.

Definition at line 324 of file text.cc.

setText()

void VSI::Text::setText ( QString  _text )

inline

Set displayed text.

Definition at line 118 of file text.hh.

shape()

QPainterPath VSI::Text::shape

(

)

const

Returns the shape for proper repainting/event handling.

Definition at line 397 of file text.cc.

sizeHint()

QSizeF VSI::Text::sizeHint ( Qt::SizeHint  _which, const QSizeF &  _constraint = QSizeF()  ) const

protectedvirtual

Definition at line 138 of file text.cc.

text()

QString VSI::Text::text ( )

inline

Get displayed text.

Definition at line 121 of file text.hh.

Member Data Documentation

alignment_

Qt::Alignment VSI::Text::alignment_

private

Definition at line 140 of file text.hh.

backgroundBrush_

QBrush VSI::Text::backgroundBrush_

private

Definition at line 134 of file text.hh.

backgroundPen_

QPen VSI::Text::backgroundPen_

private

Definition at line 135 of file text.hh.

backgroundSet_

bool VSI::Text::backgroundSet_

private

Definition at line 132 of file text.hh.

hStretch_

bool VSI::Text::hStretch_

private

Definition at line 141 of file text.hh.

leftOut_

bool VSI::Text::leftOut_

private

Definition at line 137 of file text.hh.

rightOut_

bool VSI::Text::rightOut_

private

Definition at line 138 of file text.hh.

text_

QString VSI::Text::text_

private

Definition at line 130 of file text.hh.

---

The documentation for this class was generated from the following files:

• Plugin-VSI/scene/text.hh
• Plugin-VSI/scene/text.cc
