PropertyModel Class Reference

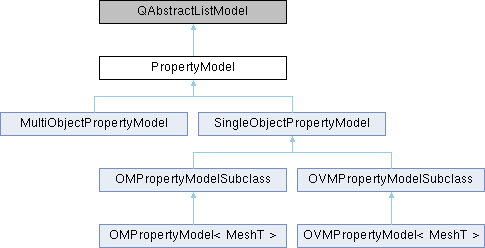

Inheritance diagram for PropertyModel:

Public Member Functions
virtual void	pickModeChanged (const std::string &_mode)
virtual void	mouseEvent (QMouseEvent *_event)
	PropertyModel (QObject *parent=0)
virtual int	rowCount (const QModelIndex &parent=QModelIndex()) const =0
virtual QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const =0
virtual QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const =0
virtual QModelIndex	index (int row, int column, QModelIndex const &parent=QModelIndex()) const =0
virtual void	objectUpdated ()=0
	Revisualizes visualized properties. More...
virtual void	visualize (QModelIndexList selectedIndices, QWidgetList widgets=QWidgetList())=0
	Visualizes the selected properties. More...
virtual void	removeProperty (QModelIndexList selectedIndices)=0
	Removes the selected properties. More...
virtual void	duplicateProperty (QModelIndexList selectedIndices)=0
	Duplicates the selected properties. More...
virtual void	gatherProperties ()=0
	Searches for properties and creates PropertyVisualizers. More...
virtual void	clear (QModelIndexList selectedIndices)=0
	Clears the selected property visualization. More...
virtual void	hideWidget ()=0
	Hides the widget. More...
virtual QWidget *	getWidget ()=0
	Returns the widget. More...
virtual void	updateWidget (const QModelIndexList &selectedIndices)=0
	Updates the widget. More...
virtual void	connectLogs (PropertyVisualizer *propViz)=0
	Connects the PropertyVisualizer log signals with the log slot. More...
virtual PropertyInfo	getPropertyInfo (const QModelIndex index) const =0
	Returns the property info for the property with the given index. More...
QModelIndex	indexFromFancyPropName (const QString &propName) const
	Returns the index of the property with the given name. More...
QModelIndex	indexFromPlainPropName (const QString &propName) const
	Returns the index of the property with the given name. More...

Detailed Description

Definition at line 52 of file PropertyModel.hh.

Constructor & Destructor Documentation

PropertyModel()

PropertyModel::PropertyModel ( QObject *  parent = 0 )

inlineexplicit

Definition at line 60 of file PropertyModel.hh.

~PropertyModel()

virtual PropertyModel::~PropertyModel ( )

inlinevirtual

Definition at line 61 of file PropertyModel.hh.

Member Function Documentation

clear()

virtual void PropertyModel::clear ( QModelIndexList  selectedIndices )

pure virtual

Clears the selected property visualization.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

connectLogs()

virtual void PropertyModel::connectLogs ( PropertyVisualizer *  propViz )

pure virtual

Connects the PropertyVisualizer log signals with the log slot.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

duplicateProperty()

virtual void PropertyModel::duplicateProperty ( QModelIndexList  selectedIndices )

pure virtual

Duplicates the selected properties.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

gatherProperties()

virtual void PropertyModel::gatherProperties ( )

pure virtual

Searches for properties and creates PropertyVisualizers.

Implemented in OMPropertyModel< MeshT >, OVMPropertyModel< MeshT >, MultiObjectPropertyModel, and SingleObjectPropertyModel.

getPropertyInfo()

virtual PropertyInfo PropertyModel::getPropertyInfo ( const QModelIndex  index ) const

pure virtual

Returns the property info for the property with the given index.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

getWidget()

virtual QWidget * PropertyModel::getWidget ( )

pure virtual

Returns the widget.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

hideWidget()

virtual void PropertyModel::hideWidget ( )

pure virtual

Hides the widget.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

indexFromFancyPropName()

QModelIndex PropertyModel::indexFromFancyPropName

(

const QString &

propName

)

const

Returns the index of the property with the given name.

Definition at line 45 of file PropertyModel.cc.

indexFromPlainPropName()

QModelIndex PropertyModel::indexFromPlainPropName

(

const QString &

propName

)

const

Returns the index of the property with the given name.

Definition at line 56 of file PropertyModel.cc.

mouseEvent()

virtual void PropertyModel::mouseEvent ( QMouseEvent *  _event )

inlinevirtual

Reimplemented in OMPropertyModel< MeshT >, and OVMPropertyModel< MeshT >.

Definition at line 58 of file PropertyModel.hh.

objectUpdated()

virtual void PropertyModel::objectUpdated ( )

pure virtual

Revisualizes visualized properties.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

pickModeChanged()

virtual void PropertyModel::pickModeChanged ( const std::string &  _mode )

inlinevirtual

Reimplemented in OMPropertyModel< MeshT >, and OVMPropertyModel< MeshT >.

Definition at line 57 of file PropertyModel.hh.

removeProperty()

virtual void PropertyModel::removeProperty ( QModelIndexList  selectedIndices )

pure virtual

Removes the selected properties.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

updateWidget()

virtual void PropertyModel::updateWidget ( const QModelIndexList &  selectedIndices )

pure virtual

Updates the widget.

Implemented in OMPropertyModel< MeshT >, OVMPropertyModel< MeshT >, MultiObjectPropertyModel, and SingleObjectPropertyModel.

visualize()

virtual void PropertyModel::visualize ( QModelIndexList  selectedIndices, QWidgetList  widgets = QWidgetList()  )

pure virtual

Visualizes the selected properties.

Implemented in MultiObjectPropertyModel, and SingleObjectPropertyModel.

---

The documentation for this class was generated from the following files:

• Plugin-PropertyVis/Models/PropertyModel.hh
• Plugin-PropertyVis/Models/PropertyModel.cc
