#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Kernel_OSG/PropertyT.hh>

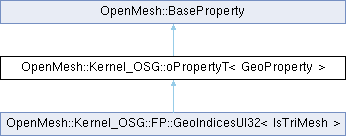

Inheritance diagram for OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >:

Public Types
typedef GeoProperty	property_t

typedef property_t::PtrType	property_ptr_t

typedef property_t::StoredFieldType	field_t

typedef field_t::StoredType	element_t

typedef field_t::StoredType	value_type

Public Member Functions
	oPropertyT (property_ptr_t _geo_prop, const std::string &_name="<unknown>")

	oPropertyT (const std::string &_name="<unknown>")

oPropertyT &	operator= (const oPropertyT &_rhs)

virtual void	reserve (size_t _n)
	Reserve memory for n elements. More...

virtual void	resize (size_t _n)
	Resize storage to hold n elements. More...

virtual void	push_back ()
	Extend the number of elements by one. More...

virtual void	swap (size_t _i0, size_t _i1)
	Let two elements swap their storage place. More...

virtual oPropertyT< property_t > *	clone () const
	Return a deep copy of self. More...

virtual void	set_persistent (bool _yn)

virtual size_t	n_elements () const
	Number of elements in property. More...

virtual size_t	element_size () const
	Size of one element in bytes or UnknownSize if not known. More...

virtual size_t	store (std::ostream &_ostr, bool _swap) const
	Store self as one binary block. More...

virtual size_t	restore (std::istream &_istr, bool _swap)

void	clear (void)
	Clear all elements and free memory. More...

property_ptr_t &	osg_ptr ()

const property_ptr_t &	osg_ptr () const

const element_t *	data () const

element_t &	operator[] (size_t idx)

const element_t &	operator[] (size_t idx) const

Public Member Functions inherited from OpenMesh::BaseProperty
	BaseProperty (const std::string &_name="<unknown>", const std::string &_internal_type_name="<unknown>")
	Default constructor. More...

	BaseProperty (const BaseProperty &_rhs)
	Copy constructor. More...

virtual	~BaseProperty ()
	Destructor. More...

virtual void	reserve (size_t _n)=0
	Reserve memory for n elements. More...

virtual void	resize (size_t _n)=0
	Resize storage to hold n elements. More...

virtual void	clear ()=0
	Clear all elements and free memory. More...

virtual void	push_back ()=0
	Extend the number of elements by one. More...

virtual void	swap (size_t _i0, size_t _i1)=0
	Let two elements swap their storage place. More...

virtual void	copy (size_t _io, size_t _i1)=0
	Copy one element to another. More...

virtual BaseProperty *	clone () const =0
	Return a deep copy of self. More...

const std::string &	name () const
	Return the name of the property. More...

const std::string &	internal_type_name () const
	Return internal type name of the property for type safe casting alternative to runtime information. More...

virtual void	stats (std::ostream &_ostr) const

bool	persistent (void) const
	Returns true if the persistent flag is enabled else false. More...

virtual void	set_persistent (bool _yn)=0

virtual std::string	get_storage_name () const =0
	returns a unique string for the type of the elements More...

virtual size_t	n_elements () const =0
	Number of elements in property. More...

virtual size_t	element_size () const =0
	Size of one element in bytes or UnknownSize if not known. More...

virtual size_t	size_of () const
	Return size of property in bytes. More...

virtual size_t	size_of (size_t _n_elem) const

virtual size_t	store (std::ostream &_ostr, bool _swap) const =0
	Store self as one binary block. More...

virtual size_t	restore (std::istream &_istr, bool _swap)=0

Protected Attributes
property_ptr_t	data_

Private Member Functions
void	osg_init_check (void)

	oPropertyT (const oPropertyT &)

Additional Inherited Members
Static Public Attributes inherited from OpenMesh::BaseProperty
static const size_t	UnknownSize = size_t(-1)
	Indicates an error when a size is returned by a member. More...

Protected Member Functions inherited from OpenMesh::BaseProperty
template<typename T >
void	check_and_set_persistent (bool _yn)

Detailed Description

template<typename GeoProperty>
class OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >

Property adaptor for OpenSG GeoProperties

This class bridges the interfaces of OpenMesh properties and OpenSG GeoProperties. The PropertyKernelT uses these adaptors to add all necessary property functions to the kernel, while the AttribKernelT extends the kernel with the standard properites. Finally the ArrayKernelT completes the kernel build with a specialized version of the garbage collections since the GeoIndices require special handling.

Attention: Data will be shared with a geometry core when linking a mesh with a OpenSG geometry node using Kernel_OSG::bind.

Definition at line 87 of file PropertyT.hh.

Member Typedef Documentation

◆ element_t

template<typename GeoProperty >

typedef field_t::StoredType OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::element_t

Definition at line 96 of file PropertyT.hh.

◆ field_t

template<typename GeoProperty >

typedef property_t::StoredFieldType OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::field_t

Definition at line 95 of file PropertyT.hh.

◆ property_ptr_t

template<typename GeoProperty >

typedef property_t::PtrType OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::property_ptr_t

Definition at line 93 of file PropertyT.hh.

◆ property_t

template<typename GeoProperty >

typedef GeoProperty OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::property_t

Definition at line 92 of file PropertyT.hh.

◆ value_type

template<typename GeoProperty >

typedef field_t::StoredType OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::value_type

Definition at line 97 of file PropertyT.hh.

Constructor & Destructor Documentation

◆ oPropertyT() [1/2]

template<typename GeoProperty >

OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::oPropertyT	(	property_ptr_t	_geo_prop,
		const std::string &	_name = `"<unknown>"`
	)

inline

Definition at line 102 of file PropertyT.hh.

◆ oPropertyT() [2/2]

template<typename GeoProperty >

OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::oPropertyT ( const std::string & _name = "<unknown>" )

inline

Definition at line 110 of file PropertyT.hh.

◆ ~oPropertyT()

template<typename GeoProperty >

virtual OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::~oPropertyT ( )

inlinevirtual

Definition at line 121 of file PropertyT.hh.

Member Function Documentation

◆ clear()

template<typename GeoProperty >

void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::clear ( void )

inlinevirtual

Clear all elements and free memory.

Implements OpenMesh::BaseProperty.

Definition at line 181 of file PropertyT.hh.

◆ clone()

template<typename GeoProperty >

virtual oPropertyT< property_t > * OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::clone ( ) const

inlinevirtual

Return a deep copy of self.

Implements OpenMesh::BaseProperty.

Definition at line 144 of file PropertyT.hh.

◆ data()

template<typename GeoProperty >

const element_t * OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::data ( ) const

inline

Definition at line 193 of file PropertyT.hh.

◆ element_size()

template<typename GeoProperty >

virtual size_t OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::element_size ( ) const

inlinevirtual

Size of one element in bytes or UnknownSize if not known.

Implements OpenMesh::BaseProperty.

Definition at line 169 of file PropertyT.hh.

◆ n_elements()

template<typename GeoProperty >

virtual size_t OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::n_elements ( ) const

inlinevirtual

Number of elements in property.

Implements OpenMesh::BaseProperty.

Definition at line 166 of file PropertyT.hh.

◆ operator=()

template<typename GeoProperty >

oPropertyT & OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::operator= ( const oPropertyT< GeoProperty > & _rhs )

inline

Definition at line 126 of file PropertyT.hh.

◆ operator[]() [1/2]

template<typename GeoProperty >

element_t & OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::operator[] ( size_t idx )

inline

Definition at line 196 of file PropertyT.hh.

◆ operator[]() [2/2]

template<typename GeoProperty >

const element_t & OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::operator[] ( size_t idx ) const

inline

Definition at line 199 of file PropertyT.hh.

◆ osg_init_check()

template<typename GeoProperty >

void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::osg_init_check ( void )

inlineprivate

Definition at line 210 of file PropertyT.hh.

◆ osg_ptr() [1/2]

template<typename GeoProperty >

property_ptr_t & OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::osg_ptr ( )

inline

Definition at line 186 of file PropertyT.hh.

◆ osg_ptr() [2/2]

template<typename GeoProperty >

const property_ptr_t & OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::osg_ptr ( ) const

inline

Definition at line 189 of file PropertyT.hh.

◆ push_back()

template<typename GeoProperty >

virtual void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::push_back ( )

inlinevirtual

Extend the number of elements by one.

Implements OpenMesh::BaseProperty.

Definition at line 140 of file PropertyT.hh.

◆ reserve()

template<typename GeoProperty >

virtual void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::reserve ( size_t _n )

inlinevirtual

Reserve memory for n elements.

Implements OpenMesh::BaseProperty.

Reimplemented in OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >.

Definition at line 138 of file PropertyT.hh.

◆ resize()

template<typename GeoProperty >

virtual void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::resize ( size_t _n )

inlinevirtual

Resize storage to hold n elements.

Implements OpenMesh::BaseProperty.

Reimplemented in OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >.

Definition at line 139 of file PropertyT.hh.

◆ restore()

template<typename GeoProperty >

virtual size_t OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::restore	(	std::istream &	_istr,
		bool	_swap
	)

inlinevirtual

Restore self from a binary block. Uses reserve() to set the size of self before restoring.

Implements OpenMesh::BaseProperty.

Definition at line 175 of file PropertyT.hh.

◆ set_persistent()

template<typename GeoProperty >

virtual void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::set_persistent ( bool _yn )

inlinevirtual

Enable or disable persistency. Self must be a named property to enable persistency.

Implements OpenMesh::BaseProperty.

Definition at line 161 of file PropertyT.hh.

◆ store()

template<typename GeoProperty >

virtual size_t OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::store	(	std::ostream &	_ostr,
		bool	_swap
	)		const

inlinevirtual

Store self as one binary block.

Implements OpenMesh::BaseProperty.

Definition at line 172 of file PropertyT.hh.

◆ swap()

template<typename GeoProperty >

virtual void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::swap	(	size_t	_i0,
		size_t	_i1
	)

inlinevirtual

Let two elements swap their storage place.

Implements OpenMesh::BaseProperty.

Reimplemented in OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >.

Definition at line 141 of file PropertyT.hh.

Member Data Documentation

◆ data_

template<typename GeoProperty >

property_ptr_t OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::data_

protected

Definition at line 205 of file PropertyT.hh.
