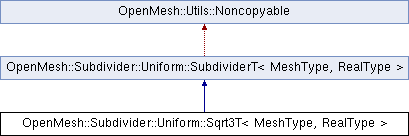

Inheritance diagram for OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >:

Public Types
typedef RealType	real_t

typedef MeshType	mesh_t

typedef SubdividerT< mesh_t, real_t >	parent_t

typedef std::pair< real_t, real_t >	weight_t

typedef std::vector< std::pair< real_t, real_t > >	weights_t

Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType	mesh_t

typedef RealType	real_t

Public Member Functions
	Sqrt3T (MeshType &_m)

const char *	name () const
	Return name of subdivision algorithm.

void	init_weights (size_t _max_valence=50)
	Pre-compute weights.

Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
virtual	~SubdividerT ()
	Destructor (calls detach())

	SubdividerT (void)

	SubdividerT (MeshType &_m)

bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)

bool	attach (MeshType &_m)

bool	operator() (size_t _n, const bool _update_points=true)

void	detach (void)

Protected Member Functions
bool	prepare (MeshType &_m)
	Prepare mesh, e.g. add properties.

bool	cleanup (MeshType &_m)
	Cleanup mesh after usage, e.g. remove added properties.

bool	subdivide (MeshType &_m, size_t _n, const bool _update_points=true)
	Subdivide mesh `_m` `_n` times. More...

Overload theses methods

Private Member Functions
void	compute_new_boundary_points (MeshType &_m, const typename MeshType::EdgeHandle &_eh)

void	boundary_split (MeshType &_m, const typename MeshType::FaceHandle &_fh)

void	boundary_split (MeshType &_m, const typename MeshType::HalfedgeHandle &_heh, const typename MeshType::VertexHandle &_vh)

void	boundary_split (MeshType &_m, const typename MeshType::HalfedgeHandle &_heh)

Private Attributes
weights_t	weights_

OpenMesh::VPropHandleT< typename MeshType::Point >	vp_pos_

OpenMesh::EPropHandleT< std::pair< typename MeshType::VertexHandle, typename MeshType::VertexHandle > >	ep_nv_

OpenMesh::MPropHandleT< size_t >	mp_gen_

const real_t	_1over3

const real_t	_1over27

Detailed Description

Uniform Sqrt3 subdivision algorithm

Implementation as described in

L. Kobbelt, "Sqrt(3) subdivision", Proceedings of SIGGRAPH 2000.

Definition at line 98 of file Sqrt3T.hh.

Member Function Documentation

template<typename MeshType, typename RealType = double>

bool OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >::subdivide	(	MeshType &	_m,
		size_t	_n,
		const bool	_update_points = `true`
	)

inlineprotectedvirtual

Subdivide mesh _m _n times.

TODO:Implement fixed positions

Definition at line 160 of file Sqrt3T.hh.

The documentation for this class was generated from the following file:

OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Subdivider/Uniform/Sqrt3T.hh
