OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType > Class Template Reference

Uniform composite sqrt(3) subdivision algorithm. More...

#include <OpenMesh/Tools/Subdivider/Uniform/CompositeSqrt3T.hh>

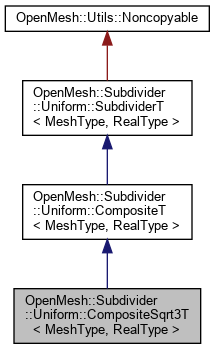

Inheritance diagram for OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >:

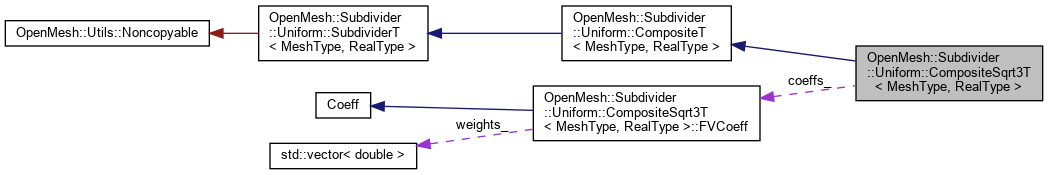

Collaboration diagram for OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >:

Classes
struct	FVCoeff
	Helper class. More...

Public Types
typedef CompositeT< MeshType, RealType >	Inherited
Public Types inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
typedef RealType	real_t
typedef MeshType	mesh_t
typedef SubdividerT< mesh_t, real_t >	parent_t
Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType	mesh_t
typedef RealType	real_t

Public Member Functions
	CompositeSqrt3T (MeshType &_mesh)
const char *	name () const override
	Return name of subdivision algorithm. More...
Public Member Functions inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
	CompositeT (MeshType &_mesh)
virtual const char *	name (void) const override=0
	Return name of subdivision algorithm. More...
Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
	SubdividerT (void)
	Constructor to be used with interface 2. More...
	SubdividerT (MeshType &_m)
	Constructor to be used with interface 1 (calls attach()) More...
virtual	~SubdividerT ()
	Destructor (calls detach())
bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)
	Subdivide the mesh _m _n times. More...
bool	attach (MeshType &_m)
	Attach mesh _m to self. More...
bool	operator() (size_t _n, const bool _update_points=true)
	Subdivide the attached _n times. More...
void	detach (void)
	Detach an eventually attached mesh. More...

Protected Types
typedef Inherited::Coeff	Coeff
Protected Types inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
typedef MeshType::Scalar	scalar_t
typedef MeshType::VertexHandle	VertexHandle
typedef MeshType::FaceHandle	FaceHandle
typedef MeshType::EdgeHandle	EdgeHandle
typedef MeshType::HalfedgeHandle	HalfedgeHandle

Protected Member Functions
void	apply_rules (void) override
	Assemble here the rule sequence, by calling the constructor of the wanted rules. More...
Protected Member Functions inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
bool	prepare (MeshType &_m) override
	Prepare mesh, e.g. add properties. More...
bool	subdivide (MeshType &_m, size_t _n, const bool _update_points=true) override
	Subdivide mesh _m _n times. More...
bool	cleanup (MeshType &_m) override
	Cleanup mesh after usage, e.g. remove added properties. More...
virtual void	apply_rules (void)=0
	Assemble here the rule sequence, by calling the constructor of the wanted rules. More...
void	commit (MeshType &_m)
	Move vertices to new positions after the rules have been applied to the mesh (called by subdivide()).
void	Tvv3 ()
	Split Face, using Vertex information (1-3 split)
void	Tvv4 ()
	Split Face, using Vertex information (1-4 split)
void	Tfv ()
	Split Face, using Face Information.
void	FF ()
	Face to face averaging.
void	FFc (Coeff &_coeff)
	Weighted face to face averaging.
void	FFc (scalar_t _c)
	Weighted face to face averaging.
void	FV ()
	Face to vertex averaging.
void	FVc (Coeff &_coeff)
	Weighted face to vertex Averaging with flaps.
void	FVc (scalar_t _c)
	Weighted face to vertex Averaging with flaps.
void	FE ()
	Face to edge averaging.
void	VF ()
	Vertex to Face Averaging.
void	VFa (Coeff &_coeff)
	Vertex to Face Averaging, weighted.
void	VFa (scalar_t _alpha)
	Vertex to Face Averaging, weighted.
void	VV ()
	Vertex to vertex averaging.
void	VVc (Coeff &_coeff)
	Vertex to vertex averaging, weighted.
void	VVc (scalar_t _c)
	Vertex to vertex averaging, weighted.
void	VE ()
	VE Step (Vertex to Edge Averaging)
void	VdE ()
	Vertex to edge averaging, using diamond of edges.
void	VdEc (scalar_t _c)
	Weighted vertex to edge averaging, using diamond of edges.
void	VdEg (Coeff &_coeff)
	Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.
void	VdEg (scalar_t _gamma)
	Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.
void	EF ()
	Edge to face averaging.
void	EV ()
	Edge to vertex averaging.
void	EVc (Coeff &_coeff)
	Weighted edge to vertex averaging.
void	EVc (scalar_t _c)
	Weighted edge to vertex averaging.
void	EdE ()
	Edge to edge averaging w/ flap rule.
void	EdEc (scalar_t _c)
	Weighted edge to edge averaging w/ flap rule.
void	corner_cutting (HalfedgeHandle _heh)
	Corner Cutting.
VertexHandle	split_edge (HalfedgeHandle _heh)
	Split Edge.
Protected Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >

Protected Attributes
OpenMesh::Subdivider::Uniform::CompositeSqrt3T::FVCoeff	coeffs_

Detailed Description

template<typename MeshType, typename RealType = double>
class OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >

Uniform composite sqrt(3) subdivision algorithm.

Member Function Documentation

apply_rules()

template<typename MeshType , typename RealType = double>

void OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::apply_rules ( void  )

inlineoverrideprotectedvirtual

Assemble here the rule sequence, by calling the constructor of the wanted rules.

Implements OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >.

name()

template<typename MeshType , typename RealType = double>

const char * OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::name ( ) const

inlineoverridevirtual

Return name of subdivision algorithm.

Implements OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >.

---

The documentation for this class was generated from the following file:

• OpenMesh/Tools/Subdivider/Uniform/CompositeSqrt3T.hh
