This class provides the composite subdivision rules for the uniform case. More...

#include <OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT.hh>

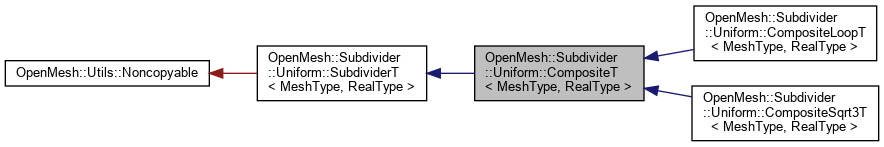

Inheritance diagram for OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >:

[legend]

Collaboration diagram for OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >:

Classes
struct	Coeff
	Abstract base class for coefficient functions. More...

Public Types
typedef RealType	real_t

typedef MeshType	mesh_t

typedef SubdividerT< mesh_t, real_t >	parent_t

Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType	mesh_t

typedef RealType	real_t

Public Member Functions
	CompositeT (MeshType &_mesh)

virtual const char *	name (void) const override=0
	Return name of subdivision algorithm. More...

Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
	SubdividerT (void)
	Constructor to be used with interface 2. More...

	SubdividerT (MeshType &_m)
	Constructor to be used with interface 1 (calls attach()) More...

virtual	~SubdividerT ()
	Destructor (calls detach())

bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)
	Subdivide the mesh `_m` `_n` times. More...

bool	attach (MeshType &_m)
	Attach mesh `_m` to self. More...

bool	operator() (size_t _n, const bool _update_points=true)
	Subdivide the attached `_n` times. More...

void	detach (void)
	Detach an eventually attached mesh. More...

Protected Types
typedef MeshType::Scalar	scalar_t

typedef MeshType::VertexHandle	VertexHandle

typedef MeshType::FaceHandle	FaceHandle

typedef MeshType::EdgeHandle	EdgeHandle

typedef MeshType::HalfedgeHandle	HalfedgeHandle

Protected Member Functions
bool	prepare (MeshType &_m) override
	Prepare mesh, e.g. add properties. More...

bool	subdivide (MeshType &_m, size_t _n, const bool _update_points=true) override
	Subdivide mesh `_m` `_n` times. More...

bool	cleanup (MeshType &_m) override
	Cleanup mesh after usage, e.g. remove added properties. More...

virtual void	apply_rules (void)=0
	Assemble here the rule sequence, by calling the constructor of the wanted rules. More...

void	commit (MeshType &_m)
	Move vertices to new positions after the rules have been applied to the mesh (called by subdivide()).

Protected Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >

Uniform composite subdivision rules
void	Tvv3 ()
	Split Face, using Vertex information (1-3 split)

void	Tvv4 ()
	Split Face, using Vertex information (1-4 split)

void	Tfv ()
	Split Face, using Face Information.

void	FF ()
	Face to face averaging.

void	FFc (Coeff &_coeff)
	Weighted face to face averaging.

void	FFc (scalar_t _c)
	Weighted face to face averaging.

void	FV ()
	Face to vertex averaging.

void	FVc (Coeff &_coeff)
	Weighted face to vertex Averaging with flaps.

void	FVc (scalar_t _c)
	Weighted face to vertex Averaging with flaps.

void	FE ()
	Face to edge averaging.

void	VF ()
	Vertex to Face Averaging.

void	VFa (Coeff &_coeff)
	Vertex to Face Averaging, weighted.

void	VFa (scalar_t _alpha)
	Vertex to Face Averaging, weighted.

void	VV ()
	Vertex to vertex averaging.

void	VVc (Coeff &_coeff)
	Vertex to vertex averaging, weighted.

void	VVc (scalar_t _c)
	Vertex to vertex averaging, weighted.

void	VE ()
	VE Step (Vertex to Edge Averaging)

void	VdE ()
	Vertex to edge averaging, using diamond of edges.

void	VdEc (scalar_t _c)
	Weighted vertex to edge averaging, using diamond of edges.

void	VdEg (Coeff &_coeff)
	Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

void	VdEg (scalar_t _gamma)
	Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

void	EF ()
	Edge to face averaging.

void	EV ()
	Edge to vertex averaging.

void	EVc (Coeff &_coeff)
	Weighted edge to vertex averaging.

void	EVc (scalar_t _c)
	Weighted edge to vertex averaging.

void	EdE ()
	Edge to edge averaging w/ flap rule.

void	EdEc (scalar_t _c)
	Weighted edge to edge averaging w/ flap rule.

void	corner_cutting (HalfedgeHandle _heh)
	Corner Cutting.

VertexHandle	split_edge (HalfedgeHandle _heh)
	Split Edge.

Detailed Description

template<typename MeshType, typename RealType = float>
class OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >

This class provides the composite subdivision rules for the uniform case.

To create a subdivider derive from this class and overload the functions name() and apply_rules(). In the latter one call the wanted rules.

For details on the composite scheme refer to

P. Oswald, P. Schroeder "Composite primal/dual sqrt(3)-subdivision schemes", CAGD 20, 3, 2003, 135–164

Note: Not all rules are implemented!

See also: class Adaptive::CompositeT

Member Function Documentation

◆ apply_rules()

template<typename MeshType , typename RealType = float>

virtual void OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::apply_rules ( void )

protectedpure virtual

Assemble here the rule sequence, by calling the constructor of the wanted rules.

Implemented in OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >.

◆ cleanup()

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::cleanup ( MeshType & _m )

inlineoverrideprotectedvirtual

Cleanup mesh after usage, e.g. remove added properties.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

◆ name()

template<typename MeshType , typename RealType = float>

virtual const char * OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::name ( void ) const

overridepure virtual

Return name of subdivision algorithm.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

Implemented in OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >.

◆ prepare()

template<typename MeshType , typename RealType >

bool OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::prepare ( MeshType & _m )

overrideprotectedvirtual

Prepare mesh, e.g. add properties.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

◆ subdivide()

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::subdivide	(	MeshType &	_m,
		size_t	_n,
		const bool	_update_points = `true`
	)

inlineoverrideprotectedvirtual

Subdivide mesh _m _n times.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

The documentation for this class was generated from the following files:

OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT.hh
OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT_impl.hh
