OpenMesh::Decimater::McDecimaterT< MeshT > Class Template Reference
#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Decimater/McDecimaterT.hh>

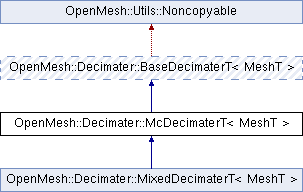

Inheritance diagram for OpenMesh::Decimater::McDecimaterT< MeshT >:
Public Types | |
| typedef McDecimaterT< MeshT > | Self |
| typedef MeshT | Mesh |
| typedef CollapseInfoT< MeshT > | CollapseInfo |
| typedef ModBaseT< MeshT > | Module |
| typedef std::vector< Module *> | ModuleList |
| typedef ModuleList::iterator | ModuleListIterator |
 Public Types inherited from OpenMesh::Decimater::BaseDecimaterT< MeshT > | |
| typedef BaseDecimaterT< MeshT > | Self |
| typedef MeshT | Mesh |
| typedef CollapseInfoT< MeshT > | CollapseInfo |
| typedef ModBaseT< MeshT > | Module |
| typedef std::vector< Module *> | ModuleList |
| typedef ModuleList::iterator | ModuleListIterator |
Public Member Functions | |
| McDecimaterT (Mesh &_mesh) | |
| Constructor. | |
| ~McDecimaterT () | |
| Destructor. | |
| size_t | decimate (size_t _n_collapses) |
| size_t | decimate_to (size_t _n_vertices) |
| Decimate to target complexity, returns number of collapses. | |
| size_t | decimate_to_faces (size_t _n_vertices=0, size_t _n_faces=0) |
| size_t | decimate_constraints_only (float _factor) |
| size_t | samples () |
| void | set_samples (const size_t _value) |
| Public Member Functions inherited from OpenMesh::Decimater::BaseDecimaterT< MeshT > | |
| BaseDecimaterT (Mesh &_mesh) | |
| bool | initialize () |
| bool | is_initialized () const |
| Returns whether decimater has been successfully initialized. | |
| void | info (std::ostream &_os) |
| Print information about modules to _os. | |
| void | set_observer (Observer *_o) |
| Add observer. More... | |
| Observer * | observer () |
| Get current observer of a decimater. | |
| Mesh & | mesh () |
| access mesh. used in modules. | |
| template<typename _Module > | |
| bool | add (ModHandleT< _Module > &_mh) |
| add module to decimater | |
| template<typename _Module > | |
| bool | remove (ModHandleT< _Module > &_mh) |
| remove module | |
| template<typename Module > | |
| Module & | module (ModHandleT< Module > &_mh) |
| get module referenced by handle _mh | |
Private Attributes | |
| Mesh & | mesh_ |
| size_t | randomSamples_ |
Additional Inherited Members | |
| Protected Member Functions inherited from OpenMesh::Decimater::BaseDecimaterT< MeshT > | |
| bool | notify_observer (size_t _n_collapses) |
| returns false, if abort requested by observer | |
| void | set_uninitialized () |
| Reset the initialized flag, and clear the bmodules_ and cmodule_. | |
| void | update_modules (CollapseInfo &_ci) |
| bool | is_collapse_legal (const CollapseInfo &_ci) |
| float | collapse_priority (const CollapseInfo &_ci) |
| Calculate priority of an halfedge collapse (using the modules) | |
| void | preprocess_collapse (CollapseInfo &_ci) |
| Pre-process a collapse. | |
| void | postprocess_collapse (CollapseInfo &_ci) |
| Post-process a collapse. | |
| void | set_error_tolerance_factor (double _factor) |
| void | reset () |
Detailed Description
template<typename MeshT>
class OpenMesh::Decimater::McDecimaterT< MeshT >
Multiple choice decimater framework
- See also
- BaseModT, Mesh Decimation Framework
Definition at line 77 of file McDecimaterT.hh.
Member Function Documentation
◆ decimate()
template<class Mesh >
| size_t OpenMesh::Decimater::McDecimaterT< Mesh >::decimate | ( | size_t | _n_collapses | ) |
Decimate (perform _n_collapses collapses). Return number of performed collapses. If _n_collapses is not given reduce as much as possible
Definition at line 102 of file McDecimaterT_impl.hh.
◆ decimate_constraints_only()
template<class Mesh >
| size_t OpenMesh::Decimater::McDecimaterT< Mesh >::decimate_constraints_only | ( | float | _factor | ) |
Decimate only with constraints, while _factor gives the percentage of the constraints that should be used
Definition at line 369 of file McDecimaterT_impl.hh.
◆ decimate_to_faces()
template<class Mesh >
| size_t OpenMesh::Decimater::McDecimaterT< Mesh >::decimate_to_faces | ( | size_t | _n_vertices = 0, |
| size_t | _n_faces = 0 |
||
| ) |
Decimate to target complexity (vertices and faces). Stops when the number of vertices or the number of faces is reached. Returns number of performed collapses.
Definition at line 226 of file McDecimaterT_impl.hh.
The documentation for this class was generated from the following files:
- OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Decimater/McDecimaterT.hh
- OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Decimater/McDecimaterT_impl.hh
