OpenMesh::Decimater::ModBaseT< MeshT > Class Template Reference

#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Decimater/ModBaseT.hh>

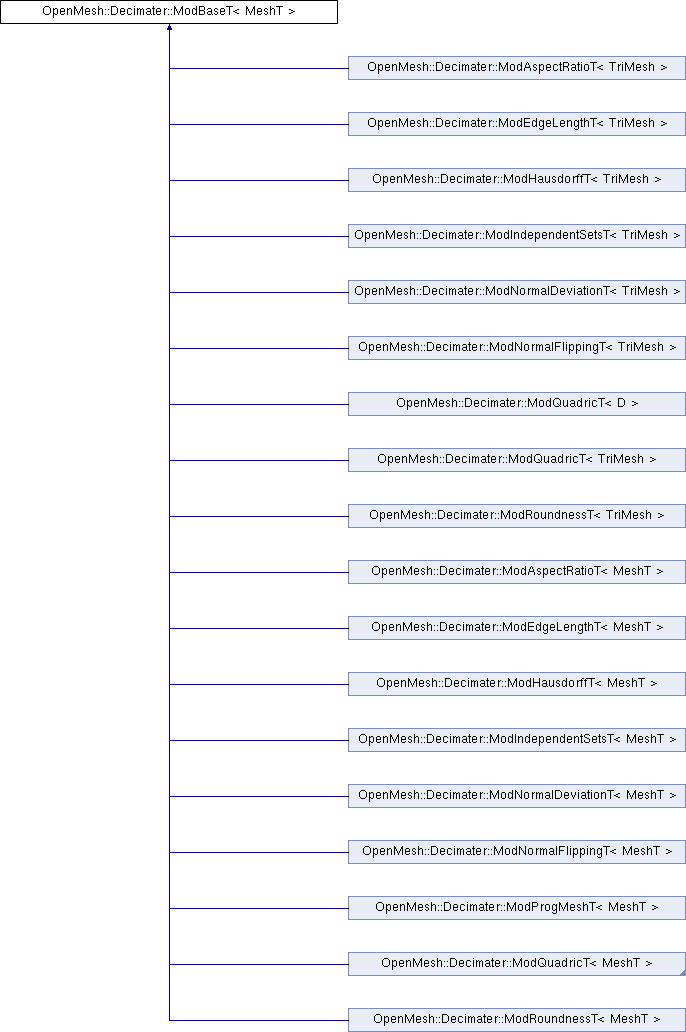

Inheritance diagram for OpenMesh::Decimater::ModBaseT< MeshT >:
OpenMesh::Decimater::ModAspectRatioT< TriMesh > OpenMesh::Decimater::ModEdgeLengthT< TriMesh > OpenMesh::Decimater::ModHausdorffT< TriMesh > OpenMesh::Decimater::ModIndependentSetsT< TriMesh > OpenMesh::Decimater::ModNormalDeviationT< TriMesh > OpenMesh::Decimater::ModNormalFlippingT< TriMesh > OpenMesh::Decimater::ModQuadricT< D > OpenMesh::Decimater::ModQuadricT< TriMesh > OpenMesh::Decimater::ModRoundnessT< TriMesh > OpenMesh::Decimater::ModAspectRatioT< MeshT > OpenMesh::Decimater::ModEdgeLengthT< MeshT > OpenMesh::Decimater::ModHausdorffT< MeshT > OpenMesh::Decimater::ModIndependentSetsT< MeshT > OpenMesh::Decimater::ModNormalDeviationT< MeshT > OpenMesh::Decimater::ModNormalFlippingT< MeshT > OpenMesh::Decimater::ModProgMeshT< MeshT > OpenMesh::Decimater::ModQuadricT< MeshT > OpenMesh::Decimater::ModRoundnessT< MeshT >

Public Types

enum  { ILLEGAL_COLLAPSE = -1, LEGAL_COLLAPSE = 0 }

typedef MeshT Mesh

typedef CollapseInfoT< MeshT > CollapseInfo


Public Member Functions

virtual ~ModBaseT ()
 Virtual desctructor.

 DECIMATER_MODNAME (ModBase)
 Set module's name (using DECIMATER_MODNAME macro)

bool is_binary (void) const
 Returns true if criteria returns a binary value.

void set_binary (bool _b)
 Set whether module is binary or not.

virtual void initialize ()
 Initialize module-internal stuff.

virtual float collapse_priority (const CollapseInfoT< MeshT > &)

virtual void preprocess_collapse (const CollapseInfoT< MeshT > &)

virtual void postprocess_collapse (const CollapseInfoT< MeshT > &)

virtual void set_error_tolerance_factor (double _factor)


Protected Member Functions

 ModBaseT (MeshT &_mesh, bool _is_binary)

MeshT & mesh ()
 Access the mesh associated with the decimater.


Protected Attributes

double error_tolerance_factor_


Private Member Functions

 ModBaseT (const ModBaseT &_cpy)

ModBaseT & operator= (const ModBaseT &)


Private Attributes

MeshT & mesh_

bool is_binary_


Detailed Description

template<typename MeshT>
class OpenMesh::Decimater::ModBaseT< MeshT >

Base class for all decimation modules.

Each module has to implement this interface. To build your own module you have to

  1. derive from this class.
  2. create the basic settings with DECIMATING_MODULE().
  3. override collapse_priority(), if necessary.
  4. override initialize(), if necessary.
  5. override postprocess_collapse(), if necessary.

A module has two major working modes:

  1. binary mode
  2. non-binary mode

In the binary mode collapse_priority() checks a constraint and returns LEGAL_COLLAPSE or ILLEGAL_COLLAPSE.

In the non-binary mode the module computes a float error value in the range [0, inf) and returns it. In the case a constraint has been set, e.g. the error must be lower than a upper bound, and the constraint is violated, collapse_priority() must return ILLEGAL_COLLAPSE.

See also
collapse_priority()
Todo:
"Tutorial on building a custom decimation module."

Definition at line 192 of file ModBaseT.hh.

Member Enumeration Documentation

◆ anonymous enum

template<typename MeshT>
anonymous enum
Enumerator
ILLEGAL_COLLAPSE

indicates an illegal collapse

LEGAL_COLLAPSE

indicates a legal collapse

Definition at line 198 of file ModBaseT.hh.

Constructor & Destructor Documentation

◆ ModBaseT()

template<typename MeshT>
OpenMesh::Decimater::ModBaseT< MeshT >::ModBaseT ( MeshT &  _mesh,
bool  _is_binary
)
inlineprotected

Default constructor

See also
Mesh Decimation Framework

Definition at line 207 of file ModBaseT.hh.

Member Function Documentation

◆ collapse_priority()

template<typename MeshT>
virtual float OpenMesh::Decimater::ModBaseT< MeshT >::collapse_priority ( const CollapseInfoT< MeshT > &  )
inlinevirtual

Return collapse priority.

In the binary mode collapse_priority() checks a constraint and returns LEGAL_COLLAPSE or ILLEGAL_COLLAPSE.

In the non-binary mode the module computes a float error value in the range [0, inf) and returns it. In the case a constraint has been set, e.g. the error must be lower than a upper bound, and the constraint is violated, collapse_priority() must return ILLEGAL_COLLAPSE.

Returns
Collapse priority in the range [0,inf), LEGAL_COLLAPSE or ILLEGAL_COLLAPSE.

Reimplemented in OpenMesh::Decimater::ModNormalDeviationT< MeshT >, OpenMesh::Decimater::ModNormalDeviationT< TriMesh >, OpenMesh::Decimater::ModNormalFlippingT< MeshT >, OpenMesh::Decimater::ModNormalFlippingT< TriMesh >, OpenMesh::Decimater::ModHausdorffT< MeshT >, OpenMesh::Decimater::ModHausdorffT< TriMesh >, OpenMesh::Decimater::ModRoundnessT< MeshT >, OpenMesh::Decimater::ModRoundnessT< TriMesh >, ModBalancerT< D >, OpenMesh::Decimater::ModAspectRatioT< MeshT >, OpenMesh::Decimater::ModAspectRatioT< TriMesh >, OpenMesh::Decimater::ModQuadricT< MeshT >, OpenMesh::Decimater::ModQuadricT< D >, OpenMesh::Decimater::ModQuadricT< TriMesh >, OpenMesh::Decimater::ModEdgeLengthT< MeshT >, and OpenMesh::Decimater::ModEdgeLengthT< TriMesh >.

Definition at line 245 of file ModBaseT.hh.

◆ postprocess_collapse()

template<typename MeshT>
virtual void OpenMesh::Decimater::ModBaseT< MeshT >::postprocess_collapse ( const CollapseInfoT< MeshT > &  )
inlinevirtual

After _from_vh has been collapsed into _to_vh, this method will be called.

Reimplemented in OpenMesh::Decimater::ModNormalDeviationT< MeshT >, OpenMesh::Decimater::ModNormalDeviationT< TriMesh >, ModBalancerT< D >, OpenMesh::Decimater::ModQuadricT< MeshT >, OpenMesh::Decimater::ModQuadricT< D >, OpenMesh::Decimater::ModQuadricT< TriMesh >, OpenMesh::Decimater::ModProgMeshT< MeshT >, OpenMesh::Decimater::ModHausdorffT< MeshT >, OpenMesh::Decimater::ModHausdorffT< TriMesh >, OpenMesh::Decimater::ModIndependentSetsT< MeshT >, and OpenMesh::Decimater::ModIndependentSetsT< TriMesh >.

Definition at line 257 of file ModBaseT.hh.

◆ preprocess_collapse()

template<typename MeshT>
virtual void OpenMesh::Decimater::ModBaseT< MeshT >::preprocess_collapse ( const CollapseInfoT< MeshT > &  )
inlinevirtual

Before _from_vh has been collapsed into _to_vh, this method will be called.

Reimplemented in OpenMesh::Decimater::ModAspectRatioT< MeshT >, and OpenMesh::Decimater::ModAspectRatioT< TriMesh >.

Definition at line 251 of file ModBaseT.hh.

◆ set_error_tolerance_factor()

template<typename MeshT>
virtual void OpenMesh::Decimater::ModBaseT< MeshT >::set_error_tolerance_factor ( double  _factor)
inlinevirtual

This provides a function that allows the setting of a percentage of the original contraint.

Note that the module might need to be re-initialized again after setting the percentage

Parameters
_factorhas to be in the closed interval between 0.0 and 1.0

Reimplemented in OpenMesh::Decimater::ModNormalDeviationT< MeshT >, OpenMesh::Decimater::ModNormalDeviationT< TriMesh >, OpenMesh::Decimater::ModRoundnessT< MeshT >, OpenMesh::Decimater::ModRoundnessT< TriMesh >, OpenMesh::Decimater::ModNormalFlippingT< MeshT >, OpenMesh::Decimater::ModNormalFlippingT< TriMesh >, OpenMesh::Decimater::ModQuadricT< MeshT >, OpenMesh::Decimater::ModQuadricT< D >, OpenMesh::Decimater::ModQuadricT< TriMesh >, OpenMesh::Decimater::ModHausdorffT< MeshT >, OpenMesh::Decimater::ModHausdorffT< TriMesh >, OpenMesh::Decimater::ModAspectRatioT< MeshT >, OpenMesh::Decimater::ModAspectRatioT< TriMesh >, OpenMesh::Decimater::ModEdgeLengthT< MeshT >, and OpenMesh::Decimater::ModEdgeLengthT< TriMesh >.

Definition at line 268 of file ModBaseT.hh.

The documentation for this class was generated from the following file:
