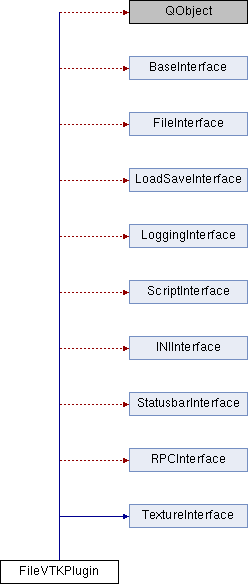

Inheritance diagram for FileVTKPlugin:

Classes
class	CellType

Public Types
enum	ObjectOptionsVtk { NONE = 0, BINARY = 1, FACENORMALS = 1 << 1, VERTEXNORMALS = 1 << 2, VERTEXTEXCOORDS = 1 << 3 }

Public Slots
int	loadObject (QString _filename)
	Loads Object and converts it to a triangle mesh if possible.

int	loadObject (QString _filename, DataType _type)
	load object and force type More...

bool	saveObject (int _id, QString _filename)

QString	version ()

Signals
void	openedFile (int _id)

void	addEmptyObject (DataType _type, int &_id)

void	load (QString _filename, DataType _type, int &_id)

void	save (int _id, QString _filename)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	updateView ()

void	updatedObject (int _identifier, const UpdateType &_type)

void	emptyObjectAdded (int _id)

void	deleteObject (int _id)

void	showStatusMessage (QString _message, int _timeout=0)

void	setStatus (ApplicationStatus::applicationStatus _status)

void	pluginExists (QString _pluginName, bool &_exists)

void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

void	setTextureMode (QString _textureName, QString _mode, int _id)

void	switchTexture (QString _textureName, int _id)

void	addMultiTexture (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)

void	textureFilename (int, QString, QString &)

void	textureIndex (QString _name, int _id, int &_index)

void	getCurrentTexture (int, QString &)

void	textureName (int, int, QString &)

void	getSubTextures (int, QString, QStringList &)

void	textureIndexPropertyName (int, QString &)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from FileInterface
virtual void	openedFile (int _id)
	This signal has to be emitted if an object has been loaded from a file. More...

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from StatusbarInterface
virtual void	showStatusMessage (QString _message, int _timeout=0)
	Show a message in the status bar. More...

Signals inherited from RPCInterface
virtual void	pluginExists (QString _pluginName, bool &_exists)

Signals inherited from TextureInterface
virtual void	addTexture (QString _name, QString _filename, uint _dimension, int _id)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

Public Member Functions
	FileVTKPlugin ()
	Constructor.

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

DataType	supportedType ()
	Return your supported object type( e.g. DATA_TRIANGLE_MESH ) More...

QString	getSaveFilters ()

QString	getLoadFilters ()

QWidget *	loadOptionsWidget (QString)

QWidget *	saveOptionsWidget (QString)

Private Types
enum	BestMeshType { BMT_None = 0, BMT_TriMesh = 1, BMT_PolyMesh = 1 << 1, BMT_HexahedralMesh = 1 << 2, BMT_PolyhedralMesh = 1 << 3, BMT_TetrahedralMesh = 1 << 4 }

Private Slots
void	fileOpened (int)

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from FileInterface
virtual int	loadObject (QString _filename)=0
	Load an object from the given file. More...

virtual int	loadObject (QString _filename, DataType _type)
	Load an object from the given file. More...

Private Member Functions
void	noguiSupported ()

void	initializePlugin ()
	Initialize Plugin. More...

void	slotSaveDefault ()
	Slot called when user wants to save the given Save options as default.

void	updateUserOptions ()

template<typename MeshT >
void	addCellNormal (MeshT *&_mesh, const CellType &_cell, OpenMesh::Vec3d _normal)
	Adds a normal to the cell. More...

template<typename MeshT >
int	addTetraCellToOpenMesh (MeshT _mesh, std::vector< quint32 > _indices)
	Adds a tetra cell to the mesh. (Does nothing, yet) More...

template<typename MeshT >
int	addHexaCellToOpenMesh (MeshT _mesh, std::vector< quint32 > _indices)
	Adds a hexa cell to the mesh. (Does nothing, yet) More...

template<typename MeshT >
int	addWedgeCellToOpenMesh (MeshT _mesh, std::vector< quint32 > _indices)
	Adds a wedge cell to the mesh. (Does nothing, yet) More...

template<typename MeshT >
int	addPyramidCellToOpenMesh (MeshT _mesh, std::vector< quint32 > _indices)
	Adds a pyramid cell to the mesh. (Does nothing, yet) More...

template<typename MeshT >
int	addFaceToOpenMesh (MeshT *&_mesh, std::vector< quint32 > _indices)
	Adds a face to the mesh. More...

template<typename MeshT >
int	addFaceToOpenMesh (MeshT *&_mesh, quint32 _index1, quint32 _index2, quint32 _index3)
	Adds a face to the mesh. More...

template<typename MeshT >
void	updateFaceNormalsOfOpenMesh (MeshT *&_mesh)
	Updates face normals. More...

template<typename MeshT >
void	updateVertexNormalsOfOpenMesh (MeshT *&_mesh)
	Updates vertex normals. More...

template<typename MeshT >
void	removeTemporaryPropertiesOfOpenMesh (MeshT *&_mesh)
	Removed temporary properties that might have been added during file reading. More...

template<typename MeshT >
void	addVertexNormalToOpenMesh (MeshT _mesh, quint32 _index, OpenMesh::Vec3d _normal)
	Adds a vertex normal. More...

template<typename MeshT >
void	addFaceNormalToOpenMesh (MeshT _mesh, quint32 _index, OpenMesh::Vec3d _normal)
	Adds a face normal. More...

template<typename MeshT >
void	setNormalsOfDuplicatedVerticesOfOpenMesh (MeshT *&_mesh)
	Sets normals of duplicated vertices that were created for non-manifold meshes. More...

template<class MeshT >
bool	writeASCIIDataOfOpenMesh (std::ostream &_out, MeshT &_mesh)
	Writes the data of the VTK file in ASCII format. More...

int	addTetraCell (TriMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a tetra cell to the mesh. (Does nothing, yet) More...

int	addTetraCell (PolyMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a tetra cell to the mesh. (Does nothing, yet) More...

int	addHexaCell (TriMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a hexa cell to the mesh. (Does nothing, yet) More...

int	addHexaCell (PolyMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a hexa cell to the mesh. (Does nothing, yet) More...

int	addWedgeCell (TriMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a wedge cell to the mesh. (Does nothing, yet) More...

int	addWedgeCell (PolyMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a wedge cell to the mesh. (Does nothing, yet) More...

int	addPyramidCell (TriMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a pyramid cell to the mesh. (Does nothing, yet) More...

int	addPyramidCell (PolyMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a pyramid cell to the mesh. (Does nothing, yet) More...

int	addFace (TriMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a face to the mesh. More...

int	addFace (PolyMesh *&_mesh, std::vector< quint32 > _indices)
	Adds a face to the mesh. More...

int	addFace (TriMesh *&_mesh, quint32 _index1, quint32 _index2, quint32 _index3)
	Adds a face to the mesh. More...

int	addFace (PolyMesh *&_mesh, quint32 _index1, quint32 _index2, quint32 _index3)
	Adds a face to the mesh. More...

void	updateFaceNormals (TriMesh *&_mesh)
	Updates face normals. More...

void	updateFaceNormals (PolyMesh *&_mesh)
	Updates face normals. More...

void	updateVertexNormals (TriMesh *&_mesh)
	Updates vertex normals. More...

void	updateVertexNormals (PolyMesh *&_mesh)
	Updates vertex normals. More...

void	removeTemporaryProperties (TriMesh *&_mesh)
	Removed temporary properties that might have been added during file reading. More...

void	removeTemporaryProperties (PolyMesh *&_mesh)
	Removed temporary properties that might have been added during file reading. More...

void	addVertexNormal (TriMesh *&_mesh, quint32 _index, OpenMesh::Vec3d _normal)
	Adds a vertex normal. More...

void	addVertexNormal (PolyMesh *&_mesh, quint32 _index, OpenMesh::Vec3d _normal)
	Adds a vertex normal. More...

void	addFaceNormal (TriMesh *&_mesh, quint32 _index, OpenMesh::Vec3d _normal)
	Adds a face normal. More...

void	addFaceNormal (PolyMesh *&_mesh, quint32 _index, OpenMesh::Vec3d _normal)
	Adds a face normal. More...

void	setNormalsOfDuplicatedVertices (TriMesh *&_mesh)
	Sets normals of duplicated vertices that were created for non-manifold meshes. More...

void	setNormalsOfDuplicatedVertices (PolyMesh *&_mesh)
	Sets normals of duplicated vertices that were created for non-manifold meshes. More...

bool	writeASCIIData (std::ostream &_out, TriMesh &_mesh)
	Writes the data of the VTK file in ASCII format. More...

bool	writeASCIIData (std::ostream &_out, PolyMesh &_mesh)
	Writes the data of the VTK file in ASCII format. More...

BestMeshType	findBestObjectType (QString _filename)
	Reads the file to check for present primitives and returns the object type that fits best.

template<typename MeshT >
bool	loadMesh (QTextStream &_stream, MeshT *&_mesh, Dataset _type)

template<typename MeshT >
bool	loadMeshPoints (QString _spec, QTextStream &_in, MeshT *&_mesh)
	Reads points from the stream and adds them to the mesh. More...

template<typename MeshT >
bool	loadMeshLines (QString _spec, QTextStream &_in, MeshT *&_mesh)
	Reads lines from the stream and adds them to the mesh. More...

template<typename MeshT >
bool	loadMeshPolygons (QString _spec, QTextStream &_in, MeshT *&_mesh, std::vector< CellType > &_cells)
	Reads polygons from the stream and adds them to the mesh. More...

template<typename MeshT >
int	add_non_manifold_face (MeshT *&_mesh, std::vector< OpenMesh::VertexHandle > &_vhandles)
	Helper function for loadMeshPolygons() that takes care of adding non-manifold faces. More...

template<typename MeshT >
bool	loadMeshTriangleStrips (QString _spec, QTextStream &_in, MeshT *&_mesh, std::vector< CellType > &_cells)
	Reads triangle strips from the stream and adds them to the mesh. More...

template<typename MeshT >
bool	loadMeshCells (QString _spec, QTextStream &_in, MeshT *&_mesh, std::vector< CellType > &_cells)
	Reads unstructured grid data from the stream and adds it to the mesh. More...

template<typename MeshT >
bool	loadMeshNormals (QString _spec, QTextStream &_in, MeshT *&_mesh, std::vector< CellType > &_cells, bool _pointNormal, quint32 _count)
	Reads Normals from the stream and adds them to the mesh. More...

template<class MeshT >
bool	writeMesh (std::ostream &_out, MeshT &_mesh)
	Writes the header of the VTK file, then calls writeASCIIData (binary VTK is currently unsupported) More...

Private Member Functions inherited from BaseInterface
virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from FileInterface
virtual	~FileInterface ()
	Destructor.

virtual bool	saveObject (int _id, QString _filename)=0
	Save an object from the given file. More...

virtual bool	saveObjects (IdList _ids, QString _filename)
	Save multiple objects to one file. More...

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from INIInterface
virtual	~INIInterface ()
	Destructor.

Private Member Functions inherited from StatusbarInterface
virtual	~StatusbarInterface ()
	Destructor.

void	setStatus (ApplicationStatus::applicationStatus _status)
	Sets the status icon of the StatusBar. More...

void	clearStatusMessage ()
	Removes the current message from the statusBar. More...

void	addWidgetToStatusbar (QWidget *_widget)
	Add a widget on the right side of the statusBar. More...

Private Member Functions inherited from RPCInterface
virtual	~RPCInterface ()
	Destructor.

virtual void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Private Member Functions inherited from TextureInterface
virtual void	addTexture (QString _name, QString _filename, uint _dimension)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

virtual void	addMultiTexture (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)
	Emit this Signal if you want to add a texture for a multitexturing mode. More...

virtual void	updateTexture (QString _textureName, int _identifier)
	Tell Plugins to update the given texture for the given identifier This signal can be called from any thread. .

virtual void	updateAllTextures ()
	Tell Plugins to update all textures.

virtual void	updatedTextures (QString, int)
	emit this signal if you updated a texture More...

virtual void	switchTexture (QString _textureName, int _id)
	emit this signal if you want to switch the texture of a specific object This signal can be called from any thread.

virtual void	switchTexture (QString _textureName)
	emit this signal if you want to switch the global texture This signal can be called from any thread.

virtual void	setTextureMode (QString _textureName, QString _mode)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	setTextureMode (QString _textureName, QString _mode, int _id)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	textureChangeImage (QString _textureName, QImage &_image, int _id)
	Change the texture image of a given texture. More...

virtual void	textureChangeImage (QString _textureName, QImage &_image)
	Change the texture image of a given global texture. More...

virtual void	textureGetImage (QString _textureName, QImage &_image, int _id)
	get the texture image of a given texture More...

virtual void	textureGetImage (QString _textureName, QImage &_image)
	Get the texture image of a given global texture. More...

virtual void	textureIndex (QString _textureName, int _id, int &_index)
	Get the texture index of a given texture. More...

virtual void	textureIndexPropertyName (int _id, QString &_propertyName)
	Get the name of the texture index property. More...

virtual void	textureName (int _id, int _textureIndex, QString &_textureName)
	get the name of the texture with given texture index More...

virtual void	textureFilename (int _id, QString _textureName, QString &_textureFilename)
	get the filename of the texture with given texture index More...

virtual void	getCurrentTexture (int _id, QString &_textureName)
	get the name of the texture which is currently enabled More...

virtual void	getSubTextures (int _id, QString _multiTextureName, QStringList &_subTextures)
	get the names of all sub-textures under the given multiTexture More...

virtual	~TextureInterface ()
	Destructor.

Private Attributes
bool	forceTriangleMesh_

bool	forcePolyMesh_

QWidget *	saveOptions_

QCheckBox *	saveBinary_

QCheckBox *	saveFaceNormals_

QCheckBox *	saveVertexNormals_

QCheckBox *	saveVertexTexCoords_

QLabel *	savePrecisionLabel_

QSpinBox *	savePrecision_

QPushButton *	saveDefaultButton_

bool	binary_
	Reading binary file?

unsigned int	userWriteOptions_

Detailed Description

Definition at line 88 of file FileVTK.hh.

Member Function Documentation

template<typename MeshT >

int FileVTKPlugin::add_non_manifold_face	(	MeshT *&	_mesh,
		std::vector< OpenMesh::VertexHandle > &	_vhandles
	)

private

Helper function for loadMeshPolygons() that takes care of adding non-manifold faces.

Parameters

_mesh	Mesh to work on
_vhandles	Non-manifold face to be added

Returns: idx of first added face

Definition at line 2018 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::addCellNormal	(	MeshT *&	_mesh,
		const CellType &	_cell,
		OpenMesh::Vec3d	_normal
	)

private

Adds a normal to the cell.

The cell may refer to any kind of primitves described by the vtk standard (vertex, face, triangle strip, etc)

Parameters

_mesh	Mesh to work on
_cell	Description of the cell including its type and its index in the mesh
_normal	The normal

Definition at line 316 of file FileVTK.cc.

int FileVTKPlugin::addFace	(	TriMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a face to the mesh.

Parameters

_mesh	Mesh the face is added to
_indices	Indices of the vertices of the face, counter clockwise order

Returns: index of the first added primitive

Definition at line 484 of file FileVTK.cc.

int FileVTKPlugin::addFace	(	PolyMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a face to the mesh.

Parameters

_mesh	Mesh the face is added to
_indices	Indices of the vertices of the face, counter clockwise order

Returns: index of the first added primitive

Definition at line 485 of file FileVTK.cc.

int FileVTKPlugin::addFace	(	TriMesh *&	_mesh,
		quint32	_index1,
		quint32	_index2,
		quint32	_index3
	)

private

Adds a face to the mesh.

Parameters

_mesh	Mesh the face is added to
_index1	First index of the vertices of the face, counter clockwise order
_index2	Second index of the vertices of the face, counter clockwise order
_index3	Third index of the vertices of the face, counter clockwise order

Returns: index of the first added primitive

Definition at line 487 of file FileVTK.cc.

int FileVTKPlugin::addFace	(	PolyMesh *&	_mesh,
		quint32	_index1,
		quint32	_index2,
		quint32	_index3
	)

private

Adds a face to the mesh.

Parameters

_mesh	Mesh the face is added to
_index1	First index of the vertices of the face, counter clockwise order
_index2	Second index of the vertices of the face, counter clockwise order
_index3	Third index of the vertices of the face, counter clockwise order

Returns: index of the first added primitive

Definition at line 488 of file FileVTK.cc.

void FileVTKPlugin::addFaceNormal	(	TriMesh *&	_mesh,
		quint32	_index,
		OpenMesh::Vec3d	_normal
	)

private

Adds a face normal.

Parameters

_mesh	Mesh the face normal is added to
_index	Index of the face
_normal	Normal that is added

Definition at line 499 of file FileVTK.cc.

void FileVTKPlugin::addFaceNormal	(	PolyMesh *&	_mesh,
		quint32	_index,
		OpenMesh::Vec3d	_normal
	)

private

Adds a face normal.

Parameters

_mesh	Mesh the face normal is added to
_index	Index of the face
_normal	Normal that is added

Definition at line 500 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::addFaceNormalToOpenMesh	(	MeshT	_mesh,
		quint32	_index,
		OpenMesh::Vec3d	_normal
	)

private

Adds a face normal.

Parameters

_mesh	Mesh the face normal is added to
_index	Index of the face
_normal	Normal that is added

Definition at line 308 of file FileVTK.cc.

template<typename MeshT >

int FileVTKPlugin::addFaceToOpenMesh	(	MeshT *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a face to the mesh.

Parameters

_mesh	Mesh the face is added to
_indices	Indices of the vertices of the face, counter clockwise order

Returns: index of the first added primitive

Definition at line 239 of file FileVTK.cc.

template<typename MeshT >

int FileVTKPlugin::addFaceToOpenMesh	(	MeshT *&	_mesh,
		quint32	_index1,
		quint32	_index2,
		quint32	_index3
	)

private

Adds a face to the mesh.

Parameters

_mesh	Mesh the face is added to
_index1	First index of the vertices of the face, counter clockwise order
_index2	Second index of the vertices of the face, counter clockwise order
_index3	Third index of the vertices of the face, counter clockwise order

Returns: index of the first added primitive

Definition at line 264 of file FileVTK.cc.

int FileVTKPlugin::addHexaCell	(	TriMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a hexa cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 475 of file FileVTK.cc.

int FileVTKPlugin::addHexaCell	(	PolyMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a hexa cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 476 of file FileVTK.cc.

template<typename MeshT >

int FileVTKPlugin::addHexaCellToOpenMesh	(	MeshT	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a hexa cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 218 of file FileVTK.cc.

int FileVTKPlugin::addPyramidCell	(	TriMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a pyramid cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 481 of file FileVTK.cc.

int FileVTKPlugin::addPyramidCell	(	PolyMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a pyramid cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 482 of file FileVTK.cc.

template<typename MeshT >

int FileVTKPlugin::addPyramidCellToOpenMesh	(	MeshT	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a pyramid cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 232 of file FileVTK.cc.

int FileVTKPlugin::addTetraCell	(	TriMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a tetra cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 472 of file FileVTK.cc.

int FileVTKPlugin::addTetraCell	(	PolyMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a tetra cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 473 of file FileVTK.cc.

template<typename MeshT >

int FileVTKPlugin::addTetraCellToOpenMesh	(	MeshT	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a tetra cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 211 of file FileVTK.cc.

void FileVTKPlugin::addVertexNormal	(	TriMesh *&	_mesh,
		quint32	_index,
		OpenMesh::Vec3d	_normal
	)

private

Adds a vertex normal.

Parameters

_mesh	Mesh the vertex normal is added to
_index	Index of the vertex
_normal	Normal that is added

Definition at line 496 of file FileVTK.cc.

void FileVTKPlugin::addVertexNormal	(	PolyMesh *&	_mesh,
		quint32	_index,
		OpenMesh::Vec3d	_normal
	)

private

Adds a vertex normal.

Parameters

_mesh	Mesh the vertex normal is added to
_index	Index of the vertex
_normal	Normal that is added

Definition at line 497 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::addVertexNormalToOpenMesh	(	MeshT	_mesh,
		quint32	_index,
		OpenMesh::Vec3d	_normal
	)

private

Adds a vertex normal.

Parameters

_mesh	Mesh the vertex normal is added to
_index	Index of the vertex
_normal	Normal that is added

Definition at line 299 of file FileVTK.cc.

int FileVTKPlugin::addWedgeCell	(	TriMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a wedge cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 478 of file FileVTK.cc.

int FileVTKPlugin::addWedgeCell	(	PolyMesh *&	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a wedge cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 479 of file FileVTK.cc.

template<typename MeshT >

int FileVTKPlugin::addWedgeCellToOpenMesh	(	MeshT	_mesh,
		std::vector< quint32 >	_indices
	)

private

Adds a wedge cell to the mesh. (Does nothing, yet)

Parameters

_mesh	Mesh the cell is added to
_indices	Indices of the vertices of the cell, ordered according to vtk standard

Returns: index of the first added primitive

Definition at line 225 of file FileVTK.cc.

QString FileVTKPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 185 of file FileVTK.hh.

QString FileVTKPlugin::getLoadFilters ( )

virtual

Return the Qt Filters for File dialogs when loading files (e.g. "Off files ( *.off )" )

Implements FileInterface.

Definition at line 108 of file FileVTK.cc.

QString FileVTKPlugin::getSaveFilters ( )

virtual

Get the Qt Filters for Filedialogs when saving files (e.g. "Off files ( *.off )" )

Implements FileInterface.

Definition at line 114 of file FileVTK.cc.

void FileVTKPlugin::initializePlugin ( )

privatevirtual

Initialize Plugin.

This slot is called if the plugin is loaded and has to be initialized. All initialization stuff in this slot has to stay inside the plugin, no external signals are allowed here (and will be ignored). Don't create any objects via PluginFunctions here. Use the pluginsInitialized() slot for external initialization. After execution of this slot your plugin should be fully functional. Only gui elements may be uninitialized and should be created in pluginsInitialized().

Reimplemented from BaseInterface.

Definition at line 94 of file FileVTK.cc.

template<typename MeshT >

bool FileVTKPlugin::loadMeshCells	(	QString	_spec,
		QTextStream &	_in,
		MeshT *&	_mesh,
		std::vector< CellType > &	_cells
	)

private

Reads unstructured grid data from the stream and adds it to the mesh.

Parameters

_spec	Line containing the CELL header
_in	Textstream (after reading the CELL header)
_mesh	Mesh to work on
_cells	Cell descriptions

Definition at line 2246 of file FileVTK.cc.

template<typename MeshT >

bool FileVTKPlugin::loadMeshLines	(	QString	_spec,
		QTextStream &	_in,
		MeshT *&	_mesh
	)

private

Reads lines from the stream and adds them to the mesh.

Parameters

_spec	Line containing the LINES header
_in	Textstream (after reading the LINES header)
_mesh	Mesh to work on

Definition at line 1845 of file FileVTK.cc.

template<typename MeshT >

bool FileVTKPlugin::loadMeshNormals	(	QString	_spec,
		QTextStream &	_in,
		MeshT *&	_mesh,
		std::vector< CellType > &	_cells,
		bool	_pointNormal,
		quint32	_count
	)

private

Reads Normals from the stream and adds them to the mesh.

Parameters

_spec	Line containing the NORMALS header
_in	Textstream (after reading the NORMALS header)
_mesh	Mesh to work on
_cells	Cell descriptions
_pointNormal	point or face normals?
_count	Number of primitives to read

Definition at line 2171 of file FileVTK.cc.

template<typename MeshT >

bool FileVTKPlugin::loadMeshPoints	(	QString	_spec,
		QTextStream &	_in,
		MeshT *&	_mesh
	)

private

Reads points from the stream and adds them to the mesh.

Parameters

_spec	Line containing the POINTS header
_in	Textstream (after reading the POINTS header)
_mesh	Mesh to work on

Definition at line 1767 of file FileVTK.cc.

template<typename MeshT >

bool FileVTKPlugin::loadMeshPolygons	(	QString	_spec,
		QTextStream &	_in,
		MeshT *&	_mesh,
		std::vector< CellType > &	_cells
	)

private

Reads polygons from the stream and adds them to the mesh.

Parameters

_spec	Line containing the POLYGONS header
_in	Textstream (after reading the POLYGONS header)
_mesh	Mesh to work on
_cells	returns cell descriptions

Definition at line 1924 of file FileVTK.cc.

template<typename MeshT >

bool FileVTKPlugin::loadMeshTriangleStrips	(	QString	_spec,
		QTextStream &	_in,
		MeshT *&	_mesh,
		std::vector< CellType > &	_cells
	)

private

Reads triangle strips from the stream and adds them to the mesh.

Parameters

_spec	Line containing the TRIANGLE_STRIPS header
_in	Textstream (after reading the TRIANGLE_STRIPS header)
_mesh	Mesh to work on
_cells	returns the Cell descriptions

Definition at line 2073 of file FileVTK.cc.

int FileVTKPlugin::loadObject	(	QString	_filename,
		DataType	_type
	)

slot

load object and force type

load a obj and force mesh datatype

Definition at line 2623 of file FileVTK.cc.

QWidget * FileVTKPlugin::loadOptionsWidget ( QString _currentFilter )

virtual

You can provide a special widget showing options for loading your file types depending on the current filter

_currentFilter: one filter from loadFilters

Return 0 when you don't need one

Implements FileInterface.

Definition at line 138 of file FileVTK.cc.

QString FileVTKPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 184 of file FileVTK.hh.

void FileVTKPlugin::noguiSupported ( )

inlineprivatevirtual

Using this function you can inform the core that your plugin can run without creating a widget. If your plugin does not implement this function, it will not be loaded in scripting mode without gui. You don't have to do anything in this function.

Reimplemented from BaseInterface.

Definition at line 162 of file FileVTK.hh.

void FileVTKPlugin::removeTemporaryProperties ( TriMesh *& _mesh )

private

Removed temporary properties that might have been added during file reading.

Parameters

_mesh Mesh whose temporary properties should be removed

Definition at line 493 of file FileVTK.cc.

void FileVTKPlugin::removeTemporaryProperties ( PolyMesh *& _mesh )

private

Removed temporary properties that might have been added during file reading.

Parameters

_mesh Mesh whose temporary properties should be removed

Definition at line 494 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::removeTemporaryPropertiesOfOpenMesh ( MeshT *& _mesh )

private

Removed temporary properties that might have been added during file reading.

Parameters

_mesh Mesh whose temporary properties should be removed

Definition at line 289 of file FileVTK.cc.

QWidget * FileVTKPlugin::saveOptionsWidget ( QString _currentFilter )

virtual

You can provide a special widget showing options for saving your file types depending on the current filter

_currentFilter: one filter from saveFilters

Return 0 when you don't need one

Implements FileInterface.

Definition at line 144 of file FileVTK.cc.

void FileVTKPlugin::setNormalsOfDuplicatedVertices ( TriMesh *& _mesh )

private

Sets normals of duplicated vertices that were created for non-manifold meshes.

Parameters

_mesh Mesh to work on

Definition at line 502 of file FileVTK.cc.

void FileVTKPlugin::setNormalsOfDuplicatedVertices ( PolyMesh *& _mesh )

private

Sets normals of duplicated vertices that were created for non-manifold meshes.

Parameters

_mesh Mesh to work on

Definition at line 503 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::setNormalsOfDuplicatedVerticesOfOpenMesh ( MeshT *& _mesh )

private

Sets normals of duplicated vertices that were created for non-manifold meshes.

Parameters

_mesh Mesh to work on

Definition at line 359 of file FileVTK.cc.

DataType FileVTKPlugin::supportedType ( )

virtual

Return your supported object type( e.g. DATA_TRIANGLE_MESH )

If you support multiple DataTypes you can combine them bitwise here. The function is used from the load and save code to check if your plugin can handle an object of a given dataType.

Implements FileInterface.

Definition at line 120 of file FileVTK.cc.

void FileVTKPlugin::updateFaceNormals ( TriMesh *& _mesh )

private

Updates face normals.

Parameters

_mesh Mesh whose face normals should be updated

Definition at line 278 of file FileVTK.cc.

void FileVTKPlugin::updateFaceNormals ( PolyMesh *& _mesh )

private

Updates face normals.

Parameters

_mesh Mesh whose face normals should be updated

Definition at line 279 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::updateFaceNormalsOfOpenMesh ( MeshT *& _mesh )

private

Updates face normals.

Parameters

_mesh Mesh whose face normals should be updated

Definition at line 273 of file FileVTK.cc.

void FileVTKPlugin::updateUserOptions ( )

private

Update user options depending on which options have been selected on the save dialog

Definition at line 2784 of file FileVTK.cc.

void FileVTKPlugin::updateVertexNormals ( TriMesh *& _mesh )

private

Updates vertex normals.

Parameters

_mesh Mesh whose vertex normals should be updated

Definition at line 490 of file FileVTK.cc.

void FileVTKPlugin::updateVertexNormals ( PolyMesh *& _mesh )

private

Updates vertex normals.

Parameters

_mesh Mesh whose vertex normals should be updated

Definition at line 491 of file FileVTK.cc.

template<typename MeshT >

void FileVTKPlugin::updateVertexNormalsOfOpenMesh ( MeshT *& _mesh )

private

Updates vertex normals.

Parameters

_mesh Mesh whose vertex normals should be updated

Definition at line 283 of file FileVTK.cc.

bool FileVTKPlugin::writeASCIIData	(	std::ostream &	_out,
		TriMesh &	_mesh
	)

private

Writes the data of the VTK file in ASCII format.

Parameters

_out	Textstream to write the file
_mesh	Mesh to work on

Definition at line 505 of file FileVTK.cc.

bool FileVTKPlugin::writeASCIIData	(	std::ostream &	_out,
		PolyMesh &	_mesh
	)

private

Writes the data of the VTK file in ASCII format.

Parameters

_out	Textstream to write the file
_mesh	Mesh to work on

Definition at line 506 of file FileVTK.cc.

template<class MeshT >

bool FileVTKPlugin::writeASCIIDataOfOpenMesh	(	std::ostream &	_out,
		MeshT &	_mesh
	)

private

Writes the data of the VTK file in ASCII format.

Parameters

_out	Textstream to write the file
_mesh	Mesh to work on

Definition at line 382 of file FileVTK.cc.

template<class MeshT >

bool FileVTKPlugin::writeMesh	(	std::ostream &	_out,
		MeshT &	_mesh
	)

private

Writes the header of the VTK file, then calls writeASCIIData (binary VTK is currently unsupported)

Parameters

_out	Textstream to write the file
_mesh	Mesh to work on

Definition at line 2761 of file FileVTK.cc.

The documentation for this class was generated from the following files:

PluginCollection-FilePlugins/Plugin-FileVTK/FileVTK.hh
PluginCollection-FilePlugins/Plugin-FileVTK/FileVTK.cc

Classes

Public Types

Public Slots

Signals

Public Member Functions

Private Types

Private Slots

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation
