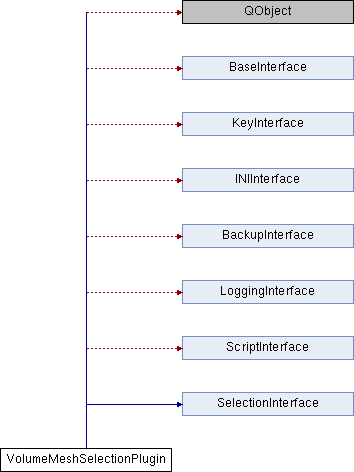

Inheritance diagram for VolumeMeshSelectionPlugin:

Public Slots
void	loadSelection (int _objId, const QString &_filename)

QString	version ()

Signals
void	updateView ()

void	updatedObject (int, const UpdateType &)

void	nodeVisibilityChanged (int _identifier)

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	scriptInfo (QString _functionName)

void	addSelectionEnvironment (QString _modeName, QString _description, QString _icon, QString &_handleName)

void	registerType (QString _handleName, DataType _type)

void	addPrimitiveType (QString _handleName, QString _name, QString _icon, SelectionInterface::PrimitiveType &_typeHandle)

void	addSelectionOperations (QString _handleName, QStringList _operationsList, QString _category, SelectionInterface::PrimitiveType _type=0u)

void	showToggleSelectionMode (QString _handleName, bool _show, SelectionInterface::PrimitiveType _associatedTypes)

void	showVolumeLassoSelectionMode (QString _handleName, bool _show, SelectionInterface::PrimitiveType _associatedTypes)

void	showFloodFillSelectionMode (QString _handleName, bool _show, SelectionInterface::PrimitiveType _associatedTypes)

void	addCustomSelectionMode (QString _handleName, QString _modeName, QString _description, QString _icon, SelectionInterface::PrimitiveType _associatedTypes, QString &_customIdentifier)

void	getActiveDataTypes (SelectionInterface::TypeList &_types)

void	getActivePrimitiveType (SelectionInterface::PrimitiveType &_type)

void	targetObjectsOnly (bool &_targetsOnly)

void	registerKeyShortcut (int _key, Qt::KeyboardModifiers _modifiers=Qt::NoModifier)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from KeyInterface
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from SelectionInterface
virtual void	addSelectionEnvironment (QString _modeName, QString _description, QString _icon, QString &_handleName)
	Add a selection environment in order to provide selection functions for specific data type(s) More...

virtual void	showToggleSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show toggle selection mode in a specified selection environment. More...

virtual void	registerKeyShortcut (int _key, Qt::KeyboardModifiers _modifiers=Qt::NoModifier)
	Register key shortcut. More...

virtual void	addSelectionOperations (QString _handleName, QStringList _operationsList, QString _category, PrimitiveType _type=0u)
	Add non-interactive selection operations for a specific primitive type. More...

virtual void	selectionOperation (QString _operation)
	Emitted by selection base plugin when a non-interactive selection operation is requested. More...

Public Member Functions
	VolumeMeshSelectionPlugin ()
	Default constructor.

	~VolumeMeshSelectionPlugin ()
	Default destructor.

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

Scriptable slots
bool	vertexTypeActive ()
	Is vertex type active? (for use in plugins that need mesh selection)

bool	edgeTypeActive ()
	Is vertex type active? (for use in plugins that need mesh selection)

bool	faceTypeActive ()
	Is face type active? (for use in plugins that need mesh selection)

bool	cellTypeActive ()
	Is cell type active? (for use in plugins that need mesh selection)

void	selectAllVertices (int _objectId)
	Select all vertices of a volume mesh.

void	deselectAllVertices (int _objectId)
	Deselect all vertices of a volume mesh.

void	invertVertexSelection (int _objectId)
	Invert vertex selection.

void	selectVertices (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific vertices of a volume mesh.

IdList	getVertexSelection (int _objectId)
	Get current vertex selection.

void	deleteSelectedVertices (int _objectId, bool _preserveManifoldness=true)
	Delete selected vertices from mesh.

void	selectAllEdges (int _objectId)
	Select all edges of a volume mesh.

void	deselectAllEdges (int _objectId)
	Deselect all edges of a volume mesh.

void	invertEdgeSelection (int _objectId)
	Invert edge selection.

void	selectEdges (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific edges of a volume mesh.

IdList	getEdgeSelection (int _objectId)
	Get current edge selection.

void	deleteSelectedEdges (int _objectId, bool _preserveManifoldness=true)
	Delete selected edges from mesh.

void	selectAllHalfEdges (int _objectId)
	Select all half-edges of a volume mesh.

void	deselectAllHalfEdges (int _objectId)
	Deselect all half-edges of a volume mesh.

void	invertHalfEdgeSelection (int _objectId)
	Invert half-edge selection.

void	selectHalfEdges (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific half-edges of a volume mesh.

IdList	getHalfEdgeSelection (int _objectId)
	Get current half-edge selection.

void	selectAllFaces (int _objectId)
	Select all faces of a volume mesh.

void	deselectAllFaces (int _objectId)
	Deselect all faces of a volume mesh.

void	invertFaceSelection (int _objectId)
	Invert face selection.

void	selectFaces (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific faces of a volume mesh.

IdList	getFaceSelection (int _objectId)
	Get current face selection.

void	deleteSelectedFaces (int _objectId, bool _preserveManifoldness=true)
	Delete selected faces from mesh.

void	selectAllHalfFaces (int _objectId)
	Select all half-faces of a volume mesh.

void	deselectAllHalfFaces (int _objectId)
	Deselect all half-faces of a volume mesh.

void	invertHalfFaceSelection (int _objectId)
	Invert half-face selection.

void	selectHalfFaces (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific half-faces of a volume mesh.

IdList	getHalfFaceSelection (int _objectId)
	Get current half-face selection.

void	selectAllCells (int _objectId)
	Select all cells of a volume mesh.

void	deselectAllCells (int _objectId)
	Deselect all cells of a volume mesh.

void	invertCellSelection (int _objectId)
	Invert cell selection.

void	selectCells (int _objectId, const IdList &_ids, bool _deselect=false)
	Select specific cells of a volume mesh.

IdList	getCellSelection (int _objectId)
	Get current cell selection.

void	deleteSelectedCells (int _objectId, bool _preserveManifoldness=true)
	Delete selected cells from mesh.

Private Slots
void	loadIniFile (INIFile &_ini, int _id)

void	saveIniFile (INIFile &_ini, int _id)

void	initializePlugin ()

void	pluginsInitialized ()

void	noguiSupported ()

Private Member Functions
void	slotSelectionOperation (QString _operation)
	A specific operation is requested. More...

void	slotToggleSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, bool _deselect)
	Called whenever the user performs a toggle selection. More...

void	slotVolumeLassoSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, bool _deselect)
	Called whenever the user performs a volume lasso selection. More...

void	slotFloodFillSelection (QMouseEvent *_event, double _maxAngle, SelectionInterface::PrimitiveType _currentType, bool _deselect)
	Called whenever the user performs a flood fill selection. More...

void	slotCustomSelection (QMouseEvent *_event, SelectionInterface::PrimitiveType _currentType, QString _customIdentifier, bool _deselect)
	Called whenever the user performs a custom selection. More...

void	slotLoadSelection (const INIFile &_file)
	Load selection for specific objects in the scene. More...

void	slotSaveSelection (INIFile &_file)
	Save selection for all objects in the scene. More...

void	slotKeyShortcutEvent (int _key, Qt::KeyboardModifiers _modifiers)
	One of the previously registered keys has been pressed. More...

Private methods
void	updateSlotDescriptions ()
	Set slot descriptions for scripting functions.

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from KeyInterface
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor.

Private Member Functions inherited from INIInterface
virtual	~INIInterface ()
	Destructor.

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from SelectionInterface
virtual	~SelectionInterface ()
	Destructor.

virtual void	registerType (QString _handleName, DataType _type)
	Register data type for a selection environment. More...

virtual void	addPrimitiveType (QString _handleName, QString _name, QString _icon, PrimitiveType &_typeHandle)
	Provide selection for primitives other than the standard ones. More...

virtual void	showLassoSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show lasso selection mode in a specified selection environment. More...

virtual void	showVolumeLassoSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show volume lasso selection mode in a specified selection environment. More...

virtual void	showSurfaceLassoSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show surface lasso selection mode in a specified selection environment. More...

virtual void	showSphereSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show sphere selection mode in a specified selection environment. More...

virtual void	showClosestBoundarySelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show closest boundary selection mode in a specified selection environment. More...

virtual void	showFloodFillSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show flood fill selection mode in a specified selection environment. More...

virtual void	showComponentsSelectionMode (QString _handleName, bool _show, PrimitiveType _associatedTypes)
	Show connected components selection mode in a specified selection environment. More...

virtual void	addCustomSelectionMode (QString _handleName, QString _modeName, QString _description, QString _icon, PrimitiveType _associatedTypes, QString &_customIdentifier)
	Add a custom interactive selection mode. More...

virtual void	addCustomSelectionMode (QString _handleName, QString _modeName, QString _description, QString _icon, PrimitiveType _associatedTypes, QString &_customIdentifier, DataType _objectTypeRestriction)
	Add a custom interactive selection mode. More...

virtual void	getActiveDataTypes (TypeList &_types)
	Get the data types that the currently active selection environment supports. More...

virtual void	getActivePrimitiveType (PrimitiveType &_type)
	Get the primitive type that is selected. More...

virtual void	targetObjectsOnly (bool &_targetsOnly)
	Indicates whether selection should be performed on target objects only. More...

virtual void	toggleSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a toggle selection. More...

virtual void	lassoSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a lasso selection. More...

virtual void	volumeLassoSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a volume lasso selection. More...

virtual void	surfaceLassoSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a surface lasso selection. More...

virtual void	sphereSelection (QMouseEvent *_event, double _radius, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a sphere selection. More...

virtual void	closestBoundarySelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a closest boundary selection. More...

virtual void	floodFillSelection (QMouseEvent *_event, double _maxAngle, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a flood fill selection. More...

virtual void	componentsSelection (QMouseEvent *_event, PrimitiveType _currentType, bool _deselect)
	Emitted by selection base plugin whenever the user performs a connected components selection. More...

virtual void	customSelection (QMouseEvent *_event, PrimitiveType _currentType, QString _customIdentifier, bool _deselect)
	Emitted by selection base plugin whenever the user performs a custom selection. More...

virtual void	loadSelection (const INIFile &_file)
	Load selections from ini-file. More...

virtual void	saveSelection (INIFile &_file)
	Save selections into ini-file. More...

virtual void	keyShortcutEvent (int _key, Qt::KeyboardModifiers _modifiers=Qt::NoModifier)
	Key shortcut event happened. More...

Friends
class	SelectVolumeAction

Member variables
typedef std::pair < OpenVolumeMesh::HalfFaceHandle, OpenVolumeMesh::HalfFaceHandle >	HFPair
	Handle to selection environment.

QString	environmentHandle_
	Handle to selection environment.

QString	columnSelectionHandle_
	Handle to selection environment.

QString	sheetSelectionHandle_
	Handle to selection environment.

PrimitiveType	vertexType_
	Primitive type handles:

PrimitiveType	edgeType_
	Handle to selection environment.

PrimitiveType	faceType_
	Handle to selection environment.

PrimitiveType	cellType_
	Handle to selection environment.

PrimitiveType	allSupportedTypes_
	Handle to selection environment.

PrimitiveType	floodFillSupportedTypes_
	Handle to selection environment.

QVector< QPoint >	volumeLassoPoints_
	Keep volume lasso points.

OpenVolumeMesh::CellHandle	lastPickedCell_
	Handle to selection environment.

unsigned char	lastPickedOrientation_
	Handle to selection environment.

std::map < OpenVolumeMesh::CellHandle, unsigned char >	orientationMap_
	Handle to selection environment.

template<class MeshT >
bool	volumeSelection (MeshT _mesh, ACG::GLState &_state, QRegion _region, PrimitiveType _primitiveTypes, bool _deselection)
	Surface volume selection tool. More...

template<class MeshT >
void	floodFillSelection (MeshT *_mesh, uint _fh, double _maxAngle, PrimitiveType _primitiveTypes, bool _deselection)
	Select all entities that are connected (and do not exceed the maximum dihedral angle) More...

unsigned char	getOrthogonalOrientationOfNeighborCell (const OpenVolumeMesh::CellHandle &_ch1, const OpenVolumeMesh::CellHandle &_ch2, unsigned char _firstOrthDirection, const HexahedralMesh *_mesh) const
	Handle to selection environment.

HFPair	getCommonFace (const OpenVolumeMesh::CellHandle &_ch1, const OpenVolumeMesh::CellHandle &_ch2, const HexahedralMesh *_mesh) const
	Handle to selection environment.

Additional Inherited Members
Private Types inherited from SelectionInterface
typedef std::vector< DataType >	TypeList

typedef unsigned int	PrimitiveType

Detailed Description

Definition at line 72 of file VolumeMeshSelectionPlugin.hh.

Member Function Documentation

QString VolumeMeshSelectionPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 169 of file VolumeMeshSelectionPlugin.hh.

template<class MeshT >

void VolumeMeshSelectionPlugin::floodFillSelection	(	MeshT *	_mesh,
		uint	_fh,
		double	_maxAngle,
		PrimitiveType	_primitiveTypes,
		bool	_deselection
	)

private

Select all entities that are connected (and do not exceed the maximum dihedral angle)

Select all primitves of a planar region surrounding the faceHandle.

Parameters

_mesh	a mesh
_fh	handle of the face that was picked
_maxAngle	the maximum dihedral angle over which the flood fill selection passes
_primitiveTypes	the currently active primitive types
_deselection	true if primitives should be deselected

Definition at line 161 of file VolumeMeshSelectionPluginT.cc.

QString VolumeMeshSelectionPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 165 of file VolumeMeshSelectionPlugin.hh.

void VolumeMeshSelectionPlugin::slotCustomSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		QString	_customIdentifier,
		bool	_deselect
	)

privatevirtual

Called whenever the user performs a custom selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided.

Parameters

_event	The mouse event that currently is performed
_currentType	The currently active primitive type
_customIdentifier	Holds the identifier of the custom selection modes
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 592 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotFloodFillSelection	(	QMouseEvent *	_event,
		double	_maxAngle,
		SelectionInterface::PrimitiveType	_currentType,
		bool	_deselect
	)

privatevirtual

Called whenever the user performs a flood fill selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided. The metaphor behind it is that the user clicks on an object and all primitives close to this point get selected, if the angle between the clicked point and the next point does not differ more than the specified angle.

Parameters

_event	The mouse event that currently is performed
_maxAngle	The maximum angle used for flood filling
_currentType	The currently active primitive type
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 505 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotKeyShortcutEvent	(	int	_key,
		Qt::KeyboardModifiers	_modifiers
	)

privatevirtual

One of the previously registered keys has been pressed.

This slot is called whenever the user has pressed one of the registered keys. Note that this is actually handled by the selection base plugin since the different plugins might want to register the same key multiple times.

Parameters

_key	The pressed key
_modifiers	Indicates whether mod-keys have been pressed synchronously

Reimplemented from SelectionInterface.

Definition at line 951 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotLoadSelection ( const INIFile & _file )

privatevirtual

Load selection for specific objects in the scene.

OpenFlipper allows for saving of selections in an INI file (implemented by the different selection plugins by overriding function slotSaveSelection()). So this slot is called each time such INI file is about to be loaded.

Parameters

_file The file from which one can read the selection data

Reimplemented from SelectionInterface.

Definition at line 883 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotSaveSelection ( INIFile & _file )

privatevirtual

Save selection for all objects in the scene.

Override this slot in order to save selections for a specific data type. These selections are then stored within an INI file and can be loaded via slotLoadSelection().

Parameters

_file The file into which one can store selection data

Reimplemented from SelectionInterface.

Definition at line 927 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotSelectionOperation ( QString _operation )

privatevirtual

A specific operation is requested.

This slot is called each time the user has pressed one of the operations buttons (for the various primitive types) offered in the tool box.

Parameters

_operation The identifier of the operation just as registered via addSelectionOperations

Reimplemented from SelectionInterface.

Definition at line 228 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotToggleSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		bool	_deselect
	)

privatevirtual

Called whenever the user performs a toggle selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided.

Parameters

_event	The mouse event that occurred
_currentType	The currently active primitive type
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 343 of file VolumeMeshSelectionPlugin.cc.

void VolumeMeshSelectionPlugin::slotVolumeLassoSelection	(	QMouseEvent *	_event,
		SelectionInterface::PrimitiveType	_currentType,
		bool	_deselect
	)

privatevirtual

Called whenever the user performs a volume lasso selection.

This has to be implemented by each type selection plugin if this interactive selection mode should be provided. The metaphor behind it is that the user draws a polygonal line and all primitives which are insinde the volume spanned by the eye position and the polygon get selected.

Parameters

_event	The mouse event that currently is performed
_currentType	The currently active primitive type
_deselect	True if entities should be deselected

Reimplemented from SelectionInterface.

Definition at line 476 of file VolumeMeshSelectionPlugin.cc.

template<class MeshT >

bool VolumeMeshSelectionPlugin::volumeSelection	(	MeshT *	_mesh,
		ACG::GLState &	_state,
		QRegion *	_region,
		PrimitiveType	_primitiveType,
		bool	_deselection
	)

private

Surface volume selection tool.

Select all primitives that are entirely projected to the given region.

Parameters

_mesh	a mesh
_state	current gl state
_region	region
_primitiveType	primitive types to be selected
_deselection	true, if entities should be deselected

Returns: true, if something was selected

Definition at line 67 of file VolumeMeshSelectionPluginT.cc.

The documentation for this class was generated from the following files:

PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionPlugin.hh
PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionFunctions.cc
PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionPlugin.cc
PluginCollection-Selection/Plugin-SelectionVolumeMesh/VolumeMeshSelectionPluginT.cc

Public Slots

Signals

Public Member Functions

Private Slots

Private Member Functions

Friends

Member variables

Additional Inherited Members

Detailed Description

Member Function Documentation
