Keyboard Event Interface. More...

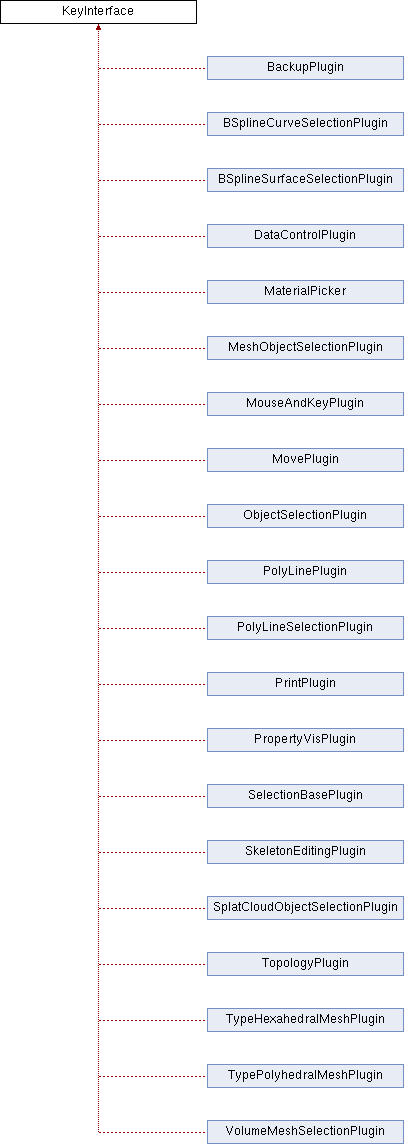

Inheritance diagram for KeyInterface:

Public Slots
virtual void	slotKeyEvent (QKeyEvent *_event)
	Key Event from Main App. More...

Signals
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Public Member Functions
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor.

Detailed Description

Keyboard Event Interface.

Detailed description
Using this interface you can react on key events.

Definition at line 76 of file KeyInterface.hh.

Member Function Documentation

virtual void KeyInterface::registerKey	(	int	_key,
		Qt::KeyboardModifiers	_modifiers,
		QString	_description,
		bool	_multiUse = `false`
	)

inlinevirtualsignal

Register a key-combination for your plugin.

To obtain key events from the viewer for a certain key-combination, you have to register that combination first

Parameters

_key	the key that should be registered
_modifiers	the keyboard modifiers
_description	a short description about the functionality (Will be used in the Options Widget)
_multiUse	can the key additionally be registered by another plugin (You could make a key exclusive by this)

Definition at line 88 of file KeyInterface.hh.

virtual void KeyInterface::slotKeyEvent ( QKeyEvent * _event )

inlinevirtualslot

Key Event from Main App.

This slot is called if a key event occurred in the Viewer

Parameters

_event Key event

Definition at line 97 of file KeyInterface.hh.

virtual void KeyInterface::slotKeyReleaseEvent ( QKeyEvent * _event )

inlinevirtual

Key Release Event from Main App.

This slot is called if a key release event occurred in the Viewer

Parameters

_event Key event

Definition at line 104 of file KeyInterface.hh.

The documentation for this class was generated from the following file:
