#include <ACG/Scenegraph/BaseNode.hh>

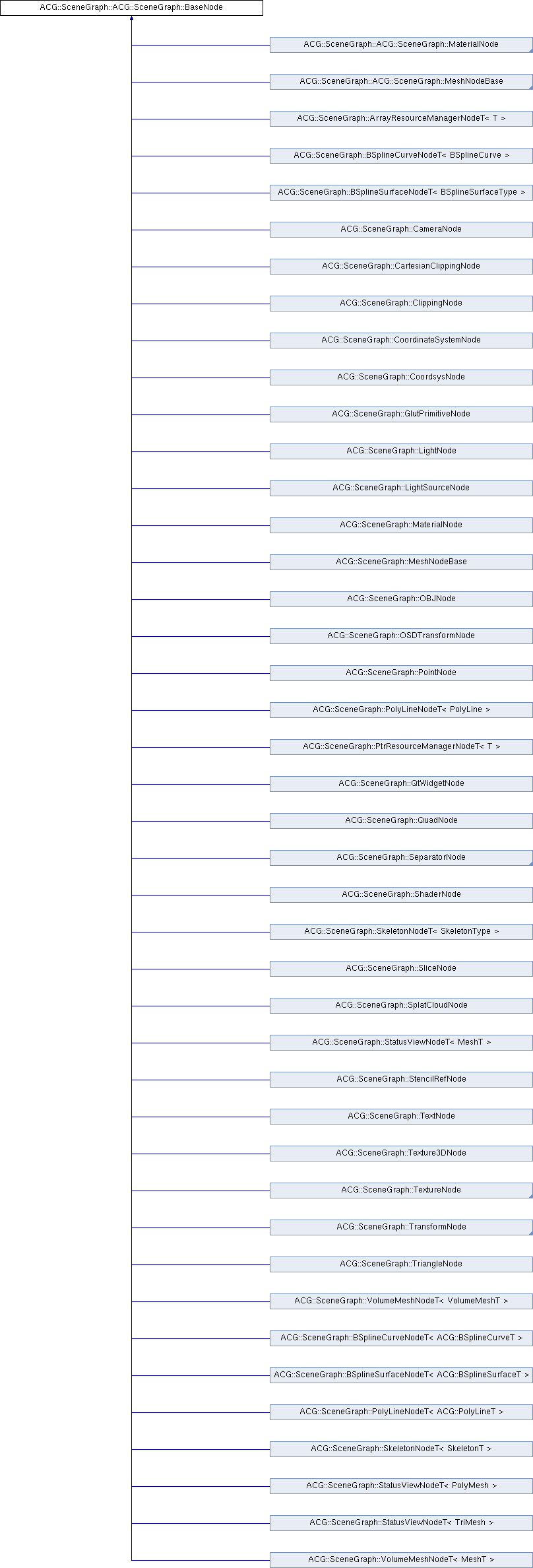

Inheritance diagram for ACG::SceneGraph::ACG::SceneGraph::BaseNode:

Classes
struct	ShaderSet

Public Types
enum	StatusMode { Active = 0x1, HideNode = 0x2, HideChildren = 0x4, HideSubtree = 0x8 }
	Status modi. More...

enum	TraverseMode { NodeFirst = 0x1, ChildrenFirst = 0x2, SecondPass = 0x4 }
	Node traverse types. More...

typedef std::list< BaseNode * > ::const_iterator	ConstChildIter
	allows to iterate over children

typedef std::list< BaseNode * > ::iterator	ChildIter
	allows to iterate over children

typedef std::list< BaseNode * > ::const_reverse_iterator	ConstChildRIter
	allows to reverse iterate over children

typedef std::list< BaseNode * > ::reverse_iterator	ChildRIter
	allows to reverse iterate over children

Public Member Functions
	BaseNode (BaseNode *_parent=0, std::string _name="<unknown>")
	Default constructor.

	BaseNode (BaseNode _parent, BaseNode _child, std::string _name="<unknown>")
	Put this node between _parent and _child.

virtual	~BaseNode ()
	Destructor.

void	delete_subtree ()
	Delete the whole subtree of this node. More...

virtual const std::string &	className () const =0
	Return class name (implemented by the ACG_CLASSNAME macro)

virtual DrawModes::DrawMode	availableDrawModes () const

virtual void	boundingBox (Vec3d &, Vec3d &)

virtual void	enter (GLState &, const DrawModes::DrawMode &)

virtual void	draw (GLState &, const DrawModes::DrawMode &)
	Draw this node using the draw modes _drawMode. More...

virtual void	getRenderObjects (IRenderer _renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const Material _mat)
	Deferred draw call with shader based renderer. More...

virtual void	leave (GLState &, const DrawModes::DrawMode &)

virtual void	enterPick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)

virtual void	pick (GLState &, PickTarget)

virtual void	leavePick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)

void	enablePicking (bool _enable)

bool	pickingEnabled ()

virtual void	mouseEvent (GLState &, QMouseEvent *)
	Handle mouse event (some interaction, e.g. modeling)

void	setDirty (bool _dirty=true)
	mark node for redrawn

bool	isDirty () const
	Check if node should be redrawn.

ChildIter	childrenBegin ()
	Returns: begin-iterator of children.

ConstChildIter	childrenBegin () const
	Same but `cont`.

ChildIter	childrenEnd ()
	Returns: end-iterator of children.

ConstChildIter	childrenEnd () const
	Same but `const`.

ChildRIter	childrenRBegin ()
	Returns: reverse begin-iterator of children.

ConstChildRIter	childrenRBegin () const
	Same but const.

ChildRIter	childrenREnd ()
	Returns: reverse end-iterator of children.

ConstChildRIter	childrenREnd () const
	Same but `const`.

void	push_back (BaseNode *_node)
	Insert _node at the end of the list of children.

void	remove (ChildIter _pos)

size_t	nChildren () const
	number of children

ChildIter	find (BaseNode *_node)

BaseNode *	find (const std::string &_name)

BaseNode *	parent ()
	Get the nodes parent node.

const BaseNode *	parent () const
	Get the nodes parent node.

void	set_parent (BaseNode *_parent)
	Set the parent of this node. More...

StatusMode	status () const
	Get node's status.

void	set_status (StatusMode _s)
	Set the status of this node.

void	hide ()
	Hide Node: set status to HideNode.

void	show ()
	Show node: set status to Active.

bool	visible ()
	Is node visible (status == Active)?

bool	hidden ()
	Is node not visible (status != Active)?

std::string	name () const
	Returns: name of node (needs not be unique)

void	name (const std::string &_name)
	rename a node

unsigned int	id () const

DrawModes::DrawMode	drawMode () const
	Return the own draw modes of this node.

void	drawMode (DrawModes::DrawMode _drawMode)

unsigned int	traverseMode () const
	Return how the node should be traversed.

void	setTraverseMode (unsigned int _mode)
	Set traverse mode for node.

Private Member Functions
	BaseNode (const BaseNode &)
	Copy constructor. Disabled.

void	operator= (const BaseNode &)
	Assignment operator. Disabled.

Private Attributes
BaseNode *	parent_
	pointer to parent node

std::string	name_
	name of node

StatusMode	status_
	node status()

std::list< BaseNode * >	children_
	list of children

unsigned int	id_
	ID of node.

DrawModes::DrawMode	drawMode_
	private draw mode

bool	pickingEnabled_

bool	dirty_
	Flag indicating that the node has to be redrawn.

unsigned int	traverseMode_
	traverse mode

std::map < DrawModes::DrawModePrimitive, ShaderSet >	shaderSettings_
	shader settings for primitive modes

std::map< int, RenderObject::Texture >	textureSettings_
	texture settings for shader based rendering

const GLSL::UniformPool *	uniformPool_
	user provided uniform pool for shader constants

RenderObjectModifier *	renderModifier_
	render-object modifier

Static Private Attributes
static unsigned int	last_id_used__ = 0
	used to provide unique IDs to nodes

Render pass controls
The render pass controls are only used during multipass traversal. There are two types of multipass controls. One type controls if the enter and leave functions of the nodes are used (RenderStatusPass) or if the actual draw function is called (RenderDrawPass). The bitmasks define if the functions are called by the traverse_multipass operation. The bitmask are initialized to run in the first path.
enum	PASSES { NOPASS = 0, ALLPASSES = 1 << 0, PASS_1 = 1 << 1, PASS_2 = 1 << 2, PASS_3 = 1 << 3, PASS_4 = 1 << 4, PASS_5 = 1 << 5, PASS_6 = 1 << 6, PASS_7 = 1 << 7, PASS_8 = 1 << 8 }
	This enum should be used to enable rendering of a node in different.

typedef unsigned int	MultipassBitMask
	Multipass pass bit mask type.

MultipassBitMask	multipassStatus () const
	Get the current multipass settings for the nodes status functions. More...

void	setMultipassStatus (const MultipassBitMask _passStatus)
	Set multipass settings for the nodes status functions. More...

void	multipassStatusSetActive (const unsigned int _i, bool _active)
	Set multipass status to traverse in a specific pass. More...

bool	multipassStatusActive (const unsigned int _i) const
	Get multipass status to traverse in a specific pass. More...

MultipassBitMask	multipassNode () const
	Get the current multipass settings for the node. More...

void	setMultipassNode (const MultipassBitMask _passNode)
	Set multipass settings for the node. More...

void	multipassNodeSetActive (const unsigned int _i, bool _active)
	Set Node status to traverse in a specific pass. More...

bool	multipassNodeActive (const unsigned int _i) const
	Get Node status to traverse in a specific pass. More...

RenderObject controls
The render pass controls are only used during shader-based rendering with render-objects. It is possible to provide shader and state settings that are copied to render-objects. These functions do not affect the fixed-function pipeline implementation of the scenegraph (enter() draw() leave()).
MultipassBitMask	multipassStatus_

MultipassBitMask	multipassNode_

void	setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
	Set custom shaders. More...

void	setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_tessControlShaderFile, const std::string &_tessEvalShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
	Set custom shaders. More...

void	setRenderObjectUniformPool (const GLSL::UniformPool *_pool)
	Set uniforms for shader based rendering. More...

const GLSL::UniformPool *	getRenderObjectUniformPool ()
	Get uniforms for shader based rendering. More...

void	setRenderObjectTexture (int _samplerSlot, GLuint _texId, GLenum _texType=GL_TEXTURE_2D)
	Set textures for shader based rendering. More...

void	setRenderObjectModifier (RenderObjectModifier *_modifier)
	Set modifier for render objects. More...

RenderObjectModifier *	getRenderObjectModifier ()
	Get render-object modifier. More...

void	applyRenderObjectSettings (DrawModes::DrawModePrimitive _primitive, RenderObject *_obj) const
	Set shaders, textures and uniforms as provided by user to a render-object. More...

Detailed Description

This is the base for all scenegraph nodes. All virtual functions should be reimplemented when inheriting from this class.

Definition at line 135 of file MeshNode2T.cc.

Member Enumeration Documentation

enum ACG::SceneGraph::ACG::SceneGraph::BaseNode::StatusMode

Status modi.

Enumerator
Active	Draw node & children.
HideNode	Hide this node, but draw children.
HideChildren	Draw this node, but hide children.
HideSubtree	Hide this node and its children.

Definition at line 365 of file MeshNode2T.cc.

enum ACG::SceneGraph::ACG::SceneGraph::BaseNode::TraverseMode

Node traverse types.

Enumerator
NodeFirst	Execute action on node first and then on its children.
ChildrenFirst	Execute action the children first and then on this node.
SecondPass	Draw node in second pass.

Definition at line 414 of file MeshNode2T.cc.

Member Function Documentation

void ACG::SceneGraph::BaseNode::applyRenderObjectSettings	(	DrawModes::DrawModePrimitive	_primitive,
		RenderObject *	_obj
	)		const

Set shaders, textures and uniforms as provided by user to a render-object.

A derived node can use this convenience function to copy shader, uniform and texture settings to a render-object.

Parameters

_primitive	the primitive type of the render-object
_obj	the render-object [in/out]

Definition at line 307 of file BaseNode.cc.

virtual DrawModes::DrawMode ACG::SceneGraph::ACG::SceneGraph::BaseNode::availableDrawModes ( ) const

inlinevirtual

Return a list of available draw modes for this node: should be OR'ed from the items of the enum DrawModeIDs.

Definition at line 167 of file MeshNode2T.cc.

virtual void ACG::SceneGraph::ACG::SceneGraph::BaseNode::boundingBox	(	Vec3d &	,
		Vec3d &
	)

inlinevirtual

Compute the bounding box of this node and update the values _bbMin and _bbMax accordingly. Do not initialize _bbMin and _bbMax since they may already store values of previous nodes' bounding box computation.

Definition at line 174 of file MeshNode2T.cc.

void ACG::SceneGraph::BaseNode::delete_subtree ( )

Delete the whole subtree of this node.

This function will remove the whole subtree below this node. All children in this nodes bubtree will be automatically removed from the tree and their destructor is called. The node itself will be removed from the list of its parents children. Afterwards it will also call its own destructor.

Definition at line 176 of file BaseNode.cc.

virtual void ACG::SceneGraph::ACG::SceneGraph::BaseNode::draw	(	GLState &	,
		const DrawModes::DrawMode &
	)

inlinevirtual

Draw this node using the draw modes _drawMode.

This function is called when the scenegraph is traversed by the classical draw routines.

In this call the node should draw it's content via OpenGL.

Note: Keep in mind, that you should use the currently active state and don't change it (at least reset it the original values you got). Otherwise nodes that are drawn after this node might get an inconsistent state.

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >.

Definition at line 194 of file MeshNode2T.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::drawMode ( DrawModes::DrawMode _drawMode )

inline

Set this node's own draw mode. It will be used for drawing instead of the the global draw mode.

Definition at line 409 of file MeshNode2T.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::enablePicking ( bool _enable )

inline

Enable or Disable picking for this node ( default: enabled )

Definition at line 241 of file MeshNode2T.cc.

virtual void ACG::SceneGraph::ACG::SceneGraph::BaseNode::enter	(	GLState &	,
		const DrawModes::DrawMode &
	)

inlinevirtual

This function is called when traversing the scene graph and arriving at this node. It can be used to store GL states that will be changed in order to restore then in the leave() function.

See also: MaterialNode

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MaterialNode.

Definition at line 182 of file MeshNode2T.cc.

void ACG::SceneGraph::BaseNode::enterPick	(	GLState &	_state,
		PickTarget	_target,
		const DrawModes::DrawMode &	_drawMode
	)

virtual

This function is called when traversing the scene graph during picking and arriving at this node. It can be used to store GL states that will be changed in order to restore then in the leavePick() function. Its default implementation will call the enter() function.

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MaterialNode.

Definition at line 186 of file BaseNode.cc.

ChildIter ACG::SceneGraph::ACG::SceneGraph::BaseNode::find ( BaseNode * _node )

inline

Find a specific node in the list of children.
This method is designed to convert a node pointer to an iterator that may be used e.g. for insert()'ing a new node at a distinct position.
Returns childrenEnd() if no appropriate node is found.

Definition at line 322 of file MeshNode2T.cc.

BaseNode* ACG::SceneGraph::ACG::SceneGraph::BaseNode::find ( const std::string & _name )

inline

Find a node of a given name

Definition at line 331 of file MeshNode2T.cc.

RenderObjectModifier* ACG::SceneGraph::ACG::SceneGraph::BaseNode::getRenderObjectModifier ( )

inline

Get render-object modifier.

Definition at line 646 of file MeshNode2T.cc.

virtual void ACG::SceneGraph::ACG::SceneGraph::BaseNode::getRenderObjects	(	IRenderer *	_renderer,
		GLState &	_state,
		const DrawModes::DrawMode &	_drawMode,
		const Material *	_mat
	)

inlinevirtual

Deferred draw call with shader based renderer.

The renderer calls this function to collect the geometry that should be rendered from the nodes.

Add any renderable geometry to the renderer via _renderer->addRenderObject()

The material is fetched from the last active material node and may be used to setup Renderobjects, but may as well be ignored.

Note: You should not draw anything yourself in this function.

Parameters

_renderer	The renderer which will be used. Add your geometry into this class
_state	The current GL State when this object is called
_drawMode	The active draw mode
_mat	Current material

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >, ACG::SceneGraph::TextNode, ACG::SceneGraph::PolyLineNodeT< PolyLine >, ACG::SceneGraph::PolyLineNodeT< ACG::PolyLineT >, and ACG::SceneGraph::QtWidgetNode.

Definition at line 212 of file MeshNode2T.cc.

const GLSL::UniformPool* ACG::SceneGraph::ACG::SceneGraph::BaseNode::getRenderObjectUniformPool ( )

inline

Get uniforms for shader based rendering.

Definition at line 617 of file MeshNode2T.cc.

unsigned int ACG::SceneGraph::ACG::SceneGraph::BaseNode::id ( ) const

inline

Get unique ID of node. IDs are always positive and may be used e.g. for picking.

Definition at line 399 of file MeshNode2T.cc.

virtual void ACG::SceneGraph::ACG::SceneGraph::BaseNode::leave	(	GLState &	,
		const DrawModes::DrawMode &
	)

inlinevirtual

The leave function is used to restore GL states the have been changed. This function must restore the status before enter() !

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MaterialNode.

Definition at line 217 of file MeshNode2T.cc.

void ACG::SceneGraph::BaseNode::leavePick	(	GLState &	_state,
		PickTarget	_target,
		const DrawModes::DrawMode &	_drawMode
	)

virtual

The leavePick function is used to restore GL states the have been changed. This function must restore the status before enterPick() ! Its default implementation will call the leave() function.

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MaterialNode.

Definition at line 194 of file BaseNode.cc.

MultipassBitMask ACG::SceneGraph::ACG::SceneGraph::BaseNode::multipassNode ( ) const

inline

Get the current multipass settings for the node.

Get a bitmask defining in which traverse path an action is applied to the node. (1-indexed) Use the PASSES enum above to control multipass rendering!

Returns: Bitmask defining in which traverse passes an action is applied to the node.

Definition at line 513 of file MeshNode2T.cc.

bool ACG::SceneGraph::BaseNode::multipassNodeActive ( const unsigned int _i ) const

Get Node status to traverse in a specific pass.

Check multipass setting for the node if an action will be applied in the given pass. Use the PASSES enum above to control multipass rendering!

Parameters

_i	Check this pass if an action will be applied to the node.

Definition at line 254 of file BaseNode.cc.

void ACG::SceneGraph::BaseNode::multipassNodeSetActive	(	const unsigned int	_i,
		bool	_active
	)

Set Node status to traverse in a specific pass.

Change multipass setting for the node. An action will be applied to this node in the given pass. Use the PASSES enum above to control multipass rendering!

Parameters

_i	Pass in which the node should be rendered
_active	Enable or disable node in this pass?

Definition at line 234 of file BaseNode.cc.

MultipassBitMask ACG::SceneGraph::ACG::SceneGraph::BaseNode::multipassStatus ( ) const

inline

Get the current multipass settings for the nodes status functions.

Get a bitmask defining in which traverse pass the enter and leave nodes are used. Use the PASSES enum above to control multipass rendering!

Returns: Bitmask defining in which traverse pass the enter and leave nodes are used

Definition at line 469 of file MeshNode2T.cc.

bool ACG::SceneGraph::BaseNode::multipassStatusActive ( const unsigned int _i ) const

Get multipass status to traverse in a specific pass.

Check multipass setting for the nodes status functions if they should be called in the given render pass. Use the PASSES enum above to control multipass rendering!

Parameters

_i	Check this pass if the nodes enter/leave functions are active

Definition at line 221 of file BaseNode.cc.

void ACG::SceneGraph::BaseNode::multipassStatusSetActive	(	const unsigned int	_i,
		bool	_active
	)

Set multipass status to traverse in a specific pass.

Change multipass setting for the nodes status functions. The node will call its enter and leave functions in the given pass if its set active. Use the PASSES enum above to control multipass rendering!

Parameters

_i	Pass in which the node should be rendered
_active	Activate or deactivate in this pass?

Definition at line 201 of file BaseNode.cc.

virtual void ACG::SceneGraph::ACG::SceneGraph::BaseNode::pick	(	GLState &	,
		PickTarget
	)

inlinevirtual

Draw the node using the GL picking name stack. The node's ID will already be on the name stack, so only names identifying e.g. faces should be used ( by pick_set_name() ).

Reimplemented in ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >.

Definition at line 230 of file MeshNode2T.cc.

bool ACG::SceneGraph::ACG::SceneGraph::BaseNode::pickingEnabled ( )

inline

Check if picking is enabled for this node

Definition at line 245 of file MeshNode2T.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::remove ( ChildIter _pos )

inline

Remove child node at position _pos. This _pos must be reachable from childrenBegin().
This method has no effect if called with childrenEnd() as parameter.

Definition at line 306 of file MeshNode2T.cc.

void ACG::SceneGraph::BaseNode::set_parent ( BaseNode * _parent )

Set the parent of this node.

This function will remove this node from its original parents children, if the parent exists. And will add it to the new parents children.

Definition at line 152 of file BaseNode.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::setMultipassNode ( const MultipassBitMask _passNode )

inline

Set multipass settings for the node.

Set a bitmask defining in which traverse path an action is applied to the node. (1-indexed) Set to ALLPASSES if you want to render in all passes. Use the PASSES enum above to control multipass rendering!

Parameters

_passNode Bitmask defining in which traverse passes an action is applied to the node.

Definition at line 525 of file MeshNode2T.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::setMultipassStatus ( const MultipassBitMask _passStatus )

inline

Set multipass settings for the nodes status functions.

Set a bitmask defining in which traverse pass the enter and leave nodes are used. Use the PASSES enum above to control multipass rendering!

Set to ALLPASSES if you want to render in all passes

Parameters

_passStatus Bitmask defining in which traverse pass the enter and leave nodes are used

Definition at line 481 of file MeshNode2T.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::setRenderObjectModifier ( RenderObjectModifier * _modifier )

inline

Set modifier for render objects.

Render-objects can be modified, if the implementation of a node supports this. The currently active modifier should be applied directly before adding an object to the renderer.

Parameters

_modifier pointer to address of modifier, address must be valid whenever the node creates render-objects

Definition at line 641 of file MeshNode2T.cc.

void ACG::SceneGraph::BaseNode::setRenderObjectShaders	(	const std::string &	_vertexShaderFile,
		const std::string &	_geometryShaderFile,
		const std::string &	_fragmentShaderFile,
		bool	_relativePaths = `true`,
		DrawModes::DrawModePrimitive	_primitiveType = `DrawModes::PRIMITIVE_POLYGON`
	)

Set custom shaders.

Assigns a set of shaders to a primitive type of a node. For instance, it is possible to render faces with a different shaders than lines. Default shaders are used instead if no other shaders are provided. Note: the derived node has to actually make use of shaders provided here

Example: set shaders in OpenFlipper/Shaders/MyWireShaders for rendering the line parts of a node: node->setRenderobjectShaders("MyWireShaders/v.glsl", "MyWireShaders/g.glsl", "MyWireShaders/f.glsl", true, ACG::SceneGraph::DrawModes::PRIMITIVE_WIREFRAME);

Parameters

_vertexShaderFile	filename of vertex shader template compatible with ACG::ShaderGenerator
_geometryShaderFile	filename of geometry shader template compatible with ACG::ShaderGenerator
_fragmentShaderFile	filename of fragment shader template compatible with ACG::ShaderGenerator
_relativePaths	filenames are relative or absolute
_primitiveType	assign shaders to rendering this type of primitive of the polyline

Definition at line 267 of file BaseNode.cc.

void ACG::SceneGraph::BaseNode::setRenderObjectShaders	(	const std::string &	_vertexShaderFile,
		const std::string &	_tessControlShaderFile,
		const std::string &	_tessEvalShaderFile,
		const std::string &	_geometryShaderFile,
		const std::string &	_fragmentShaderFile,
		bool	_relativePaths = `true`,
		DrawModes::DrawModePrimitive	_primitiveType = `DrawModes::PRIMITIVE_POLYGON`
	)

Set custom shaders.

Assigns a set of shaders to a primitive type of a node. For instance, it is possible to render faces with a different shaders than lines. Default shaders are used instead if no other shaders are provided. Note: the derived node has to actually make use of shaders provided here

Example: set shaders in OpenFlipper/Shaders/MyWireShaders for rendering the line parts of a node: node->setRenderObjectShaders("MyWireShaders/v.glsl", "MyWireShaders/g.glsl", "MyWireShaders/f.glsl", true, ACG::SceneGraph::DrawModes::PRIMITIVE_WIREFRAME);

Parameters

_vertexShaderFile	filename of vertex shader template compatible with ACG::ShaderGenerator
_tessControlShaderFile	filename of tessellation-control shader template compatible with ACG::ShaderGenerator
_tessEvalShaderFile	filename of tessellation-eval shader template compatible with ACG::ShaderGenerator
_geometryShaderFile	filename of geometry shader template compatible with ACG::ShaderGenerator
_fragmentShaderFile	filename of fragment shader template compatible with ACG::ShaderGenerator
_relativePaths	filenames are relative or absolute
_primitiveType	assign shaders to rendering this type of primitive of the polyline

Definition at line 280 of file BaseNode.cc.

void ACG::SceneGraph::BaseNode::setRenderObjectTexture	(	int	_samplerSlot,
		GLuint	_texId,
		GLenum	_texType = `GL_TEXTURE_2D`
	)

Set textures for shader based rendering.

Assign textures to sampler slots. Note: Fixed-function drawing ignores these textures. Also, it is still necessary to set the according sampler index in a UniformPool to access this texture in a shader.

Parameters

_samplerSlot	sampler slot to bind the texture to, zero-based index
_texId	gl texture id
_texType	gl texture type ie. GL_TEXTURE_1D, ..

Definition at line 295 of file BaseNode.cc.

void ACG::SceneGraph::ACG::SceneGraph::BaseNode::setRenderObjectUniformPool ( const GLSL::UniformPool * _pool )

inline

Set uniforms for shader based rendering.

Uniforms are copied from a pool when rendering with shader-based render-objects. The specified pool has to be a valid memory address whenever the objects are rendered. It does not make a copy of the pool.

Parameters

_pool pointer to address of a uniform pool

Definition at line 612 of file MeshNode2T.cc.

Member Data Documentation

MultipassBitMask ACG::SceneGraph::ACG::SceneGraph::BaseNode::multipassNode_

private

multi pass bit mask (1-indexed) Defines in which multipass runs an action should be applied to the node. (Only applies during multipass traversal!)

Definition at line 672 of file MeshNode2T.cc.

MultipassBitMask ACG::SceneGraph::ACG::SceneGraph::BaseNode::multipassStatus_

private

multi pass bit mask (1-indexed) Defines in which multipass runs the enter and leave functions should be called. (Only applies during multipass traversal!)

Definition at line 666 of file MeshNode2T.cc.

bool ACG::SceneGraph::ACG::SceneGraph::BaseNode::pickingEnabled_

private

Flag indicating if picking should be done for this object This flag has to be checked by your node if you implement picking

Definition at line 709 of file MeshNode2T.cc.

The documentation for this class was generated from the following files:

ACG/Scenegraph/MeshNode2T.cc
ACG/Scenegraph/BaseNode.cc

Classes

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Render pass controls

RenderObject controls

Detailed Description

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
