This class provides the composite subdivision rules for the uniform case. More...

#include <OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT.hh>

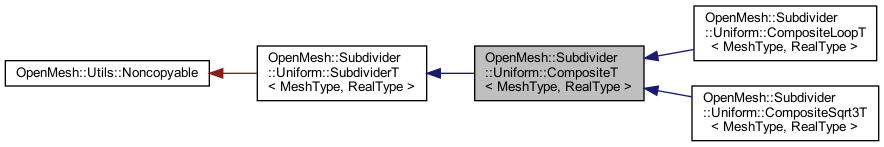

Inheritance diagram for OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >:

[legend]

Collaboration diagram for OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >:

Classes
struct	Coeff
	Abstract base class for coefficient functions. More...

Public Types
typedef RealType	real_t

typedef MeshType	mesh_t

typedef SubdividerT< mesh_t, real_t >	parent_t

Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType	mesh_t

typedef RealType	real_t

Public Member Functions
	CompositeT (MeshType &_mesh)

virtual const char *	name (void) const override=0
	Return name of subdivision algorithm. More...

Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
	SubdividerT (void)
	Constructor to be used with interface 2. More...

	SubdividerT (MeshType &_m)
	Constructor to be used with interface 1 (calls attach()) More...

virtual	~SubdividerT ()
	Destructor (calls detach())

bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)
	Subdivide the mesh `_m` `_n` times. More...

bool	attach (MeshType &_m)
	Attach mesh `_m` to self. More...

bool	operator() (size_t _n, const bool _update_points=true)
	Subdivide the attached `_n` times. More...

void	detach (void)
	Detach an eventually attached mesh. More...

Protected Types
typedef MeshType::Scalar	scalar_t

typedef MeshType::VertexHandle	VertexHandle

typedef MeshType::FaceHandle	FaceHandle

typedef MeshType::EdgeHandle	EdgeHandle

typedef MeshType::HalfedgeHandle	HalfedgeHandle

Protected Member Functions
bool	prepare (MeshType &_m) override
	Prepare mesh, e.g. More...

bool	subdivide (MeshType &_m, size_t _n, const bool _update_points=true) override
	Subdivide mesh `_m` `_n` times. More...

bool	cleanup (MeshType &_m) override
	Cleanup mesh after usage, e.g. remove added properties. More...

virtual void	apply_rules (void)=0
	Assemble here the rule sequence, by calling the constructor of the wanted rules. More...

void	commit (MeshType &_m)
	Move vertices to new positions after the rules have been applied to the mesh (called by subdivide()).

Protected Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >

Uniform composite subdivision rules
void	Tvv3 ()
	Split Face, using Vertex information (1-3 split)

void	Tvv4 ()
	Split Face, using Vertex information (1-4 split)

void	Tfv ()
	Split Face, using Face Information.

void	FF ()
	Face to face averaging.

void	FFc (Coeff &_coeff)
	Weighted face to face averaging.

void	FFc (scalar_t _c)
	Weighted face to face averaging.

void	FV ()
	Face to vertex averaging.

void	FVc (Coeff &_coeff)
	Weighted face to vertex Averaging with flaps.

void	FVc (scalar_t _c)
	Weighted face to vertex Averaging with flaps.

void	FE ()
	Face to edge averaging.

void	VF ()
	Vertex to Face Averaging.

void	VFa (Coeff &_coeff)
	Vertex to Face Averaging, weighted.

void	VFa (scalar_t _alpha)
	Vertex to Face Averaging, weighted.

void	VV ()
	Vertex to vertex averaging.

void	VVc (Coeff &_coeff)
	Vertex to vertex averaging, weighted.

void	VVc (scalar_t _c)
	Vertex to vertex averaging, weighted.

void	VE ()
	VE Step (Vertex to Edge Averaging)

void	VdE ()
	Vertex to edge averaging, using diamond of edges.

void	VdEc (scalar_t _c)
	Weighted vertex to edge averaging, using diamond of edges.

void	VdEg (Coeff &_coeff)
	Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

void	VdEg (scalar_t _gamma)
	Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

void	EF ()
	Edge to face averaging.

void	EV ()
	Edge to vertex averaging.

void	EVc (Coeff &_coeff)
	Weighted edge to vertex averaging.

void	EVc (scalar_t _c)
	Weighted edge to vertex averaging.

void	EdE ()
	Edge to edge averaging w/ flap rule.

void	EdEc (scalar_t _c)
	Weighted edge to edge averaging w/ flap rule.

void	corner_cutting (HalfedgeHandle _heh)
	Corner Cutting.

VertexHandle	split_edge (HalfedgeHandle _heh)
	Split Edge.

Detailed Description

template<typename MeshType, typename RealType = float>
class OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >

This class provides the composite subdivision rules for the uniform case.

To create a subdivider derive from this class and overload the functions name() and apply_rules(). In the latter one call the wanted rules.

For details on the composite scheme refer to

P. Oswald, P. Schroeder "Composite primal/dual sqrt(3)-subdivision schemes", CAGD 20, 3, 2003, 135–164

Note: Not all rules are implemented!

See also: class Adaptive::CompositeT

Member Function Documentation

◆ apply_rules()

template<typename MeshType , typename RealType = float>

virtual void OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::apply_rules ( void )

protectedpure virtual

Assemble here the rule sequence, by calling the constructor of the wanted rules.

Implemented in OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >.

◆ cleanup()

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::cleanup ( MeshType & _m )

inlineoverrideprotectedvirtual

Cleanup mesh after usage, e.g. remove added properties.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

◆ name()

template<typename MeshType , typename RealType = float>

virtual const char * OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::name ( void ) const

overridepure virtual

Return name of subdivision algorithm.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

Implemented in OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >.

◆ prepare()

template<typename MeshType , typename RealType >

bool OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::prepare ( MeshType & )

overrideprotectedvirtual

Prepare mesh, e.g.

add properties

You have to reimplement this function to setup your mesh. The default implementation will always return false and therefore block your algorithm.

Reimplemented from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

◆ subdivide()

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::subdivide	(	MeshType &	_m,
		size_t	_n,
		const bool	_update_points = `true`
	)

inlineoverrideprotectedvirtual

Subdivide mesh _m _n times.

Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.

The documentation for this class was generated from the following files:

OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT.hh
OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT_impl.hh
