OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType > Class Template Reference

Uniform composite sqrt(3) subdivision algorithm. More...

#include <OpenMesh/Tools/Subdivider/Uniform/CompositeSqrt3T.hh>

Inheritance diagram for OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >:

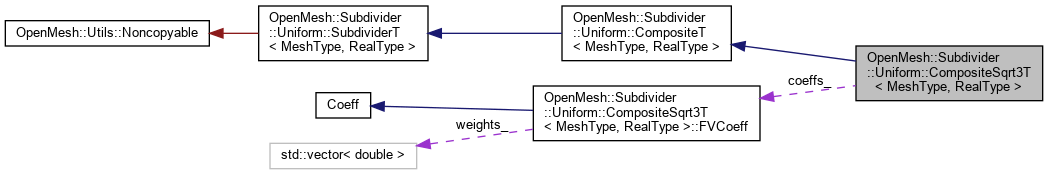

Collaboration diagram for OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >:

Classes

struct  FVCoeff
 Helper class. More...


Public Types

typedef CompositeT< MeshType, RealType > Inherited

- Public Types inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
typedef RealType real_t

typedef MeshType mesh_t

typedef SubdividerT< mesh_t, real_t > parent_t

- Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType mesh_t

typedef RealType real_t


Public Member Functions

 CompositeSqrt3T (MeshType &_mesh)

const char * name () const override
 Return name of subdivision algorithm.

- Public Member Functions inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
 CompositeT (MeshType &_mesh)

- Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
 SubdividerT (void)
 Constructor to be used with interface 2. More...

 SubdividerT (MeshType &_m)
 Constructor to be used with interface 1 (calls attach()) More...

virtual ~SubdividerT ()
 Destructor (calls detach())

bool operator() (MeshType &_m, size_t _n, const bool _update_points=true)
 Subdivide the mesh _m _n times. More...

bool attach (MeshType &_m)
 Attach mesh _m to self. More...

bool operator() (size_t _n, const bool _update_points=true)
 Subdivide the attached _n times. More...

void detach (void)
 Detach an eventually attached mesh. More...


Protected Types

typedef Inherited::Coeff Coeff

- Protected Types inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
typedef MeshType::Scalar scalar_t

typedef MeshType::VertexHandle VertexHandle

typedef MeshType::FaceHandle FaceHandle

typedef MeshType::EdgeHandle EdgeHandle

typedef MeshType::HalfedgeHandle HalfedgeHandle


Protected Member Functions

void apply_rules (void) override
 Assemble here the rule sequence, by calling the constructor of the wanted rules.

- Protected Member Functions inherited from OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >
bool prepare (MeshType &_m) override
 Prepare mesh, e.g. add properties.

bool subdivide (MeshType &_m, size_t _n, const bool _update_points=true) override
 Subdivide mesh _m _n times.

bool cleanup (MeshType &_m) override
 Cleanup mesh after usage, e.g. remove added properties.

void commit (MeshType &_m)
 Move vertices to new positions after the rules have been applied to the mesh (called by subdivide()).

void Tvv3 ()
 Split Face, using Vertex information (1-3 split)

void Tvv4 ()
 Split Face, using Vertex information (1-4 split)

void Tfv ()
 Split Face, using Face Information.

void FF ()
 Face to face averaging.

void FFc (Coeff &_coeff)
 Weighted face to face averaging.

void FFc (scalar_t _c)
 Weighted face to face averaging.

void FV ()
 Face to vertex averaging.

void FVc (Coeff &_coeff)
 Weighted face to vertex Averaging with flaps.

void FVc (scalar_t _c)
 Weighted face to vertex Averaging with flaps.

void FE ()
 Face to edge averaging.

void VF ()
 Vertex to Face Averaging.

void VFa (Coeff &_coeff)
 Vertex to Face Averaging, weighted.

void VFa (scalar_t _alpha)
 Vertex to Face Averaging, weighted.

void VV ()
 Vertex to vertex averaging.

void VVc (Coeff &_coeff)
 Vertex to vertex averaging, weighted.

void VVc (scalar_t _c)
 Vertex to vertex averaging, weighted.

void VE ()
 VE Step (Vertex to Edge Averaging)

void VdE ()
 Vertex to edge averaging, using diamond of edges.

void VdEc (scalar_t _c)
 Weighted vertex to edge averaging, using diamond of edges.

void VdEg (Coeff &_coeff)
 Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

void VdEg (scalar_t _gamma)
 Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

void EF ()
 Edge to face averaging.

void EV ()
 Edge to vertex averaging.

void EVc (Coeff &_coeff)
 Weighted edge to vertex averaging.

void EVc (scalar_t _c)
 Weighted edge to vertex averaging.

void EdE ()
 Edge to edge averaging w/ flap rule.

void EdEc (scalar_t _c)
 Weighted edge to edge averaging w/ flap rule.

void corner_cutting (HalfedgeHandle _heh)
 Corner Cutting.

VertexHandle split_edge (HalfedgeHandle _heh)
 Split Edge.

- Protected Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >

Protected Attributes

OpenMesh::Subdivider::Uniform::CompositeSqrt3T::FVCoeff coeffs_


Detailed Description

template<typename MeshType, typename RealType = double>
class OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >

Uniform composite sqrt(3) subdivision algorithm.


The documentation for this class was generated from the following file:
