OpenMesh::Decimater::BaseDecimaterT< MeshT > Class Template Reference

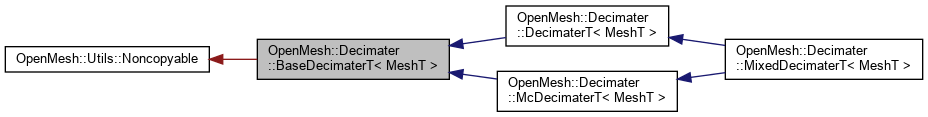

Inheritance diagram for OpenMesh::Decimater::BaseDecimaterT< MeshT >:

Collaboration diagram for OpenMesh::Decimater::BaseDecimaterT< MeshT >:

Public Types
typedef BaseDecimaterT< MeshT >	Self
typedef MeshT	Mesh
typedef CollapseInfoT< MeshT >	CollapseInfo
typedef ModBaseT< MeshT >	Module
typedef std::vector< Module * >	ModuleList
typedef ModuleList::iterator	ModuleListIterator

Public Member Functions
	BaseDecimaterT (Mesh &_mesh)
bool	initialize ()
	Initialize decimater and decimating modules. More...
bool	is_initialized () const
	Returns whether decimater has been successfully initialized.
void	info (std::ostream &_os)
	Print information about modules to _os.
void	set_observer (Observer *_o)
	Add observer. More...
Observer *	observer ()
	Get current observer of a decimater.
Mesh &	mesh ()
	access mesh. used in modules.
template<typename _Module >
bool	add (ModHandleT< _Module > &_mh)
	add module to decimater
template<typename _Module >
bool	remove (ModHandleT< _Module > &_mh)
	remove module
template<typename Module >
Module &	module (ModHandleT< Module > &_mh)
	get module referenced by handle _mh

Protected Member Functions
bool	notify_observer (size_t _n_collapses)
	returns false, if abort requested by observer
void	set_uninitialized ()
	Reset the initialized flag, and clear the bmodules_ and cmodule_.
void	update_modules (CollapseInfo &_ci)
bool	is_collapse_legal (const CollapseInfo &_ci)
	Is an edge collapse legal? Performs topological test only. More...
float	collapse_priority (const CollapseInfo &_ci)
	Calculate priority of an halfedge collapse (using the modules)
void	preprocess_collapse (CollapseInfo &_ci)
	Pre-process a collapse.
void	postprocess_collapse (CollapseInfo &_ci)
	Post-process a collapse.
void	set_error_tolerance_factor (double _factor)
	This provides a function that allows the setting of a percentage of the original constraint of the modules. More...
void	reset ()
	Reset the status of this class. More...

Member Function Documentation

initialize()

template<class Mesh >

bool OpenMesh::Decimater::BaseDecimaterT< Mesh >::initialize

(

void

)

Initialize decimater and decimating modules.

Return values: true ok false No ore more than one non-binary module exist. In that case the decimater is uninitialized!

is_collapse_legal()

template<class Mesh >

bool OpenMesh::Decimater::BaseDecimaterT< Mesh >::is_collapse_legal ( const CollapseInfo &  _ci )

protected

Is an edge collapse legal? Performs topological test only.

The method evaluates the status bit Locked, Deleted, and Feature.

Attention

The method temporarily sets the bit Tagged. After usage the bit will be disabled!

reset()

template<typename MeshT >

void OpenMesh::Decimater::BaseDecimaterT< MeshT >::reset ( )

inlineprotected

Reset the status of this class.

You have to call initialize again!!

set_error_tolerance_factor()

template<class Mesh >

void OpenMesh::Decimater::BaseDecimaterT< Mesh >::set_error_tolerance_factor ( double  _factor )

protected

This provides a function that allows the setting of a percentage of the original constraint of the modules.

Note that some modules might re-initialize in their set_error_tolerance_factor function as necessary

Parameters

_factor

has to be in the closed interval between 0.0 and 1.0

set_observer()

template<typename MeshT >

void OpenMesh::Decimater::BaseDecimaterT< MeshT >::set_observer ( Observer *  _o )

inline

Add observer.

You can set an observer which is used as a callback to check the decimators progress and to abort it if necessary.

Parameters

_o	Observer to be used

---

The documentation for this class was generated from the following files:

• OpenMesh/Tools/Decimater/BaseDecimaterT.hh
• OpenMesh/Tools/Decimater/BaseDecimaterT_impl.hh
