OpenMesh::IO::BaseReader Class Referenceabstract

Base class for reader modules. More...

#include <OpenMesh/Core/IO/reader/BaseReader.hh>

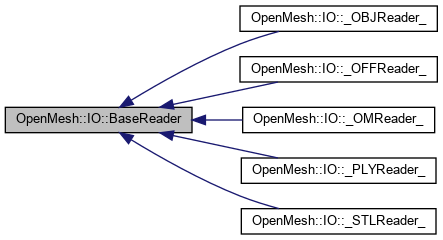

Inheritance diagram for OpenMesh::IO::BaseReader:

Public Member Functions

virtual ~BaseReader ()
 Destructor.

virtual std::string get_description () const =0
 Returns a brief description of the file type that can be parsed.

virtual std::string get_extensions () const =0
 Returns a string with the accepted file extensions separated by a whitespace and in small caps.

virtual std::string get_magic () const
 Return magic bits used to determine file format.

virtual bool read (const std::string &_filename, BaseImporter &_bi, Options &_opt)=0
 Reads a mesh given by a filename. More...

virtual bool read (std::istream &_is, BaseImporter &_bi, Options &_opt)=0
 Reads a mesh given by a std::stream. More...

virtual bool can_u_read (const std::string &_filename) const
 Returns true if writer can parse _filename (checks extension). More...


Protected Member Functions

bool check_extension (const std::string &_fname, const std::string &_ext) const


Detailed Description

Base class for reader modules.

Reader modules access persistent data and pass them to the desired data structure by the means of a BaseImporter derivative. All reader modules must be derived from this class.

Member Function Documentation

◆ can_u_read()

bool OpenMesh::IO::BaseReader::can_u_read ( const std::string &  _filename) const
virtual

Returns true if writer can parse _filename (checks extension).

_filename can also provide an extension without a name for a file e.g. _filename == "om" checks, if the reader can read the "om" extension

Parameters
_filenamecomplete name of a file or just the extension
Returns
true, if reader can read data with the given extension

Reimplemented in OpenMesh::IO::_PLYReader_, OpenMesh::IO::_OMReader_, and OpenMesh::IO::_OFFReader_.

◆ read() [1/2]

virtual bool OpenMesh::IO::BaseReader::read ( const std::string &  _filename,
BaseImporter _bi,
Options _opt
)
pure virtual

Reads a mesh given by a filename.

Usually this method opens a stream and passes it to stream read method. Acceptance checks by filename extension can be placed here.

Options can be passed via _opt. After execution _opt contains the Options that were available

Implemented in OpenMesh::IO::_STLReader_, OpenMesh::IO::_PLYReader_, OpenMesh::IO::_OMReader_, OpenMesh::IO::_OFFReader_, and OpenMesh::IO::_OBJReader_.

◆ read() [2/2]

virtual bool OpenMesh::IO::BaseReader::read ( std::istream &  _is,
BaseImporter _bi,
Options _opt
)
pure virtual

Reads a mesh given by a std::stream.

This method usually uses the same stream reading method that read uses. Options can be passed via _opt. After execution _opt contains the Options that were available.

Please make sure that if _is is std::ifstream, the correct std::ios_base::openmode flags are set.

Implemented in OpenMesh::IO::_PLYReader_, OpenMesh::IO::_OMReader_, OpenMesh::IO::_STLReader_, OpenMesh::IO::_OFFReader_, and OpenMesh::IO::_OBJReader_.


The documentation for this class was generated from the following files:
