OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M > Class Template Reference

Base class for adaptive composite subdivision rules. More...

#include <OpenMesh/Tools/Subdivider/Adaptive/Composite/RuleInterfaceT.hh>

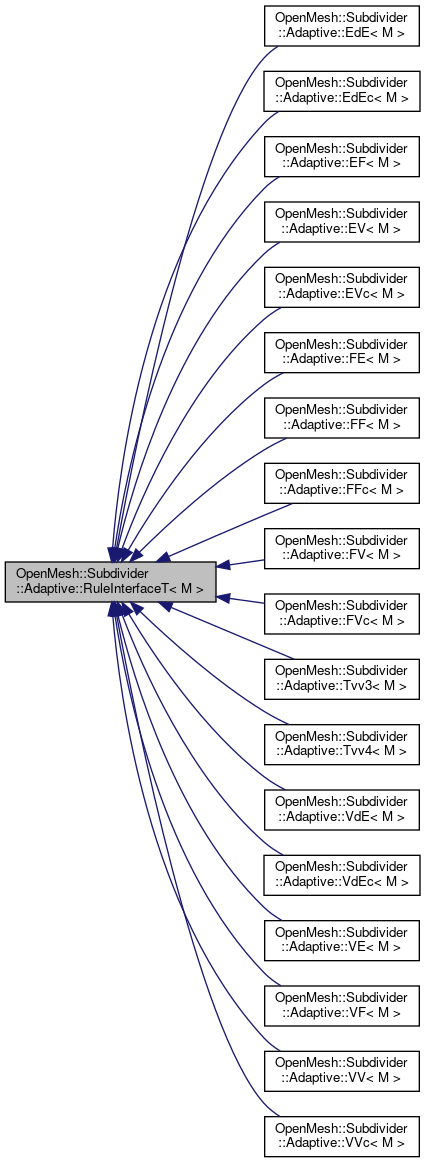

Inheritance diagram for OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >:

Public Types
typedef M	Mesh
typedef RuleInterfaceT< M >	Self
typedef RuleHandleT< Self >	Rule
typedef M::Scalar	scalar_t

Public Member Functions
virtual	~RuleInterfaceT ()
	Destructor.
virtual const char *	type () const =0
	Returns the name of the rule. More...
void	update (typename M::FaceHandle &_fh, state_t _target_state)
void	update (typename M::EdgeHandle &_eh, state_t _target_state)
void	update (typename M::VertexHandle &_vh, state_t _target_state)
int	subdiv_type () const
	Type of split operation, if it is a topological operator.
int	number () const
	Position in rule sequence.
Raise item
virtual void	raise (typename M::FaceHandle &_fh, state_t _target_state)
	Raise item to target state _target_state.
virtual void	raise (typename M::EdgeHandle &_eh, state_t _target_state)
	Raise item to target state _target_state.
virtual void	raise (typename M::VertexHandle &_vh, state_t _target_state)
	Raise item to target state _target_state.
Parameterization of rule
virtual void	set_coeff (scalar_t _coeff)
	Set coefficient - ignored by non-parameterized rules.
scalar_t	coeff () const
	Get coefficient - ignored by non-parameterized rules.

Protected Member Functions
	RuleInterfaceT (Mesh &_mesh)
	Default constructor.
void	set_prev_rule (Self *&_p)
Self *	prev_rule ()
void	set_subdiv_rule (Self *&_n)
Self *	subdiv_rule () const
void	set_number (int _n)
void	set_n_rules (int _n)
int	n_rules () const
void	set_subdiv_type (int _n)

Protected Attributes
Mesh &	mesh_

Friends
class	CompositeT< M >

Detailed Description

template<typename M>
class OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >

Base class for adaptive composite subdivision rules.

See also

class CompositeT

Member Function Documentation

type()

template<typename M >

virtual const char* OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::type ( ) const

pure virtual

Returns the name of the rule.

Use define COMPOSITE_RULE to overload this function in a derived class.

Implemented in OpenMesh::Subdivider::Adaptive::EdEc< M >, OpenMesh::Subdivider::Adaptive::EdE< M >, OpenMesh::Subdivider::Adaptive::FE< M >, OpenMesh::Subdivider::Adaptive::EF< M >, OpenMesh::Subdivider::Adaptive::EVc< M >, OpenMesh::Subdivider::Adaptive::EV< M >, OpenMesh::Subdivider::Adaptive::VdEc< M >, OpenMesh::Subdivider::Adaptive::VdE< M >, OpenMesh::Subdivider::Adaptive::VE< M >, OpenMesh::Subdivider::Adaptive::VVc< M >, OpenMesh::Subdivider::Adaptive::VV< M >, OpenMesh::Subdivider::Adaptive::FVc< M >, OpenMesh::Subdivider::Adaptive::FV< M >, OpenMesh::Subdivider::Adaptive::FFc< M >, OpenMesh::Subdivider::Adaptive::FF< M >, OpenMesh::Subdivider::Adaptive::VF< M >, OpenMesh::Subdivider::Adaptive::Tvv4< M >, and OpenMesh::Subdivider::Adaptive::Tvv3< M >.

---

The documentation for this class was generated from the following files:

• OpenMesh/Tools/Subdivider/Adaptive/Composite/CompositeT.hh
• OpenMesh/Tools/Subdivider/Adaptive/Composite/RuleInterfaceT.hh
