OpenMesh::SmartFaceHandle Struct Reference

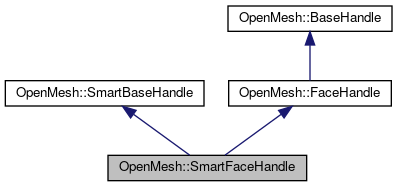

Inheritance diagram for OpenMesh::SmartFaceHandle:
Collaboration diagram for OpenMesh::SmartFaceHandle:

Public Member Functions

 SmartFaceHandle (int _idx=-1, const PolyConnectivity *_mesh=nullptr)

SmartHalfedgeHandle halfedge () const
 Returns one of the halfedges of the face.

PolyConnectivity::ConstFaceVertexRange vertices () const
 Returns a range of vertices incident to the face (PolyConnectivity::fv_range())

PolyConnectivity::ConstFaceHalfedgeRange halfedges () const
 Returns a range of halfedges of the face (PolyConnectivity::fh_range())

PolyConnectivity::ConstFaceEdgeRange edges () const
 Returns a range of edges of the face (PolyConnectivity::fv_range())

PolyConnectivity::ConstFaceFaceRange faces () const
 Returns a range adjacent faces of the face (PolyConnectivity::ff_range())

uint valence () const
 Returns the valence of the face.

bool is_boundary () const
 Returns true iff the face lies at the boundary (i.e. one of the edges is boundary)

- Public Member Functions inherited from OpenMesh::SmartBaseHandle
 SmartBaseHandle (const PolyConnectivity *_mesh=nullptr)

const PolyConnectivitymesh () const
 Get the underlying mesh of this handle.

- Public Member Functions inherited from OpenMesh::FaceHandle
 FaceHandle (int _idx=-1)

- Public Member Functions inherited from OpenMesh::BaseHandle
 BaseHandle (int _idx=-1)

int idx () const
 Get the underlying index of this handle.

bool is_valid () const
 The handle is valid iff the index is not negative.

void reset ()
 reset handle to be invalid

void invalidate ()
 reset handle to be invalid

bool operator== (const BaseHandle &_rhs) const

bool operator!= (const BaseHandle &_rhs) const

bool operator< (const BaseHandle &_rhs) const

void __increment ()

void __decrement ()

void __increment (int amount)

void __decrement (int amount)


The documentation for this struct was generated from the following files:
