OpenMesh::IO::BaseWriter Class Reference

Base class for all writer modules. More...

#include <OpenMesh/Core/IO/writer/BaseWriter.hh>

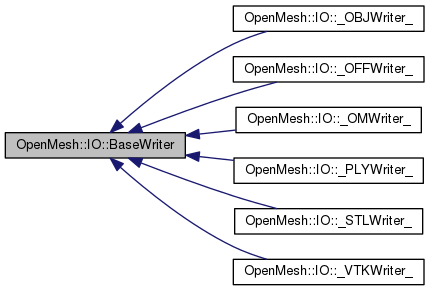

Inheritance diagram for OpenMesh::IO::BaseWriter:

Public Types
typedef unsigned int	Option

Public Member Functions
virtual	~BaseWriter ()
	Destructor.
virtual std::string	get_description () const =0
	Return short description of the supported file format.
virtual std::string	get_extensions () const =0
	Return file format's extension.
virtual bool	can_u_write (const std::string &_filename) const
	Returns true if writer can write _filename (checks extension). More...
virtual bool	write (const std::string &_filename, BaseExporter &_be, Options _opt, std::streamsize _precision=6) const =0
	Write to a file. More...
virtual bool	write (std::ostream &_os, BaseExporter &_be, Options _opt, std::streamsize _precision=6) const =0
	Write to a std::ostream. More...
virtual size_t	binary_size (BaseExporter &, Options) const
	Returns expected size of file if binary format is supported else 0.

Protected Member Functions
bool	check (BaseExporter &_be, Options _opt) const

Detailed Description

Base class for all writer modules.

The module should register itself at the IOManager by calling the register_module function.

Member Function Documentation

can_u_write()

bool OpenMesh::IO::BaseWriter::can_u_write ( const std::string &  _filename ) const

virtual

Returns true if writer can write _filename (checks extension).

_filename can also provide an extension without a name for a file e.g. _filename == "om" checks, if the writer can write the "om" extension

Parameters

_filename

complete name of a file or just the extension

Returns

true, if writer can write data with the given extension

write() [1/2]

virtual bool OpenMesh::IO::BaseWriter::write ( const std::string &  _filename, BaseExporter &  _be, Options  _opt, std::streamsize  _precision = 6  ) const

pure virtual

Write to a file.

Parameters

_filename	write to file with the given filename
_be	BaseExporter, which specifies the data source
_opt	writing options
_precision	can be used to specify the precision of the floating point notation.

Implemented in OpenMesh::IO::_OMWriter_, OpenMesh::IO::_OFFWriter_, OpenMesh::IO::_PLYWriter_, OpenMesh::IO::_OBJWriter_, OpenMesh::IO::_STLWriter_, and OpenMesh::IO::_VTKWriter_.

write() [2/2]

virtual bool OpenMesh::IO::BaseWriter::write ( std::ostream &  _os, BaseExporter &  _be, Options  _opt, std::streamsize  _precision = 6  ) const

pure virtual

Write to a std::ostream.

Parameters

_os	write to std::ostream
_be	BaseExporter, which specifies the data source
_opt	writing options
_precision	can be used to specify the precision of the floating point notation.

Implemented in OpenMesh::IO::_OMWriter_, OpenMesh::IO::_OFFWriter_, OpenMesh::IO::_PLYWriter_, OpenMesh::IO::_OBJWriter_, OpenMesh::IO::_STLWriter_, and OpenMesh::IO::_VTKWriter_.

---

The documentation for this class was generated from the following files:

• OpenMesh/Core/IO/writer/BaseWriter.hh
• OpenMesh/Core/IO/writer/BaseWriter.cc
