Inheritance diagram for MeshViewerWidgetT< M >:

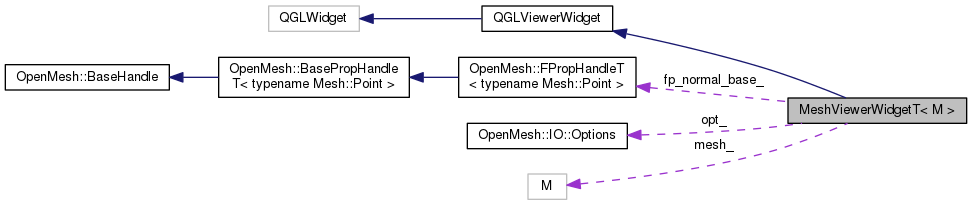

Collaboration diagram for MeshViewerWidgetT< M >:

[legend]

Public Types
typedef M	Mesh

typedef OpenMesh::StripifierT< Mesh >	MyStripifier

Public Types inherited from QGLViewerWidget
typedef QGLWidget	Super

Public Member Functions
	MeshViewerWidgetT (QWidget *_parent=0)
	default constructor

	~MeshViewerWidgetT ()
	destructor

virtual bool	open_mesh (const char *_filename, OpenMesh::IO::Options _opt)
	open mesh

virtual bool	open_texture (const char *_filename)
	load texture

bool	set_texture (QImage &_texsrc)

void	enable_strips ()

void	disable_strips ()

Mesh &	mesh ()

const Mesh &	mesh () const

Public Member Functions inherited from QGLViewerWidget
	QGLViewerWidget (QWidget *_parent=0)

	QGLViewerWidget (QGLFormat &_fmt, QWidget *_parent=0)

void	set_scene_pos (const OpenMesh::Vec3f &_center, float _radius)

void	view_all ()

QAction *	add_draw_mode (const std::string &_s)
	add draw mode to popup menu, and return the QAction created

void	del_draw_mode (const std::string &_s)
	delete draw mode from popup menu

const std::string &	current_draw_mode () const

float	radius () const

const OpenMesh::Vec3f &	center () const

const GLdouble *	modelview_matrix () const

const GLdouble *	projection_matrix () const

float	fovy () const

QAction *	findAction (const char *name)

void	addAction (QAction action, const char name)

void	removeAction (const char *name)

void	removeAction (QAction *action)

Protected Member Functions
virtual void	draw_scene (const std::string &_draw_mode)
	inherited drawing method

virtual void	draw_openmesh (const std::string &_drawmode)
	draw the mesh

void	glVertex (const typename Mesh::VertexHandle _vh)

void	glVertex (const typename Mesh::Point &_p)

void	glNormal (const typename Mesh::VertexHandle _vh)

void	glTexCoord (const typename Mesh::VertexHandle _vh)

void	glColor (const typename Mesh::VertexHandle _vh)

void	glNormal (const typename Mesh::FaceHandle _fh)

void	glColor (const typename Mesh::FaceHandle _fh)

void	glMaterial (const typename Mesh::FaceHandle _fh, int _f=GL_FRONT_AND_BACK, int _m=GL_DIFFUSE)

void	compute_strips (void)

virtual void	keyPressEvent (QKeyEvent *_event)

Protected Member Functions inherited from QGLViewerWidget
double	performance (void)

void	setDefaultMaterial (void)

void	setDefaultLight (void)

virtual void	mousePressEvent (QMouseEvent *)

virtual void	mouseReleaseEvent (QMouseEvent *)

virtual void	mouseMoveEvent (QMouseEvent *)

virtual void	wheelEvent (QWheelEvent *)

Protected Attributes
bool	f_strips_

GLuint	tex_id_

GLint	tex_mode_

OpenMesh::IO::Options	opt_

Mesh	mesh_

MyStripifier	strips_

bool	use_color_

bool	show_vnormals_

bool	show_fnormals_

float	normal_scale_

OpenMesh::FPropHandleT< typename Mesh::Point >	fp_normal_base_

The documentation for this class was generated from the following files:
