OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value > Class Template Reference

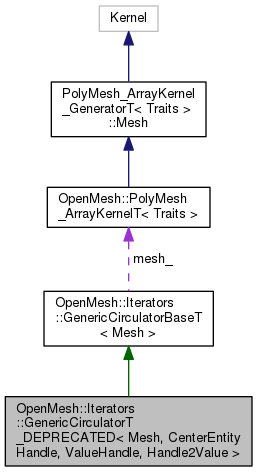

Inheritance diagram for OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >:

Collaboration diagram for OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >:

Public Types
typedef std::ptrdiff_t	difference_type
typedef ValueHandle	value_type
typedef const value_type &	reference
typedef const value_type *	pointer
typedef std::bidirectional_iterator_tag	iterator_category
typedef GenericCirculatorBaseT< Mesh >::mesh_ptr	mesh_ptr
typedef GenericCirculatorBaseT< Mesh >::mesh_ref	mesh_ref
typedef GenericCirculator_ValueHandleFnsT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle >	GenericCirculator_ValueHandleFns

Public Member Functions
	GenericCirculatorT_DEPRECATED (mesh_ref mesh, CenterEntityHandle start, bool end=false)
	GenericCirculatorT_DEPRECATED (mesh_ref mesh, HalfedgeHandle heh, bool end=false)
	GenericCirculatorT_DEPRECATED (const GenericCirculatorT_DEPRECATED &rhs)
GenericCirculatorT_DEPRECATED &	operator++ ()
GenericCirculatorT_DEPRECATED &	operator-- ()
GenericCirculatorT_DEPRECATED	operator++ (int)
	Post-increment.
GenericCirculatorT_DEPRECATED	operator-- (int)
	Post-decrement.
value_type	operator* () const
	Standard dereferencing operator.
pointer	operator-> () const
	Pointer dereferentiation. More...
GenericCirculatorT_DEPRECATED &	operator= (const GenericCirculatorT_DEPRECATED &rhs)
bool	operator== (const GenericCirculatorT_DEPRECATED &rhs) const
bool	operator!= (const GenericCirculatorT_DEPRECATED &rhs) const
bool	is_valid () const
const HalfedgeHandle &	current_halfedge_handle () const
	operator bool () const
value_type	handle () const
	Return the handle of the current target. More...
	operator value_type () const
	Cast to the handle of the current target. More...

Friends
template<typename STREAM >
STREAM &	operator<< (STREAM &s, const GenericCirculatorT_DEPRECATED &self)

Additional Inherited Members
Protected Types inherited from OpenMesh::Iterators::GenericCirculatorBaseT< Mesh >
typedef const Mesh *	mesh_ptr
typedef const Mesh &	mesh_ref
Protected Member Functions inherited from OpenMesh::Iterators::GenericCirculatorBaseT< Mesh >
	GenericCirculatorBaseT (mesh_ref mesh, HalfedgeHandle heh, bool end=false)
	GenericCirculatorBaseT (const GenericCirculatorBaseT &rhs)
Mesh::FaceHandle	toFaceHandle () const
Mesh::FaceHandle	toOppositeFaceHandle () const
Mesh::EdgeHandle	toEdgeHandle () const
Mesh::HalfedgeHandle	toHalfedgeHandle () const
Mesh::HalfedgeHandle	toOppositeHalfedgeHandle () const
Mesh::VertexHandle	toVertexHandle () const
GenericCirculatorBaseT &	operator= (const GenericCirculatorBaseT &rhs)
bool	operator== (const GenericCirculatorBaseT &rhs) const
bool	operator!= (const GenericCirculatorBaseT &rhs) const
Protected Attributes inherited from OpenMesh::Iterators::GenericCirculatorBaseT< Mesh >
mesh_ptr	mesh_
Mesh::HalfedgeHandle	start_
Mesh::HalfedgeHandle	heh_
int	lap_counter_

Member Function Documentation

template<class Mesh , class CenterEntityHandle , class ValueHandle , ValueHandle(GenericCirculatorBaseT< Mesh >::*)() const Handle2Value>

const HalfedgeHandle& OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >::current_halfedge_handle ( ) const

inline

Deprecated:

current_halfedge_handle() is an implementation detail and should not be accessed from outside the iterator class.

template<class Mesh , class CenterEntityHandle , class ValueHandle , ValueHandle(GenericCirculatorBaseT< Mesh >::*)() const Handle2Value>

value_type OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >::handle ( ) const

inline

Return the handle of the current target.

Deprecated:

This function clutters your code. Use dereferencing operators -> and * instead.

template<class Mesh , class CenterEntityHandle , class ValueHandle , ValueHandle(GenericCirculatorBaseT< Mesh >::*)() const Handle2Value>

OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >::operator bool ( ) const

inline

Deprecated:

Do not use this error prone implicit cast.

Compare to the end-iterator or use is_valid() instead.

template<class Mesh , class CenterEntityHandle , class ValueHandle , ValueHandle(GenericCirculatorBaseT< Mesh >::*)() const Handle2Value>

OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >::operator value_type ( ) const

inline

Cast to the handle of the current target.

Deprecated:

Implicit casts of iterators are unsafe. Use dereferencing operators -> and * instead.

template<class Mesh , class CenterEntityHandle , class ValueHandle , ValueHandle(GenericCirculatorBaseT< Mesh >::*)() const Handle2Value>

pointer OpenMesh::Iterators::GenericCirculatorT_DEPRECATED< Mesh, CenterEntityHandle, ValueHandle, Handle2Value >::operator-> ( ) const

inline

Pointer dereferentiation.

This returns a pointer which points to a handle that loses its validity once this dereferentiation is invoked again. Thus, do not store the result of this operation.

---

The documentation for this class was generated from the following file:

• OpenMesh/Core/Mesh/CirculatorsT.hh
