OpenMesh::TriConnectivity Class Reference

Connectivity Class for Triangle Meshes. More...

#include <OpenMesh/Core/Mesh/TriConnectivity.hh>

Inheritance diagram for OpenMesh::TriConnectivity:

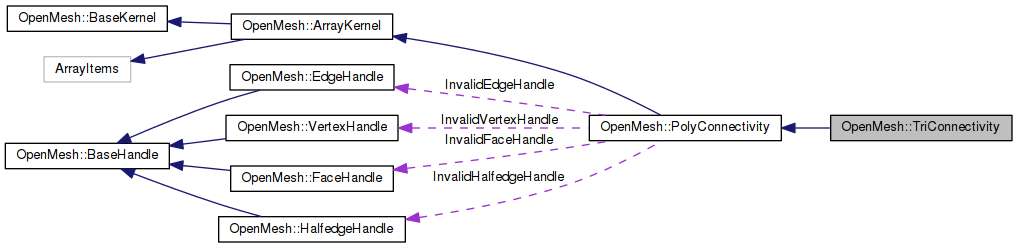

Collaboration diagram for OpenMesh::TriConnectivity:

Public Member Functions
void	assign_connectivity (const TriConnectivity &_other)
	assign_connectivity() methods. More...
void	assign_connectivity (const PolyConnectivity &_other)
VertexHandle	opposite_vh (HalfedgeHandle _heh) const
	Returns the opposite vertex to the halfedge _heh in the face referenced by _heh returns InvalidVertexHandle if the _heh is boundary.
VertexHandle	opposite_he_opposite_vh (HalfedgeHandle _heh) const
	Returns the opposite vertex to the opposite halfedge of _heh in the face referenced by it returns InvalidVertexHandle if the opposite halfedge is boundary.
Addding items to a mesh
FaceHandle	add_face (const VertexHandle *_vhandles, size_t _vhs_size)
	Add a face with arbitrary valence to the triangle mesh. More...
FaceHandle	add_face (const std::vector< VertexHandle > &_vhandles)
	Add a face with arbitrary valence to the triangle mesh. More...
FaceHandle	add_face (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2)
	Add a face to the mesh (triangle) More...
Topology modifying operators
bool	is_collapse_ok (HalfedgeHandle _heh)
	Returns whether collapsing halfedge _heh is ok or would lead to topological inconsistencies. More...
HalfedgeHandle	vertex_split (VertexHandle v0, VertexHandle v1, VertexHandle vl, VertexHandle vr)
	Vertex Split: inverse operation to collapse().
bool	is_flip_ok (EdgeHandle _eh) const
	Check whether flipping _eh is topologically correct.
void	flip (EdgeHandle _eh)
	Flip edge _eh. More...
void	split (EdgeHandle _eh, VertexHandle _vh)
	Edge split (= 2-to-4 split) More...
void	split_copy (EdgeHandle _eh, VertexHandle _vh)
	Edge split (= 2-to-4 split) More...
void	split (FaceHandle _fh, VertexHandle _vh)
	Face split (= 1-to-3) split, calls corresponding PolyMeshT function). More...
void	split_copy (FaceHandle _fh, VertexHandle _vh)
	Face split (= 1-to-3) split, calls corresponding PolyMeshT function). More...
Public Member Functions inherited from OpenMesh::PolyConnectivity
void	assign_connectivity (const PolyConnectivity &_other)
	assign_connectivity() method. More...
FaceHandle	opposite_face_handle (HalfedgeHandle _heh) const
	returns the face handle of the opposite halfedge
void	adjust_outgoing_halfedge (VertexHandle _vh)
	Adjust outgoing halfedge handle for vertices, so that it is a boundary halfedge whenever possible.
HalfedgeHandle	find_halfedge (VertexHandle _start_vh, VertexHandle _end_vh) const
	Find halfedge from _vh0 to _vh1. Returns invalid handle if not found.
uint	valence (VertexHandle _vh) const
	Vertex valence.
uint	valence (FaceHandle _fh) const
	Face valence.
void	collapse (HalfedgeHandle _heh)
	Halfedge collapse: collapse the from-vertex of halfedge _heh into its to-vertex. More...
bool	is_simple_link (EdgeHandle _eh) const
	return true if the this the only link between the faces adjacent to _eh. More...
bool	is_simply_connected (FaceHandle _fh) const
	return true if _fh shares only one edge with all of its adjacent faces. More...
FaceHandle	remove_edge (EdgeHandle _eh)
	Removes the edge _eh. More...
void	reinsert_edge (EdgeHandle _eh)
	Inverse of remove_edge. More...
HalfedgeHandle	insert_edge (HalfedgeHandle _prev_heh, HalfedgeHandle _next_heh)
	Inserts an edge between to_vh(_prev_heh) and from_vh(_next_heh). More...
void	split (FaceHandle _fh, VertexHandle _vh)
	Face split (= 1-to-n split). More...
void	split_copy (FaceHandle _fh, VertexHandle _vh)
	Face split (= 1-to-n split). More...
void	triangulate (FaceHandle _fh)
	Triangulate the face _fh. More...
void	triangulate ()
	triangulate the entire mesh
void	split_edge (EdgeHandle _eh, VertexHandle _vh)
	Edge split (inserts a vertex on the edge only) More...
void	split_edge_copy (EdgeHandle _eh, VertexHandle _vh)
	Edge split (inserts a vertex on the edge only) More...
VertexHandle	add_vertex ()
	Add a new vertex.
FaceHandle	add_face (const std::vector< VertexHandle > &_vhandles)
	Add and connect a new face. More...
FaceHandle	add_face (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2)
	Add and connect a new face. More...
FaceHandle	add_face (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2, VertexHandle _vh3)
	Add and connect a new face. More...
FaceHandle	add_face (const VertexHandle *_vhandles, size_t _vhs_size)
	Add and connect a new face. More...
bool	is_collapse_ok (HalfedgeHandle _he)
	Returns whether collapsing halfedge _heh is ok or would lead to topological inconsistencies. More...
void	delete_vertex (VertexHandle _vh, bool _delete_isolated_vertices=true)
	Mark vertex and all incident edges and faces deleted. More...
void	delete_edge (EdgeHandle _eh, bool _delete_isolated_vertices=true)
	Mark edge (two opposite halfedges) and incident faces deleted. More...
void	delete_face (FaceHandle _fh, bool _delete_isolated_vertices=true)
	Delete face _fh and resulting degenerated empty halfedges as well. More...
VertexIter	vertices_begin ()
	Begin iterator for vertices.
ConstVertexIter	vertices_begin () const
	Const begin iterator for vertices.
VertexIter	vertices_end ()
	End iterator for vertices.
ConstVertexIter	vertices_end () const
	Const end iterator for vertices.
HalfedgeIter	halfedges_begin ()
	Begin iterator for halfedges.
ConstHalfedgeIter	halfedges_begin () const
	Const begin iterator for halfedges.
HalfedgeIter	halfedges_end ()
	End iterator for halfedges.
ConstHalfedgeIter	halfedges_end () const
	Const end iterator for halfedges.
EdgeIter	edges_begin ()
	Begin iterator for edges.
ConstEdgeIter	edges_begin () const
	Const begin iterator for edges.
EdgeIter	edges_end ()
	End iterator for edges.
ConstEdgeIter	edges_end () const
	Const end iterator for edges.
FaceIter	faces_begin ()
	Begin iterator for faces.
ConstFaceIter	faces_begin () const
	Const begin iterator for faces.
FaceIter	faces_end ()
	End iterator for faces.
ConstFaceIter	faces_end () const
	Const end iterator for faces.
VertexIter	vertices_sbegin ()
	Begin iterator for vertices.
ConstVertexIter	vertices_sbegin () const
	Const begin iterator for vertices.
HalfedgeIter	halfedges_sbegin ()
	Begin iterator for halfedges.
ConstHalfedgeIter	halfedges_sbegin () const
	Const begin iterator for halfedges.
EdgeIter	edges_sbegin ()
	Begin iterator for edges.
ConstEdgeIter	edges_sbegin () const
	Const begin iterator for edges.
FaceIter	faces_sbegin ()
	Begin iterator for faces.
ConstFaceIter	faces_sbegin () const
	Const begin iterator for faces.
VertexVertexIter	vv_iter (VertexHandle _vh)
	vertex - vertex circulator
VertexVertexCWIter	vv_cwiter (VertexHandle _vh)
	vertex - vertex circulator cw
VertexVertexCCWIter	vv_ccwiter (VertexHandle _vh)
	vertex - vertex circulator ccw
VertexIHalfedgeIter	vih_iter (VertexHandle _vh)
	vertex - incoming halfedge circulator
VertexIHalfedgeCWIter	vih_cwiter (VertexHandle _vh)
	vertex - incoming halfedge circulator cw
VertexIHalfedgeCCWIter	vih_ccwiter (VertexHandle _vh)
	vertex - incoming halfedge circulator ccw
VertexOHalfedgeIter	voh_iter (VertexHandle _vh)
	vertex - outgoing halfedge circulator
VertexOHalfedgeCWIter	voh_cwiter (VertexHandle _vh)
	vertex - outgoing halfedge circulator cw
VertexOHalfedgeCCWIter	voh_ccwiter (VertexHandle _vh)
	vertex - outgoing halfedge circulator ccw
VertexEdgeIter	ve_iter (VertexHandle _vh)
	vertex - edge circulator
VertexEdgeCWIter	ve_cwiter (VertexHandle _vh)
	vertex - edge circulator cw
VertexEdgeCCWIter	ve_ccwiter (VertexHandle _vh)
	vertex - edge circulator ccw
VertexFaceIter	vf_iter (VertexHandle _vh)
	vertex - face circulator
VertexFaceCWIter	vf_cwiter (VertexHandle _vh)
	vertex - face circulator cw
VertexFaceCCWIter	vf_ccwiter (VertexHandle _vh)
	vertex - face circulator ccw
ConstVertexVertexIter	cvv_iter (VertexHandle _vh) const
	const vertex circulator
ConstVertexVertexCWIter	cvv_cwiter (VertexHandle _vh) const
	const vertex circulator cw
ConstVertexVertexCCWIter	cvv_ccwiter (VertexHandle _vh) const
	const vertex circulator ccw
ConstVertexIHalfedgeIter	cvih_iter (VertexHandle _vh) const
	const vertex - incoming halfedge circulator
ConstVertexIHalfedgeCWIter	cvih_cwiter (VertexHandle _vh) const
	const vertex - incoming halfedge circulator cw
ConstVertexIHalfedgeCCWIter	cvih_ccwiter (VertexHandle _vh) const
	const vertex - incoming halfedge circulator ccw
ConstVertexOHalfedgeIter	cvoh_iter (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator
ConstVertexOHalfedgeCWIter	cvoh_cwiter (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator cw
ConstVertexOHalfedgeCCWIter	cvoh_ccwiter (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator ccw
ConstVertexEdgeIter	cve_iter (VertexHandle _vh) const
	const vertex - edge circulator
ConstVertexEdgeCWIter	cve_cwiter (VertexHandle _vh) const
	const vertex - edge circulator cw
ConstVertexEdgeCCWIter	cve_ccwiter (VertexHandle _vh) const
	const vertex - edge circulator ccw
ConstVertexFaceIter	cvf_iter (VertexHandle _vh) const
	const vertex - face circulator
ConstVertexFaceCWIter	cvf_cwiter (VertexHandle _vh) const
	const vertex - face circulator cw
ConstVertexFaceCCWIter	cvf_ccwiter (VertexHandle _vh) const
	const vertex - face circulator ccw
FaceVertexIter	fv_iter (FaceHandle _fh)
	face - vertex circulator
FaceVertexCWIter	fv_cwiter (FaceHandle _fh)
	face - vertex circulator cw
FaceVertexCCWIter	fv_ccwiter (FaceHandle _fh)
	face - vertex circulator ccw
FaceHalfedgeIter	fh_iter (FaceHandle _fh)
	face - halfedge circulator
FaceHalfedgeCWIter	fh_cwiter (FaceHandle _fh)
	face - halfedge circulator cw
FaceHalfedgeCCWIter	fh_ccwiter (FaceHandle _fh)
	face - halfedge circulator ccw
FaceEdgeIter	fe_iter (FaceHandle _fh)
	face - edge circulator
FaceEdgeCWIter	fe_cwiter (FaceHandle _fh)
	face - edge circulator cw
FaceEdgeCCWIter	fe_ccwiter (FaceHandle _fh)
	face - edge circulator ccw
FaceFaceIter	ff_iter (FaceHandle _fh)
	face - face circulator
FaceFaceCWIter	ff_cwiter (FaceHandle _fh)
	face - face circulator cw
FaceFaceCCWIter	ff_ccwiter (FaceHandle _fh)
	face - face circulator ccw
ConstFaceVertexIter	cfv_iter (FaceHandle _fh) const
	const face - vertex circulator
ConstFaceVertexCWIter	cfv_cwiter (FaceHandle _fh) const
	const face - vertex circulator cw
ConstFaceVertexCCWIter	cfv_ccwiter (FaceHandle _fh) const
	const face - vertex circulator ccw
ConstFaceHalfedgeIter	cfh_iter (FaceHandle _fh) const
	const face - halfedge circulator
ConstFaceHalfedgeCWIter	cfh_cwiter (FaceHandle _fh) const
	const face - halfedge circulator cw
ConstFaceHalfedgeCCWIter	cfh_ccwiter (FaceHandle _fh) const
	const face - halfedge circulator ccw
ConstFaceEdgeIter	cfe_iter (FaceHandle _fh) const
	const face - edge circulator
ConstFaceEdgeCWIter	cfe_cwiter (FaceHandle _fh) const
	const face - edge circulator cw
ConstFaceEdgeCCWIter	cfe_ccwiter (FaceHandle _fh) const
	const face - edge circulator ccw
ConstFaceFaceIter	cff_iter (FaceHandle _fh) const
	const face - face circulator
ConstFaceFaceCWIter	cff_cwiter (FaceHandle _fh) const
	const face - face circulator cw
ConstFaceFaceCCWIter	cff_ccwiter (FaceHandle _fh) const
	const face - face circulator
VertexVertexIter	vv_begin (VertexHandle _vh)
	vertex - vertex circulator
VertexVertexCWIter	vv_cwbegin (VertexHandle _vh)
	vertex - vertex circulator cw
VertexVertexCCWIter	vv_ccwbegin (VertexHandle _vh)
	vertex - vertex circulator ccw
VertexIHalfedgeIter	vih_begin (VertexHandle _vh)
	vertex - incoming halfedge circulator
VertexIHalfedgeCWIter	vih_cwbegin (VertexHandle _vh)
	vertex - incoming halfedge circulator cw
VertexIHalfedgeCCWIter	vih_ccwbegin (VertexHandle _vh)
	vertex - incoming halfedge circulator ccw
VertexOHalfedgeIter	voh_begin (VertexHandle _vh)
	vertex - outgoing halfedge circulator
VertexOHalfedgeCWIter	voh_cwbegin (VertexHandle _vh)
	vertex - outgoing halfedge circulator cw
VertexOHalfedgeCCWIter	voh_ccwbegin (VertexHandle _vh)
	vertex - outgoing halfedge circulator ccw
VertexEdgeIter	ve_begin (VertexHandle _vh)
	vertex - edge circulator
VertexEdgeCWIter	ve_cwbegin (VertexHandle _vh)
	vertex - edge circulator cw
VertexEdgeCCWIter	ve_ccwbegin (VertexHandle _vh)
	vertex - edge circulator ccw
VertexFaceIter	vf_begin (VertexHandle _vh)
	vertex - face circulator
VertexFaceCWIter	vf_cwbegin (VertexHandle _vh)
	vertex - face circulator cw
VertexFaceCCWIter	vf_ccwbegin (VertexHandle _vh)
	vertex - face circulator ccw
ConstVertexVertexIter	cvv_begin (VertexHandle _vh) const
	const vertex circulator
ConstVertexVertexCWIter	cvv_cwbegin (VertexHandle _vh) const
	const vertex circulator cw
ConstVertexVertexCCWIter	cvv_ccwbegin (VertexHandle _vh) const
	const vertex circulator ccw
ConstVertexIHalfedgeIter	cvih_begin (VertexHandle _vh) const
	const vertex - incoming halfedge circulator
ConstVertexIHalfedgeCWIter	cvih_cwbegin (VertexHandle _vh) const
	const vertex - incoming halfedge circulator cw
ConstVertexIHalfedgeCCWIter	cvih_ccwbegin (VertexHandle _vh) const
	const vertex - incoming halfedge circulator ccw
ConstVertexOHalfedgeIter	cvoh_begin (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator
ConstVertexOHalfedgeCWIter	cvoh_cwbegin (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator cw
ConstVertexOHalfedgeCCWIter	cvoh_ccwbegin (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator ccw
ConstVertexEdgeIter	cve_begin (VertexHandle _vh) const
	const vertex - edge circulator
ConstVertexEdgeCWIter	cve_cwbegin (VertexHandle _vh) const
	const vertex - edge circulator cw
ConstVertexEdgeCCWIter	cve_ccwbegin (VertexHandle _vh) const
	const vertex - edge circulator ccw
ConstVertexFaceIter	cvf_begin (VertexHandle _vh) const
	const vertex - face circulator
ConstVertexFaceCWIter	cvf_cwbegin (VertexHandle _vh) const
	const vertex - face circulator cw
ConstVertexFaceCCWIter	cvf_ccwbegin (VertexHandle _vh) const
	const vertex - face circulator ccw
FaceVertexIter	fv_begin (FaceHandle _fh)
	face - vertex circulator
FaceVertexCWIter	fv_cwbegin (FaceHandle _fh)
	face - vertex circulator cw
FaceVertexCCWIter	fv_ccwbegin (FaceHandle _fh)
	face - vertex circulator ccw
FaceHalfedgeIter	fh_begin (FaceHandle _fh)
	face - halfedge circulator
FaceHalfedgeCWIter	fh_cwbegin (FaceHandle _fh)
	face - halfedge circulator cw
FaceHalfedgeCCWIter	fh_ccwbegin (FaceHandle _fh)
	face - halfedge circulator ccw
FaceEdgeIter	fe_begin (FaceHandle _fh)
	face - edge circulator
FaceEdgeCWIter	fe_cwbegin (FaceHandle _fh)
	face - edge circulator cw
FaceEdgeCCWIter	fe_ccwbegin (FaceHandle _fh)
	face - edge circulator ccw
FaceFaceIter	ff_begin (FaceHandle _fh)
	face - face circulator
FaceFaceCWIter	ff_cwbegin (FaceHandle _fh)
	face - face circulator cw
FaceFaceCCWIter	ff_ccwbegin (FaceHandle _fh)
	face - face circulator ccw
HalfedgeLoopIter	hl_begin (HalfedgeHandle _heh)
	halfedge circulator
HalfedgeLoopCWIter	hl_cwbegin (HalfedgeHandle _heh)
	halfedge circulator
HalfedgeLoopCCWIter	hl_ccwbegin (HalfedgeHandle _heh)
	halfedge circulator ccw
ConstFaceVertexIter	cfv_begin (FaceHandle _fh) const
	const face - vertex circulator
ConstFaceVertexCWIter	cfv_cwbegin (FaceHandle _fh) const
	const face - vertex circulator cw
ConstFaceVertexCCWIter	cfv_ccwbegin (FaceHandle _fh) const
	const face - vertex circulator ccw
ConstFaceHalfedgeIter	cfh_begin (FaceHandle _fh) const
	const face - halfedge circulator
ConstFaceHalfedgeCWIter	cfh_cwbegin (FaceHandle _fh) const
	const face - halfedge circulator cw
ConstFaceHalfedgeCCWIter	cfh_ccwbegin (FaceHandle _fh) const
	const face - halfedge circulator ccw
ConstFaceEdgeIter	cfe_begin (FaceHandle _fh) const
	const face - edge circulator
ConstFaceEdgeCWIter	cfe_cwbegin (FaceHandle _fh) const
	const face - edge circulator cw
ConstFaceEdgeCCWIter	cfe_ccwbegin (FaceHandle _fh) const
	const face - edge circulator ccw
ConstFaceFaceIter	cff_begin (FaceHandle _fh) const
	const face - face circulator
ConstFaceFaceCWIter	cff_cwbegin (FaceHandle _fh) const
	const face - face circulator cw
ConstFaceFaceCCWIter	cff_ccwbegin (FaceHandle _fh) const
	const face - face circulator ccw
ConstHalfedgeLoopIter	chl_begin (HalfedgeHandle _heh) const
	const halfedge circulator
ConstHalfedgeLoopCWIter	chl_cwbegin (HalfedgeHandle _heh) const
	const halfedge circulator cw
ConstHalfedgeLoopCCWIter	chl_ccwbegin (HalfedgeHandle _heh) const
	const halfedge circulator ccw
VertexVertexIter	vv_end (VertexHandle _vh)
	vertex - vertex circulator
VertexVertexCWIter	vv_cwend (VertexHandle _vh)
	vertex - vertex circulator cw
VertexVertexCCWIter	vv_ccwend (VertexHandle _vh)
	vertex - vertex circulator ccw
VertexIHalfedgeIter	vih_end (VertexHandle _vh)
	vertex - incoming halfedge circulator
VertexIHalfedgeCWIter	vih_cwend (VertexHandle _vh)
	vertex - incoming halfedge circulator cw
VertexIHalfedgeCCWIter	vih_ccwend (VertexHandle _vh)
	vertex - incoming halfedge circulator ccw
VertexOHalfedgeIter	voh_end (VertexHandle _vh)
	vertex - outgoing halfedge circulator
VertexOHalfedgeCWIter	voh_cwend (VertexHandle _vh)
	vertex - outgoing halfedge circulator cw
VertexOHalfedgeCCWIter	voh_ccwend (VertexHandle _vh)
	vertex - outgoing halfedge circulator ccw
VertexEdgeIter	ve_end (VertexHandle _vh)
	vertex - edge circulator
VertexEdgeCWIter	ve_cwend (VertexHandle _vh)
	vertex - edge circulator cw
VertexEdgeCCWIter	ve_ccwend (VertexHandle _vh)
	vertex - edge circulator ccw
VertexFaceIter	vf_end (VertexHandle _vh)
	vertex - face circulator
VertexFaceCWIter	vf_cwend (VertexHandle _vh)
	vertex - face circulator cw
VertexFaceCCWIter	vf_ccwend (VertexHandle _vh)
	vertex - face circulator ccw
ConstVertexVertexIter	cvv_end (VertexHandle _vh) const
	const vertex circulator
ConstVertexVertexCWIter	cvv_cwend (VertexHandle _vh) const
	const vertex circulator cw
ConstVertexVertexCCWIter	cvv_ccwend (VertexHandle _vh) const
	const vertex circulator ccw
ConstVertexIHalfedgeIter	cvih_end (VertexHandle _vh) const
	const vertex - incoming halfedge circulator
ConstVertexIHalfedgeCWIter	cvih_cwend (VertexHandle _vh) const
	const vertex - incoming halfedge circulator cw
ConstVertexIHalfedgeCCWIter	cvih_ccwend (VertexHandle _vh) const
	const vertex - incoming halfedge circulator ccw
ConstVertexOHalfedgeIter	cvoh_end (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator
ConstVertexOHalfedgeCWIter	cvoh_cwend (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator cw
ConstVertexOHalfedgeCCWIter	cvoh_ccwend (VertexHandle _vh) const
	const vertex - outgoing halfedge circulator ccw
ConstVertexEdgeIter	cve_end (VertexHandle _vh) const
	const vertex - edge circulator
ConstVertexEdgeCWIter	cve_cwend (VertexHandle _vh) const
	const vertex - edge circulator cw
ConstVertexEdgeCCWIter	cve_ccwend (VertexHandle _vh) const
	const vertex - edge circulator ccw
ConstVertexFaceIter	cvf_end (VertexHandle _vh) const
	const vertex - face circulator
ConstVertexFaceCWIter	cvf_cwend (VertexHandle _vh) const
	const vertex - face circulator cw
ConstVertexFaceCCWIter	cvf_ccwend (VertexHandle _vh) const
	const vertex - face circulator ccw
FaceVertexIter	fv_end (FaceHandle _fh)
	face - vertex circulator
FaceVertexCWIter	fv_cwend (FaceHandle _fh)
	face - vertex circulator cw
FaceVertexCCWIter	fv_ccwend (FaceHandle _fh)
	face - vertex circulator ccw
FaceHalfedgeIter	fh_end (FaceHandle _fh)
	face - halfedge circulator
FaceHalfedgeCWIter	fh_cwend (FaceHandle _fh)
	face - halfedge circulator cw
FaceHalfedgeCCWIter	fh_ccwend (FaceHandle _fh)
	face - halfedge circulator ccw
FaceEdgeIter	fe_end (FaceHandle _fh)
	face - edge circulator
FaceEdgeCWIter	fe_cwend (FaceHandle _fh)
	face - edge circulator cw
FaceEdgeCCWIter	fe_ccwend (FaceHandle _fh)
	face - edge circulator ccw
FaceFaceIter	ff_end (FaceHandle _fh)
	face - face circulator
FaceFaceCWIter	ff_cwend (FaceHandle _fh)
	face - face circulator cw
FaceFaceCCWIter	ff_ccwend (FaceHandle _fh)
	face - face circulator ccw
HalfedgeLoopIter	hl_end (HalfedgeHandle _heh)
	face - face circulator
HalfedgeLoopCWIter	hl_cwend (HalfedgeHandle _heh)
	face - face circulator cw
HalfedgeLoopCCWIter	hl_ccwend (HalfedgeHandle _heh)
	face - face circulator ccw
ConstFaceVertexIter	cfv_end (FaceHandle _fh) const
	const face - vertex circulator
ConstFaceVertexCWIter	cfv_cwend (FaceHandle _fh) const
	const face - vertex circulator cw
ConstFaceVertexCCWIter	cfv_ccwend (FaceHandle _fh) const
	const face - vertex circulator ccw
ConstFaceHalfedgeIter	cfh_end (FaceHandle _fh) const
	const face - halfedge circulator
ConstFaceHalfedgeCWIter	cfh_cwend (FaceHandle _fh) const
	const face - halfedge circulator cw
ConstFaceHalfedgeCCWIter	cfh_ccwend (FaceHandle _fh) const
	const face - halfedge circulator ccw
ConstFaceEdgeIter	cfe_end (FaceHandle _fh) const
	const face - edge circulator
ConstFaceEdgeCWIter	cfe_cwend (FaceHandle _fh) const
	const face - edge circulator cw
ConstFaceEdgeCCWIter	cfe_ccwend (FaceHandle _fh) const
	const face - edge circulator ccw
ConstFaceFaceIter	cff_end (FaceHandle _fh) const
	const face - face circulator
ConstFaceFaceCWIter	cff_cwend (FaceHandle _fh) const
	const face - face circulator
ConstFaceFaceCCWIter	cff_ccwend (FaceHandle _fh) const
	const face - face circulator
ConstHalfedgeLoopIter	chl_end (HalfedgeHandle _heh) const
	const face - face circulator
ConstHalfedgeLoopCWIter	chl_cwend (HalfedgeHandle _heh) const
	const face - face circulator cw
ConstHalfedgeLoopCCWIter	chl_ccwend (HalfedgeHandle _heh) const
	const face - face circulator ccw
bool	is_boundary (HalfedgeHandle _heh) const
	Check if the halfedge is at the boundary. More...
bool	is_boundary (EdgeHandle _eh) const
	Is the edge a boundary edge? More...
bool	is_boundary (VertexHandle _vh) const
	Is vertex _vh a boundary vertex ? More...
bool	is_boundary (FaceHandle _fh, bool _check_vertex=false) const
	Check if face is at the boundary. More...
bool	is_manifold (VertexHandle _vh) const
	Is (the mesh at) vertex _vh two-manifold ? More...
const Vertex &	deref (VertexHandle _h) const
	Get item from handle.
Vertex &	deref (VertexHandle _h)
	Get item from handle.
const Halfedge &	deref (HalfedgeHandle _h) const
	Get item from handle.
Halfedge &	deref (HalfedgeHandle _h)
	Get item from handle.
const Edge &	deref (EdgeHandle _h) const
	Get item from handle.
Edge &	deref (EdgeHandle _h)
	Get item from handle.
const Face &	deref (FaceHandle _h) const
	Get item from handle.
Face &	deref (FaceHandle _h)
	Get item from handle.
ConstVertexRange	vertices () const
ConstHalfedgeRange	halfedges () const
ConstEdgeRange	edges () const
ConstFaceRange	faces () const
ConstVertexVertexRange	vv_range (VertexHandle _vh) const
ConstVertexIHalfedgeRange	vih_range (VertexHandle _vh) const
ConstVertexOHalfedgeRange	voh_range (VertexHandle _vh) const
ConstVertexEdgeRange	ve_range (VertexHandle _vh) const
ConstVertexFaceRange	vf_range (VertexHandle _vh) const
ConstFaceVertexRange	fv_range (FaceHandle _fh) const
ConstFaceHalfedgeRange	fh_range (FaceHandle _fh) const
ConstFaceEdgeRange	fe_range (FaceHandle _fh) const
ConstFaceFaceRange	ff_range (FaceHandle _fh) const
Public Member Functions inherited from OpenMesh::ArrayKernel
void	assign_connectivity (const ArrayKernel &_other)
	ArrayKernel uses the default copy constructor and assignment operator, which means that the connectivity and all properties are copied, including reference counters, allocated bit status masks, etc. More...
VertexHandle	handle (const Vertex &_v) const
HalfedgeHandle	handle (const Halfedge &_he) const
EdgeHandle	handle (const Edge &_e) const
FaceHandle	handle (const Face &_f) const
bool	is_valid_handle (VertexHandle _vh) const
	checks handle validity - useful for debugging
bool	is_valid_handle (HalfedgeHandle _heh) const
	checks handle validity - useful for debugging
bool	is_valid_handle (EdgeHandle _eh) const
	checks handle validity - useful for debugging
bool	is_valid_handle (FaceHandle _fh) const
	checks handle validity - useful for debugging
const Vertex &	vertex (VertexHandle _vh) const
Vertex &	vertex (VertexHandle _vh)
const Halfedge &	halfedge (HalfedgeHandle _heh) const
Halfedge &	halfedge (HalfedgeHandle _heh)
const Edge &	edge (EdgeHandle _eh) const
Edge &	edge (EdgeHandle _eh)
const Face &	face (FaceHandle _fh) const
Face &	face (FaceHandle _fh)
VertexHandle	vertex_handle (unsigned int _i) const
HalfedgeHandle	halfedge_handle (unsigned int _i) const
EdgeHandle	edge_handle (unsigned int _i) const
FaceHandle	face_handle (unsigned int _i) const
VertexHandle	new_vertex ()
	Add a new vertex. More...
VertexHandle	new_vertex_dirty ()
	Same as new_vertex() but uses PropertyContainer::resize_if_smaller() to resize the vertex property container. More...
HalfedgeHandle	new_edge (VertexHandle _start_vh, VertexHandle _end_vh)
FaceHandle	new_face ()
FaceHandle	new_face (const Face &_f)
void	resize (size_t _n_vertices, size_t _n_edges, size_t _n_faces)
void	reserve (size_t _n_vertices, size_t _n_edges, size_t _n_faces)
void	garbage_collection (bool _v=true, bool _e=true, bool _f=true)
	garbage collection More...
template<typename std_API_Container_VHandlePointer , typename std_API_Container_HHandlePointer , typename std_API_Container_FHandlePointer >
void	garbage_collection (std_API_Container_VHandlePointer &vh_to_update, std_API_Container_HHandlePointer &hh_to_update, std_API_Container_FHandlePointer &fh_to_update, bool _v=true, bool _e=true, bool _f=true)
	garbage collection with handle tracking More...
void	clear ()
	Does the same as clean() and in addition erases all properties.
void	clean ()
	Remove all vertices, edges and faces and deallocates their memory. More...
void	clean_keep_reservation ()
	Remove all vertices, edges and faces but keep memory allocated. More...
size_t	n_vertices () const
size_t	n_halfedges () const
size_t	n_edges () const
size_t	n_faces () const
bool	vertices_empty () const
bool	halfedges_empty () const
bool	edges_empty () const
bool	faces_empty () const
HalfedgeHandle	halfedge_handle (VertexHandle _vh) const
void	set_halfedge_handle (VertexHandle _vh, HalfedgeHandle _heh)
bool	is_isolated (VertexHandle _vh) const
void	set_isolated (VertexHandle _vh)
unsigned int	delete_isolated_vertices ()
VertexHandle	to_vertex_handle (HalfedgeHandle _heh) const
VertexHandle	from_vertex_handle (HalfedgeHandle _heh) const
void	set_vertex_handle (HalfedgeHandle _heh, VertexHandle _vh)
FaceHandle	face_handle (HalfedgeHandle _heh) const
void	set_face_handle (HalfedgeHandle _heh, FaceHandle _fh)
void	set_boundary (HalfedgeHandle _heh)
bool	is_boundary (HalfedgeHandle _heh) const
	Is halfedge _heh a boundary halfedge (is its face handle invalid) ?
HalfedgeHandle	next_halfedge_handle (HalfedgeHandle _heh) const
void	set_next_halfedge_handle (HalfedgeHandle _heh, HalfedgeHandle _nheh)
void	set_prev_halfedge_handle (HalfedgeHandle _heh, HalfedgeHandle _pheh)
void	set_prev_halfedge_handle (HalfedgeHandle _heh, HalfedgeHandle _pheh, GenProg::TrueType)
void	set_prev_halfedge_handle (HalfedgeHandle, HalfedgeHandle, GenProg::FalseType)
HalfedgeHandle	prev_halfedge_handle (HalfedgeHandle _heh) const
HalfedgeHandle	prev_halfedge_handle (HalfedgeHandle _heh, GenProg::TrueType) const
HalfedgeHandle	prev_halfedge_handle (HalfedgeHandle _heh, GenProg::FalseType) const
HalfedgeHandle	opposite_halfedge_handle (HalfedgeHandle _heh) const
HalfedgeHandle	ccw_rotated_halfedge_handle (HalfedgeHandle _heh) const
HalfedgeHandle	cw_rotated_halfedge_handle (HalfedgeHandle _heh) const
HalfedgeHandle	halfedge_handle (EdgeHandle _eh, unsigned int _i) const
EdgeHandle	edge_handle (HalfedgeHandle _heh) const
HalfedgeHandle	halfedge_handle (FaceHandle _fh) const
void	set_halfedge_handle (FaceHandle _fh, HalfedgeHandle _heh)
const StatusInfo &	status (VertexHandle _vh) const
	Status Query API.
StatusInfo &	status (VertexHandle _vh)
void	reset_status ()
	Reinitializes the status of all vertices using the StatusInfo default constructor, i.e. More...
const StatusInfo &	status (HalfedgeHandle _hh) const
StatusInfo &	status (HalfedgeHandle _hh)
const StatusInfo &	status (EdgeHandle _eh) const
StatusInfo &	status (EdgeHandle _eh)
const StatusInfo &	status (FaceHandle _fh) const
StatusInfo &	status (FaceHandle _fh)
bool	has_vertex_status () const
bool	has_halfedge_status () const
bool	has_edge_status () const
bool	has_face_status () const
VertexStatusPropertyHandle	vertex_status_pph () const
HalfedgeStatusPropertyHandle	halfedge_status_pph () const
EdgeStatusPropertyHandle	edge_status_pph () const
FaceStatusPropertyHandle	face_status_pph () const
VertexStatusPropertyHandle	status_pph (VertexHandle) const
	status property by handle
HalfedgeStatusPropertyHandle	status_pph (HalfedgeHandle) const
EdgeStatusPropertyHandle	status_pph (EdgeHandle) const
FaceStatusPropertyHandle	status_pph (FaceHandle) const
void	request_vertex_status ()
	Status Request API.
void	request_halfedge_status ()
void	request_edge_status ()
void	request_face_status ()
void	release_vertex_status ()
	Status Release API.
void	release_halfedge_status ()
void	release_edge_status ()
void	release_face_status ()
Public Member Functions inherited from OpenMesh::BaseKernel
template<class T >
void	copy_property (VPropHandleT< T > &_ph, VertexHandle _vh_from, VertexHandle _vh_to)
	Copies a single property from one mesh element to another (of the same type) More...
template<class T >
void	copy_property (HPropHandleT< T > _ph, HalfedgeHandle _hh_from, HalfedgeHandle _hh_to)
	Copies a single property from one mesh element to another (of the same type) More...
template<class T >
void	copy_property (EPropHandleT< T > _ph, EdgeHandle _eh_from, EdgeHandle _eh_to)
	Copies a single property from one mesh element to another (of the same type) More...
template<class T >
void	copy_property (FPropHandleT< T > _ph, FaceHandle _fh_from, FaceHandle _fh_to)
	Copies a single property from one mesh element to another (of the same type) More...
void	copy_all_properties (VertexHandle _vh_from, VertexHandle _vh_to, bool _copyBuildIn=false)
	Copies all properties from one mesh element to another (of the same type) More...
void	copy_all_properties (HalfedgeHandle _hh_from, HalfedgeHandle _hh_to, bool _copyBuildIn=false)
	Copies all properties from one mesh element to another (of the same type) More...
void	copy_all_properties (EdgeHandle _eh_from, EdgeHandle _eh_to, bool _copyBuildIn=false)
	Copies all properties from one mesh element to another (of the same type) More...
void	copy_all_properties (FaceHandle _fh_from, FaceHandle _fh_to, bool _copyBuildIn=false)
	Copies all properties from one mesh element to another (of the same type) More...
size_t	n_vprops (void) const
size_t	n_eprops (void) const
size_t	n_hprops (void) const
size_t	n_fprops (void) const
size_t	n_mprops (void) const
BaseProperty *	_get_vprop (const std::string &_name)
BaseProperty *	_get_eprop (const std::string &_name)
BaseProperty *	_get_hprop (const std::string &_name)
BaseProperty *	_get_fprop (const std::string &_name)
BaseProperty *	_get_mprop (const std::string &_name)
const BaseProperty *	_get_vprop (const std::string &_name) const
const BaseProperty *	_get_eprop (const std::string &_name) const
const BaseProperty *	_get_hprop (const std::string &_name) const
const BaseProperty *	_get_fprop (const std::string &_name) const
const BaseProperty *	_get_mprop (const std::string &_name) const
BaseProperty &	_vprop (size_t _idx)
BaseProperty &	_eprop (size_t _idx)
BaseProperty &	_hprop (size_t _idx)
BaseProperty &	_fprop (size_t _idx)
BaseProperty &	_mprop (size_t _idx)
const BaseProperty &	_vprop (size_t _idx) const
const BaseProperty &	_eprop (size_t _idx) const
const BaseProperty &	_hprop (size_t _idx) const
const BaseProperty &	_fprop (size_t _idx) const
const BaseProperty &	_mprop (size_t _idx) const
size_t	_add_vprop (BaseProperty *_bp)
size_t	_add_eprop (BaseProperty *_bp)
size_t	_add_hprop (BaseProperty *_bp)
size_t	_add_fprop (BaseProperty *_bp)
size_t	_add_mprop (BaseProperty *_bp)
void	property_stats () const
void	property_stats (std::ostream &_ostr) const
void	vprop_stats (std::string &_string) const
void	hprop_stats (std::string &_string) const
void	eprop_stats (std::string &_string) const
void	fprop_stats (std::string &_string) const
void	mprop_stats (std::string &_string) const
void	vprop_stats () const
void	hprop_stats () const
void	eprop_stats () const
void	fprop_stats () const
void	mprop_stats () const
void	vprop_stats (std::ostream &_ostr) const
void	hprop_stats (std::ostream &_ostr) const
void	eprop_stats (std::ostream &_ostr) const
void	fprop_stats (std::ostream &_ostr) const
void	mprop_stats (std::ostream &_ostr) const
prop_iterator	vprops_begin ()
prop_iterator	vprops_end ()
const_prop_iterator	vprops_begin () const
const_prop_iterator	vprops_end () const
prop_iterator	eprops_begin ()
prop_iterator	eprops_end ()
const_prop_iterator	eprops_begin () const
const_prop_iterator	eprops_end () const
prop_iterator	hprops_begin ()
prop_iterator	hprops_end ()
const_prop_iterator	hprops_begin () const
const_prop_iterator	hprops_end () const
prop_iterator	fprops_begin ()
prop_iterator	fprops_end ()
const_prop_iterator	fprops_begin () const
const_prop_iterator	fprops_end () const
prop_iterator	mprops_begin ()
prop_iterator	mprops_end ()
const_prop_iterator	mprops_begin () const
const_prop_iterator	mprops_end () const
template<class T >
void	add_property (VPropHandleT< T > &_ph, const std::string &_name="<vprop>")
	Adds a property. More...
template<class T >
void	add_property (HPropHandleT< T > &_ph, const std::string &_name="<hprop>")
	Adds a property. More...
template<class T >
void	add_property (EPropHandleT< T > &_ph, const std::string &_name="<eprop>")
	Adds a property. More...
template<class T >
void	add_property (FPropHandleT< T > &_ph, const std::string &_name="<fprop>")
	Adds a property. More...
template<class T >
void	add_property (MPropHandleT< T > &_ph, const std::string &_name="<mprop>")
	Adds a property. More...
template<typename T >
void	remove_property (VPropHandleT< T > &_ph)
	Remove a property. More...
template<typename T >
void	remove_property (HPropHandleT< T > &_ph)
	Remove a property. More...
template<typename T >
void	remove_property (EPropHandleT< T > &_ph)
	Remove a property. More...
template<typename T >
void	remove_property (FPropHandleT< T > &_ph)
	Remove a property. More...
template<typename T >
void	remove_property (MPropHandleT< T > &_ph)
	Remove a property. More...
template<class T >
bool	get_property_handle (VPropHandleT< T > &_ph, const std::string &_name) const
	Retrieves the handle to a named property by it's name. More...
template<class T >
bool	get_property_handle (HPropHandleT< T > &_ph, const std::string &_name) const
	Retrieves the handle to a named property by it's name. More...
template<class T >
bool	get_property_handle (EPropHandleT< T > &_ph, const std::string &_name) const
	Retrieves the handle to a named property by it's name. More...
template<class T >
bool	get_property_handle (FPropHandleT< T > &_ph, const std::string &_name) const
	Retrieves the handle to a named property by it's name. More...
template<class T >
bool	get_property_handle (MPropHandleT< T > &_ph, const std::string &_name) const
	Retrieves the handle to a named property by it's name. More...
template<class T >
PropertyT< T > &	property (VPropHandleT< T > _ph)
	Access a property. More...
template<class T >
const PropertyT< T > &	property (VPropHandleT< T > _ph) const
	Access a property. More...
template<class T >
PropertyT< T > &	property (HPropHandleT< T > _ph)
	Access a property. More...
template<class T >
const PropertyT< T > &	property (HPropHandleT< T > _ph) const
	Access a property. More...
template<class T >
PropertyT< T > &	property (EPropHandleT< T > _ph)
	Access a property. More...
template<class T >
const PropertyT< T > &	property (EPropHandleT< T > _ph) const
	Access a property. More...
template<class T >
PropertyT< T > &	property (FPropHandleT< T > _ph)
	Access a property. More...
template<class T >
const PropertyT< T > &	property (FPropHandleT< T > _ph) const
	Access a property. More...
template<class T >
PropertyT< T > &	mproperty (MPropHandleT< T > _ph)
	Access a property. More...
template<class T >
const PropertyT< T > &	mproperty (MPropHandleT< T > _ph) const
	Access a property. More...
template<class T >
VPropHandleT< T >::reference	property (VPropHandleT< T > _ph, VertexHandle _vh)
	Return value of property for an item.
template<class T >
VPropHandleT< T >::const_reference	property (VPropHandleT< T > _ph, VertexHandle _vh) const
	Return value of property for an item.
template<class T >
HPropHandleT< T >::reference	property (HPropHandleT< T > _ph, HalfedgeHandle _hh)
	Return value of property for an item.
template<class T >
HPropHandleT< T >::const_reference	property (HPropHandleT< T > _ph, HalfedgeHandle _hh) const
	Return value of property for an item.
template<class T >
EPropHandleT< T >::reference	property (EPropHandleT< T > _ph, EdgeHandle _eh)
	Return value of property for an item.
template<class T >
EPropHandleT< T >::const_reference	property (EPropHandleT< T > _ph, EdgeHandle _eh) const
	Return value of property for an item.
template<class T >
FPropHandleT< T >::reference	property (FPropHandleT< T > _ph, FaceHandle _fh)
	Return value of property for an item.
template<class T >
FPropHandleT< T >::const_reference	property (FPropHandleT< T > _ph, FaceHandle _fh) const
	Return value of property for an item.
template<class T >
MPropHandleT< T >::reference	property (MPropHandleT< T > _ph)
	Return value of property for an item.
template<class T >
MPropHandleT< T >::const_reference	property (MPropHandleT< T > _ph) const
	Return value of property for an item.

Static Public Member Functions
static bool	is_triangles ()
Static Public Member Functions inherited from OpenMesh::PolyConnectivity
static bool	is_triangles ()
Static Public Member Functions inherited from OpenMesh::ArrayKernel
static HalfedgeHandle	s_halfedge_handle (EdgeHandle _eh, unsigned int _i)
static EdgeHandle	s_edge_handle (HalfedgeHandle _heh)

Additional Inherited Members
Public Types inherited from OpenMesh::PolyConnectivity
typedef PolyConnectivity	This
typedef Iterators::GenericIteratorT < This, This::VertexHandle, ArrayKernel,&ArrayKernel::has_vertex_status,&ArrayKernel::n_vertices >	VertexIter
	Linear iterator.
typedef Iterators::GenericIteratorT < This, This::HalfedgeHandle, ArrayKernel,&ArrayKernel::has_halfedge_status,&ArrayKernel::n_halfedges >	HalfedgeIter
	Linear iterator.
typedef Iterators::GenericIteratorT < This, This::EdgeHandle, ArrayKernel,&ArrayKernel::has_edge_status,&ArrayKernel::n_edges >	EdgeIter
	Linear iterator.
typedef Iterators::GenericIteratorT < This, This::FaceHandle, ArrayKernel,&ArrayKernel::has_face_status,&ArrayKernel::n_faces >	FaceIter
	Linear iterator.
typedef VertexIter	ConstVertexIter
	Linear iterator.
typedef HalfedgeIter	ConstHalfedgeIter
	Linear iterator.
typedef EdgeIter	ConstEdgeIter
	Linear iterator.
typedef FaceIter	ConstFaceIter
	Linear iterator.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::VertexHandle, This::VertexHandle,&Iterators::GenericCirculatorBaseT < This >::toVertexHandle >	VertexVertexIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::VertexHandle,&Iterators::GenericCirculatorBaseT < This >::toVertexHandle >	VertexVertexCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::VertexHandle,&Iterators::GenericCirculatorBaseT < This >::toVertexHandle, false >	VertexVertexCCWIter
	Enumerates 1-ring vertices in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::VertexHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle >	VertexOHalfedgeIter
	Enumerates outgoing half edges in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle >	VertexOHalfedgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle, false >	VertexOHalfedgeCCWIter
	Enumerates outgoing half edges in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::VertexHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This > ::toOppositeHalfedgeHandle >	VertexIHalfedgeIter
	Enumerates incoming half edges in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This > ::toOppositeHalfedgeHandle >	VertexIHalfedgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This > ::toOppositeHalfedgeHandle, false >	VertexIHalfedgeCCWIter
	Enumerates incoming half edges in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::VertexHandle, This::FaceHandle,&Iterators::GenericCirculatorBaseT < This >::toFaceHandle >	VertexFaceIter
	Enumerates incident faces in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::FaceHandle,&Iterators::GenericCirculatorBaseT < This >::toFaceHandle >	VertexFaceCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::FaceHandle,&Iterators::GenericCirculatorBaseT < This >::toFaceHandle, false >	VertexFaceCCWIter
	Enumerates incident faces in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::VertexHandle, This::EdgeHandle,&Iterators::GenericCirculatorBaseT < This >::toEdgeHandle >	VertexEdgeIter
	Enumerates incident edges in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::EdgeHandle,&Iterators::GenericCirculatorBaseT < This >::toEdgeHandle >	VertexEdgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::VertexHandle, This::EdgeHandle,&Iterators::GenericCirculatorBaseT < This >::toEdgeHandle, false >	VertexEdgeCCWIter
	Enumerates incident edges in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::FaceHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle >	HalfedgeLoopIter
	Identical to FaceHalfedgeIter. More...
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle >	HalfedgeLoopCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle, false >	HalfedgeLoopCCWIter
	Identical to FaceHalfedgeIter. More...
typedef VertexVertexIter	ConstVertexVertexIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexVertexCWIter	ConstVertexVertexCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexVertexCCWIter	ConstVertexVertexCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexOHalfedgeIter	ConstVertexOHalfedgeIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexOHalfedgeCWIter	ConstVertexOHalfedgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexOHalfedgeCCWIter	ConstVertexOHalfedgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexIHalfedgeIter	ConstVertexIHalfedgeIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexIHalfedgeCWIter	ConstVertexIHalfedgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexIHalfedgeCCWIter	ConstVertexIHalfedgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexFaceIter	ConstVertexFaceIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexFaceCWIter	ConstVertexFaceCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexFaceCCWIter	ConstVertexFaceCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexEdgeIter	ConstVertexEdgeIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexEdgeCWIter	ConstVertexEdgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexEdgeCCWIter	ConstVertexEdgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::FaceHandle, This::VertexHandle,&Iterators::GenericCirculatorBaseT < This >::toVertexHandle >	FaceVertexIter
	Enumerate incident vertices in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::VertexHandle,&Iterators::GenericCirculatorBaseT < This >::toVertexHandle >	FaceVertexCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::VertexHandle,&Iterators::GenericCirculatorBaseT < This >::toVertexHandle, false >	FaceVertexCWIter
	Enumerate incident vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::FaceHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle >	FaceHalfedgeIter
	Enumerate incident half edges in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle >	FaceHalfedgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::HalfedgeHandle,&Iterators::GenericCirculatorBaseT < This >::toHalfedgeHandle, false >	FaceHalfedgeCWIter
	Enumerate incident half edges in a clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::FaceHandle, This::EdgeHandle,&Iterators::GenericCirculatorBaseT < This >::toEdgeHandle >	FaceEdgeIter
	Enumerate incident edges in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::EdgeHandle,&Iterators::GenericCirculatorBaseT < This >::toEdgeHandle >	FaceEdgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::EdgeHandle,&Iterators::GenericCirculatorBaseT < This >::toEdgeHandle, false >	FaceEdgeCWIter
	Enumerate incident edges in a clockwise fashion.
typedef Iterators::GenericCirculatorT_DEPRECATED < This, This::FaceHandle, This::FaceHandle,&Iterators::GenericCirculatorBaseT < This >::toOppositeFaceHandle >	FaceFaceIter
	Enumerate adjacent faces in a counter clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::FaceHandle,&Iterators::GenericCirculatorBaseT < This >::toOppositeFaceHandle >	FaceFaceCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef Iterators::GenericCirculatorT < This, This::FaceHandle, This::FaceHandle,&Iterators::GenericCirculatorBaseT < This >::toOppositeFaceHandle, false >	FaceFaceCWIter
	Enumerate adjacent faces in a clockwise fashion.
typedef FaceVertexIter	ConstFaceVertexIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceVertexCWIter	ConstFaceVertexCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceVertexCCWIter	ConstFaceVertexCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceHalfedgeIter	ConstFaceHalfedgeIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceHalfedgeCWIter	ConstFaceHalfedgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceHalfedgeCCWIter	ConstFaceHalfedgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceEdgeIter	ConstFaceEdgeIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceEdgeCWIter	ConstFaceEdgeCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceEdgeCCWIter	ConstFaceEdgeCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceFaceIter	ConstFaceFaceIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceFaceCWIter	ConstFaceFaceCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef FaceFaceCCWIter	ConstFaceFaceCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef HalfedgeLoopIter	ConstHalfedgeLoopIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef HalfedgeLoopCWIter	ConstHalfedgeLoopCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef HalfedgeLoopCCWIter	ConstHalfedgeLoopCCWIter
	Enumerates 1-ring vertices in a clockwise fashion.
typedef VertexHandle	VHandle
	Alias typedef.
typedef HalfedgeHandle	HHandle
	Alias typedef.
typedef EdgeHandle	EHandle
	Alias typedef.
typedef FaceHandle	FHandle
	Alias typedef.
typedef VertexIter	VIter
	Alias typedef.
typedef HalfedgeIter	HIter
	Alias typedef.
typedef EdgeIter	EIter
	Alias typedef.
typedef FaceIter	FIter
	Alias typedef.
typedef ConstVertexIter	CVIter
	Alias typedef.
typedef ConstHalfedgeIter	CHIter
	Alias typedef.
typedef ConstEdgeIter	CEIter
	Alias typedef.
typedef ConstFaceIter	CFIter
	Alias typedef.
typedef VertexVertexIter	VVIter
	Alias typedef.
typedef VertexVertexCWIter	VVCWIter
	Alias typedef.
typedef VertexVertexCCWIter	VVCCWIter
	Alias typedef.
typedef VertexOHalfedgeIter	VOHIter
	Alias typedef.
typedef VertexOHalfedgeCWIter	VOHCWIter
	Alias typedef.
typedef VertexOHalfedgeCCWIter	VOHCCWIter
	Alias typedef.
typedef VertexIHalfedgeIter	VIHIter
	Alias typedef.
typedef VertexIHalfedgeCWIter	VIHICWter
	Alias typedef.
typedef VertexIHalfedgeCCWIter	VIHICCWter
	Alias typedef.
typedef VertexEdgeIter	VEIter
	Alias typedef.
typedef VertexEdgeCWIter	VECWIter
	Alias typedef.
typedef VertexEdgeCCWIter	VECCWIter
	Alias typedef.
typedef VertexFaceIter	VFIter
	Alias typedef.
typedef VertexFaceCWIter	VFCWIter
	Alias typedef.
typedef VertexFaceCCWIter	VFCCWIter
	Alias typedef.
typedef FaceVertexIter	FVIter
	Alias typedef.
typedef FaceVertexCWIter	FVCWIter
	Alias typedef.
typedef FaceVertexCCWIter	FVCCWIter
	Alias typedef.
typedef FaceHalfedgeIter	FHIter
	Alias typedef.
typedef FaceHalfedgeCWIter	FHCWIter
	Alias typedef.
typedef FaceHalfedgeCCWIter	FHCWWIter
	Alias typedef.
typedef FaceEdgeIter	FEIter
	Alias typedef.
typedef FaceEdgeCWIter	FECWIter
	Alias typedef.
typedef FaceEdgeCCWIter	FECWWIter
	Alias typedef.
typedef FaceFaceIter	FFIter
	Alias typedef.
typedef ConstVertexVertexIter	CVVIter
	Alias typedef.
typedef ConstVertexVertexCWIter	CVVCWIter
	Alias typedef.
typedef ConstVertexVertexCCWIter	CVVCCWIter
	Alias typedef.
typedef ConstVertexOHalfedgeIter	CVOHIter
	Alias typedef.
typedef ConstVertexOHalfedgeCWIter	CVOHCWIter
	Alias typedef.
typedef ConstVertexOHalfedgeCCWIter	CVOHCCWIter
	Alias typedef.
typedef ConstVertexIHalfedgeIter	CVIHIter
	Alias typedef.
typedef ConstVertexIHalfedgeCWIter	CVIHCWIter
	Alias typedef.
typedef ConstVertexIHalfedgeCCWIter	CVIHCCWIter
	Alias typedef.
typedef ConstVertexEdgeIter	CVEIter
	Alias typedef.
typedef ConstVertexEdgeCWIter	CVECWIter
	Alias typedef.
typedef ConstVertexEdgeCCWIter	CVECCWIter
	Alias typedef.
typedef ConstVertexFaceIter	CVFIter
	Alias typedef.
typedef ConstVertexFaceCWIter	CVFCWIter
	Alias typedef.
typedef ConstVertexFaceCCWIter	CVFCCWIter
	Alias typedef.
typedef ConstFaceVertexIter	CFVIter
	Alias typedef.
typedef ConstFaceVertexCWIter	CFVCWIter
	Alias typedef.
typedef ConstFaceVertexCCWIter	CFVCCWIter
	Alias typedef.
typedef ConstFaceHalfedgeIter	CFHIter
	Alias typedef.
typedef ConstFaceHalfedgeCWIter	CFHCWIter
	Alias typedef.
typedef ConstFaceHalfedgeCCWIter	CFHCCWIter
	Alias typedef.
typedef ConstFaceEdgeIter	CFEIter
	Alias typedef.
typedef ConstFaceEdgeCWIter	CFECWIter
	Alias typedef.
typedef ConstFaceEdgeCCWIter	CFECCWIter
	Alias typedef.
typedef ConstFaceFaceIter	CFFIter
	Alias typedef.
typedef ConstFaceFaceCWIter	CFFCWIter
	Alias typedef.
typedef ConstFaceFaceCCWIter	CFFCCWIter
	Alias typedef.
typedef EntityRange< const PolyConnectivity, PolyConnectivity::ConstVertexIter,&PolyConnectivity::vertices_begin,&PolyConnectivity::vertices_end >	ConstVertexRange
typedef EntityRange< const PolyConnectivity, PolyConnectivity::ConstHalfedgeIter,&PolyConnectivity::halfedges_begin,&PolyConnectivity::halfedges_end >	ConstHalfedgeRange
typedef EntityRange< const PolyConnectivity, PolyConnectivity::ConstEdgeIter,&PolyConnectivity::edges_begin,&PolyConnectivity::edges_end >	ConstEdgeRange
typedef EntityRange< const PolyConnectivity, PolyConnectivity::ConstFaceIter,&PolyConnectivity::faces_begin,&PolyConnectivity::faces_end >	ConstFaceRange
typedef CirculatorRange < PolyConnectivity, ConstVertexVertexCWIter, VertexHandle,&PolyConnectivity::cvv_cwbegin,&PolyConnectivity::cvv_cwend >	ConstVertexVertexRange
typedef CirculatorRange < PolyConnectivity, ConstVertexIHalfedgeIter, VertexHandle,&PolyConnectivity::cvih_begin,&PolyConnectivity::cvih_end >	ConstVertexIHalfedgeRange
typedef CirculatorRange < PolyConnectivity, ConstVertexOHalfedgeIter, VertexHandle,&PolyConnectivity::cvoh_begin,&PolyConnectivity::cvoh_end >	ConstVertexOHalfedgeRange
typedef CirculatorRange < PolyConnectivity, ConstVertexEdgeIter, VertexHandle,&PolyConnectivity::cve_begin,&PolyConnectivity::cve_end >	ConstVertexEdgeRange
typedef CirculatorRange < PolyConnectivity, ConstVertexFaceIter, VertexHandle,&PolyConnectivity::cvf_begin,&PolyConnectivity::cvf_end >	ConstVertexFaceRange
typedef CirculatorRange < PolyConnectivity, ConstFaceVertexIter, FaceHandle,&PolyConnectivity::cfv_begin,&PolyConnectivity::cfv_end >	ConstFaceVertexRange
typedef CirculatorRange < PolyConnectivity, ConstFaceHalfedgeIter, FaceHandle,&PolyConnectivity::cfh_begin,&PolyConnectivity::cfh_end >	ConstFaceHalfedgeRange
typedef CirculatorRange < PolyConnectivity, ConstFaceEdgeIter, FaceHandle,&PolyConnectivity::cfe_begin,&PolyConnectivity::cfe_end >	ConstFaceEdgeRange
typedef CirculatorRange < PolyConnectivity, ConstFaceFaceIter, FaceHandle,&PolyConnectivity::cff_begin,&PolyConnectivity::cff_end >	ConstFaceFaceRange
Public Types inherited from OpenMesh::ArrayKernel
typedef OpenMesh::VertexHandle	VertexHandle
typedef OpenMesh::HalfedgeHandle	HalfedgeHandle
typedef OpenMesh::EdgeHandle	EdgeHandle
typedef OpenMesh::FaceHandle	FaceHandle
typedef Attributes::StatusInfo	StatusInfo
typedef VPropHandleT< StatusInfo >	VertexStatusPropertyHandle
typedef HPropHandleT< StatusInfo >	HalfedgeStatusPropertyHandle
typedef EPropHandleT< StatusInfo >	EdgeStatusPropertyHandle
typedef FPropHandleT< StatusInfo >	FaceStatusPropertyHandle
typedef AutoStatusSetT < VertexHandle >	VertexStatusSet
typedef AutoStatusSetT < EdgeHandle >	EdgeStatusSet
typedef AutoStatusSetT < FaceHandle >	FaceStatusSet
typedef AutoStatusSetT < HalfedgeHandle >	HalfedgeStatusSet
typedef ExtStatusSetT< FaceHandle >	ExtFaceStatusSet
typedef ExtStatusSetT < VertexHandle >	ExtVertexStatusSet
typedef ExtStatusSetT< EdgeHandle >	ExtEdgeStatusSet
typedef ExtStatusSetT < HalfedgeHandle >	ExtHalfedgeStatusSet
Public Types inherited from OpenMesh::BaseKernel
typedef PropertyContainer::iterator	prop_iterator
typedef PropertyContainer::const_iterator	const_prop_iterator
Static Public Attributes inherited from OpenMesh::PolyConnectivity
static const VertexHandle	InvalidVertexHandle
	Invalid handle.
static const HalfedgeHandle	InvalidHalfedgeHandle
	Invalid handle.
static const EdgeHandle	InvalidEdgeHandle
	Invalid handle.
static const FaceHandle	InvalidFaceHandle
	Invalid handle.
Protected Member Functions inherited from OpenMesh::PolyConnectivity
void	collapse_edge (HalfedgeHandle _hh)
	Helper for halfedge collapse.
void	collapse_loop (HalfedgeHandle _hh)
	Helper for halfedge collapse.
Protected Member Functions inherited from OpenMesh::BaseKernel
BaseProperty &	_vprop (BaseHandle _h)
BaseProperty &	_eprop (BaseHandle _h)
BaseProperty &	_hprop (BaseHandle _h)
BaseProperty &	_fprop (BaseHandle _h)
BaseProperty &	_mprop (BaseHandle _h)
const BaseProperty &	_vprop (BaseHandle _h) const
const BaseProperty &	_eprop (BaseHandle _h) const
const BaseProperty &	_hprop (BaseHandle _h) const
const BaseProperty &	_fprop (BaseHandle _h) const
const BaseProperty &	_mprop (BaseHandle _h) const
void	vprops_reserve (size_t _n) const
	Reserves space for _n elements in all vertex property vectors.
void	vprops_resize (size_t _n) const
	Resizes all vertex property vectors to the specified size.
void	vprops_resize_if_smaller (size_t _n) const
	Same as vprops_resize() but ignores vertex property vectors that have a size larger than _n. More...
void	vprops_clear ()
void	vprops_swap (unsigned int _i0, unsigned int _i1) const
void	hprops_reserve (size_t _n) const
void	hprops_resize (size_t _n) const
void	hprops_clear ()
void	hprops_swap (unsigned int _i0, unsigned int _i1) const
void	eprops_reserve (size_t _n) const
void	eprops_resize (size_t _n) const
void	eprops_clear ()
void	eprops_swap (unsigned int _i0, unsigned int _i1) const
void	fprops_reserve (size_t _n) const
void	fprops_resize (size_t _n) const
void	fprops_clear ()
void	fprops_swap (unsigned int _i0, unsigned int _i1) const
void	mprops_resize (size_t _n) const
void	mprops_clear ()

Detailed Description

Connectivity Class for Triangle Meshes.

Member Function Documentation

TriConnectivity::FaceHandle OpenMesh::TriConnectivity::add_face	(	const VertexHandle *	_vhandles,
		size_t	_vhs_size
	)

Add a face with arbitrary valence to the triangle mesh.

Override OpenMesh::Mesh::PolyMeshT::add_face(). Faces that aren't triangles will be triangulated and added. In this case an invalid face handle will be returned.

face is triangle -> ok

face is not a triangle -> triangulate

FaceHandle OpenMesh::TriConnectivity::add_face

(

const std::vector< VertexHandle > &

_vhandles

)

Add a face with arbitrary valence to the triangle mesh.

Override OpenMesh::Mesh::PolyMeshT::add_face(). Faces that aren't triangles will be triangulated and added. In this case an invalid face handle will be returned.

FaceHandle OpenMesh::TriConnectivity::add_face	(	VertexHandle	_vh0,
		VertexHandle	_vh1,
		VertexHandle	_vh2
	)

Add a face to the mesh (triangle)

This function adds a triangle to the mesh. The triangle is passed directly to the underlying PolyConnectivity as we don't explicitly need to triangulate something.

Parameters

_vh0	VertexHandle 1
_vh1	VertexHandle 2
_vh2	VertexHandle 3

Returns

FaceHandle of the added face (invalid, if the operation failed)

void OpenMesh::TriConnectivity::assign_connectivity ( const TriConnectivity &  _other )

inline

assign_connectivity() methods.

See ArrayKernel::assign_connectivity() for more details. When the source connectivity is not triangles, in addition "fan" connectivity triangulation is performed

void OpenMesh::TriConnectivity::flip

(

EdgeHandle

_eh

)

Flip edge _eh.

Check for topological correctness first using is_flip_ok().

bool OpenMesh::TriConnectivity::is_collapse_ok

(

HalfedgeHandle

_heh

)

Returns whether collapsing halfedge _heh is ok or would lead to topological inconsistencies.

Attention

This method need the Attributes::Status attribute and changes the tagged bit.

void OpenMesh::TriConnectivity::split	(	EdgeHandle	_eh,
		VertexHandle	_vh
	)

Edge split (= 2-to-4 split)

The function will introduce two new faces ( non-boundary case) or one additional face (if edge is boundary)

Note

The properties of the new edges, halfedges, and faces will be undefined!

Parameters

_eh	Edge handle that should be splitted
_vh	Vertex handle that will be inserted at the edge

void OpenMesh::TriConnectivity::split ( FaceHandle  _fh, VertexHandle  _vh  )

inline

Face split (= 1-to-3) split, calls corresponding PolyMeshT function).

Parameters

_fh	Face handle that should be splitted
_vh	Vertex handle that will be inserted at the face

void OpenMesh::TriConnectivity::split_copy	(	EdgeHandle	_eh,
		VertexHandle	_vh
	)

Edge split (= 2-to-4 split)

The function will introduce two new faces ( non-boundary case) or one additional face (if edge is boundary)

Note

The properties of the new edges will be adjusted to the properties of the original edge

The properties of the new faces and halfedges will be undefined

Parameters

_eh	Edge handle that should be splitted
_vh	Vertex handle that will be inserted at the edge

void OpenMesh::TriConnectivity::split_copy ( FaceHandle  _fh, VertexHandle  _vh  )

inline

Face split (= 1-to-3) split, calls corresponding PolyMeshT function).

Parameters

_fh	Face handle that should be splitted
_vh	Vertex handle that will be inserted at the face

---

The documentation for this class was generated from the following files:

• OpenMesh/Core/Mesh/TriConnectivity.hh
• OpenMesh/Core/Mesh/TriConnectivity.cc
