Base class for all writer modules. More...

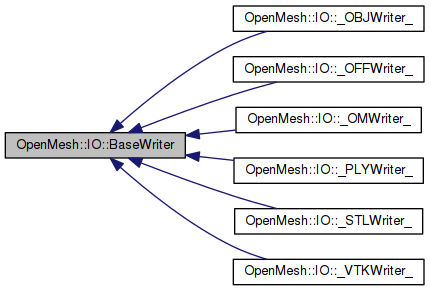

Inheritance diagram for OpenMesh::IO::BaseWriter:

Public Member Functions
virtual	~BaseWriter ()
	Destructor.

virtual std::string	get_description () const =0
	Return short description of the supported file format.

virtual std::string	get_extensions () const =0
	Return file format's extension.

virtual bool	can_u_write (const std::string &_filename) const
	Returns true if writer can write _filename (checks extension). More...

virtual bool	write (const std::string &_filename, BaseExporter &_be, Options _opt, std::streamsize _precision=6) const =0
	Write to a file. More...

virtual bool	write (std::ostream &_os, BaseExporter &_be, Options _opt, std::streamsize _precision=6) const =0
	Write to a std::ostream. More...

virtual size_t	binary_size (BaseExporter &, Options) const
	Returns expected size of file if binary format is supported else 0.

Protected Member Functions
bool	check (BaseExporter &_be, Options _opt) const

Detailed Description

Base class for all writer modules.

The module should register itself at the IOManager by calling the register_module function.

Member Function Documentation

bool OpenMesh::IO::BaseWriter::can_u_write ( const std::string & _filename ) const

virtual

Returns true if writer can write _filename (checks extension).

_filename can also provide an extension without a name for a file e.g. _filename == "om" checks, if the writer can write the "om" extension

Parameters

_filename complete name of a file or just the extension

virtual bool OpenMesh::IO::BaseWriter::write	(	const std::string &	_filename,
		BaseExporter &	_be,
		Options	_opt,
		std::streamsize	_precision = `6`
	)		const

pure virtual

Write to a file.

Parameters

_filename	write to file with the given filename
_be	BaseExporter, which specifies the data source
_opt	writing options
_precision	can be used to specify the precision of the floating point notation.

virtual bool OpenMesh::IO::BaseWriter::write	(	std::ostream &	_os,
		BaseExporter &	_be,
		Options	_opt,
		std::streamsize	_precision = `6`
	)		const

pure virtual

Write to a std::ostream.

Parameters

_os	write to std::ostream
_be	BaseExporter, which specifies the data source
_opt	writing options
_precision	can be used to specify the precision of the floating point notation.

The documentation for this class was generated from the following files:
