Inheritance diagram for MeshViewerWidgetSubdivider:

[legend]

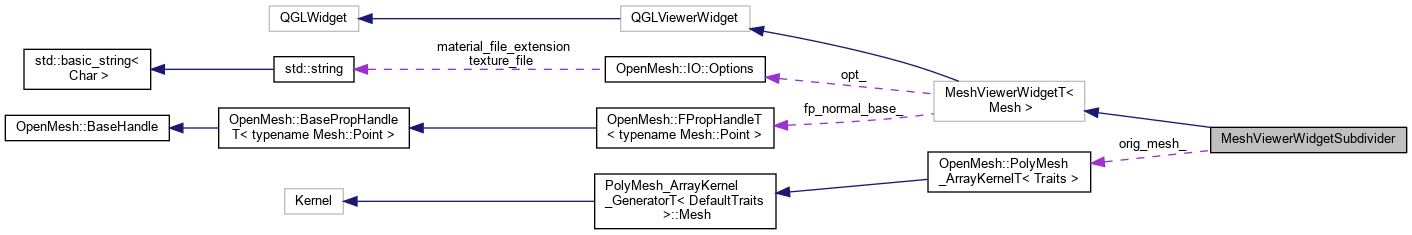

Collaboration diagram for MeshViewerWidgetSubdivider:

[legend]

Public Types
typedef MeshViewerWidgetT< Mesh >	Base

Public Types inherited from MeshViewerWidgetT< Mesh >
typedef Mesh	Mesh

typedef OpenMesh::StripifierT< Mesh >	MyStripifier

Public Types inherited from QGLViewerWidget
typedef QGLWidget	Super

Public Member Functions
	MeshViewerWidgetSubdivider (QWidget *_parent=0)
	default constructor

	~MeshViewerWidgetSubdivider ()
	destructor

bool	open_mesh (const char *_filename, OpenMesh::IO::Options _opt) override
	open mesh More...

Mesh &	orig_mesh ()

const Mesh &	orig_mesh () const

Public Member Functions inherited from MeshViewerWidgetT< Mesh >
	MeshViewerWidgetT (QWidget *_parent=0)
	default constructor

	~MeshViewerWidgetT ()
	destructor

virtual bool	open_mesh (const char *_filename, OpenMesh::IO::Options _opt)
	open mesh More...

virtual bool	open_texture (const char *_filename)
	load texture

bool	set_texture (QImage &_texsrc)

void	enable_strips ()

void	disable_strips ()

Mesh &	mesh ()

const Mesh &	mesh () const

Public Member Functions inherited from QGLViewerWidget
	QGLViewerWidget (QWidget *_parent=0)

void	set_scene_pos (const OpenMesh::Vec3f &_center, float _radius)

void	view_all ()

QAction *	add_draw_mode (const std::string &_s)
	add draw mode to popup menu, and return the QAction created

void	del_draw_mode (const std::string &_s)
	delete draw mode from popup menu

const std::string &	current_draw_mode () const

float	radius () const

const OpenMesh::Vec3f &	center () const

const GLdouble *	modelview_matrix () const

const GLdouble *	projection_matrix () const

float	fovy () const

QAction *	findAction (const char *name)

void	addAction (QAction action, const char name)

void	removeAction (const char *name)

void	removeAction (QAction *action)

Protected Attributes
Mesh	orig_mesh_

Protected Attributes inherited from MeshViewerWidgetT< Mesh >
bool	f_strips_

GLuint	tex_id_

GLint	tex_mode_

OpenMesh::IO::Options	opt_

Mesh	mesh_

MyStripifier	strips_

bool	use_color_

bool	show_vnormals_

bool	show_fnormals_

float	normal_scale_

OpenMesh::FPropHandleT< typename Mesh::Point >	fp_normal_base_

Additional Inherited Members
Protected Member Functions inherited from MeshViewerWidgetT< Mesh >
virtual void	draw_scene (const std::string &_draw_mode) override
	inherited drawing method More...

virtual void	draw_openmesh (const std::string &_drawmode)
	draw the mesh

void	glVertex (const typename Mesh::VertexHandle _vh)

void	glVertex (const typename Mesh::Point &_p)

void	glNormal (const typename Mesh::VertexHandle _vh)

void	glNormal (const typename Mesh::FaceHandle _fh)

void	glTexCoord (const typename Mesh::VertexHandle _vh)

void	glColor (const typename Mesh::VertexHandle _vh)

void	glColor (const typename Mesh::FaceHandle _fh)

void	glMaterial (const typename Mesh::FaceHandle _fh, int _f=GL_FRONT_AND_BACK, int _m=GL_DIFFUSE)

void	compute_strips (void)

virtual void	keyPressEvent (QKeyEvent *_event) override

Protected Member Functions inherited from QGLViewerWidget
virtual void	draw_scene (const std::string &_draw_mode)

double	performance (void)

void	setDefaultMaterial (void)

void	setDefaultLight (void)

virtual void	mousePressEvent (QMouseEvent *)

virtual void	mouseReleaseEvent (QMouseEvent *)

virtual void	mouseMoveEvent (QMouseEvent *)

virtual void	wheelEvent (QWheelEvent *)

virtual void	keyPressEvent (QKeyEvent *)

Member Function Documentation

◆ open_mesh()

bool MeshViewerWidgetSubdivider::open_mesh	(	const char *	_filename,
		OpenMesh::IO::Options	_opt
	)

inlineoverridevirtual

open mesh

The documentation for this class was generated from the following file:
