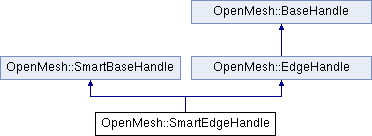

Inheritance diagram for OpenMesh::SmartEdgeHandle:

Public Member Functions
	SmartEdgeHandle (int _idx=-1, const PolyConnectivity *_mesh=nullptr)

SmartHalfedgeHandle	halfedge (unsigned int _i) const
	Returns one of the two halfedges of the edge.

SmartHalfedgeHandle	h (unsigned int _i) const
	Shorthand for halfedge()

SmartHalfedgeHandle	h0 () const
	Shorthand for halfedge(0)

SmartHalfedgeHandle	h1 () const
	Shorthand for halfedge(1)

SmartVertexHandle	vertex (unsigned int _i) const
	Returns one of the two incident vertices of the edge.

SmartVertexHandle	v (unsigned int _i) const
	Shorthand for vertex()

SmartVertexHandle	v0 () const
	Shorthand for vertex(0)

SmartVertexHandle	v1 () const
	Shorthand for vertex(1)

bool	is_boundary () const
	Returns true iff the edge lies on the boundary (i.e. one of the halfedges is boundary)

Public Member Functions inherited from OpenMesh::SmartBaseHandle
	SmartBaseHandle (const PolyConnectivity *_mesh=nullptr)

const PolyConnectivity *	mesh () const
	Get the underlying mesh of this handle.

Public Member Functions inherited from OpenMesh::EdgeHandle
	EdgeHandle (int _idx=-1)

Public Member Functions inherited from OpenMesh::BaseHandle
	BaseHandle (int _idx=-1)

int	idx () const
	Get the underlying index of this handle.

bool	is_valid () const
	The handle is valid iff the index is not negative.

void	reset ()
	reset handle to be invalid

void	invalidate ()
	reset handle to be invalid

bool	operator== (const BaseHandle &_rhs) const

bool	operator!= (const BaseHandle &_rhs) const

bool	operator< (const BaseHandle &_rhs) const

void	__increment ()

void	__decrement ()

void	__increment (int amount)

void	__decrement (int amount)

Detailed Description

Definition at line 137 of file SmartHandles.hh.

The documentation for this struct was generated from the following file:

OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Core/Mesh/SmartHandles.hh
