TypePolyhedralMeshPlugin Class Reference

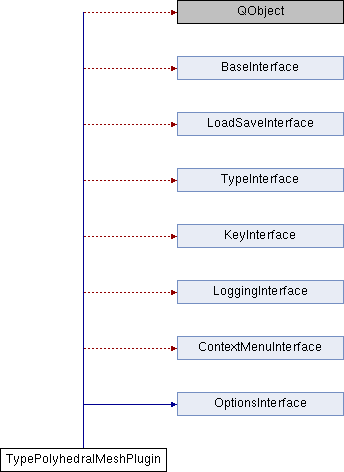

Inheritance diagram for TypePolyhedralMeshPlugin:
OptionsInterface ContextMenuInterface LoggingInterface KeyInterface TypeInterface LoadSaveInterface BaseInterface

Public Slots

QString version ()

int addEmpty ()

DataType supportedType ()


Signals

void log (Logtype _type, QString _message)

void log (QString _message)

void emptyObjectAdded (int _id)

void addContextMenuItem (QAction *, DataType, ContextMenuType)

- Signals inherited from BaseInterface
virtual void updateView ()
 Update current view in Main Application. More...

virtual void setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
 Set a description for a public slot. More...

virtual void setRenderer (unsigned int _viewer, QString _rendererName)
 Set a renderer for the given viewer. More...

- Signals inherited from LoadSaveInterface
virtual void save (int _id, QString _filename)
 Save object to a file. More...

virtual void load (QString _filename, DataType _type, int &_id)
 Load object from file with a specific DataType. More...

- Signals inherited from TypeInterface
virtual void emptyObjectAdded (int _id)
 Emit this signal if an empty object has been created. More...

- Signals inherited from KeyInterface
virtual void registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
 Register a key-combination for your plugin. More...

- Signals inherited from LoggingInterface
virtual void log (Logtype _type, QString _message)=0

virtual void log (QString _message)=0

- Signals inherited from ContextMenuInterface
virtual void addContextMenuItem (QAction *_action, ContextMenuType _type)
 Add an entry for a context Menu. More...


Public Member Functions

bool initializeOptionsWidget (QWidget *&_widget)
 Initialize the Options Widget. More...

QString name ()
 Return a name for the plugin. More...

QString description ()
 Return a description of what the plugin is doing. More...

bool registerType ()


Private Slots

void noguiSupported ()

void pluginsInitialized ()

void slot_change_shrinkage ()

void slotKeyEvent (QKeyEvent *_event)

void slotObjectUpdated (int _identifier, const UpdateType &_type)

void objectDeleted (int _identifier)

void slot_update_planes_in_scenegraph_node (int _deletedObject=-1)

void switchRendering ()

void setTranslucencyFactor ()

void applyOptions ()

- Private Slots inherited from BaseInterface
virtual void exit ()

virtual QString version ()
 Return a version string for your plugin. More...

- Private Slots inherited from TypeInterface
virtual int addEmpty ()=0
 Create an empty object. More...

virtual DataType supportedType ()=0
 Return your supported object type( e.g. DATA_TRIANGLE_MESH ) More...

virtual void generateBackup (int _id, QString _name, UpdateType _type)
 This slot should be implemented in a TypePlugin to generate type specific backups. More...

- Private Slots inherited from KeyInterface
virtual void slotKeyEvent (QKeyEvent *_event)
 Key Event from Main App. More...


Private Attributes

QAction * render_switch_

QAction * translucency_factor_action_

QWidget * optionsWidget_

QDoubleSpinBox * scalingFactorSpinBox_

QDoubleSpinBox * translucencyFactorSpinBox_

QCheckBox * renderBoundaryCheckBox_

const QString scalingFactorSettingName_

const QString translucencyFactorSettingName_

const QString renderBoundarySettingName_


Additional Inherited Members

- Private Member Functions inherited from BaseInterface
virtual void noguiSupported ()

virtual ~BaseInterface ()
 Destructor.

virtual void blockScenegraphUpdates (bool _block)
 Tell the core to prevent scenegraph updates. More...

virtual void updatedObject (int _objectId)
 An object has been changed or added by this plugin. More...

virtual void updatedObject (int _identifier, const UpdateType &_type)
 An object has been changed or added by this plugin. More...

virtual void nodeVisibilityChanged (int _identifier)
 A scenegraph node has been shown or hidden. More...

virtual void getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
 Get the current renderer for the given viewer. More...

- Private Member Functions inherited from LoadSaveInterface
virtual ~LoadSaveInterface ()
 Destructor.

virtual void addEmptyObject (DataType _type, int &_id)

virtual void copyObject (int _oldId, int &_newId)

virtual void emptyObjectAdded (int _id)
 DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void deleteObject (int _id)
 Delete an object
This signal can be called from any thread.
. More...

virtual void deleteAllObjects ()
 Delete all Objects. More...

virtual void getAllFileFilters (QStringList &_filters)
 Get all file filters that are registered. More...

- Private Member Functions inherited from TypeInterface
virtual ~TypeInterface ()
 Destructor.

- Private Member Functions inherited from KeyInterface
virtual void slotKeyReleaseEvent (QKeyEvent *_event)
 Key Release Event from Main App. More...

virtual ~KeyInterface ()
 Destructor.

- Private Member Functions inherited from LoggingInterface
virtual ~LoggingInterface ()
 Destructor.

- Private Member Functions inherited from ContextMenuInterface
virtual ~ContextMenuInterface ()
 Destructor.

virtual void addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)
 Add an entry for a context Menu. More...

virtual void hideContextMenu ()
 hide the main context menu

- Private Member Functions inherited from OptionsInterface
virtual ~OptionsInterface ()
 Destructor.

virtual void applyOptions ()=0
 Apply changes to options. More...


Detailed Description

Definition at line 58 of file TypePolyhedralMesh.hh.

Member Function Documentation

◆ description()

QString TypePolyhedralMeshPlugin::description ( )
inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 118 of file TypePolyhedralMesh.hh.

◆ initializeOptionsWidget()

bool TypePolyhedralMeshPlugin::initializeOptionsWidget ( QWidget *&  _widget)
virtual

Initialize the Options Widget.

Initialize the options widget (create a widget and return a pointer to it )

Example :
_widget = new QWidget();

In the widget you can add anything you want.

use the slot applyOptions() to save the values of options currently entered in your widget.

Parameters
_widgetPointer to the new Widget
Returns
Return true if a widget has been created

Implements OptionsInterface.

Definition at line 304 of file TypePolyhedralMesh.cc.

◆ name()

QString TypePolyhedralMeshPlugin::name ( )
inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 114 of file TypePolyhedralMesh.hh.


The documentation for this class was generated from the following files:
