OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType > Class Template Reference
#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Subdivider/Uniform/MidpointT.hh>

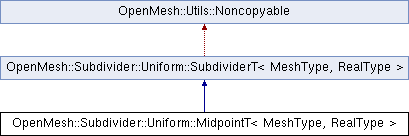

Inheritance diagram for OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType >:
Public Types | |
| typedef RealType | real_t |
| typedef MeshType | mesh_t |
| typedef SubdividerT< MeshType, RealType > | parent_t |
 Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType > | |
| typedef MeshType | mesh_t |
| typedef RealType | real_t |
Public Member Functions | |
| MidpointT (mesh_t &_m) | |
| const char * | name () const |
| Return name of subdivision algorithm. | |
| Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType > | |
| virtual | ~SubdividerT () |
| Destructor (calls detach()) | |
| SubdividerT (void) | |
| SubdividerT (MeshType &_m) | |
| bool | operator() (MeshType &_m, size_t _n, const bool _update_points=true) |
| bool | attach (MeshType &_m) |
| bool | operator() (size_t _n, const bool _update_points=true) |
| void | detach (void) |
Protected Member Functions | |
| bool | prepare (mesh_t &_m) |
| Prepare mesh, e.g. add properties. | |
| bool | subdivide (mesh_t &_m, size_t _n, const bool _update_points=true) |
| bool | cleanup (mesh_t &_m) |
| Cleanup mesh after usage, e.g. remove added properties. | |
Overload theses methods | |
Detailed Description
template<typename MeshType, typename RealType = double>
class OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType >
Midpoint subdivision algorithm.
With every step, the set of vertices is replaced by the midpoints of all current edges. Then, two sets of faces are created to set up the new connectivity: From all midpoints of edges surrounding an original face, a new face is created. Also, for all midpoints of edges surrounding an original vertex, a new face is created.
- Note
- This algorithm ignores the _update_points option.
- This algorithm is best suited for closed meshes since boundaries tend to fragment into isolated faces after a few iterations.
Definition at line 27 of file MidpointT.hh.
Member Function Documentation
◆ subdivide()
template<typename MeshType , typename RealType = double>
|
inlineprotectedvirtual |
Performs one step of Midpoint subdivision.
- Note
- The _update_points option is ignored
Implements OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >.
Definition at line 48 of file MidpointT.hh.
The documentation for this class was generated from the following file:
- OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Subdivider/Uniform/MidpointT.hh
