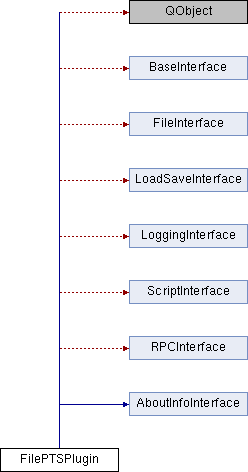

Inheritance diagram for FilePTSPlugin:

Public Slots
QString	version ()

int	loadObject (QString _filename)

bool	saveObject (int _objectId, QString _filename)

Signals
void	openedFile (int _objectId)

void	addEmptyObject (DataType _type, int &_objectId)

void	deleteObject (int _objectId)

void	updatedObject (int _objectId, const UpdateType &_type)

void	log (QString _message)

void	log (Logtype _type, QString _message)

void	addAboutInfo (QString _text, QString _tabName)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from FileInterface
virtual void	openedFile (int _id)
	This signal has to be emitted if an object has been loaded from a file. More...

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from RPCInterface
virtual void	pluginExists (QString _pluginName, bool &_exists)

Signals inherited from AboutInfoInterface
virtual void	addAboutInfo (QString _text, QString _tabName)
	Adds a widget to OpenFlippers about dialog. More...

Public Member Functions
QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

DataType	supportedType ()
	Return your supported object type( e.g. DATA_TRIANGLE_MESH ) More...

QString	getSaveFilters ()

QString	getLoadFilters ()

QWidget *	saveOptionsWidget (QString)

QWidget *	loadOptionsWidget (QString)

Private Slots
void	initializePlugin ()

void	noguiSupported ()

void	slotUpdateLoadColorRange ()

void	slotUpdateSaveColorRange ()

void	slotLoadMakeDefaultButtonClicked ()

void	slotSaveMakeDefaultButtonClicked ()

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from FileInterface
virtual int	loadObject (QString _filename)=0
	Load an object from the given file. More...

virtual int	loadObject (QString _filename, DataType _type)
	Load an object from the given file. More...

Private Member Functions
bool	readBinaryFile (const char *_filename, SplatCloud &_splatCloud)

bool	readTextFile (const char *_filename, SplatCloud &_splatCloud)

bool	writeBinaryFile (const char _filename, const SplatCloudNode _splatCloudNode)

bool	writeTextFile (const char _filename, const SplatCloudNode _splatCloudNode)

bool	readCompressedBinaryChunk (FILE _file, size_t _compressedSize, char _dst)

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from FileInterface
virtual	~FileInterface ()
	Destructor.

virtual bool	saveObject (int _id, QString _filename)=0
	Save an object from the given file. More...

virtual bool	saveObjects (IdList _ids, QString _filename)
	Save multiple objects to one file. More...

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from RPCInterface
virtual	~RPCInterface ()
	Destructor.

virtual void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Private Member Functions inherited from AboutInfoInterface
virtual	~AboutInfoInterface ()
	Destructor.

Private Attributes
QWidget *	loadOptions_

QWidget *	saveOptions_

QCheckBox *	loadBinaryFile_

QCheckBox *	loadNormals_

QCheckBox *	loadPointsizes_

QCheckBox *	loadColors_

QComboBox *	loadColorRange_

QCheckBox *	loadIndices_

QCheckBox *	saveBinaryFile_

QCheckBox *	saveNormals_

QCheckBox *	savePointsizes_

QCheckBox *	saveColors_

QComboBox *	saveColorRange_

QCheckBox *	saveIndices_

QPushButton *	loadMakeDefaultButton_

QPushButton *	saveMakeDefaultButton_

Detailed Description

Definition at line 84 of file FilePTS.hh.

Member Function Documentation

◆ description()

QString FilePTSPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 126 of file FilePTS.hh.

◆ getLoadFilters()

QString FilePTSPlugin::getLoadFilters ( )

inlinevirtual

Return the Qt Filters for File dialogs when loading files (e.g. "Off files ( *.off )" )

Implements FileInterface.

Definition at line 133 of file FilePTS.hh.

◆ getSaveFilters()

QString FilePTSPlugin::getSaveFilters ( )

inlinevirtual

Get the Qt Filters for Filedialogs when saving files (e.g. "Off files ( *.off )" )

Implements FileInterface.

Definition at line 132 of file FilePTS.hh.

◆ loadOptionsWidget()

QWidget * FilePTSPlugin::loadOptionsWidget ( QString _currentFilter )

virtual

You can provide a special widget showing options for loading your file types depending on the current filter

_currentFilter: one filter from loadFilters

Return 0 when you don't need one

Implements FileInterface.

Definition at line 1029 of file FilePTS.cc.

◆ name()

QString FilePTSPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 125 of file FilePTS.hh.

◆ saveOptionsWidget()

QWidget * FilePTSPlugin::saveOptionsWidget ( QString _currentFilter )

virtual

You can provide a special widget showing options for saving your file types depending on the current filter

_currentFilter: one filter from saveFilters

Return 0 when you don't need one

Implements FileInterface.

Definition at line 1096 of file FilePTS.cc.

◆ supportedType()

DataType FilePTSPlugin::supportedType ( )

inlinevirtual

Return your supported object type( e.g. DATA_TRIANGLE_MESH )

If you support multiple DataTypes you can combine them bitwise here. The function is used from the load and save code to check if your plugin can handle an object of a given dataType.

Implements FileInterface.

Definition at line 129 of file FilePTS.hh.

The documentation for this class was generated from the following files:

PluginCollection-FilePlugins/Plugin-FilePTS/FilePTS.hh
PluginCollection-FilePlugins/Plugin-FilePTS/FilePTS.cc
