#include <ACG/QtScenegraph/QtManipulatorNode.hh>

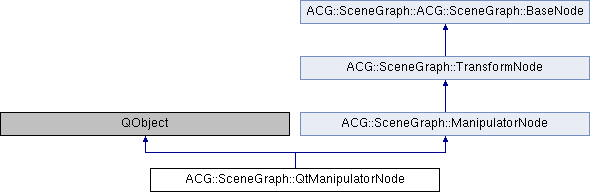

Inheritance diagram for ACG::SceneGraph::QtManipulatorNode:

Signals
void	manipulatorMoved (QtManipulatorNode _node, QMouseEvent _event)

void	visibilityChanged (QtManipulatorNode *_node, bool _visible)

void	positionChanged (QtManipulatorNode *_node)

Public Member Functions
	QtManipulatorNode (BaseNode *_parent=0, const std::string &_name="<QtManipulatorNode>")
	Default constructor.

	~QtManipulatorNode ()
	Destructor.

	ACG_CLASSNAME (QtManipulatorNode)
	class name

void	mouseEvent (GLState &_state, QMouseEvent *_event) override
	get mouse events

void	setIdentifier (int _id)
	Set an identifier for that manipulator.

int	getIdentifier ()
	Get an identifier for that manipulator.

void	show ()

void	hide ()

void	rotate (double _angle, const Vec3d &_axis)

void	translate (double _s)

void	set_center (const Vec3d &_c)

Public Member Functions inherited from ACG::SceneGraph::ManipulatorNode
	ManipulatorNode (BaseNode *_parent=0, const std::string &_name="<ManipulatorNode>")
	Default constructor.

	~ManipulatorNode ()
	Destructor.

	ACG_CLASSNAME (ManipulatorNode)
	class name

virtual void	setIdentity () override

void	set_draw_cylinder (bool _b)
	set draw_cylinder_

bool	draw_cylinder () const
	get drawCylinder

void	set_direction (Vec3d &_v)

Vec3d	direction () const

void	set_size (double _size)
	set cylindersize (height + radius)

double	size () const
	get cylindersize

void	translate (double _s)
	translate in cylinder direction

void	draw (GLState &_state, const DrawModes::DrawMode &_drawMode) override
	draw the cylinder (if enabled)

void	pick (GLState &_state, PickTarget _target) override
	picking

bool	touched ()

void	reset_touched ()
	Reset the touched flag ( see touched for details )

Public Member Functions inherited from ACG::SceneGraph::TransformNode
	TransformNode (BaseNode *_parent=0, const std::string &_name="<TransformNode>")
	Constructor.

virtual	~TransformNode ()
	Destructor.

	ACG_CLASSNAME (TransformNode)
	set name

void	enter (GLState &_state, const DrawModes::DrawMode &_drawmode) override
	set current GL-color and GL-material

void	leave (GLState &_state, const DrawModes::DrawMode &_drawmode) override
	restores original GL-color and GL-material

void	set_center (const Vec3d &_c)
	set center

const Vec3d &	center () const
	get center

void	loadIdentity ()

void	translate (const Vec3d &_v)
	Add a translation to the current Transformation.

void	setTranslation (const Vec3d &_v)
	translation setter

void	rotate (double _angle, const Vec3d &_axis)

void	setRotation (const Quaterniond &rotation)
	rotation setter

void	scale (double _s)
	Add scaling to the current Transformation.

void	scale (const Vec3d &_s)
	Add scaling to the current Transformation.

void	scale (const GLMatrixd &_m)
	Add scaling to the current Transformation.

const GLMatrixd &	matrix () const
	Returns a const reference to the current transformation matrix.

const GLMatrixd &	inverse_matrix () const
	return inverse matrix

void	rotation (Vec3d &_axis, double &_angle) const
	return rotation axis & angle

const GLMatrixd &	rotation () const
	return rotation matrix

const GLMatrixd &	inverse_rotation () const
	return inverse rotation matrix

const Vec3d &	translation () const
	returns ref. to translation vector

const GLMatrixd &	scale () const
	return scale matrix

const GLMatrixd &	inverse_scale () const
	return inverse scale matrix

bool	apply_transformation ()

void	apply_transformation (bool _applyTransformation)

bool	is2D ()

void	set2D (bool _2d)

bool	isPerSkeletonObject ()

void	setPerSkeletonObject (bool _is)

void	setPerSkeletonModelView (GLMatrixd _is)

void	ortho2DMode (GLState &_state)

void	perSkeletonMode (GLState &_state)

void	update2DOffset (ACG::Vec2d _offset)

void	scale2D (double _scale)

void	setImageDimensions (ACG::Vec2i _dim)

Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
	BaseNode (BaseNode *_parent=0, std::string _name="<unknown>")
	Default constructor.

	BaseNode (BaseNode _parent, BaseNode _child, std::string _name="<unknown>")
	Put this node between _parent and _child.

virtual	~BaseNode ()
	Destructor.

void	delete_subtree ()
	Delete the whole subtree of this node. More...

virtual const std::string &	className () const =0
	Return class name (implemented by the ACG_CLASSNAME macro)

virtual DrawModes::DrawMode	availableDrawModes () const

virtual void	boundingBox (Vec3d &, Vec3d &)

virtual void	enter (GLState &, const DrawModes::DrawMode &)

virtual void	enter (IRenderer *, GLState &_state, const DrawModes::DrawMode &_drawMode)

virtual void	draw (GLState &, const DrawModes::DrawMode &)
	Draw this node using the draw modes _drawMode. More...

virtual void	getRenderObjects (IRenderer _renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const Material _mat)
	Deferred draw call with shader based renderer. More...

virtual void	leave (GLState &, const DrawModes::DrawMode &)

virtual void	leave (IRenderer *, GLState &_state, const DrawModes::DrawMode &_drawMode)

virtual void	enterPick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)

virtual void	pick (GLState &, PickTarget)

virtual void	leavePick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)

void	enablePicking (bool _enable)

bool	pickingEnabled ()

virtual void	mouseEvent (GLState &, QMouseEvent *)
	Handle mouse event (some interaction, e.g. modeling)

void	setDirty (bool _dirty=true)
	mark node for redrawn

bool	isDirty () const
	Check if node should be redrawn.

ChildIter	childrenBegin ()
	Returns: begin-iterator of children.

ConstChildIter	childrenBegin () const
	Same but `cont`.

ChildIter	childrenEnd ()
	Returns: end-iterator of children.

ConstChildIter	childrenEnd () const
	Same but `const`.

ChildRIter	childrenRBegin ()
	Returns: reverse begin-iterator of children.

ConstChildRIter	childrenRBegin () const
	Same but const.

ChildRIter	childrenREnd ()
	Returns: reverse end-iterator of children.

ConstChildRIter	childrenREnd () const
	Same but `const`.

void	push_back (BaseNode *_node)
	Insert _node at the end of the list of children.

void	remove (ChildIter _pos)

size_t	nChildren () const
	number of children

ChildIter	find (BaseNode *_node)

BaseNode *	find (const std::string &_name)

BaseNode *	parent ()
	Get the nodes parent node.

const BaseNode *	parent () const
	Get the nodes parent node.

void	set_parent (BaseNode *_parent)
	Set the parent of this node. More...

StatusMode	status () const
	Get node's status.

void	set_status (StatusMode _s)
	Set the status of this node.

void	hide ()
	Hide Node: set status to HideNode.

void	show ()
	Show node: set status to Active.

bool	visible ()
	Is node visible (status == Active)?

bool	hidden ()
	Is node not visible (status != Active)?

std::string	name () const
	Returns: name of node (needs not be unique)

void	name (const std::string &_name)
	rename a node

unsigned int	id () const

DrawModes::DrawMode	drawMode () const
	Return the own draw modes of this node.

void	drawMode (DrawModes::DrawMode _drawMode)

unsigned int	traverseMode () const
	Return how the node should be traversed.

void	setTraverseMode (unsigned int _mode)
	Set traverse mode for node.

MultipassBitMask	multipassStatus () const
	Get the current multipass settings for the nodes status functions. More...

void	setMultipassStatus (const MultipassBitMask _passStatus)
	Set multipass settings for the nodes status functions. More...

void	multipassStatusSetActive (const unsigned int _i, bool _active)
	Set multipass status to traverse in a specific pass. More...

bool	multipassStatusActive (const unsigned int _i) const
	Get multipass status to traverse in a specific pass. More...

MultipassBitMask	multipassNode () const
	Get the current multipass settings for the node. More...

void	setMultipassNode (const MultipassBitMask _passNode)
	Set multipass settings for the node. More...

void	multipassNodeSetActive (const unsigned int _i, bool _active)
	Set Node status to traverse in a specific pass. More...

bool	multipassNodeActive (const unsigned int _i) const
	Get Node status to traverse in a specific pass. More...

void	setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
	Set custom shaders. More...

void	setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_tessControlShaderFile, const std::string &_tessEvalShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
	Set custom shaders. More...

void	setRenderObjectUniformPool (const GLSL::UniformPool *_pool)
	Set uniforms for shader based rendering. More...

const GLSL::UniformPool *	getRenderObjectUniformPool ()
	Get uniforms for shader based rendering. More...

void	setRenderObjectTexture (int _samplerSlot, GLuint _texId, GLenum _texType=GL_TEXTURE_2D)
	Set textures for shader based rendering. More...

void	setRenderObjectModifier (RenderObjectModifier *_modifier)
	Set modifier for render objects. More...

RenderObjectModifier *	getRenderObjectModifier ()
	Get render-object modifier. More...

void	applyRenderObjectSettings (DrawModes::DrawModePrimitive _primitive, RenderObject *_obj) const
	Set shaders, textures and uniforms as provided by user to a render-object. More...

Private Attributes
int	identifier_

Additional Inherited Members
Public Types inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
enum	StatusMode { Active = 0x1, HideNode = 0x2, HideChildren = 0x4, HideSubtree = 0x8 }
	Status modi. More...

enum	TraverseMode { NodeFirst = 0x1, ChildrenFirst = 0x2, SecondPass = 0x4 }
	Node traverse types. More...

typedef std::vector< BaseNode * >::const_iterator	ConstChildIter
	allows to iterate over children

typedef std::vector< BaseNode * >::iterator	ChildIter
	allows to iterate over children

typedef std::vector< BaseNode * >::const_reverse_iterator	ConstChildRIter
	allows to reverse iterate over children

typedef std::vector< BaseNode * >::reverse_iterator	ChildRIter
	allows to reverse iterate over children

enum	PASSES { NOPASS = 0, ALLPASSES = 1 << 0, PASS_1 = 1 << 1, PASS_2 = 1 << 2, PASS_3 = 1 << 3, PASS_4 = 1 << 4, PASS_5 = 1 << 5, PASS_6 = 1 << 6, PASS_7 = 1 << 7, PASS_8 = 1 << 8 }
	This enum should be used to enable rendering of a node in different.

typedef unsigned int	MultipassBitMask
	Multipass pass bit mask type.

Public Attributes inherited from ACG::SceneGraph::TransformNode
bool	is2DObject_

bool	isPerSkeletonObject_

GLMatrixd	perSkeletonModelView_

double	scaleFactor2D_

ACG::Vec2i	imageDimensions_

ACG::Vec2d	offset_

Detailed Description

Additional overlay class for emitting signals if manipulator is moved

Definition at line 80 of file QtManipulatorNode.hh.

Member Function Documentation

◆ manipulatorMoved

void ACG::SceneGraph::QtManipulatorNode::manipulatorMoved	(	QtManipulatorNode *	_node,
		QMouseEvent *	_event
	)

signal

This signal is emitted everytime the manipulator is moved Do not traverse Scenegraph when called by this function!!!!!!!

◆ positionChanged

void ACG::SceneGraph::QtManipulatorNode::positionChanged ( QtManipulatorNode * _node )

signal

this signal is emited every time the position of the manipulator is changed

◆ visibilityChanged

void ACG::SceneGraph::QtManipulatorNode::visibilityChanged	(	QtManipulatorNode *	_node,
		bool	_visible
	)

signal

The visibility of this node has changed

Parameters

_node	The node whose visibility has been changed
_visible	Is it now visible?

The documentation for this class was generated from the following files:

OpenFlipper/libs_required/ACG/QtScenegraph/QtManipulatorNode.hh
OpenFlipper/libs_required/ACG/QtScenegraph/QtManipulatorNode.cc
