Public Member Functions | List of all members
ACG::MeshCompilerFaceInput Class Referenceabstract

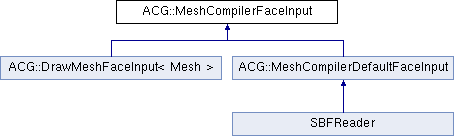

Inheritance diagram for ACG::MeshCompilerFaceInput:
ACG::DrawMeshFaceInput< Mesh > ACG::MeshCompilerDefaultFaceInput SBFReader

Public Member Functions

virtual int getNumFaces () const =0

virtual int getNumIndices () const =0

virtual int getFaceSize (const int _faceID) const =0

virtual int getSingleFaceAttr (const int _faceID, const int _faceCorner, const int _attrID) const

virtual bool getFaceAttr (const int _faceID, const int _attrID, int *_out) const

virtual int * getFaceAttr (const int _faceID, const int _attrID) const

virtual int getVertexAdjCount (const int _vertexID) const

virtual int getVertexAdjFace (const int _vertexID, const int _k) const


Detailed Description

Definition at line 128 of file MeshCompiler.hh.

Member Function Documentation

◆ getFaceAttr() [1/2]

virtual bool ACG::MeshCompilerFaceInput::getFaceAttr ( const int  _faceID,
const int  _attrID,
int *  _out
) const
inlinevirtual

Get an index buffer of a face for a specific attribute channel.

Parameters
_faceIDface index
_attrIDattribute channel
_outpointer to output buffer, use getFaceSize(_faceID) to get the size needed to store face data
Returns
true if successful, false otherwise

Reimplemented in ACG::DrawMeshFaceInput< Mesh >, and ACG::MeshCompilerDefaultFaceInput.

Definition at line 165 of file MeshCompiler.hh.

◆ getFaceAttr() [2/2]

virtual int* ACG::MeshCompilerFaceInput::getFaceAttr ( const int  _faceID,
const int  _attrID
) const
inlinevirtual

Get an index buffer of a face for a specific attribute channel.

Parameters
_faceIDface index
_attrIDattribute channel
Returns
array data of size "getFaceSize(_faceID)", allowed to return 0 when array data not permanently available in memory

Reimplemented in ACG::DrawMeshFaceInput< Mesh >.

Definition at line 172 of file MeshCompiler.hh.

◆ getFaceSize()

virtual int ACG::MeshCompilerFaceInput::getFaceSize ( const int  _faceID) const
pure virtual

Get number of vertices per face.

Parameters
_faceIDface index

Implemented in ACG::DrawMeshFaceInput< Mesh >, and ACG::MeshCompilerDefaultFaceInput.

◆ getNumIndices()

virtual int ACG::MeshCompilerFaceInput::getNumIndices ( ) const
pure virtual

Get total number of indices in one attribute channel.

i.e. total number of position indices of the whole mesh

Implemented in ACG::DrawMeshFaceInput< Mesh >, and ACG::MeshCompilerDefaultFaceInput.

◆ getSingleFaceAttr()

int ACG::MeshCompilerFaceInput::getSingleFaceAttr ( const int  _faceID,
const int  _faceCorner,
const int  _attrID
) const
virtual

Get a single vertex-index entry of a face.

Parameters
_faceIDface index
_faceCornervertex corner of the face
_attrIDattribute channel
Returns
index-data if successful, -1 otherwise

Reimplemented in ACG::DrawMeshFaceInput< Mesh >, and ACG::MeshCompilerDefaultFaceInput.

Definition at line 4188 of file MeshCompiler.cc.

◆ getVertexAdjCount()

virtual int ACG::MeshCompilerFaceInput::getVertexAdjCount ( const int  _vertexID) const
inlinevirtual

Get the number of adjacent faces for a vertex.

Parameters
_vertexIDvertex index
Returns
number of adjacent faces, return -1 if adjacency information unavailable

Reimplemented in ACG::DrawMeshFaceInput< Mesh >, and SBFReader.

Definition at line 182 of file MeshCompiler.hh.

◆ getVertexAdjFace()

virtual int ACG::MeshCompilerFaceInput::getVertexAdjFace ( const int  _vertexID,
const int  _k
) const
inlinevirtual

Get the index of an adjacent face for a vertex.

Parameters
_vertexIDvertex index
_kadjacency list entry in range [0, .., adjCount - 1]
Returns
face id of adjacent face, return -1 if adjacency information is available

Reimplemented in ACG::DrawMeshFaceInput< Mesh >, and SBFReader.

Definition at line 189 of file MeshCompiler.hh.

The documentation for this class was generated from the following files:
