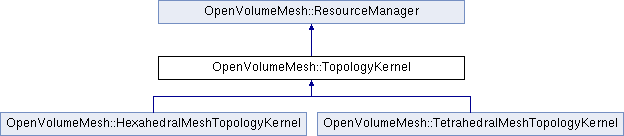

Inheritance diagram for OpenVolumeMesh::TopologyKernel:

Classes
class	CellCorrector

class	EdgeCorrector

class	FaceCorrector

Public Types
typedef OpenVolumeMeshEdge	Edge

typedef OpenVolumeMeshFace	Face

typedef OpenVolumeMeshCell	Cell

Public Types inherited from OpenVolumeMesh::ResourceManager
typedef std::vector< BaseProperty * >	Properties

Public Member Functions
VertexOHalfEdgeIter	voh_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexOHalfEdgeIter, VertexOHalfEdgeIter >	outgoing_halfedges (const VertexHandle &_h, int _max_laps=1) const

VertexVertexIter	vv_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexVertexIter, VertexVertexIter >	vertex_vertices (const VertexHandle &_h, int _max_laps=1) const

HalfEdgeHalfFaceIter	hehf_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair< HalfEdgeHalfFaceIter, HalfEdgeHalfFaceIter >	halfedge_halffaces (const HalfEdgeHandle &_h, int _max_laps=1) const

VertexFaceIter	vf_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexFaceIter, VertexFaceIter >	vertex_faces (const VertexHandle &_h, int _max_laps=1) const

VertexCellIter	vc_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexCellIter, VertexCellIter >	vertex_cells (const VertexHandle &_h, int _max_laps=1) const

HalfEdgeCellIter	hec_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair< HalfEdgeCellIter, HalfEdgeCellIter >	halfedge_cells (const HalfEdgeHandle &_h, int _max_laps=1) const

CellVertexIter	cv_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellVertexIter, CellVertexIter >	cell_vertices (const CellHandle &_h, int _max_laps=1) const

CellCellIter	cc_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellCellIter, CellCellIter >	cell_cells (const CellHandle &_h, int _max_laps=1) const

HalfFaceVertexIter	hfv_iter (const HalfFaceHandle &_h, int _max_laps=1) const

std::pair< HalfFaceVertexIter, HalfFaceVertexIter >	halfface_vertices (const HalfFaceHandle &_h, int _max_laps=1) const

BoundaryHalfFaceHalfFaceIter	bhfhf_iter (const HalfFaceHandle &_ref_h, int _max_laps=1) const

std::pair< BoundaryHalfFaceHalfFaceIter, BoundaryHalfFaceHalfFaceIter >	boundary_halfface_halffaces (const HalfFaceHandle &_h, int _max_laps=1) const

BoundaryFaceIter	bf_iter () const

VertexIter	v_iter () const

VertexIter	vertices_begin () const

VertexIter	vertices_end () const

std::pair< VertexIter, VertexIter >	vertices () const

EdgeIter	e_iter () const

EdgeIter	edges_begin () const

EdgeIter	edges_end () const

std::pair< EdgeIter, EdgeIter >	edges () const

HalfEdgeIter	he_iter () const

HalfEdgeIter	halfedges_begin () const

HalfEdgeIter	halfedges_end () const

std::pair< HalfEdgeIter, HalfEdgeIter >	halfedges () const

FaceIter	f_iter () const

FaceIter	faces_begin () const

FaceIter	faces_end () const

std::pair< FaceIter, FaceIter >	faces () const

HalfFaceIter	hf_iter () const

HalfFaceIter	halffaces_begin () const

HalfFaceIter	halffaces_end () const

std::pair< HalfFaceIter, HalfFaceIter >	halffaces () const

CellIter	c_iter () const

CellIter	cells_begin () const

CellIter	cells_end () const

std::pair< CellIter, CellIter >	cells () const

virtual size_t	n_vertices () const
	Get number of vertices in mesh.

virtual size_t	n_edges () const
	Get number of edges in mesh.

virtual size_t	n_halfedges () const
	Get number of halfedges in mesh.

virtual size_t	n_faces () const
	Get number of faces in mesh.

virtual size_t	n_halffaces () const
	Get number of halffaces in mesh.

virtual size_t	n_cells () const
	Get number of cells in mesh.

size_t	n_logical_vertices () const
	Get number of undeleted vertices in mesh.

size_t	n_logical_edges () const
	Get number of undeleted edges in mesh.

size_t	n_logical_halfedges () const
	Get number of undeleted halfedges in mesh.

size_t	n_logical_faces () const
	Get number of undeleted faces in mesh.

size_t	n_logical_halffaces () const
	Get number of undeleted halffaces in mesh.

size_t	n_logical_cells () const
	Get number of undeleted cells in mesh.

int	genus () const

virtual VertexHandle	add_vertex ()
	Add abstract vertex.

virtual EdgeHandle	add_edge (const VertexHandle &_fromVertex, const VertexHandle &_toHandle, bool _allowDuplicates=false)
	Add edge.

virtual FaceHandle	add_face (const std::vector< HalfEdgeHandle > &_halfedges, bool _topologyCheck=false)
	Add face via incident edges. More...

virtual FaceHandle	add_face (const std::vector< VertexHandle > &_vertices)
	Add face via incident vertices. More...

virtual CellHandle	add_cell (const std::vector< HalfFaceHandle > &_halffaces, bool _topologyCheck=false)
	Add cell via incident halffaces. More...

void	set_edge (const EdgeHandle &_eh, const VertexHandle &_fromVertex, const VertexHandle &_toVertex)
	Set the vertices of an edge.

void	set_face (const FaceHandle &_fh, const std::vector< HalfEdgeHandle > &_hes)
	Set the half-edges of a face.

void	set_cell (const CellHandle &_ch, const std::vector< HalfFaceHandle > &_hfs)
	Set the half-faces of a cell.

const Edge &	edge (const EdgeHandle &_edgeHandle) const
	Get edge with handle _edgeHandle.

const Face &	face (const FaceHandle &_faceHandle) const
	Get face with handle _faceHandle.

const Cell &	cell (const CellHandle &_cellHandle) const
	Get cell with handle _cellHandle.

Edge &	edge (const EdgeHandle &_edgeHandle)
	Get edge with handle _edgeHandle.

Face &	face (const FaceHandle &_faceHandle)
	Get face with handle _faceHandle.

Cell &	cell (const CellHandle &_cellHandle)
	Get cell with handle _cellHandle.

Edge	halfedge (const HalfEdgeHandle &_halfEdgeHandle) const
	Get edge that corresponds to halfedge with handle _halfEdgeHandle. More...

Face	halfface (const HalfFaceHandle &_halfFaceHandle) const
	Get face that corresponds to halfface with handle _halfFaceHandle.

Edge	opposite_halfedge (const HalfEdgeHandle &_halfEdgeHandle) const
	Get opposite halfedge that corresponds to halfedge with handle _halfEdgeHandle.

Face	opposite_halfface (const HalfFaceHandle &_halfFaceHandle) const
	Get opposite halfface that corresponds to halfface with handle _halfFaceHandle.

HalfEdgeHandle	halfedge (const VertexHandle &_vh1, const VertexHandle &_vh2) const
	Get halfedge from vertex _vh1 to _vh2.

HalfFaceHandle	halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfEdgeHandle	next_halfedge_in_halfface (const HalfEdgeHandle &_heh, const HalfFaceHandle &_hfh) const
	Get next halfedge within a halfface.

HalfEdgeHandle	prev_halfedge_in_halfface (const HalfEdgeHandle &_heh, const HalfFaceHandle &_hfh) const
	Get previous halfedge within a halfface.

size_t	valence (const VertexHandle &_vh) const
	Get valence of vertex (number of incident edges)

size_t	valence (const EdgeHandle &_eh) const
	Get valence of edge (number of incident faces)

size_t	valence (const FaceHandle &_fh) const
	Get valence of face (number of incident edges)

size_t	valence (const CellHandle &_ch) const
	Get valence of cell (number of incident faces)

virtual VertexIter	delete_vertex (const VertexHandle &_h)
	Delete vertex from mesh. More...

virtual EdgeIter	delete_edge (const EdgeHandle &_h)
	Delete edge from mesh. More...

virtual FaceIter	delete_face (const FaceHandle &_h)
	Delete face from mesh. More...

virtual CellIter	delete_cell (const CellHandle &_h)
	Delete cell from mesh. More...

virtual void	collect_garbage ()
	Delete all entities that are marked as deleted.

virtual bool	is_deleted (const VertexHandle &_h) const

virtual bool	is_deleted (const EdgeHandle &_h) const

virtual bool	is_deleted (const HalfEdgeHandle &_h) const

virtual bool	is_deleted (const FaceHandle &_h) const

virtual bool	is_deleted (const HalfFaceHandle &_h) const

virtual bool	is_deleted (const CellHandle &_h) const

virtual void	swap_cell_indices (CellHandle _h1, CellHandle _h2)
	Exchanges the indices of two cells while keeping the mesh otherwise unaffected.

virtual void	swap_face_indices (FaceHandle _h1, FaceHandle _h2)
	Exchanges the indices of two faces while keeping the mesh otherwise unaffected.

virtual void	swap_edge_indices (EdgeHandle _h1, EdgeHandle _h2)
	Exchanges the indices of two edges while keeping the mesh otherwise unaffected.

virtual void	swap_vertex_indices (VertexHandle _h1, VertexHandle _h2)
	Exchanges the indices of two vertices while keeping the mesh otherwise unaffected.

CellIter	delete_cell_range (const CellIter &_first, const CellIter &_last)
	Delete range of cells. More...

virtual void	clear (bool _clearProps=true)
	Clear whole mesh.

void	enable_bottom_up_incidences (bool _enable=true)

void	enable_vertex_bottom_up_incidences (bool _enable=true)

void	enable_edge_bottom_up_incidences (bool _enable=true)

void	enable_face_bottom_up_incidences (bool _enable=true)

bool	has_full_bottom_up_incidences () const

bool	has_vertex_bottom_up_incidences () const

bool	has_edge_bottom_up_incidences () const

bool	has_face_bottom_up_incidences () const

void	enable_deferred_deletion (bool _enable=true)

bool	deferred_deletion_enabled () const

void	enable_fast_deletion (bool _enable=true)

bool	fast_deletion_enabled () const

HalfFaceHandle	adjacent_halfface_in_cell (const HalfFaceHandle &_halfFaceHandle, const HalfEdgeHandle &_halfEdgeHandle) const
	Get halfface that is adjacent (w.r.t. a common halfedge) within the same cell. More...

CellHandle	incident_cell (const HalfFaceHandle &_halfFaceHandle) const
	Get cell that is incident to the given halfface.

bool	is_boundary (const HalfFaceHandle &_halfFaceHandle) const

bool	is_boundary (const FaceHandle &_faceHandle) const

bool	is_boundary (const EdgeHandle &_edgeHandle) const

bool	is_boundary (const HalfEdgeHandle &_halfedgeHandle) const

bool	is_boundary (const VertexHandle &_vertexHandle) const

size_t	n_vertices_in_cell (const CellHandle &_ch) const

Edge	opposite_halfedge (const Edge &_edge) const

Face	opposite_halfface (const Face &_face) const

bool	needs_garbage_collection () const

Public Member Functions inherited from OpenVolumeMesh::ResourceManager
	ResourceManager (const ResourceManager &other)

ResourceManager &	operator= (const ResourceManager &other)=delete

void	resize_vprops (size_t _nv)
	Change size of stored vertex properties.

void	resize_eprops (size_t _ne)
	Change size of stored edge properties.

void	resize_fprops (size_t _nf)
	Change size of stored face properties.

void	resize_cprops (size_t _nc)
	Change size of stored cell properties.

void	clear_vertex_props ()

void	clear_edge_props ()

void	clear_halfedge_props ()

void	clear_face_props ()

void	clear_halfface_props ()

void	clear_cell_props ()

void	clear_mesh_props ()

template<class T >
VertexPropertyT< T >	request_vertex_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
EdgePropertyT< T >	request_edge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfEdgePropertyT< T >	request_halfedge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
FacePropertyT< T >	request_face_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfFacePropertyT< T >	request_halfface_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
CellPropertyT< T >	request_cell_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
MeshPropertyT< T >	request_mesh_property (const std::string &_name=std::string(), const T _def=T())

size_t	n_vertex_props () const

size_t	n_edge_props () const

size_t	n_halfedge_props () const

size_t	n_face_props () const

size_t	n_halfface_props () const

size_t	n_cell_props () const

size_t	n_mesh_props () const

template<class T >
void	set_persistent (VertexPropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (EdgePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (HalfEdgePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (FacePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (HalfFacePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (CellPropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (MeshPropertyT< T > &_prop, bool _flag=true)

Properties::const_iterator	vertex_props_begin () const

Properties::const_iterator	vertex_props_end () const

Properties::const_iterator	edge_props_begin () const

Properties::const_iterator	edge_props_end () const

Properties::const_iterator	halfedge_props_begin () const

Properties::const_iterator	halfedge_props_end () const

Properties::const_iterator	face_props_begin () const

Properties::const_iterator	face_props_end () const

Properties::const_iterator	halfface_props_begin () const

Properties::const_iterator	halfface_props_end () const

Properties::const_iterator	cell_props_begin () const

Properties::const_iterator	cell_props_end () const

Properties::const_iterator	mesh_props_begin () const

Properties::const_iterator	mesh_props_end () const

template<class PropT >
bool	vertex_property_exists (const std::string &_name) const

template<class PropT >
bool	edge_property_exists (const std::string &_name) const

template<class PropT >
bool	halfedge_property_exists (const std::string &_name) const

template<class PropT >
bool	face_property_exists (const std::string &_name) const

template<class PropT >
bool	halfface_property_exists (const std::string &_name) const

template<class PropT >
bool	cell_property_exists (const std::string &_name) const

template<class PropT >
bool	mesh_property_exists (const std::string &_name) const

Static Public Member Functions
static HalfEdgeHandle	halfedge_handle (const EdgeHandle &_h, const unsigned char _subIdx)
	Conversion function.

static HalfFaceHandle	halfface_handle (const FaceHandle &_h, const unsigned char _subIdx)
	Conversion function.

static EdgeHandle	edge_handle (const HalfEdgeHandle &_h)
	Handle conversion.

static FaceHandle	face_handle (const HalfFaceHandle &_h)

static HalfEdgeHandle	opposite_halfedge_handle (const HalfEdgeHandle &_h)

static HalfFaceHandle	opposite_halfface_handle (const HalfFaceHandle &_h)

Static Public Attributes
static const VertexHandle	InvalidVertexHandle = VertexHandle(-1)

static const EdgeHandle	InvalidEdgeHandle = EdgeHandle(-1)

static const FaceHandle	InvalidFaceHandle = FaceHandle(-1)

static const CellHandle	InvalidCellHandle = CellHandle(-1)

static const HalfEdgeHandle	InvalidHalfEdgeHandle = HalfEdgeHandle(-1)

static const HalfFaceHandle	InvalidHalfFaceHandle = HalfFaceHandle(-1)

Protected Member Functions
virtual void	delete_multiple_vertices (const std::vector< bool > &_tag)

virtual void	delete_multiple_edges (const std::vector< bool > &_tag)

virtual void	delete_multiple_faces (const std::vector< bool > &_tag)

virtual void	delete_multiple_cells (const std::vector< bool > &_tag)

void	compute_vertex_bottom_up_incidences ()

void	compute_edge_bottom_up_incidences ()

void	compute_face_bottom_up_incidences ()

void	reorder_incident_halffaces (const EdgeHandle &_eh)

Protected Member Functions inherited from OpenVolumeMesh::ResourceManager
void	vertex_deleted (const VertexHandle &_h)

void	edge_deleted (const EdgeHandle &_h)

void	face_deleted (const FaceHandle &_h)

void	cell_deleted (const CellHandle &_h)

void	swap_cell_properties (CellHandle _h1, CellHandle _h2)

void	swap_face_properties (FaceHandle _h1, FaceHandle _h2)

void	swap_halfface_properties (HalfFaceHandle _h1, HalfFaceHandle _h2)

void	swap_edge_properties (EdgeHandle _h1, EdgeHandle _h2)

void	swap_halfedge_properties (HalfEdgeHandle _h1, HalfEdgeHandle _h2)

void	swap_vertex_properties (VertexHandle _h1, VertexHandle _h2)

template<typename PropIterator , typename Handle >
void	swap_property_elements (PropIterator _begin, PropIterator _end, Handle _h1, Handle _h2)

void	delete_multiple_vertex_props (const std::vector< bool > &_tags)

void	delete_multiple_edge_props (const std::vector< bool > &_tags)

void	delete_multiple_face_props (const std::vector< bool > &_tags)

void	delete_multiple_cell_props (const std::vector< bool > &_tags)

Static Protected Member Functions
template<class Circulator >
static Circulator	make_end_circulator (const Circulator &_circ)

Protected Attributes
std::vector< std::vector< HalfEdgeHandle > >	outgoing_hes_per_vertex_

std::vector< std::vector< HalfFaceHandle > >	incident_hfs_per_he_

std::vector< CellHandle >	incident_cell_per_hf_

std::vector< Edge >	edges_

std::vector< Face >	faces_

std::vector< Cell >	cells_

std::vector< bool >	vertex_deleted_

std::vector< bool >	edge_deleted_

std::vector< bool >	face_deleted_

std::vector< bool >	cell_deleted_

size_t	n_deleted_vertices_ = 0

size_t	n_deleted_edges_ = 0

size_t	n_deleted_faces_ = 0

size_t	n_deleted_cells_ = 0

Private Member Functions
template<class ContainerT >
void	get_incident_edges (const ContainerT &_vs, std::set< EdgeHandle > &_es) const

template<class ContainerT >
void	get_incident_faces (const ContainerT &_es, std::set< FaceHandle > &_fs) const

template<class ContainerT >
void	get_incident_cells (const ContainerT &_fs, std::set< CellHandle > &_cs) const

VertexIter	delete_vertex_core (const VertexHandle &_h)
	Delete vertex from mesh. More...

EdgeIter	delete_edge_core (const EdgeHandle &_h)
	Delete edge from mesh. More...

FaceIter	delete_face_core (const FaceHandle &_h)
	Delete face from mesh. More...

CellIter	delete_cell_core (const CellHandle &_h)
	Delete cell from mesh. More...

Private Attributes
size_t	n_vertices_

bool	v_bottom_up_

bool	e_bottom_up_

bool	f_bottom_up_

bool	deferred_deletion

bool	fast_deletion

Friends
class	StatusAttrib

class	VertexOHalfEdgeIter

class	VertexVertexIter

class	HalfEdgeHalfFaceIter

class	VertexFaceIter

class	VertexCellIter

class	HalfEdgeCellIter

class	CellVertexIter

class	CellCellIter

class	HalfFaceVertexIter

class	BoundaryHalfFaceHalfFaceIter

class	BoundaryFaceIter

class	VertexIter

class	EdgeIter

class	HalfEdgeIter

class	FaceIter

class	HalfFaceIter

class	CellIter

Detailed Description

Definition at line 57 of file TopologyKernel.hh.

Member Function Documentation

◆ add_cell()

CellHandle OpenVolumeMesh::TopologyKernel::add_cell	(	const std::vector< HalfFaceHandle > &	_halffaces,
		bool	_topologyCheck = `false`
	)

virtual

Add cell via incident halffaces.

Add cell via incident halffaces

Returns: Handle of the new cell, InvalidCellHandle if _topologyCheck is true and _halffaces are not connected.

Warning: If _halffaces are not connected and _topologyCheck is false, the behavior is undefined.

Reimplemented in OpenVolumeMesh::HexahedralMeshTopologyKernel, and OpenVolumeMesh::TetrahedralMeshTopologyKernel.

Definition at line 378 of file TopologyKernel.cc.

◆ add_face() [1/2]

FaceHandle OpenVolumeMesh::TopologyKernel::add_face	(	const std::vector< HalfEdgeHandle > &	_halfedges,
		bool	_topologyCheck = `false`
	)

virtual

Add face via incident edges.

Add face via incident edges

Returns: Handle of the new face, InvalidFaceHandle if _halfedges are not connected and _topologyCheck is true.

Warning: If _halfedges are not connected and _topologyCheck is false, the behavior is undefined.

Reimplemented in OpenVolumeMesh::HexahedralMeshTopologyKernel, and OpenVolumeMesh::TetrahedralMeshTopologyKernel.

Definition at line 161 of file TopologyKernel.cc.

◆ add_face() [2/2]

FaceHandle OpenVolumeMesh::TopologyKernel::add_face ( const std::vector< VertexHandle > & _vertices )

virtual

Add face via incident vertices.

Add face via incident vertices Define the _vertices in counter-clockwise order (from the "outside")

Reimplemented in OpenVolumeMesh::HexahedralMeshTopologyKernel, and OpenVolumeMesh::TetrahedralMeshTopologyKernel.

Definition at line 250 of file TopologyKernel.cc.

◆ adjacent_halfface_in_cell()

HalfFaceHandle OpenVolumeMesh::TopologyKernel::adjacent_halfface_in_cell	(	const HalfFaceHandle &	_halfFaceHandle,
		const HalfEdgeHandle &	_halfEdgeHandle
	)		const

Get halfface that is adjacent (w.r.t. a common halfedge) within the same cell.

Returns: Handle of the adjacent half-face if _halfFaceHandle is not at a boundary, InvalidHalfFaceHandle otherwise.

Warning: The mesh must have face bottom-up incidences.

Definition at line 2267 of file TopologyKernel.cc.

◆ delete_cell()

CellIter OpenVolumeMesh::TopologyKernel::delete_cell ( const CellHandle & _h )

virtual

Delete cell from mesh.

Since there's no higher dimensional incident entity to a cell, we can safely delete it from the mesh.

Parameters

_h	The handle to the cell to be deleted

Definition at line 712 of file TopologyKernel.cc.

◆ delete_cell_core()

CellIter OpenVolumeMesh::TopologyKernel::delete_cell_core ( const CellHandle & _h )

private

Delete cell from mesh.

After performing this operation, all cells following cell _h in the array will be accessible through their old handle decreased by one. These steps are performed:

1) Delete links in BU: HF -> C 2) Decrease all entries > c in BU: HF -> C 3) Delete cell from storage array 4) Delete property item

Parameters

_h	A cell handle

Definition at line 1369 of file TopologyKernel.cc.

◆ delete_cell_range()

CellIter OpenVolumeMesh::TopologyKernel::delete_cell_range	(	const CellIter &	_first,
		const CellIter &	_last
	)

Delete range of cells.

Deletes all cells in range [_first, _last].

Parameters

_first	Iterator to first cell that is to be deleted
_last	Iterator to last cell that is to be deleted

Returns: An iterator to the first cell after the deleted range

Definition at line 1960 of file TopologyKernel.cc.

◆ delete_edge()

EdgeIter OpenVolumeMesh::TopologyKernel::delete_edge ( const EdgeHandle & _h )

virtual

Delete edge from mesh.

Get all incident higher-dimensional entities and delete the complete subtree of the mesh incident to edge h. In this function all incident entities are gathered and deleted using the delete*_core functions that do the actual deletion including the update of the bottom-up incidences, etc.

Parameters

_h	The handle to the edge to be deleted

Definition at line 642 of file TopologyKernel.cc.

◆ delete_edge_core()

EdgeIter OpenVolumeMesh::TopologyKernel::delete_edge_core ( const EdgeHandle & _h )

private

Delete edge from mesh.

After performing this operation, all edges following edge _h in the array will be accessible through their old handle decreased by one. This function directly fixes the edge links in all faces. These steps are performed:

1) Delete bottom-up links from incident vertices 2) Decrease all half-edge handles > _h in incident faces 3) Delete entry in bottom-up list: HE -> HF 4) Decrease all half-edge handles > 2*_h.idx() in vertex bottom-up list 5) Delete edge itself 6) Delete property entry

Parameters

_h	An edge's handle

Definition at line 1016 of file TopologyKernel.cc.

◆ delete_face()

FaceIter OpenVolumeMesh::TopologyKernel::delete_face ( const FaceHandle & _h )

virtual

Delete face from mesh.

Get all incident higher-dimensional entities and delete the complete subtree of the mesh incident to face h. In this function all incident entities are gathered and deleted using the delete*_core functions that do the actual deletion including the update of the bottom-up incidences, etc.

Parameters

_h	The handle to the face to be deleted

Definition at line 683 of file TopologyKernel.cc.

◆ delete_face_core()

FaceIter OpenVolumeMesh::TopologyKernel::delete_face_core ( const FaceHandle & _h )

private

Delete face from mesh.

After performing this operation, all faces following face _h in the array will be accessible through their old handle decreased by one. This function directly fixes the face links in all cells. These steps are performed:

1) Delete bottom-up links from incident edges 2) Decrease all half-face handles > _h in incident cells 3) Delete entry in bottom-up list: HF -> C 4) Decrease all half-face handles > 2*_h.idx() in half-edge bottom-up list 5) Delete face itself 6) Delete property entry

Parameters

_h	An face's handle

Definition at line 1200 of file TopologyKernel.cc.

◆ delete_vertex()

VertexIter OpenVolumeMesh::TopologyKernel::delete_vertex ( const VertexHandle & _h )

virtual

Delete vertex from mesh.

Get all incident higher-dimensional entities and delete the complete subtree of the mesh incident to vertex h. In this function all incident entities are gathered and deleted using the delete*_core functions that do the actual deletion including the update of the bottom-up incidences, etc.

Parameters

_h	The handle to the vertex to be deleted

Definition at line 592 of file TopologyKernel.cc.

◆ delete_vertex_core()

VertexIter OpenVolumeMesh::TopologyKernel::delete_vertex_core ( const VertexHandle & _h )

private

Delete vertex from mesh.

After performing this operation, all vertices following vertex _h in the array will be accessible through their old handle decreased by one. This function directly fixes the vertex links in all edges. These steps are performed:

1) Decrease all vertex handles > _h in incident edges 2) Delete entry in bottom-up list: V -> HE 3) Delete vertex itself (not necessary here since a vertex is only represented by a number) 4) Delete property entry

Parameters

_h	A vertex's handle

Definition at line 911 of file TopologyKernel.cc.

◆ halfedge()

OpenVolumeMeshEdge OpenVolumeMesh::TopologyKernel::halfedge ( const HalfEdgeHandle & _halfEdgeHandle ) const

Get edge that corresponds to halfedge with handle _halfEdgeHandle.

Otherwise return the opposite halfedge via opposite()

Definition at line 2055 of file TopologyKernel.cc.

◆ halfface() [1/2]

HalfFaceHandle OpenVolumeMesh::TopologyKernel::halfface ( const std::vector< VertexHandle > & _vs ) const

Get half-face from list of incident vertices (in connected order)

Note: Only the first three vertices are checked

Definition at line 2138 of file TopologyKernel.cc.

◆ halfface() [2/2]

HalfFaceHandle OpenVolumeMesh::TopologyKernel::halfface ( const std::vector< HalfEdgeHandle > & _hes ) const

Get half-face from list of incident half-edges

Note: Only the first two half-edges are checked

Definition at line 2205 of file TopologyKernel.cc.

◆ halfface_extensive()

HalfFaceHandle OpenVolumeMesh::TopologyKernel::halfface_extensive ( const std::vector< VertexHandle > & _vs ) const

Get half-face from list of incident vertices (in connected order)

Note: All vertices are checked

Definition at line 2158 of file TopologyKernel.cc.

The documentation for this class was generated from the following files:

Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Core/TopologyKernel.hh
Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Core/TopologyKernel.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Function Documentation

◆ add_cell()

◆ add_face() [1/2]

◆ add_face() [2/2]

◆ adjacent_halfface_in_cell()

◆ delete_cell()

◆ delete_cell_core()

◆ delete_cell_range()

◆ delete_edge()

◆ delete_edge_core()

◆ delete_face()

◆ delete_face_core()

◆ delete_vertex()

◆ delete_vertex_core()

◆ halfedge()

◆ halfface() [1/2]

◆ halfface() [2/2]

◆ halfface_extensive()
