OVMPropertyVisualizer< MeshT > Class Template Referenceabstract

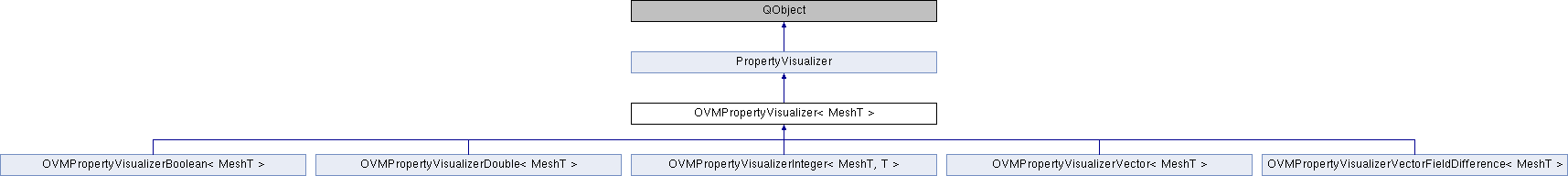

Inheritance diagram for OVMPropertyVisualizer< MeshT >:
PropertyVisualizer OVMPropertyVisualizerBoolean< MeshT > OVMPropertyVisualizerDouble< MeshT > OVMPropertyVisualizerInteger< MeshT, T > OVMPropertyVisualizerVector< MeshT > OVMPropertyVisualizerVectorFieldDifference< MeshT >

Classes

class  CopyProperty


Public Member Functions

 OVMPropertyVisualizer (MeshT *_mesh, int objectID, PropertyInfo _propertyInfo)

virtual void visualize (bool _setDrawMode, QWidget *_widget)
 Visualizes a property.

virtual void removeProperty ()
 Should remove the property. More...

virtual void duplicateProperty ()
 Duplicates a property.

virtual void clear ()
 Clears a property.

virtual QString getPropertyText (unsigned int index)=0
 Returns the value of a property in text form. More...

unsigned int getClosestPrimitiveId (unsigned int _face, ACG::Vec3d &_hitPoint)
 Returns the ID of the closest primitive.

- Public Member Functions inherited from PropertyVisualizer
 PropertyVisualizer (const PropertyInfo &_propertyInfo)
 Constructor. More...

virtual ~PropertyVisualizer ()
 Destructor.

virtual QString getName ()
 Returns a beautiful name. More...

virtual QWidget * getWidget ()
 Returns the visualizer's widget. More...

const PropertyInfogetPropertyInfo () const
 Returns the PropertyInfo.


Protected Slots

template<typename Type >
void showHistogram (ACG::QtWidgets::QtHistogramWidget *histogramWidget)


Protected Member Functions

virtual void visualizeFaceProp (bool _setDrawMode=true)

virtual void visualizeEdgeProp (bool _setDrawMode=true)

virtual void visualizeHalfedgeProp (bool _setDrawMode=true)

virtual void visualizeVertexProp (bool _setDrawMode=true)

virtual void visualizeCellProp (bool _setDrawMode=true)

virtual void visualizeHalffaceProp (bool _setDrawMode=true)

template<typename PropType >
void duplicateProperty_stage1 ()

template<typename InnerType >
QString getPropertyText_ (unsigned int index)

virtual void setCellPropertyFromText (unsigned int index, QString text)

virtual void setFacePropertyFromText (unsigned int index, QString text)

virtual void setHalffacePropertyFromText (unsigned int index, QString text)

virtual void setEdgePropertyFromText (unsigned int index, QString text)

virtual void setHalfedgePropertyFromText (unsigned int index, QString text)

virtual void setVertexPropertyFromText (unsigned int index, QString text)

virtual void setPropertyFromText (unsigned int index, QString text)
 Returns the value of a property in text form. More...

virtual int getEntityCount ()
 Returns the number of entities.

virtual QString getHeader ()
 Returns the header for saving.

unsigned int getClosestCellId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int getClosestFaceId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int getClosestHalffaceId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int getClosestEdgeId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int getClosestHalfedgeId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int getClosestVertexId (unsigned int _face, ACG::Vec3d &_hitPoint)

- Protected Member Functions inherited from PropertyVisualizer
virtual std::unique_ptr< ACG::IColorCoderbuildColorCoder ()

template<typename PropType , typename Iterable >
void showHistogramT (ACG::QtWidgets::QtHistogramWidget *widget, Iterable data)


Protected Attributes

MeshT * mesh

int mObjectID

VolumeMeshDrawModesContainer drawModes

- Protected Attributes inherited from PropertyVisualizer
PropertyInfo propertyInfo


Additional Inherited Members

- Signals inherited from PropertyVisualizer
void log (Logtype _type, QString _message)

void log (QString _message)

- Static Public Member Functions inherited from PropertyVisualizer
static QString toStr (bool b)

static QString toStr (double d)

static QString toStr (int i)

static QString toStr (uint8_t i)

static QString toStr (unsigned int i)

static QString toStr (OpenMesh::Vec3d v)

static QString toStr (OpenMesh::Vec2d v)

static QString toStr (OpenMesh::Vec2f v)

static bool strToBool (QString str)

static double strToDouble (QString str)

static int strToInt (QString str)

static unsigned int strToUInt (QString str)

static OpenMesh::Vec3d strToVec3d (QString str)

static OpenMesh::Vec2d strToVec2d (QString str)

static OpenMesh::Vec2f strToVec2f (QString str)

- Public Attributes inherited from PropertyVisualizer
QWidget * widget


Detailed Description

template<typename MeshT>
class OVMPropertyVisualizer< MeshT >

Definition at line 61 of file OVMPropertyVisualizer.hh.

Member Function Documentation

◆ getPropertyText()

template<typename MeshT>
virtual QString OVMPropertyVisualizer< MeshT >::getPropertyText ( unsigned int  i)
pure virtual

Returns the value of a property in text form.

Parameters
iThe id of the entity whose property we want to know.
Returns
The property value in text form.

Implements PropertyVisualizer.

Implemented in OVMPropertyVisualizerVector< MeshT >, OVMPropertyVisualizerVectorFieldDifference< MeshT >, OVMPropertyVisualizerBoolean< MeshT >, OVMPropertyVisualizerDouble< MeshT >, and OVMPropertyVisualizerInteger< MeshT, T >.

◆ removeProperty()

template<typename MeshT>
virtual void OVMPropertyVisualizer< MeshT >::removeProperty ( )
inlinevirtual

Should remove the property.

Removing properties is not yet supported by OpenVolumeMesh. Therefor this method only informs the user of this fact via a log message.

Reimplemented from PropertyVisualizer.

Definition at line 82 of file OVMPropertyVisualizer.hh.

◆ setPropertyFromText()

template<typename MeshT >
void OVMPropertyVisualizer< MeshT >::setPropertyFromText ( unsigned int  index,
QString  text
)
protectedvirtual

Returns the value of a property in text form.

Parameters
indexThe id of the entity whose property should be set.
textThe value in text form.

This method sets the porperty of a given entity by transforming the text into the correct type. This is used when a property is loaded from a file.

Implements PropertyVisualizer.

Definition at line 97 of file OVMPropertyVisualizerT_impl.hh.


The documentation for this class was generated from the following files:
