This class manages the visualizers for a single object. More...

#include <Plugin-PropertyVis/Models/SingleObjectPropertyModel.hh>

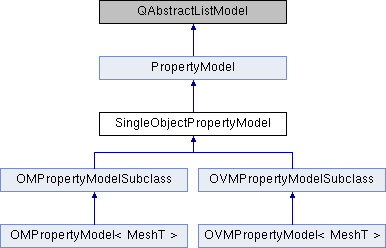

Inheritance diagram for SingleObjectPropertyModel:

Signals
void	log (Logtype _type, QString _message)

void	log (QString _message)

Public Member Functions
virtual void	pickModeChanged (const std::string &_mode)

virtual void	mouseEvent (QMouseEvent *_event)

	SingleObjectPropertyModel (QObject *parent=0)

virtual int	rowCount (const QModelIndex &parent=QModelIndex()) const

virtual QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const

virtual QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const

virtual void	objectUpdated ()
	Revisualizes visualized properties.

virtual void	visualize (QModelIndexList selectedIndices, QWidgetList widgets=QWidgetList())
	Visualizes the selected properties. More...

virtual void	removeProperty (QModelIndexList selectedIndices)
	Removes the selected properties.

virtual void	duplicateProperty (QModelIndexList selectedIndices)
	Duplicates the selected properties.

virtual void	gatherProperties ()
	Searches for properties and creates PropertyVisualizers.

virtual void	clear (QModelIndexList selectedIndices)
	Clears the selected property visualization.

void	hideWidget ()
	Hides the widget.

QWidget *	getWidget ()
	Returns the widget.

virtual void	updateWidget (const QModelIndexList &selectedIndices)
	Updates the widget.

void	connectLogs (PropertyVisualizer *propViz)
	Connects the PropertyVisualizer log signals with the log slot.

virtual PropertyInfo	getPropertyInfo (const QModelIndex index) const
	Returns the property info for the property with the given index.

virtual QScriptValue	getScriptObject (const QModelIndex index, QScriptContext *ctx)
	Returns a qscript object that can be used to access visualisation parameters.

Public Member Functions inherited from PropertyModel
	PropertyModel (QObject *parent=0)

QModelIndex	indexFromFancyPropName (const QString &propName) const
	Returns the index of the property with the given name.

QModelIndex	indexFromPlainPropName (const QString &propName) const
	Returns the index of the property with the given name.

Protected Member Functions
PropertyVisualizer *	getPropertyVisualizer (QString propName, PropertyInfo::ENTITY_FILTER filter, TypeInfoWrapper typeInfo)
	Returns a PropertyVisualizer.

bool	isPropertyFree (QString propName, PropertyInfo::ENTITY_FILTER filter, TypeInfoWrapper typeInfo)
	Checks if the property name is still available.

QString	getLoadFilename ()
	Asks the user for a file to load.

virtual QString	getLoadFilenameFilter ()
	Returns the filename filter for loading.

QString	getSaveFilename (unsigned int propId)
	Asks the user for a file to load.

virtual QString	getSaveFilenameFilter (unsigned int propId)
	Returns the filename filter for saving.

virtual QString	getDefaultSaveFilename (unsigned int propId)
	Returns the default file name.

void	saveProperty (unsigned int propId)
	Saves property.

void	loadProperty ()
	Loads property.

virtual void	setPropertyFromFile (QTextStream &file_stream, unsigned int n, PropertyVisualizer *propVis)
	Sets the property values from a given file.

virtual bool	parseHeader (QString header, PropertyVisualizer *&propVis, unsigned int &n)
	Parses the property file header. More...

Protected Attributes
std::vector< PropertyVisualizer * >	propertyVisualizers

QWidget *	widgets

QModelIndexList	currentlySelectedIndices

std::vector< unsigned int >	currentlyVisualizedIndices

Private Slots
void	slotLog (Logtype _type, QString _message)

void	slotLog (QString _message)

Detailed Description

This class manages the visualizers for a single object.

For each mesh object a SingleObjectPropertyModel is created. It searches for properties and creates a PropertyVisualizer for each of them. It provides the GUI for all selected properties. Also loading and saving of properties is handled here.

Note that for each type of object (OpenMesh, OpenVolumeMesh and others that might follow) a subclass should be derived from this class.

Definition at line 74 of file SingleObjectPropertyModel.hh.

Member Function Documentation

◆ parseHeader()

virtual bool SingleObjectPropertyModel::parseHeader	(	QString	header,
		PropertyVisualizer *&	propVis,
		unsigned int &	n
	)

inlineprotectedvirtual

Parses the property file header.

Parameters

	header	The header.
[out]	propVis	The PropertyVisualizer that will visualize the new property.
[out]	n	The number of values stored in the file

Returns: True if parsing was successfull, False if not.

When loading a property from a file this method parses the header placed in the file's first line. If parsing was successfull a new property and a PropertyVisualizer will be created.

Reimplemented in OVMPropertyModel< MeshT >, and OMPropertyModel< MeshT >.

Definition at line 178 of file SingleObjectPropertyModel.hh.
