#include <Plugin-Move/MovePlugin.hh>

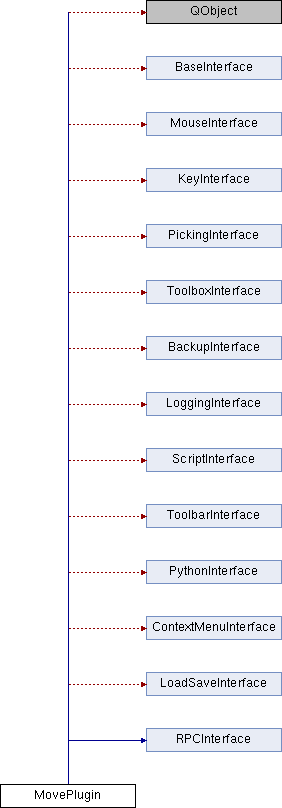

Inheritance diagram for MovePlugin:

Public Types
typedef unsigned int	SelectionType

Public Slots
QString	version ()

Scriptable Functions
void	slotMoveToOrigin ()
	Move target Meshes cog to the origin. More...

void	slotUnifyBoundingBoxDiagonal ()
	Scale Boundingbox Diagonal to unit size. More...

void	slotUnifyBoundingBoxLongestAxis ()
	Scale Boundingbox longest axis to unit size (keeps aspect ratio)

void	slotUnifyBoundingBoxAllAxis ()
	Scale all Boundingbox axis to unit size.

void	translate (int _objectId, Vector _vector)
	translate an Object by a given vector More...

void	translate (int _objectId, IdList _vHandles, Vector _vector)
	translate given vertices by a vector More...

void	translateVertexSelection (int _objectId, Vector _vector)
	translate current vertex selection of an Object by a given vector More...

void	translateFaceSelection (int _objectId, Vector _vector)
	translate current face selection of an Object by a given vector More...

void	translateEdgeSelection (int _objectId, Vector _vector)
	translate current edge selection of an Object by a given vector More...

void	transform (int _objectId, Matrix4x4 _matrix)
	transform an Object by a given matrix More...

void	transform (int _objectId, IdList _vHandles, Matrix4x4 _matrix)
	transform given vertices by a matrix More...

bool	transformVertexSelection (int _objectId, Matrix4x4 _matrix)
	transform current selection of an Object by a given matrix More...

bool	transformFaceSelection (int _objectId, Matrix4x4 _matrix)
	transform current selection of an Object by a given matrix More...

bool	transformEdgeSelection (int _objectId, Matrix4x4 _matrix)
	transform current selection of an Object by a given matrix More...

bool	transformCellSelection (int _objectId, Matrix4x4 _matrix)
	transform current selection of an Object by a given matrix More...

void	transformHandleRegion (int _objectId, Matrix4x4 _matrix)
	Transform handle region using the given transformation matrix.

void	setManipulatorPosition (int _objectId, Vector _position)
	Set the position of the manipulator. More...

Vector	manipulatorPosition (int _objectId)
	Get the position of the manipulator. More...

void	setManipulatorDirection (int _objectId, Vector _directionX, Vector _directionY)
	Set the direction of the manipulator. More...

Vector	manipulatorDirectionX (int _objectId)
	Get the x-direction of the manipulator. More...

Vector	manipulatorDirectionY (int _objectId)
	Get the y-direction of the manipulator. More...

Vector	manipulatorDirectionZ (int _objectId)
	Get the z-direction of the manipulator. More...

void	objectRenderingMatrixIdentity (int _objectId)
	Sets the Object Matrix in the scenegraph to identity.

void	objectRenderingMatrixScale (int _objectId, double _s)
	Adds a scaling factor to the Object rendering Matrix in the scenegraph. More...

void	objectRenderingMatrixTranslate (int _objectId, Vector _translation)
	Adds a scaling factor to the Object rendering Matrix in the scenegraph. More...

void	objectRenderingMatrixRotate (int _objectId, Vector _axis, double _angle)
	Adds a scaling factor to the Object rendering Matrix in the scenegraph. More...

Matrix4x4	getObjectRenderingMatrix (int _objectId)
	Gets the Object Matrix in the scenegraph. More...

Signals
void	updateView ()

void	updatedObject (int, const UpdateType &_type)

void	nodeVisibilityChanged (int)

void	addPickMode (const std::string &_mode)

void	addHiddenPickMode (const std::string &_mode)

void	setPickModeMouseTracking (const std::string &_mode, bool _mouseTracking)

void	setPickModeToolbar (const std::string &_mode, QToolBar *_toolbar)

void	addContextMenuItem (QAction *_action, ContextMenuType _type)

void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	scriptInfo (QString _functionName)

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)

void	addToolbar (QToolBar *_toolbar)

void	getToolBar (QString _name, QToolBar *&_toolbar)

void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)

void	addToolbox (QString _name, QWidget _widget, QIcon _icon)

void	pluginExists (QString _pluginName, bool &_exists)

void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from KeyInterface
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Signals inherited from PickingInterface
virtual void	addPickMode (const std::string &_mode)
	Add a new picking mode to the examiner. More...

Signals inherited from ToolboxInterface
virtual void	addToolbox (QString _name, QWidget *_widget)
	Add a toolbox widget to the gui with the given name. More...

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from ToolbarInterface
virtual void	addToolbar (QToolBar *_toolbar)
	Adds a Toolbar to the main widget. More...

Signals inherited from ContextMenuInterface
virtual void	addContextMenuItem (QAction *_action, ContextMenuType _type)
	Add an entry for a context Menu. More...

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Signals inherited from RPCInterface
virtual void	pluginExists (QString _pluginName, bool &_exists)

Public Member Functions
	MovePlugin ()
	Default Constructor. More...

	~MovePlugin ()
	Destructor. More...

QString	name ()
	Name of the Plugin.

QString	description ()
	Description of the Plugin.

Static Public Attributes
static const SelectionType	VERTEX = 1

static const SelectionType	EDGE = 2

static const SelectionType	FACE = 4

static const SelectionType	CELL = 8

Private Slots
void	initializePlugin ()

void	pluginsInitialized ()
	Initialization of the plugin when it is loaded by the core. More...

void	slotAllCleared ()

void	objectDeleted (int _id)

void	slotMouseWheelEvent (QWheelEvent *_event, const std::string &_mode)

void	slotMouseEvent (QMouseEvent *_event)
	MousePress event occured. More...

void	slotKeyEvent (QKeyEvent *_event)

void	slotKeyReleaseEvent (QKeyEvent *_event)

void	slotPickModeChanged (const std::string &_mode)
	slot is called when the pickMode changed More...

void	slotBackupRequested (int, QString, int)

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from KeyInterface
virtual void	slotKeyEvent (QKeyEvent *_event)
	Key Event from Main App. More...

Private Member Functions
void	slotRestoreRequested (int, QString, int)

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from MouseInterface
virtual	~MouseInterface ()
	Destructor.

Private Member Functions inherited from KeyInterface
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor.

Private Member Functions inherited from PickingInterface
virtual void	addHiddenPickMode (const std::string &_mode)
	Add a new picking mode to the examiner which will be invisible. More...

virtual void	setPickModeCursor (const std::string &_mode, QCursor _cursor)
	Set the cursor of the given PickMode. More...

virtual void	setPickModeMouseTracking (const std::string &_mode, bool _mouseTracking)
	Set mouse tracking for the given PickMode. More...

virtual void	setPickModeToolbar (const std::string &_mode, QToolBar *_toolbar)
	Set the additional toolbar of the given PickMode. More...

virtual void	removePickModeToolbar (const std::string &_mode)
	Removes the additional toolbar of the given PickMode. More...

virtual	~PickingInterface ()
	Destructor.

Private Member Functions inherited from ToolboxInterface
virtual	~ToolboxInterface ()
	Destructor.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon)
	Add a toolbox widget to the gui with the given name and an icon. More...

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)
	Add a toolbox widget to the gui with the given name, icon and header area widget. More...

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from ToolbarInterface
virtual	~ToolbarInterface ()
	Destructor.

virtual void	removeToolbar (QToolBar *_toolbar)
	Remove a Toolbar from the main widget. More...

virtual void	getToolBar (QString _name, QToolBar *&_toolbar)
	Get a pointer to a Toolbar of the given name or 0 if it does not exist. More...

Private Member Functions inherited from PythonInterface
virtual	~PythonInterface ()
	Destructor.

Private Member Functions inherited from ContextMenuInterface
virtual	~ContextMenuInterface ()
	Destructor.

virtual void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)
	Add an entry for a context Menu. More...

virtual void	hideContextMenu ()
	hide the main context menu

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Member Functions inherited from RPCInterface
virtual	~RPCInterface ()
	Destructor.

virtual void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Private Attributes
bool	hide_

bool	allTargets_

bool	placeMode_

bool	transformedSelected_
	stores if any selected elements where transformed

ToolBox
enum	Unificationtype { DIAGONAL, LONGEST_AXIS, ALL_AXIS }
	stores the current axes in the tool

int	axisA_
	stores the current axes in the tool

int	axisB_
	stores the current axes in the tool

bool	toolboxActive_
	True if the toolbox widget is active.

moveToolbarWidget *	tool_
	Widget for Toolbox.

QIcon *	toolIcon_
	stores the current axes in the tool

void	slotSetPosition ()
	Position of manipulator in tab changed. More...

void	slotToggleAxisA ()
	Toggle the first axis for changing direction in tab. More...

void	slotToggleAxisB ()
	Toggle the second axis for changing direction in tab. More...

void	slotSetDirection ()
	Set Direction of manipulator in tab changed. More...

void	slotTranslation ()
	perform a translation for Manipulator in tab More...

void	slotProjectToTangentPlane ()
	Project the current manipulator onto the tangent plane of the object. More...

void	slotMoveManipToCOG ()
	Move the current manipulator to the cog of the object. More...

void	slotRotate ()
	Rotate Manipulator (with values from Tab) More...

void	slotScale ()
	Scale (with values from Tab) More...

void	slotEnableSelectionMode ()
	stores the current axes in the tool

void	slotEnableObjectMode ()
	stores the current axes in the tool

void	updateManipulatorDialog ()
	Update the Dialog with the last clicked manipulator. More...

template<typename MeshType >
OpenMesh::Vec3d	getNearestVertex (MeshType *_mesh, uint _fh, OpenMesh::Vec3d &_hitPoint)
	Get closest vertex to hitpoint. More...

template<typename MeshType >
OpenMesh::Vec3d	getNearestEdge (MeshType *_mesh, uint _fh, OpenMesh::Vec3d &_hitPoint)
	Get closest edge to hitpoint. More...

template<typename MeshType >
OpenMesh::Vec3d	getNearestFace (MeshType *_mesh, uint _fh, OpenMesh::Vec3d &_hitPoint)
	Get closest face to hitpoint. More...

ToolBar
QAction *	moveAction_
	Called by Toolbar to enable move mode. More...

QAction *	moveSelectionAction_
	Called by Toolbar to enable move mode. More...

QActionGroup *	toolBarActions_
	Called by Toolbar to enable move mode. More...

QToolBar *	toolbar_
	Called by Toolbar to enable move mode. More...

void	slotSetMoveMode (QAction *_action)
	Called by Toolbar to enable move mode. More...

PickToolBar
QToolBar *	pickToolbar_
	Called by pick Toolbar. More...

QAction *	placeAction_
	Called by pick Toolbar. More...

QAction *	rotateTranslateAction_
	Called by pick Toolbar. More...

QAction *	rotateManipAction_
	Called by pick Toolbar. More...

QAction *	resizeAction_
	Called by pick Toolbar. More...

QAction *	biggerManipAction_
	Called by pick Toolbar. More...

QAction *	smallerManipAction_
	Called by pick Toolbar. More...

QAction *	fixChildManipAction_
	Called by pick Toolbar. More...

QAction *	transformRefPoseManipAction_
	Called by pick Toolbar. More...

QAction *	currentPoseManipAction_
	Called by pick Toolbar. More...

QAction *	placeAndSnapAction_
	Called by pick Toolbar. More...

QActionGroup *	pickToolBarActions_
	Called by pick Toolbar. More...

void	slotPickToolbarAction (QAction *_action)
	Called by pick Toolbar. More...

Manipulator Handling
std::vector< int >	activeManipulators_
	Size for the manipulators.

double	manip_size_
	Size for the manipulators.

double	manip_size_modifier_
	Modifier for the Size (changed by Mousewheel Events)

int	lastActiveManipulator_
	Stores the last manipulator which has been clicked ( used for the toolbox dialog)

MoveObjectMarker	objectMarker_
	Object marker to dimm Objects during manipulator transformation.

QtTranslationManipulatorNode::ManipulatorMode	manMode_
	Holds the current manipulator mode.

void	manipulatorMoved (QtTranslationManipulatorNode _node, QMouseEvent _event)
	move the object when its manipulator moves More...

void	ManipulatorPositionChanged (QtTranslationManipulatorNode *_node)
	update object when its manipulator changes position More...

void	unifyBoundingBox (Unificationtype u)
	Size for the manipulators.

template<typename MeshT >
void	transformMesh (ACG::Matrix4x4d _mat, MeshT &_mesh)
	Transform a mesh with the given transformation matrix. More...

ACG::Matrix4x4d	getLastManipulatorMatrix (bool _reset=true)
	Get the Matrix of the last active Manipulator ( Identity if not found or hidden Manipulator ) More...

void	showManipulators ()
	Checks if the manipulators should be visible or not. More...

void	placeManip (QMouseEvent *_event, bool _snap=false)
	Place and show the Manipulator. More...

template<typename MeshT >
void	unifyBB (MeshT &_mesh, Unificationtype u=MovePlugin::DIAGONAL)
	scale mesh to have a boundingboxdiagonal of one More...

template<typename MeshT >
void	getBB (MeshT &_mesh, ACG::Vec3d &_bb_min, ACG::Vec3d &_bb_max)
	get bounding box diagonal of a mesh More...

template<typename MeshT >
void	unifyBB (MeshT &_mesh, ACG::Vec3d &_bb_min, ACG::Vec3d &_bb_max, Unificationtype u=MovePlugin::DIAGONAL)
	Scales object such that bounding box diagonal has unit length. More...

void	setDescriptions ()
	Set Descriptions for scriptable functions. More...

void	moveObject (ACG::Matrix4x4d mat, int _id)
	Move an object with given id. More...

void	moveSelection (ACG::Matrix4x4d mat, int _id, QEvent::Type _type)
	Move selection on an object with given id. More...

void	setManipMode (QtTranslationManipulatorNode::ManipulatorMode _mode)
	Set the manipulator manipulation mode. More...

Selection Plugin Communication
SelectionType	selectionType_
	Current SelectionType of SelectionPlugin.

void	setAllTargets (bool _state)
	Sets whether all targets should be affected or not. More...

void	updateSelectionType ()
	Get current primitive selection. More...

Context Menu
QList< movePropsWidget * >	propsWindows_
	List of properties dialogs (each corresponding to one manipulator)

QAction *	contextAction_
	Context menu entry for showing per manipulator settings.

QAction *	contextActionHide_
	Context menu entry to hide a manipulator.

QAction *	toAllTargets_
	Checked if transformation should be applied to all target objs.

QMenu *	contextMenuManipControl_
	Additional Context Menu replicating the toolbar stuff.

QAction *	contextMenuManipControlsAction_
	Action holding the context menu for toolbar replication.

void	showProps ()
	Show properties of move manipulator in a dialog ( Called via context for picking. Get the picked id from the Qvariant attached to the connected action)

void	hideManipulator ()
	Hide the manipulator( Called via context for picking. Get the picked id from the Qvariant attached to the connected action)

movePropsWidget *	getDialogWidget (BaseObjectData *_obj)
	Get properties dialog widget that is attached to BaseDataObject obj. More...

movePropsWidget *	getDialogFromButton (QPushButton *_but)
	Get parent properties dialog widget of QPushButton but. More...

void	slotUpdateContextMenuNode (int _nodeId)
	Hide context menu entry when right clicking on node other than manipulator node. More...

void	setPickModeProps (movePropsWidget *_pW, const std::string &_pickmode)
	List of properties dialogs (each corresponding to one manipulator)

Detailed Description

Plugin for moving objects and selections

Definition at line 81 of file MovePlugin.hh.

Constructor & Destructor Documentation

◆ MovePlugin()

MovePlugin::MovePlugin ( )

Default Constructor.

Definition at line 82 of file MovePlugin.cc.

◆ ~MovePlugin()

MovePlugin::~MovePlugin ( )

Destructor.

Deconstructor.

Definition at line 125 of file MovePlugin.cc.

Member Function Documentation

◆ getBB()

template<typename MeshT >

void MovePlugin::getBB	(	MeshT &	_mesh,
		ACG::Vec3d &	_bb_min,
		ACG::Vec3d &	_bb_max
	)

private

get bounding box diagonal of a mesh

Get the bounding box of a mesh.

Parameters

_mesh	the mesh
_bb_min	Lower left corner of bounding box
_bb_max	Upper right corner of bounding box

Definition at line 2495 of file MovePlugin.cc.

◆ getDialogFromButton

movePropsWidget * MovePlugin::getDialogFromButton ( QPushButton * _but )

privateslot

Get parent properties dialog widget of QPushButton but.

Get Dialog Widget that contains the button.

Parameters

_but	Reference to QPushButton object that has been pressed

Definition at line 1022 of file MovePlugin.cc.

◆ getDialogWidget

movePropsWidget * MovePlugin::getDialogWidget ( BaseObjectData * _obj )

privateslot

Get properties dialog widget that is attached to BaseDataObject obj.

Get pointer to corresponding dialog widget.

Parameters

_obj	the object to which the dialog is attached

Definition at line 2099 of file MovePlugin.cc.

◆ getLastManipulatorMatrix()

ACG::Matrix4x4d MovePlugin::getLastManipulatorMatrix ( bool _reset = true )

private

Get the Matrix of the last active Manipulator ( Identity if not found or hidden Manipulator )

Parameters

_reset reset the transformation matrix of the manipulator to identity)

Returns: current transformation matrix of the manipulator

Parameters

_reset reset the transformation matrix of the manipulator to identity)

Returns: current transformation matrix of the manipulator

Definition at line 2187 of file MovePlugin.cc.

◆ getNearestEdge()

template<typename MeshType >

OpenMesh::Vec3d MovePlugin::getNearestEdge	(	MeshType *	_mesh,
		uint	_fh,
		OpenMesh::Vec3d &	_hitPoint
	)

private

Get closest edge to hitpoint.

Get nearest edge to hitPoint (use for snapping)

Definition at line 2674 of file MovePlugin.cc.

◆ getNearestFace()

template<typename MeshType >

OpenMesh::Vec3d MovePlugin::getNearestFace	(	MeshType *	_mesh,
		uint	_fh,
		OpenMesh::Vec3d &	_hitPoint
	)

private

Get closest face to hitpoint.

Get nearest face center to hitPoint (use for snapping)

Definition at line 2719 of file MovePlugin.cc.

◆ getNearestVertex()

template<typename MeshType >

OpenMesh::Vec3d MovePlugin::getNearestVertex	(	MeshType *	_mesh,
		uint	_fh,
		OpenMesh::Vec3d &	_hitPoint
	)

private

Get closest vertex to hitpoint.

Get nearest vertex to hitPoint (use for snapping)

Definition at line 2642 of file MovePlugin.cc.

◆ getObjectRenderingMatrix

Matrix4x4 MovePlugin::getObjectRenderingMatrix ( int _objectId )

slot

Gets the Object Matrix in the scenegraph.

The object itself is not modified b< this matrix. Only the transformation matrix applied to the object coordinates before rendering gets modified.

Parameters

_objectId Id of the object to modify

Returns: Current Matrix of the object

Definition at line 1949 of file MovePluginScript.cc.

◆ manipulatorDirectionX

Vector MovePlugin::manipulatorDirectionX ( int _objectId )

slot

Get the x-direction of the manipulator.

Parameters

_objectId id of an object

Returns: x-direction of the manipulator

Definition at line 1838 of file MovePluginScript.cc.

◆ manipulatorDirectionY

Vector MovePlugin::manipulatorDirectionY ( int _objectId )

slot

Get the y-direction of the manipulator.

Parameters

_objectId id of an object

Returns: y-direction of the manipulator

Definition at line 1857 of file MovePluginScript.cc.

◆ manipulatorDirectionZ

Vector MovePlugin::manipulatorDirectionZ ( int _objectId )

slot

Get the z-direction of the manipulator.

Parameters

_objectId id of an object

Returns: z-direction of the manipulator

Definition at line 1876 of file MovePluginScript.cc.

◆ manipulatorMoved

void MovePlugin::manipulatorMoved	(	QtTranslationManipulatorNode *	_node,
		QMouseEvent *	_event
	)

privateslot

move the object when its manipulator moves

Parameters

_node	the manipulator node
_event	the mouse event

Definition at line 774 of file MovePlugin.cc.

◆ manipulatorPosition

Vector MovePlugin::manipulatorPosition ( int _objectId )

slot

Get the position of the manipulator.

Parameters

_objectId id of an object

Returns: current manipulator position

Definition at line 1786 of file MovePluginScript.cc.

◆ ManipulatorPositionChanged

void MovePlugin::ManipulatorPositionChanged ( QtTranslationManipulatorNode * _node )

privateslot

update object when its manipulator changes position

Parameters

_node the manipulator node

Definition at line 832 of file MovePlugin.cc.

◆ moveObject()

void MovePlugin::moveObject	(	ACG::Matrix4x4d	mat,
		int	_id
	)

private

Move an object with given id.

Move object with given transformation matrix.

Parameters

mat	transformation matrix
_id	id of the object

Definition at line 574 of file MovePlugin.cc.

◆ moveSelection()

void MovePlugin::moveSelection	(	ACG::Matrix4x4d	_mat,
		int	_id,
		QEvent::Type	_type
	)

private

Move selection on an object with given id.

Move selection on an object with given transformation matrix.

Which Selection (Vertex, Edge, Face) is used is determined by the current SelectionMode in SelectionPlugin. If the Plugin is unable to communicate with SelectionPlugin, Vertex Selection is used.

Parameters

_mat	Matrix that should be applied to the selection
_id	Object id of the target object
_type	Type of mouse event ( release of the button creates a backup)

Definition at line 638 of file MovePlugin.cc.

◆ objectRenderingMatrixRotate

void MovePlugin::objectRenderingMatrixRotate	(	int	_objectId,
		Vector	_axis,
		double	_angle
	)

slot

Adds a scaling factor to the Object rendering Matrix in the scenegraph.

Parameters

_objectId	Id of the object to modify
_axis	Rotation axis
_angle	Rotation angle

Definition at line 1934 of file MovePluginScript.cc.

◆ objectRenderingMatrixScale

void MovePlugin::objectRenderingMatrixScale	(	int	_objectId,
		double	_s
	)

slot

Adds a scaling factor to the Object rendering Matrix in the scenegraph.

Parameters

_objectId	Id of the object to modify
_s	Scaling factor

Definition at line 1904 of file MovePluginScript.cc.

◆ objectRenderingMatrixTranslate

void MovePlugin::objectRenderingMatrixTranslate	(	int	_objectId,
		Vector	_translation
	)

slot

Adds a scaling factor to the Object rendering Matrix in the scenegraph.

Parameters

_objectId	Id of the object to modify
_translation	Translation vector

Definition at line 1919 of file MovePluginScript.cc.

◆ placeManip()

void MovePlugin::placeManip	(	QMouseEvent *	_event,
		bool	_snap = `false`
	)

private

Place and show the Manipulator.

Parameters

_event	mouseEvent that occurred
_snap	Snap manipulator to nearest geometry primitive?

Definition at line 863 of file MovePlugin.cc.

◆ pluginsInitialized

void MovePlugin::pluginsInitialized ( )

privateslot

Initialization of the plugin when it is loaded by the core.

Definition at line 156 of file MovePlugin.cc.

◆ setAllTargets

void MovePlugin::setAllTargets ( bool _state )

privateslot

Sets whether all targets should be affected or not.

Parameters

_state Qt::CheckState of checkbox

Definition at line 2632 of file MovePlugin.cc.

◆ setDescriptions()

void MovePlugin::setDescriptions ( )

private

Set Descriptions for scriptable functions.

Set Descriptions for Scripting Slots.

Definition at line 67 of file MovePluginScript.cc.

◆ setManipMode()

void MovePlugin::setManipMode ( QtTranslationManipulatorNode::ManipulatorMode _mode )

private

Set the manipulator manipulation mode.

Parameters

_mode Mode

Definition at line 671 of file MovePlugin.cc.

◆ setManipulatorDirection

void MovePlugin::setManipulatorDirection	(	int	_objectId,
		Vector	_directionX,
		Vector	_directionY
	)

slot

Set the direction of the manipulator.

set the direction of the manipulator

Parameters

_objectId	id of an object
_directionX	vector for the X direction
_directionY	vector for the Y direction

Definition at line 1806 of file MovePluginScript.cc.

◆ setManipulatorPosition

void MovePlugin::setManipulatorPosition	(	int	_objectId,
		Vector	_position
	)

slot

Set the position of the manipulator.

set the position of the manipulator

Parameters

_objectId	id of an object
_position	new position

_action the action that was triggered

Definition at line 2139 of file MovePlugin.cc.

◆ slotProjectToTangentPlane

void MovePlugin::slotProjectToTangentPlane ( )

privateslot

Project the current manipulator onto the tangent plane of the object.

Definition at line 1338 of file MovePlugin.cc.

◆ slotRotate

void MovePlugin::slotRotate ( )

privateslot

Rotate Manipulator (with values from Tab)

Definition at line 1422 of file MovePlugin.cc.

◆ slotScale

void MovePlugin::slotScale ( )

privateslot

Scale (with values from Tab)

Scale Manipulator (with values from Tab)

Definition at line 1578 of file MovePlugin.cc.

◆ slotSetDirection

void MovePlugin::slotSetDirection ( )

privateslot

Set Direction of manipulator in tab changed.

Definition at line 1152 of file MovePlugin.cc.

◆ slotSetMoveMode

void MovePlugin::slotSetMoveMode ( QAction * _action )

privateslot

void MovePlugin::slotUpdateContextMenuNode ( int _nodeId )

privateslot

Hide context menu entry when right clicking on node other than manipulator node.

Override ContextMenuInterface slot in order to avoid appearance of context menu entry when clicking on other nodes (other than manpipulator nodes)

Parameters

_nodeId Identifier of node that has been clicked

Definition at line 753 of file MovePlugin.cc.

◆ transform [1/2]

void MovePlugin::transform	(	int	_objectId,
		Matrix4x4	_matrix
	)

slot

transform an Object by a given matrix

transform an object

Parameters

_objectId	object id
_matrix	transformation matrix

Definition at line 777 of file MovePluginScript.cc.

◆ transform [2/2]

void MovePlugin::transform	(	int	_objectId,
		IdList	_vHandles,
		Matrix4x4	_matrix
	)

slot

transform given vertices by a matrix

Transform a set of vertex handles.

Parameters

_objectId	id of an object
_vHandles	list of vertex handles
_matrix	transformation matrix

Definition at line 896 of file MovePluginScript.cc.

◆ transformCellSelection

bool MovePlugin::transformCellSelection	(	int	_objectId,
		Matrix4x4	_matrix
	)

slot

transform current selection of an Object by a given matrix

transform cell selection

Parameters

_objectId	id of an object
_matrix	transformation matrix

Returns: returns true if selected elements were transformed

Definition at line 1608 of file MovePluginScript.cc.

◆ transformEdgeSelection

bool MovePlugin::transformEdgeSelection	(	int	_objectId,
		Matrix4x4	_matrix
	)

slot

transform current selection of an Object by a given matrix

transform edge selection

Parameters

_objectId	id of an object
_matrix	transformation matrix

Returns: returns true if selected elements were transformed

Definition at line 1376 of file MovePluginScript.cc.

◆ transformFaceSelection

bool MovePlugin::transformFaceSelection	(	int	_objectId,
		Matrix4x4	_matrix
	)

slot

transform current selection of an Object by a given matrix

transform face selection

Parameters

_objectId	id of an object
_matrix	transformation matrix

Returns: returns true if selected elements were transformed

Definition at line 1164 of file MovePluginScript.cc.

◆ transformMesh()

template<typename MeshT >

void MovePlugin::transformMesh	(	ACG::Matrix4x4d	_mat,
		MeshT &	_mesh
	)

private

Transform a mesh with the given transformation matrix.

Note: The normals have to be transformed with the inverse transposed transformation matrix in order to yield correct results

Parameters

_mat	transformation matrix
_mesh	the mesh

Definition at line 2213 of file MovePlugin.cc.

◆ transformVertexSelection

bool MovePlugin::transformVertexSelection	(	int	_objectId,
		Matrix4x4	_matrix
	)

slot

transform current selection of an Object by a given matrix

transform vertex selection

Parameters

_objectId	id of an object
_matrix	transformation matrix

Returns: returns true if selected elements were transformed

Definition at line 1018 of file MovePluginScript.cc.

◆ translate [1/2]

void MovePlugin::translate	(	int	_objectId,
		Vector	_vector
	)

slot

translate an Object by a given vector

Translate an object.

Parameters

_objectId	id of the object
_vector	translation vector

Definition at line 160 of file MovePluginScript.cc.

◆ translate [2/2]

void MovePlugin::translate	(	int	_objectId,
		IdList	_vHandles,
		Vector	_vector
	)

slot

translate given vertices by a vector

translate a set of vertex handles

Parameters

_objectId	id of an object
_vHandles	list of vertex handles
_vector	translation vector

Definition at line 258 of file MovePluginScript.cc.

◆ translateEdgeSelection

void MovePlugin::translateEdgeSelection	(	int	_objectId,
		Vector	_vector
	)

slot

translate current edge selection of an Object by a given vector

translate edge selection

Parameters

_objectId	id of an object
_vector	translation vector

Definition at line 615 of file MovePluginScript.cc.

◆ translateFaceSelection

void MovePlugin::translateFaceSelection	(	int	_objectId,
		Vector	_vector
	)

slot

translate current face selection of an Object by a given vector

translate face selection

Parameters

_objectId	id of an object
_vector	translation vector

Definition at line 483 of file MovePluginScript.cc.

◆ translateVertexSelection

void MovePlugin::translateVertexSelection	(	int	_objectId,
		Vector	_vector
	)

slot

translate current vertex selection of an Object by a given vector

translate vertex selection

Parameters

_objectId	id of an object
_vector	translation vector

Definition at line 359 of file MovePluginScript.cc.

◆ unifyBB() [1/2]

template<typename MeshT >

void MovePlugin::unifyBB	(	MeshT &	_mesh,
		Unificationtype	u = `MovePlugin::DIAGONAL`
	)

private

scale mesh to have a boundingboxdiagonal of one

scale mesh to have a boundingbox axis('s) or diagonal of one

Parameters

_mesh	the mesh
u	the unification type (Diagonal, longest axis, all axis)

Definition at line 2441 of file MovePlugin.cc.

◆ unifyBB() [2/2]

template<typename MeshT >

void MovePlugin::unifyBB	(	MeshT &	_mesh,
		ACG::Vec3d &	_bb_min,
		ACG::Vec3d &	_bb_max,
		Unificationtype	u = `MovePlugin::DIAGONAL`
	)

private

Scales object such that bounding box diagonal has unit length.

Scales object such that bounding box axis('s) or diagonal have unit length.

Parameters

_mesh	the mesh
_bb_min	Lower left corner of bounding box
_bb_max	Upper right corner of bounding box
u	the unification type (Diagonal, longest axis, all axis)

Definition at line 2523 of file MovePlugin.cc.

◆ updateManipulatorDialog()

void MovePlugin::updateManipulatorDialog ( )

private

Update the Dialog with the last clicked manipulator.

Definition at line 2051 of file MovePlugin.cc.

◆ updateSelectionType()

Called by Toolbar to enable move mode.

Parameters

_action the action that was triggered

Definition at line 272 of file MovePlugin.hh.

◆ pickToolbar_

QToolBar* MovePlugin::pickToolbar_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 291 of file MovePlugin.hh.

◆ pickToolBarActions_

QActionGroup* MovePlugin::pickToolBarActions_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 307 of file MovePlugin.hh.

◆ placeAction_

QAction* MovePlugin::placeAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 293 of file MovePlugin.hh.

◆ placeAndSnapAction_

QAction* MovePlugin::placeAndSnapAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 305 of file MovePlugin.hh.

◆ resizeAction_

QAction* MovePlugin::resizeAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 296 of file MovePlugin.hh.

◆ rotateManipAction_

QAction* MovePlugin::rotateManipAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 295 of file MovePlugin.hh.

◆ rotateTranslateAction_

QAction* MovePlugin::rotateTranslateAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 294 of file MovePlugin.hh.

◆ smallerManipAction_

QAction* MovePlugin::smallerManipAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 299 of file MovePlugin.hh.

◆ toolbar_

QToolBar* MovePlugin::toolbar_

private

Called by Toolbar to enable move mode.

Parameters

_action the action that was triggered

Definition at line 276 of file MovePlugin.hh.

◆ toolBarActions_

QActionGroup* MovePlugin::toolBarActions_

private

Called by Toolbar to enable move mode.

Parameters

_action the action that was triggered

Definition at line 274 of file MovePlugin.hh.

◆ transformRefPoseManipAction_

QAction* MovePlugin::transformRefPoseManipAction_

private

Called by pick Toolbar.

Called by pick mode Toolbar.

Parameters

_action the action that was triggered

Definition at line 302 of file MovePlugin.hh.

The documentation for this class was generated from the following files:

Plugin-Move/MovePlugin.hh
Plugin-Move/MoveContextMenu.cc
Plugin-Move/MovePlugin.cc
Plugin-Move/MovePluginScript.cc

Public Types

Public Slots

Signals

Public Member Functions

Static Public Attributes

Private Slots

Private Member Functions

Private Attributes

ToolBox

ToolBar

PickToolBar

Manipulator Handling

Selection Plugin Communication

Context Menu

Detailed Description

Constructor & Destructor Documentation

◆ MovePlugin()

◆ ~MovePlugin()

Member Function Documentation

◆ getBB()

◆ getDialogFromButton

◆ getDialogWidget

◆ getLastManipulatorMatrix()

◆ getNearestEdge()

◆ getNearestFace()

◆ getNearestVertex()

◆ getObjectRenderingMatrix

◆ manipulatorDirectionX

◆ manipulatorDirectionY

◆ manipulatorDirectionZ

◆ manipulatorMoved

◆ manipulatorPosition

◆ ManipulatorPositionChanged

◆ moveObject()

◆ moveSelection()

◆ objectRenderingMatrixRotate

◆ objectRenderingMatrixScale

◆ objectRenderingMatrixTranslate

◆ placeManip()

◆ pluginsInitialized

◆ setAllTargets

◆ setDescriptions()

◆ setManipMode()

◆ setManipulatorDirection

◆ setManipulatorPosition

◆ showManipulators()

◆ slotMouseEvent

◆ slotMoveManipToCOG

◆ slotMoveToOrigin

◆ slotPickModeChanged

◆ slotPickToolbarAction

◆ slotProjectToTangentPlane

◆ slotRotate

◆ slotScale

◆ slotSetDirection

◆ slotSetMoveMode

◆ slotSetPosition

◆ slotToggleAxisA

◆ slotToggleAxisB

◆ slotTranslation

◆ slotUnifyBoundingBoxDiagonal

◆ slotUpdateContextMenuNode

◆ transform [1/2]

◆ transform [2/2]

◆ transformCellSelection

◆ transformEdgeSelection

◆ transformFaceSelection

◆ transformMesh()

◆ transformVertexSelection

◆ translate [1/2]

◆ translate [2/2]

◆ translateEdgeSelection

◆ translateFaceSelection

◆ translateVertexSelection

◆ unifyBB() [1/2]

◆ unifyBB() [2/2]

◆ updateManipulatorDialog()

◆ updateSelectionType()

Member Data Documentation

◆ biggerManipAction_
