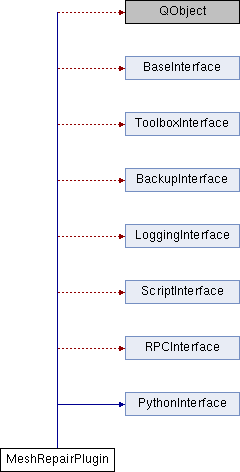

Inheritance diagram for MeshRepairPlugin:

Public Slots
QString	version ()

Scripting functions
void	detectFlatValence3Vertices (int _objectId, double _angle)
	Detect valence 3 vertices with faces that lie in the plane of their adjacent triangles. More...

void	removeSelectedVal3Vertices (int _objectId)
	Remove all selected valence 3 vertices.

void	selectEdgesShorterThan (int _objectId, double _length)
	Selects all edges of an object which are shorter than the given length. More...

void	selectEdgesLongerThan (int _objectId, double _length)
	Selects all edges of an object which are larger than the given length. More...

void	removeSelectedEdges (int _objectId)
	Removes all selected edges. More...

void	detectSkinnyTriangleByAngle (int _objectId, double _angle, bool _remove)
	Detect/Remove edges where neighboring faces form angle > _angle degrees. More...

void	detectFoldover (int _objectId, float _angle)
	Detect folded-over configurations by the dihedral angle. More...

void	detectTriangleAspect (int _objectId, float _aspect)
	Detect triangles with aspect ratio greater than _aspect and select them. More...

void	flipOrientation (int _objectId)
	Flips the normals of all selected faces by changing the vertex order. More...

void	updateFaceNormals (int _objectId)
	Recomputes the face normals of an object. More...

void	updateHalfedgeNormals (int _objectId)
	Recomputes the halfedge normals of an object. More...

void	updateVertexNormals (int _objectId)
	Recomputes the vertex normals of an object. More...

void	updateNormals (int _objectId)
	Recomputes the face and vertex normals of an object. More...

void	snapBoundary (int _objectId, double _eps)
	Snaps selected vertices at boundaries. More...

void	fixNonManifoldVertices (int _objectId)
	remove non-manifold vertices by duplicating them More...

void	fixMesh (int _objectId, double _epsilon)
	Fix a mesh. More...

Signals
void	updateView ()

void	updatedObject (int _identifier, const UpdateType &_type)

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addToolbox (QString _name, QWidget _widget, QIcon _icon)

void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)

void	pluginExists (QString _pluginName, bool &_exists)

void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

void	scriptInfo (QString _functionName)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from ToolboxInterface
virtual void	addToolbox (QString _name, QWidget *_widget)
	Add a toolbox widget to the gui with the given name. More...

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from RPCInterface
virtual void	pluginExists (QString _pluginName, bool &_exists)

Public Member Functions
QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

Private Slots
void	initializePlugin ()

void	pluginsInitialized ()
	Initialization of the plugin when it is loaded by the core. More...

void	slotRemoveSelectedVal3Vertices ()
	Button slot.

void	slotRemoveSelectedEdges ()
	Button slot.

void	slotDetectSkinnyTriangleByAngle ()
	Button slot.

void	slotRemoveSkinnyTriangleByAngle ()
	Button slot.

void	slotDetectFoldover ()
	Button slot.

void	slotDetectTriangleAspect ()
	Button slot.

void	slotFlipOrientation ()
	Button slot.

void	slotFixMesh ()
	Button slot.

void	slotUpdateVertexNormals ()
	Button slot.

void	slotUpdateFaceNormals ()
	Button slot.

void	slotUpdateHalfedgeNormals ()
	Button slot.

void	slotUpdateNormals ()
	Button slot.

void	slotDetectEdgesLonger ()
	Button Slot.

void	slotDetectEdgesShorter ()
	Button Slot.

void	slotDetectFlatValence3Vertices ()
	Button slot.

void	slotSnapBoundary ()
	Button slot.

void	slotFixNonManifoldVertices ()
	Button slot.

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Member Functions
void	selectionEdgeLength (int _objectId, double _length, bool _larger)
	select edges based on length More...

template<typename MeshT >
void	flipOrientation (MeshT &_mesh)
	flip orientation of selected faces. More...

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from ToolboxInterface
virtual	~ToolboxInterface ()
	Destructor.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon)
	Add a toolbox widget to the gui with the given name and an icon. More...

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)
	Add a toolbox widget to the gui with the given name, icon and header area widget. More...

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from RPCInterface
virtual	~RPCInterface ()
	Destructor.

virtual void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Private Member Functions inherited from PythonInterface
virtual	~PythonInterface ()
	Destructor.

Private Attributes
MeshRepairToolbarWidget *	tool_
	Widget for Toolbox.

QIcon *	toolIcon_

Detailed Description

Definition at line 63 of file MeshRepairPlugin.hh.

Member Function Documentation

◆ description()

QString MeshRepairPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 116 of file MeshRepairPlugin.hh.

◆ detectFlatValence3Vertices

void MeshRepairPlugin::detectFlatValence3Vertices	(	int	_objectId,
		double	_angle
	)

slot

Detect valence 3 vertices with faces that lie in the plane of their adjacent triangles.

Definition at line 51 of file VertexFunctions.cc.

◆ detectFoldover

void MeshRepairPlugin::detectFoldover	(	int	_objectId,
		float	_angle
	)

slot

Detect folded-over configurations by the dihedral angle.

Parameters

_objectId	Id of the object
_angle	Minimal dihedral angle that will be selected

Definition at line 252 of file EdgeFunctions.cc.

◆ detectSkinnyTriangleByAngle

void MeshRepairPlugin::detectSkinnyTriangleByAngle	(	int	_objectId,
		double	_angle,
		bool	_remove
	)

slot

Detect/Remove edges where neighboring faces form angle > _angle degrees.

Parameters

_objectId	Id of the object
_angle	minimal angle to detect
_remove	Detect them or also remove them?

Definition at line 189 of file EdgeFunctions.cc.

◆ detectTriangleAspect

void MeshRepairPlugin::detectTriangleAspect	(	int	_objectId,
		float	_aspect
	)

slot

Detect triangles with aspect ratio greater than _aspect and select them.

Parameters

_objectId	Id of the object
_aspect	Minimal aspect ratio to select

Definition at line 52 of file FaceFunctions.cc.

◆ fixMesh

void MeshRepairPlugin::fixMesh	(	int	_objectId,
		double	_epsilon
	)

slot

Fix a mesh.

Degenerated faces will be removed and all vertices which are closer than the given distance will be collapsed. Non-manifold configurations at vertices will be removed and all faces of each component will be updated to have the same orientation.

Parameters

_objectId	Id of the object to fix
_epsilon	Snapping distance

Definition at line 107 of file GeneralMeshFixing.cc.

◆ fixNonManifoldVertices

void MeshRepairPlugin::fixNonManifoldVertices ( int _objectId )

slot

remove non-manifold vertices by duplicating them

Parameters

_objectId Id of the mesh to fix

Definition at line 79 of file GeneralMeshFixing.cc.

◆ flipOrientation [1/2]

void MeshRepairPlugin::flipOrientation ( int _objectId )

slot

Flips the normals of all selected faces by changing the vertex order.

Parameters

_objectId Id of the object

Definition at line 98 of file FaceFunctions.cc.

◆ flipOrientation() [2/2]

template<typename MeshT >

void MeshRepairPlugin::flipOrientation ( MeshT & _mesh )

private

flip orientation of selected faces.

flips the orientation of selected faces or if nothing is selected, the whole mesh is flipped for correct topology, some vertices may be duplicated

Parameters

_mesh target mesh

Definition at line 51 of file MeshRepairPluginT_impl.hh.

◆ name()

QString MeshRepairPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 113 of file MeshRepairPlugin.hh.

◆ pluginsInitialized

void MeshRepairPlugin::pluginsInitialized ( )

privateslot

Initialization of the plugin when it is loaded by the core.

Definition at line 290 of file MeshRepairPlugin.cc.

◆ removeSelectedEdges

void MeshRepairPlugin::removeSelectedEdges ( int _objectId )

slot

Removes all selected edges.

Parameters

_objectId Id of the object

Definition at line 136 of file EdgeFunctions.cc.

◆ selectEdgesLongerThan

void MeshRepairPlugin::selectEdgesLongerThan	(	int	_objectId,
		double	_length
	)

slot

Selects all edges of an object which are larger than the given length.

Parameters

_objectId	Id of the object
_length	Minimal edge length to select

Definition at line 56 of file EdgeFunctions.cc.

◆ selectEdgesShorterThan

void MeshRepairPlugin::selectEdgesShorterThan	(	int	_objectId,
		double	_length
	)

slot

Selects all edges of an object which are shorter than the given length.

Parameters

_objectId	Id of the object
_length	maximal edge length to select

Definition at line 48 of file EdgeFunctions.cc.

◆ selectionEdgeLength()

void MeshRepairPlugin::selectionEdgeLength	(	int	_objectId,
		double	_length,
		bool	_larger
	)

private

select edges based on length

Selects edges if they are larger or shorter than a given length,

Parameters

_objectId	Id of the object to select
_length	Length
_larger	true : select larger edges, false select smaller edges

Definition at line 65 of file EdgeFunctions.cc.

◆ snapBoundary

void MeshRepairPlugin::snapBoundary	(	int	_objectId,
		double	_eps
	)

slot

Snaps selected vertices at boundaries.

Snaps selected boundary vertices together if they are closer than the given distance. No new vertices will be introduced on either edge, so they are just snapped to existing ones.

Parameters

_objectId	Id of the object
_eps	Distance of vertices to snap

Definition at line 52 of file GeneralMeshFixing.cc.

◆ updateFaceNormals

void MeshRepairPlugin::updateFaceNormals ( int _objectId )

slot

Recomputes the face normals of an object.

Parameters

_objectId Id of the object

Definition at line 53 of file NormalFixing.cc.

◆ updateHalfedgeNormals

void MeshRepairPlugin::updateHalfedgeNormals ( int _objectId )

slot

Recomputes the halfedge normals of an object.

Parameters

_objectId Id of the object

Definition at line 82 of file NormalFixing.cc.

◆ updateNormals

void MeshRepairPlugin::updateNormals ( int _objectId )

slot

Recomputes the face and vertex normals of an object.

Parameters

_objectId Id of the object

Definition at line 141 of file NormalFixing.cc.

◆ updateVertexNormals

void MeshRepairPlugin::updateVertexNormals ( int _objectId )

slot

Recomputes the vertex normals of an object.

Parameters

_objectId Id of the object

Definition at line 114 of file NormalFixing.cc.

The documentation for this class was generated from the following files:

Plugin-MeshRepair/MeshRepairPlugin.hh
Plugin-MeshRepair/EdgeFunctions.cc
Plugin-MeshRepair/FaceFunctions.cc
Plugin-MeshRepair/GeneralMeshFixing.cc
Plugin-MeshRepair/MeshRepairPlugin.cc
Plugin-MeshRepair/MeshRepairPluginT_impl.hh
Plugin-MeshRepair/NormalFixing.cc
Plugin-MeshRepair/VertexFunctions.cc

Public Slots

Signals

Public Member Functions

Private Slots

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ description()

◆ detectFlatValence3Vertices

◆ detectFoldover

◆ detectSkinnyTriangleByAngle

◆ detectTriangleAspect

◆ fixMesh

◆ fixNonManifoldVertices

◆ flipOrientation [1/2]

◆ flipOrientation() [2/2]

◆ name()

◆ pluginsInitialized

◆ removeSelectedEdges

◆ selectEdgesLongerThan

◆ selectEdgesShorterThan

◆ selectionEdgeLength()

◆ snapBoundary

◆ updateFaceNormals

◆ updateHalfedgeNormals

◆ updateNormals

◆ updateVertexNormals
