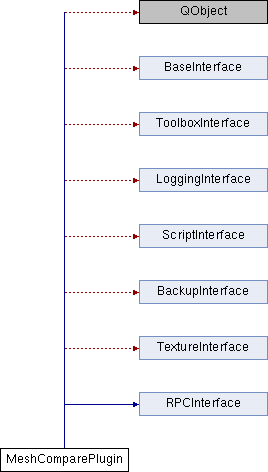

Inheritance diagram for MeshComparePlugin:

Public Slots
QString	version ()

Signals
void	updateView ()

void	updatedObject (int _id, const UpdateType &_type)

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addToolbox (QString _name, QWidget _widget, QIcon _icon)

void	createBackup (int _id, QString _name, UpdateType _type=UPDATE_ALL)

void	pluginExists (QString _pluginName, bool &_exists)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from ToolboxInterface
virtual void	addToolbox (QString _name, QWidget *_widget)
	Add a toolbox widget to the gui with the given name. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from TextureInterface
virtual void	addTexture (QString _name, QString _filename, uint _dimension, int _id)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

Signals inherited from RPCInterface
virtual void	pluginExists (QString _pluginName, bool &_exists)

Public Member Functions
QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

void	compare (int _sourceId, int _targetId, bool _computeDist=true, bool _computeNormal=true, bool _computeGauss=true, bool _computeMean=true)

double	lastMaximalDistance ()
	Get the maximal distance of the last comparison (-1, if no comparison performed so far)

double	lastMaximalNormalDeviation ()
	Get the maximal normal deviation of the last comparison in degree (-1, if no comparison performed so far)

double	lastMaximalMeanCurvatureDeviation ()
	Get the maximal mean curvature deviation of the last comparison (-1, if no comparison performed so far)

double	lastMaximalGaussCurvatureDeviation ()
	Get the maximal gauss curvature deviation of the last comparison (-1, if no comparison performed so far)

Private Slots
void	initializePlugin ()

void	pluginsInitialized ()

void	compareButton ()
	Triggers comparison of the selected meshes.

void	slotClear ()
	Clears the visualization.

void	slotObjectUpdated (int _identifier, const UpdateType &_type)
	Called when an object gets updated.

void	noguiSupported ()

void	slotClampBox (bool _checked)
	If the checkbox is changed to be checked, the values in the labels will be written into the spin boxes.

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Member Functions
void	visualizeData (const std::vector< double > &_data, double _maxValue, ACG::SceneGraph::PointNode *_pnode)
	Visualize data. More...

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from ToolboxInterface
virtual	~ToolboxInterface ()
	Destructor.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon)
	Add a toolbox widget to the gui with the given name and an icon. More...

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)
	Add a toolbox widget to the gui with the given name, icon and header area widget. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from TextureInterface
virtual void	addTexture (QString _name, QImage _image, uint _dimension, int _id)
	Emit this Signal if a texture has been added (Property Name,image,Dimension) More...

virtual void	addTexture (QString _name, QString _filename, uint _dimension)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

virtual void	addTexture (QString _name, QImage _image, uint _dimension)
	Emit this Signal if a texture has been added (Property Name,image,Dimension) More...

virtual void	addMultiTexture (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)
	Emit this Signal if you want to add a texture for a multitexturing mode. More...

virtual void	addMultiTexture (QString _textureGroup, QString _name, QImage _image, int _id, int &_textureId)
	Emit this Signal if you want to add a texture for a multitexturing mode. More...

virtual void	updateTexture (QString _textureName, int _identifier)
	Tell Plugins to update the given texture for the given identifier This signal can be called from any thread. .

virtual void	updateAllTextures ()
	Tell Plugins to update all textures.

virtual void	updatedTextures (QString, int)
	emit this signal if you updated a texture More...

virtual void	switchTexture (QString _textureName, int _id)
	emit this signal if you want to switch the texture of a specific object This signal can be called from any thread.

virtual void	switchTexture (QString _textureName)
	emit this signal if you want to switch the global texture This signal can be called from any thread.

virtual void	setTextureMode (QString _textureName, QString _mode)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	setTextureMode (QString _textureName, QString _mode, int _id)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	textureChangeImage (QString _textureName, QImage &_image, int _id)
	Change the texture image of a given texture. More...

virtual void	textureChangeImage (QString _textureName, QImage &_image)
	Change the texture image of a given global texture. More...

virtual void	textureGetImage (QString _textureName, QImage &_image, int _id)
	get the texture image of a given texture More...

virtual void	textureGetImage (QString _textureName, QImage &_image)
	Get the texture image of a given global texture. More...

virtual void	textureIndex (QString _textureName, int _id, int &_index)
	Get the texture index of a given texture. More...

virtual void	textureIndexPropertyName (int _id, QString &_propertyName)
	Get the name of the texture index property. More...

virtual void	textureName (int _id, int _textureIndex, QString &_textureName)
	get the name of the texture with given texture index More...

virtual void	textureFilename (int _id, QString _textureName, QString &_textureFilename)
	get the filename of the texture with given texture index More...

virtual void	getCurrentTexture (int _id, QString &_textureName)
	get the name of the texture which is currently enabled More...

virtual void	getSubTextures (int _id, QString _multiTextureName, QStringList &_subTextures)
	get the names of all sub-textures under the given multiTexture More...

virtual	~TextureInterface ()
	Destructor.

Private Member Functions inherited from RPCInterface
virtual	~RPCInterface ()
	Destructor.

virtual void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Private Attributes
MeshCompareToolbarWidget *	tool_
	The toolbar widget of this plugin.

double	maximalDistance_
	Last maximal computed distance.

double	maxNormalDeviation_
	Last maximal computed normal deviation in degree.

double	maxMeanCurvatureDev_
	Last maximal mean curvature deviation.

double	maxGaussCurvatureDev_
	Last maximal gauss curvature deviation.

Detailed Description

Definition at line 67 of file MeshComparePlugin.hh.

Member Function Documentation

◆ compare()

void MeshComparePlugin::compare	(	int	_sourceId,
		int	_targetId,
		bool	_computeDist = `true`,
		bool	_computeNormal = `true`,
		bool	_computeGauss = `true`,
		bool	_computeMean = `true`
	)

Compares two meshes. Use the two getter functions to retrieve the maximal deviations.

The source will be the reference. The difference will be rendered as points on the target mesh.

Parameters

_sourceId	Id of the reference mesh
_targetId	Id of the mesh that should be compared to the reference mesh.
_computeDist	Compute distance between meshes
_computeNormal	Compute normal deviation between meshes
_computeGauss	Compute gauss curvature deviation between meshes
_computeMean	Compute mean curvature deviation between meshes

Definition at line 219 of file MeshComparePlugin.cc.

◆ description()

QString MeshComparePlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 107 of file MeshComparePlugin.hh.

◆ name()

QString MeshComparePlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 106 of file MeshComparePlugin.hh.

◆ visualizeData()

void MeshComparePlugin::visualizeData	(	const std::vector< double > &	_data,
		double	_maxValue,
		ACG::SceneGraph::PointNode *	_pnode
	)

private

Visualize data.

This function visualizes the data via rendering points and pushes it to the histogram.

Parameters

_data	Vector of data points
_maxValue	Maximal value found in the data
_pnode	The point node that will be used to visualize the data

Definition at line 435 of file MeshComparePlugin.cc.

The documentation for this class was generated from the following files:

Plugin-MeshCompare/MeshComparePlugin.hh
Plugin-MeshCompare/MeshComparePlugin.cc
