OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType > Class Template Referenceabstract

#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Subdivider/Uniform/Composite/CompositeT.hh>

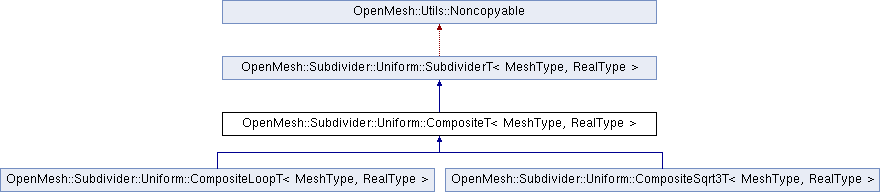

Inheritance diagram for OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >:
OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType > OpenMesh::Utils::Noncopyable OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType > OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >

Classes

struct  Coeff
 Abstract base class for coefficient functions. More...


Public Types

typedef RealType real_t

typedef MeshType mesh_t

typedef SubdividerT< mesh_t, real_t > parent_t

- Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType mesh_t

typedef RealType real_t


Public Member Functions

 CompositeT (MeshType &_mesh)

virtual const char * name (void) const =0
 Return name of subdivision algorithm.

- Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
virtual ~SubdividerT ()
 Destructor (calls detach())

 SubdividerT (void)

 SubdividerT (MeshType &_m)

bool operator() (MeshType &_m, size_t _n, const bool _update_points=true)

bool attach (MeshType &_m)

bool operator() (size_t _n, const bool _update_points=true)

void detach (void)


Protected Types

typedef MeshType::Scalar scalar_t

typedef MeshType::VertexHandle VertexHandle

typedef MeshType::FaceHandle FaceHandle

typedef MeshType::EdgeHandle EdgeHandle

typedef MeshType::HalfedgeHandle HalfedgeHandle


Protected Member Functions

bool prepare (MeshType &_m)
 Prepare mesh, e.g. add properties.

bool subdivide (MeshType &_m, size_t _n, const bool _update_points=true)
 Subdivide mesh _m _n times.

bool cleanup (MeshType &_m)
 Cleanup mesh after usage, e.g. remove added properties.

virtual void apply_rules (void)=0

void commit (MeshType &_m)

void corner_cutting (HalfedgeHandle _heh)
 Corner Cutting.

VertexHandle split_edge (HalfedgeHandle _heh)
 Split Edge.

Uniform composite subdivision rules
void Tvv3 ()
 Split Face, using Vertex information (1-3 split)

void Tvv4 ()
 Split Face, using Vertex information (1-4 split)

void Tfv ()
 Split Face, using Face Information.

void FF ()
 Face to face averaging.

void FFc (Coeff &_coeff)
 Weighted face to face averaging.

void FFc (scalar_t _c)
 Weighted face to face averaging.

void FV ()
 Face to vertex averaging.

void FVc (Coeff &_coeff)
 Weighted face to vertex Averaging with flaps.

void FVc (scalar_t _c)
 Weighted face to vertex Averaging with flaps.

void FE ()
 Face to edge averaging.

void VF ()
 Vertex to Face Averaging.

void VFa (Coeff &_coeff)
 Vertex to Face Averaging, weighted.

void VFa (scalar_t _alpha)
 Vertex to Face Averaging, weighted.

void VV ()
 Vertex to vertex averaging.

void VVc (Coeff &_coeff)
 Vertex to vertex averaging, weighted.

void VVc (scalar_t _c)
 Vertex to vertex averaging, weighted.

void VE ()
 VE Step (Vertex to Edge Averaging)

void VdE ()
 Vertex to edge averaging, using diamond of edges.

void VdEc (scalar_t _c)
 Weighted vertex to edge averaging, using diamond of edges.

void VdEg (Coeff &_coeff)

void VdEg (scalar_t _gamma)

void EF ()
 Edge to face averaging.

void EV ()
 Edge to vertex averaging.

void EVc (Coeff &_coeff)
 Weighted edge to vertex averaging.

void EVc (scalar_t _c)
 Weighted edge to vertex averaging.

void EdE ()
 Edge to edge averaging w/ flap rule.

void EdEc (scalar_t _c)
 Weighted edge to edge averaging w/ flap rule.

Overload theses methods

Private Attributes

MeshType * p_mesh_


Detailed Description

template<typename MeshType, typename RealType = float>
class OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >

This class provides the composite subdivision rules for the uniform case.

To create a subdivider derive from this class and overload the functions name() and apply_rules(). In the latter one call the wanted rules.

For details on the composite scheme refer to

Note
Not all rules are implemented!
See also
class Adaptive::CompositeT

Definition at line 89 of file CompositeT.hh.

Member Function Documentation

◆ apply_rules()

template<typename MeshType , typename RealType = float>
virtual void OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::apply_rules ( void  )
protectedpure virtual

Assemble here the rule sequence, by calling the constructor of the wanted rules.

Implemented in OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >.

◆ commit()

template<typename MeshType , typename RealType = float>
void OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::commit ( MeshType &  _m)
inlineprotected

Move vertices to new positions after the rules have been applied to the mesh (called by subdivide()).

Definition at line 145 of file CompositeT.hh.

◆ VdEg() [1/2]

template<typename MeshType , typename RealType >
void OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::VdEg ( Coeff _coeff)
protected

Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

Definition at line 773 of file CompositeT_impl.hh.

◆ VdEg() [2/2]

template<typename MeshType , typename RealType >
void OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >::VdEg ( scalar_t  _gamma)
protected

Weigthed vertex to edge averaging, using diamond of edges for irregular vertices.

Definition at line 714 of file CompositeT_impl.hh.


The documentation for this class was generated from the following files:
