This class adds the standard properties to the mesh type. More...

#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Kernel_OSG/AttribKernelT.hh>

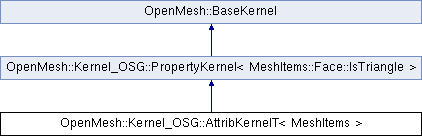

Inheritance diagram for OpenMesh::Kernel_OSG::AttribKernelT< MeshItems >:

Public Types
enum	Attribs { VAttribs = MeshItems::VAttribs, HAttribs = MeshItems::HAttribs, EAttribs = MeshItems::EAttribs, FAttribs = MeshItems::FAttribs }

typedef MeshItems::Vertex	Vertex

typedef MeshItems::Halfedge	Halfedge

typedef MeshItems::Edge	Edge

typedef MeshItems::Face	Face

typedef MeshItems::Point	Point

typedef MeshItems::Normal	Normal

typedef MeshItems::Color	Color

typedef MeshItems::TexCoord	TexCoord

typedef MeshItems::Scalar	Scalar

typedef Attributes::StatusInfo	StatusInfo

typedef GenProg::Bool2Type<(bool)(HAttribs &Attributes::PrevHalfedge)>	HasPrevHalfedge

typedef _t2vp< Point >::prop	GeoPositions

typedef _t2vn< Normal >::prop	GeoNormals

typedef _t2vc< Color >::prop	GeoColors

typedef _t2vtc< TexCoord >::prop	GeoTexCoords

typedef GenProg::Bool2Type<(bool)(VAttribs &Attributes::Normal)>	HasVertexNormals

typedef GenProg::Bool2Type<(bool)(VAttribs &Attributes::Color)>	HasVertexColors

typedef GenProg::Bool2Type<(bool)(VAttribs &Attributes::TexCoord)>	HasVertexTexCoords

typedef GenProg::Bool2Type<(bool)(VAttribs &Attributes::Status)>	HasVertexStatus

typedef GenProg::Bool2Type<(bool)(HAttribs &Attributes::PrevHalfedge)>	HasPrevHalfedge

typedef GenProg::Bool2Type<(bool)(HAttribs &Attributes::Status)>	HasHalfedgeStatus

typedef GenProg::Bool2Type<(bool)(EAttribs &Attributes::Status)>	HasEdgeStatus

typedef GenProg::Bool2Type<(bool)(EAttribs &Attributes::Color)>	HasEdgeColors

typedef GenProg::Bool2Type<(bool)(FAttribs &Attributes::Normal)>	HasFaceNormals

typedef GenProg::Bool2Type<(bool)(FAttribs &Attributes::Color)>	HasFaceColors

typedef GenProg::Bool2Type<(bool)(FAttribs &Attributes::Status)>	HasFaceStatus

Public Types inherited from OpenMesh::Kernel_OSG::PropertyKernel< MeshItems::Face::IsTriangle >
typedef FPropHandleT< osg::UInt8 >	FPTypesHandle

typedef FPropHandleT< osg::UInt32 >	FPLengthsHandle

typedef FPropHandleT< osg::UInt32 >	FIndicesHandle

typedef FP::GeoPTypesUI8	GeoPTypes

typedef FP::GeoPLengthsUI32	GeoPLengths

typedef FP::GeoIndicesUI32< MeshItems::Face::IsTriangle >	GeoIndices

Public Types inherited from OpenMesh::BaseKernel
typedef PropertyContainer::iterator	prop_iterator

typedef PropertyContainer::const_iterator	const_prop_iterator

Public Member Functions
	AttribKernelT (const AttribKernelT &_rhs)

AttribKernelT &	operator= (const AttribKernelT &_rhs)

GeoPositions::property_ptr_t	osg_vpositions ()

GeoNormals::property_ptr_t	osg_vnormals ()

GeoColors::property_ptr_t	osg_vcolors ()

GeoTexCoords::property_ptr_t	osg_vtexcoords ()

GeoColors::property_ptr_t	osg_ecolors ()

GeoPTypes::property_ptr_t	osg_ptypes ()

GeoPLengths::property_ptr_t	osg_plengths ()

GeoIndices::property_ptr_t	osg_indices ()

void	set_face_types (FaceHandle _fh, GeoPTypes::value_type _t)

void	set_face_lengths (FaceHandle _fh, GeoPLengths::value_type _l)

void	set_face_indices (FaceHandle _fh, typename GeoIndices::value_type _i)

const Point *	points () const

const Point &	point (VertexHandle _vh) const

void	set_point (VertexHandle _vh, const Point &_p)

const Normal *	vertex_normals () const

const Normal &	normal (VertexHandle _vh) const

void	set_normal (VertexHandle _vh, const Normal &_n)

const Color *	vertex_colors () const

const Color &	color (VertexHandle _vh) const

void	set_color (VertexHandle _vh, const Color &_c)

const TexCoord *	texcoords () const

const TexCoord &	texcoord (VertexHandle _vh) const

void	set_texcoord (VertexHandle _vh, const TexCoord &_t)

const StatusInfo &	status (VertexHandle _vh) const

StatusInfo &	status (VertexHandle _vh)

const StatusInfo &	status (HalfedgeHandle _eh) const

StatusInfo &	status (HalfedgeHandle _eh)

const StatusInfo &	status (EdgeHandle _eh) const

StatusInfo &	status (EdgeHandle _eh)

const Color *	edge_colors () const

const Color &	color (EdgeHandle _eh) const

void	set_color (EdgeHandle _eh, const Color &_c)

const StatusInfo &	status (FaceHandle _fh) const

StatusInfo &	status (FaceHandle _fh)

const Normal &	normal (FaceHandle _fh) const

void	set_normal (FaceHandle _fh, const Normal &_n)

const Color &	color (FaceHandle _fh) const

void	set_color (FaceHandle _fh, const Color &_c)

void	request_vertex_normals ()

void	request_vertex_colors ()

void	request_vertex_texcoords ()

void	request_vertex_status ()

void	request_halfedge_status ()

void	request_edge_status ()

void	request_edge_colors ()

void	request_face_normals ()

void	request_face_colors ()

void	request_face_status ()

void	release_vertex_normals ()

void	release_vertex_colors ()

void	release_vertex_texcoords ()

void	release_vertex_status ()

void	release_halfedge_status ()

void	release_edge_status ()

void	release_edge_colors ()

void	release_face_normals ()

void	release_face_colors ()

void	release_face_status ()

bool	has_vertex_normals () const

bool	has_vertex_colors () const

bool	has_vertex_texcoords () const

bool	has_vertex_status () const

bool	has_edge_status () const

bool	has_halfedge_status () const

bool	has_edge_colors () const

bool	has_face_normals () const

bool	has_face_colors () const

bool	has_face_status () const

osg::GeometryPtr	createGeometryPtr ()

bool	bind (osg::GeometryPtr &_geo)

Public Member Functions inherited from OpenMesh::Kernel_OSG::PropertyKernel< MeshItems::Face::IsTriangle >
void	stats (void)

Public Member Functions inherited from OpenMesh::BaseKernel
template<class T >
void	copy_property (VPropHandleT< T > &_ph, VertexHandle _vh_from, VertexHandle _vh_to)

template<class T >
void	copy_property (HPropHandleT< T > _ph, HalfedgeHandle _hh_from, HalfedgeHandle _hh_to)

template<class T >
void	copy_property (EPropHandleT< T > _ph, EdgeHandle _eh_from, EdgeHandle _eh_to)

template<class T >
void	copy_property (FPropHandleT< T > _ph, FaceHandle _fh_from, FaceHandle _fh_to)

void	copy_all_properties (VertexHandle _vh_from, VertexHandle _vh_to, bool _copyBuildIn=false)

void	copy_all_properties (HalfedgeHandle _hh_from, HalfedgeHandle _hh_to, bool _copyBuildIn=false)

void	copy_all_properties (EdgeHandle _eh_from, EdgeHandle _eh_to, bool _copyBuildIn=false)

void	copy_all_properties (FaceHandle _fh_from, FaceHandle _fh_to, bool _copyBuildIn=false)

void	copy_all_kernel_properties (const BaseKernel &_other)
	copy_all_kernel_properties uses the = operator to copy all properties from a given other BaseKernel. More...

size_t	n_vprops (void) const

size_t	n_eprops (void) const

size_t	n_hprops (void) const

size_t	n_fprops (void) const

size_t	n_mprops (void) const

BaseProperty *	_get_vprop (const std::string &_name)

BaseProperty *	_get_eprop (const std::string &_name)

BaseProperty *	_get_hprop (const std::string &_name)

BaseProperty *	_get_fprop (const std::string &_name)

BaseProperty *	_get_mprop (const std::string &_name)

const BaseProperty *	_get_vprop (const std::string &_name) const

const BaseProperty *	_get_eprop (const std::string &_name) const

const BaseProperty *	_get_hprop (const std::string &_name) const

const BaseProperty *	_get_fprop (const std::string &_name) const

const BaseProperty *	_get_mprop (const std::string &_name) const

BaseProperty &	_vprop (size_t _idx)

BaseProperty &	_eprop (size_t _idx)

BaseProperty &	_hprop (size_t _idx)

BaseProperty &	_fprop (size_t _idx)

BaseProperty &	_mprop (size_t _idx)

const BaseProperty &	_vprop (size_t _idx) const

const BaseProperty &	_eprop (size_t _idx) const

const BaseProperty &	_hprop (size_t _idx) const

const BaseProperty &	_fprop (size_t _idx) const

const BaseProperty &	_mprop (size_t _idx) const

size_t	_add_vprop (BaseProperty *_bp)

size_t	_add_eprop (BaseProperty *_bp)

size_t	_add_hprop (BaseProperty *_bp)

size_t	_add_fprop (BaseProperty *_bp)

size_t	_add_mprop (BaseProperty *_bp)

virtual size_t	n_vertices () const

virtual size_t	n_halfedges () const

virtual size_t	n_edges () const

virtual size_t	n_faces () const

void	property_stats () const

void	property_stats (std::ostream &_ostr) const

void	vprop_stats (std::string &_string) const

void	hprop_stats (std::string &_string) const

void	eprop_stats (std::string &_string) const

void	fprop_stats (std::string &_string) const

void	mprop_stats (std::string &_string) const

void	vprop_stats () const

void	hprop_stats () const

void	eprop_stats () const

void	fprop_stats () const

void	mprop_stats () const

void	vprop_stats (std::ostream &_ostr) const

void	hprop_stats (std::ostream &_ostr) const

void	eprop_stats (std::ostream &_ostr) const

void	fprop_stats (std::ostream &_ostr) const

void	mprop_stats (std::ostream &_ostr) const

prop_iterator	vprops_begin ()

prop_iterator	vprops_end ()

const_prop_iterator	vprops_begin () const

const_prop_iterator	vprops_end () const

prop_iterator	eprops_begin ()

prop_iterator	eprops_end ()

const_prop_iterator	eprops_begin () const

const_prop_iterator	eprops_end () const

prop_iterator	hprops_begin ()

prop_iterator	hprops_end ()

const_prop_iterator	hprops_begin () const

const_prop_iterator	hprops_end () const

prop_iterator	fprops_begin ()

prop_iterator	fprops_end ()

const_prop_iterator	fprops_begin () const

const_prop_iterator	fprops_end () const

prop_iterator	mprops_begin ()

prop_iterator	mprops_end ()

const_prop_iterator	mprops_begin () const

const_prop_iterator	mprops_end () const

template<class T >
void	add_property (VPropHandleT< T > &_ph, const std::string &_name="<vprop>")

template<class T >
void	add_property (HPropHandleT< T > &_ph, const std::string &_name="<hprop>")

template<class T >
void	add_property (EPropHandleT< T > &_ph, const std::string &_name="<eprop>")

template<class T >
void	add_property (FPropHandleT< T > &_ph, const std::string &_name="<fprop>")

template<class T >
void	add_property (MPropHandleT< T > &_ph, const std::string &_name="<mprop>")

template<typename T >
void	remove_property (VPropHandleT< T > &_ph)

template<typename T >
void	remove_property (HPropHandleT< T > &_ph)

template<typename T >
void	remove_property (EPropHandleT< T > &_ph)

template<typename T >
void	remove_property (FPropHandleT< T > &_ph)

template<typename T >
void	remove_property (MPropHandleT< T > &_ph)

template<class T >
bool	get_property_handle (VPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (HPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (EPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (FPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (MPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
PropertyT< T > &	property (VPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (VPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	property (HPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (HPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	property (EPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (EPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	property (FPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (FPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	mproperty (MPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	mproperty (MPropHandleT< T > _ph) const

template<class T >
VPropHandleT< T >::reference	property (VPropHandleT< T > _ph, VertexHandle _vh)

template<class T >
VPropHandleT< T >::const_reference	property (VPropHandleT< T > _ph, VertexHandle _vh) const

template<class T >
HPropHandleT< T >::reference	property (HPropHandleT< T > _ph, HalfedgeHandle _hh)

template<class T >
HPropHandleT< T >::const_reference	property (HPropHandleT< T > _ph, HalfedgeHandle _hh) const

template<class T >
EPropHandleT< T >::reference	property (EPropHandleT< T > _ph, EdgeHandle _eh)

template<class T >
EPropHandleT< T >::const_reference	property (EPropHandleT< T > _ph, EdgeHandle _eh) const

template<class T >
FPropHandleT< T >::reference	property (FPropHandleT< T > _ph, FaceHandle _fh)

template<class T >
FPropHandleT< T >::const_reference	property (FPropHandleT< T > _ph, FaceHandle _fh) const

template<class T >
MPropHandleT< T >::reference	property (MPropHandleT< T > _ph)

template<class T >
MPropHandleT< T >::const_reference	property (MPropHandleT< T > _ph) const

Static Public Member Functions
static bool	has_prev_halfedge ()

Protected Types
typedef MeshItems::Face::IsTriangle	IsTriMesh

typedef PropertyKernel< IsTriMesh >	Base

typedef Base::FPTypesHandle	FPTypesHandle

typedef Base::FPLengthsHandle	FPLengthsHandle

typedef Base::FIndicesHandle	FIndicesHandle

Private Attributes
VPropHandleT< Point >	points_

VPropHandleT< Normal >	vertex_normals_

VPropHandleT< Color >	vertex_colors_

VPropHandleT< TexCoord >	vertex_texcoords_

VPropHandleT< StatusInfo >	vertex_status_

FPTypesHandle	face_types_

FPLengthsHandle	face_lengths_

FIndicesHandle	face_indices_

EPropHandleT< StatusInfo >	edge_status_

EPropHandleT< StatusInfo >	edge_colors_

HPropHandleT< StatusInfo >	halfedge_status_

FPropHandleT< Normal >	face_normals_

FPropHandleT< Color >	face_colors_

FPropHandleT< StatusInfo >	face_status_

unsigned int	refcount_vnormals_

unsigned int	refcount_vcolors_

unsigned int	refcount_vtexcoords_

unsigned int	refcount_vstatus_

unsigned int	refcount_estatus_

unsigned int	refcount_ecolors_

unsigned int	refcount_hstatus_

unsigned int	refcount_fnormals_

unsigned int	refcount_fcolors_

unsigned int	refcount_fstatus_

Additional Inherited Members
Protected Member Functions inherited from OpenMesh::Kernel_OSG::PropertyKernel< MeshItems::Face::IsTriangle >
VPropHandleT< T >	add_vpositions (const T &_t, const std::string &_n)

VPropHandleT< T >	add_vnormals (const T &_t, const std::string &_n)

VPropHandleT< T >	add_vcolors (const T &_t, const std::string &_n)

VPropHandleT< T >	add_vtexcoords (const T &_t, const std::string &_n)

FPTypesHandle	add_fptypes ()

FPLengthsHandle	add_fplengths ()

FIndicesHandle	add_findices (FPTypesHandle _pht, FPLengthsHandle _phl)

_t2vp< T >::prop &	vpositions (VPropHandleT< T > _ph)

const _t2vp< T >::prop &	vpositions (VPropHandleT< T > _ph) const

T &	vpositions (VPropHandleT< T > _ph, VertexHandle _vh)

const T &	vpositions (VPropHandleT< T > _ph, VertexHandle _vh) const

_t2vn< T >::prop &	vnormals (VPropHandleT< T > _ph)

const _t2vn< T >::prop &	vnormals (VPropHandleT< T > _ph) const

T &	vnormals (VPropHandleT< T > _ph, VertexHandle _vh)

const T &	vnormals (VPropHandleT< T > _ph, VertexHandle _vh) const

_t2vc< T >::prop &	vcolors (VPropHandleT< T > _ph)

const _t2vc< T >::prop &	vcolors (VPropHandleT< T > _ph) const

T &	vcolors (VPropHandleT< T > _ph, VertexHandle _vh)

const T &	vcolors (VPropHandleT< T > _ph, VertexHandle _vh) const

_t2vtc< T >::prop &	vtexcoords (VPropHandleT< T > _ph)

const _t2vtc< T >::prop &	vtexcoords (VPropHandleT< T > _ph) const

T &	vtexcoords (VPropHandleT< T > _ph, VertexHandle _vh)

const T &	vtexcoords (VPropHandleT< T > _ph, VertexHandle _vh) const

GeoPTypes &	fptypes (FPTypesHandle _ph)

const GeoPTypes &	fptypes (FPTypesHandle _ph) const

FPTypesHandle::value_type &	fptypes (FPTypesHandle _ph, FaceHandle _fh)

const FPTypesHandle::value_type &	fptypes (FPTypesHandle _ph, FaceHandle _fh) const

GeoPLengths &	fplengths (FPLengthsHandle _ph)

const GeoPLengths &	fplengths (FPLengthsHandle _ph) const

FPLengthsHandle::value_type &	fplengths (FPLengthsHandle _ph, FaceHandle _fh)

const FPLengthsHandle::value_type &	fplengths (FPLengthsHandle _ph, FaceHandle _fh) const

GeoIndices &	findices (FIndicesHandle _ph)

const GeoIndices &	findices (FIndicesHandle _ph) const

FIndicesHandle::value_type &	findices (FIndicesHandle _ph, FaceHandle _fh)

const FIndicesHandle::value_type &	findices (FIndicesHandle _ph, FaceHandle _fh) const

Protected Member Functions inherited from OpenMesh::BaseKernel
BaseProperty &	_vprop (BaseHandle _h)

BaseProperty &	_eprop (BaseHandle _h)

BaseProperty &	_hprop (BaseHandle _h)

BaseProperty &	_fprop (BaseHandle _h)

BaseProperty &	_mprop (BaseHandle _h)

const BaseProperty &	_vprop (BaseHandle _h) const

const BaseProperty &	_eprop (BaseHandle _h) const

const BaseProperty &	_hprop (BaseHandle _h) const

const BaseProperty &	_fprop (BaseHandle _h) const

const BaseProperty &	_mprop (BaseHandle _h) const

void	vprops_reserve (size_t _n) const
	Reserves space for `_n` elements in all vertex property vectors.

void	vprops_resize (size_t _n) const
	Resizes all vertex property vectors to the specified size.

void	vprops_resize_if_smaller (size_t _n) const

void	vprops_clear ()

void	vprops_swap (unsigned int _i0, unsigned int _i1) const

void	hprops_reserve (size_t _n) const

void	hprops_resize (size_t _n) const

void	hprops_clear ()

void	hprops_swap (unsigned int _i0, unsigned int _i1) const

void	eprops_reserve (size_t _n) const

void	eprops_resize (size_t _n) const

void	eprops_clear ()

void	eprops_swap (unsigned int _i0, unsigned int _i1) const

void	fprops_reserve (size_t _n) const

void	fprops_resize (size_t _n) const

void	fprops_clear ()

void	fprops_swap (unsigned int _i0, unsigned int _i1) const

void	mprops_resize (size_t _n) const

void	mprops_clear ()

Detailed Description

template<class MeshItems>
class OpenMesh::Kernel_OSG::AttribKernelT< MeshItems >

This class adds the standard properties to the mesh type.

Definition at line 70 of file AttribKernelT.hh.

The documentation for this class was generated from the following file:

OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Kernel_OSG/AttribKernelT.hh

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Private Attributes

Additional Inherited Members

Detailed Description

template<class MeshItems> class OpenMesh::Kernel_OSG::AttribKernelT< MeshItems >

template<class MeshItems>
class OpenMesh::Kernel_OSG::AttribKernelT< MeshItems >
