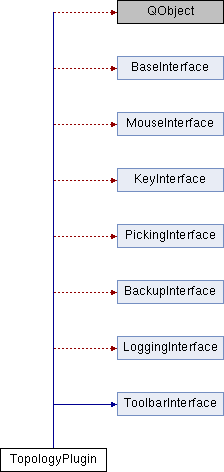

Inheritance diagram for TopologyPlugin:

Public Slots
QString	version ()

Signals
void	updateView ()

void	updatedObject (int _id, const UpdateType &_type)

void	addHiddenPickMode (const std::string &_mode)

void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addToolbar (QToolBar *_toolbar)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from KeyInterface
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Signals inherited from PickingInterface
virtual void	addPickMode (const std::string &_mode)
	Add a new picking mode to the examiner. More...

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ToolbarInterface
virtual void	addToolbar (QToolBar *_toolbar)
	Adds a Toolbar to the main widget. More...

Public Member Functions
	TopologyPlugin ()
	Constructor.

	~TopologyPlugin ()
	Destructor.

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

Private Slots
void	pluginsInitialized ()
	initialize the Plugin More...

void	slotPickModeChanged (const std::string &_mode)
	Toggle actions when the PickMode changes. More...

void	slotMouseEvent (QMouseEvent *_event)
	this is called when a mouse event occurred More...

void	toolBarTriggered (QAction *_action)
	called when an action on the toolbar was triggered More...

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from KeyInterface
virtual void	slotKeyEvent (QKeyEvent *_event)
	Key Event from Main App. More...

Private Member Functions
void	clearAddFaceVertices ()
	clear the add face vector More...

void	add_face (QMouseEvent *_event)
	Add a face. More...

void	split_face (QMouseEvent *_event)
	Split a face at the current hit point. More...

void	delete_face (QMouseEvent *_event)
	Delete a face at the current hit point. More...

void	flip_edge (QMouseEvent *_event)
	Flip edge. More...

void	collapse_edge (QMouseEvent *_event)
	Collapse edge. More...

void	split_edge (QMouseEvent *_event)
	Split Edge. More...

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from MouseInterface
virtual	~MouseInterface ()
	Destructor.

Private Member Functions inherited from KeyInterface
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor.

Private Member Functions inherited from PickingInterface
virtual void	addHiddenPickMode (const std::string &_mode)
	Add a new picking mode to the examiner which will be invisible. More...

virtual void	setPickModeCursor (const std::string &_mode, QCursor _cursor)
	Set the cursor of the given PickMode. More...

virtual void	setPickModeMouseTracking (const std::string &_mode, bool _mouseTracking)
	Set mouse tracking for the given PickMode. More...

virtual void	setPickModeToolbar (const std::string &_mode, QToolBar *_toolbar)
	Set the additional toolbar of the given PickMode. More...

virtual void	removePickModeToolbar (const std::string &_mode)
	Removes the additional toolbar of the given PickMode. More...

virtual	~PickingInterface ()
	Destructor.

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ToolbarInterface
virtual	~ToolbarInterface ()
	Destructor.

virtual void	removeToolbar (QToolBar *_toolbar)
	Remove a Toolbar from the main widget. More...

virtual void	getToolBar (QString _name, QToolBar *&_toolbar)
	Get a pointer to a Toolbar of the given name or 0 if it does not exist. More...

Private Attributes
std::vector< std::pair< int, int > >	addFaceVertices_

QToolBar *	toolbar_

QAction *	edgeFlipAction_

QAction *	edgeSplitAction_

QAction *	edgeCollapseAction_

QAction *	faceAddAction_

QAction *	faceDeleteAction_

QAction *	faceSplitAction_

Detailed Description

Definition at line 64 of file TopologyPlugin.hh.

Member Function Documentation

void TopologyPlugin::add_face ( QMouseEvent * _event )

private

Add a face.

Parameters

_event mouse position where one of the vertices is picked

Todo:: : Support adding faces between objects ( and merging them into one )

Todo:: : Support adding faces between objects ( and merging them into one )

Definition at line 248 of file TopologyPlugin.cc.

void TopologyPlugin::clearAddFaceVertices ( )

private

clear the add face vector

Deselect the vertices from AddFace mode.

Definition at line 212 of file TopologyPlugin.cc.

void TopologyPlugin::collapse_edge ( QMouseEvent * _event )

private

Collapse edge.

Collapse an edge at the given position.

Parameters

_event mouse position where the edge is picked

Definition at line 661 of file TopologyPlugin.cc.

void TopologyPlugin::delete_face ( QMouseEvent * _event )

private

Delete a face at the current hit point.

Delete a face at the given position.

Parameters

_event mouse position where the face is picked

Definition at line 547 of file TopologyPlugin.cc.

QString TopologyPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 123 of file TopologyPlugin.hh.

void TopologyPlugin::flip_edge ( QMouseEvent * _event )

private

Flip edge.

Flip an edge at the given position.

Parameters

_event mouse position where the edge is picked

Definition at line 596 of file TopologyPlugin.cc.

QString TopologyPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 122 of file TopologyPlugin.hh.

void TopologyPlugin::pluginsInitialized ( )

privateslot

initialize the Plugin

Definition at line 85 of file TopologyPlugin.cc.

void TopologyPlugin::slotMouseEvent ( QMouseEvent * _event )

privateslot

this is called when a mouse event occurred

Parameters

_event the event that occurred

Definition at line 194 of file TopologyPlugin.cc.

void TopologyPlugin::slotPickModeChanged ( const std::string & _mode )

privateslot

Toggle actions when the PickMode changes.

Parameters

_mode the new PickMode

Definition at line 178 of file TopologyPlugin.cc.

void TopologyPlugin::split_edge ( QMouseEvent * _event )

private

Split Edge.

Split an edge at the given position.

Parameters

_event mouse position where the edge is picked

Definition at line 774 of file TopologyPlugin.cc.

void TopologyPlugin::split_face ( QMouseEvent * _event )

private

Split a face at the current hit point.

Split a face at the given point.

Parameters

_event mouse position where the face is picked

Definition at line 488 of file TopologyPlugin.cc.

void TopologyPlugin::toolBarTriggered ( QAction * _action )

privateslot

called when an action on the toolbar was triggered

Toolbar action was triggered.

Parameters

_action the action that was triggered

Definition at line 154 of file TopologyPlugin.cc.

The documentation for this class was generated from the following files:

Plugin-Topology/TopologyPlugin.hh
Plugin-Topology/TopologyPlugin.cc
