OpenMesh::Smoother::SmootherT< Mesh > Class Template Reference

#include <libs_required/OpenMesh/src/OpenMesh/Tools/Smoother/SmootherT.hh>

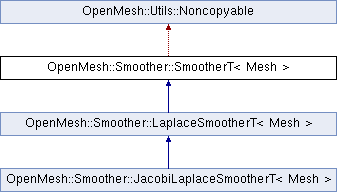

Inheritance diagram for OpenMesh::Smoother::SmootherT< Mesh >:

Public Types
enum	Component { Tangential, Normal, Tangential_and_Normal }
enum	Continuity { C0, C1, C2 }
typedef Mesh::Scalar	Scalar
typedef Mesh::Point	Point
typedef Mesh::Normal	NormalType
typedef Mesh::VertexHandle	VertexHandle
typedef Mesh::EdgeHandle	EdgeHandle

Public Member Functions
	SmootherT (Mesh &_mesh)
	constructor & destructor More...
Initialization and algorithm execution
void	initialize (Component _comp, Continuity _cont)
virtual void	smooth (unsigned int _n)
	Do _n smoothing iterations.
Error control functions
void	set_relative_local_error (Scalar _err)
	Set local error relative to bounding box. More...
void	set_absolute_local_error (Scalar _err)
	Set local error as an absolute value. More...
void	disable_local_error_check ()
	Disable error control of the smoother. More...
void	skip_features (bool _state)
	enable or disable feature handling More...

Protected Member Functions
virtual void	compute_new_positions_C0 ()=0
virtual void	compute_new_positions_C1 ()=0
const Point &	orig_position (VertexHandle _vh) const
const NormalType &	orig_normal (VertexHandle _vh) const
const Point &	new_position (VertexHandle _vh) const
void	set_new_position (VertexHandle _vh, const Point &_p)
bool	is_active (VertexHandle _vh) const
Component	component () const
Continuity	continuity () const

Protected Attributes
Mesh &	mesh_
bool	skip_features_

Private Member Functions
void	set_active_vertices ()
	Find active vertices. Resets tagged status ! More...
void	compute_new_positions ()
void	project_to_tangent_plane ()
void	local_error_check ()
void	move_points ()

Private Attributes
Scalar	tolerance_
Scalar	normal_deviation_
Component	component_
Continuity	continuity_
OpenMesh::VPropHandleT< Point >	original_positions_
OpenMesh::VPropHandleT< NormalType >	original_normals_
OpenMesh::VPropHandleT< Point >	new_positions_
OpenMesh::VPropHandleT< bool >	is_active_

Detailed Description

template<class Mesh>
class OpenMesh::Smoother::SmootherT< Mesh >

Base class for smoothing algorithms.

Definition at line 81 of file SmootherT.hh.

Member Enumeration Documentation

template<class Mesh>

enum OpenMesh::Smoother::SmootherT::Component

Enumerator
Tangential	Smooth tangential direction.
Normal	Smooth normal direction.
Tangential_and_Normal	Smooth tangential and normal direction.

Definition at line 92 of file SmootherT.hh.

Constructor & Destructor Documentation

template<class Mesh>

OpenMesh::Smoother::SmootherT< Mesh >::SmootherT

(

Mesh &

_mesh

)

constructor & destructor

Parameters

_mesh

Reference a triangle or poly mesh

Definition at line 78 of file SmootherT.cc.

Member Function Documentation

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::disable_local_error_check

(

)

Disable error control of the smoother.

This function disables the error control of the smoother.

Definition at line 295 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::initialize	(	Component	_comp,
		Continuity	_cont
	)

Initialize smoother

Parameters

_comp	Determine component to smooth
_cont	Determine Continuity

Definition at line 127 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::set_absolute_local_error

(

Scalar

_err

)

Set local error as an absolute value.

Set the maximal error tolerance of the smoother to the given value.

Parameters

_err	Maximal error

Definition at line 283 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::set_active_vertices ( )

private

Find active vertices. Resets tagged status !

This function recomputes the set of active vertices, which will be touched by the smoother. If nothing on the mesh is selected, all vertices which are not locked, feature or boundary will be marked as active and moved by the smoother. If vertices are selected, than only the selected ones, excluding the locked, feature and boundary vertices will be moved.

The function is called first when running the smoother.

Definition at line 157 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::set_relative_local_error

(

Scalar

_err

)

Set local error relative to bounding box.

This function sets a maximal error tolerance for the smoother as a fraction of the bounding box of the mesh. First the bounding box diagonal is computed. Then the error is set as the length of the diagonal multiplied with the given factor.

Parameters

_err	Factor scaling the bounding box diagonal

Definition at line 253 of file SmootherT.cc.

template<class Mesh>

void OpenMesh::Smoother::SmootherT< Mesh >::skip_features ( bool  _state )

inline

enable or disable feature handling

This function can be used to control if features on the mesh should be preserved. If enabled, the smoother will keep features and does not modify them. Features can be set via OpenMesh status flags (request status and set primitives as features). Feature flag can be set for vertices edges and faces.

Parameters

_state

true : If features are selected on the mesh, they will be left unmodified false : Features will be ignored

Definition at line 172 of file SmootherT.hh.

---

The documentation for this class was generated from the following files:

• libs_required/OpenMesh/src/OpenMesh/Tools/Smoother/SmootherT.hh
• libs_required/OpenMesh/src/OpenMesh/Tools/Smoother/SmootherT.cc
