ACG::ShaderModifier Class Reference

#include <ACG/GL/ShaderGenerator.hh>

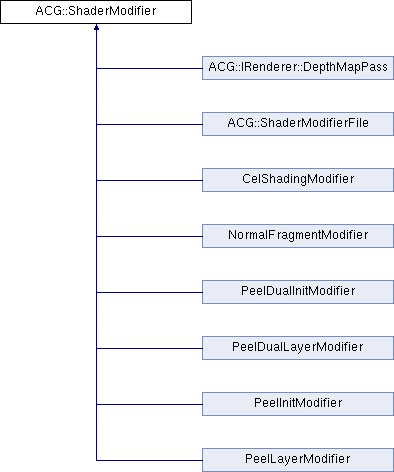

Inheritance diagram for ACG::ShaderModifier:
ACG::IRenderer::DepthMapPass ACG::ShaderModifierFile CelShadingModifier NormalFragmentModifier PeelDualInitModifier PeelDualLayerModifier PeelInitModifier PeelLayerModifier

Public Member Functions

virtual void modifyVertexIO (ShaderGenerator *_shader)
 Add your own inputs/outputs to the vertex shader. More...

virtual void modifyVertexBeginCode (QStringList *_code)
 Append code the the vertex shader. More...

virtual void modifyVertexEndCode (QStringList *_code)
 Append code the the vertex shader. More...

virtual void modifyGeometryIO (ShaderGenerator *_shader)
 Add your own inputs/outputs to the geometry shader. More...

virtual void modifyTessControlIO (ShaderGenerator *_shader)
 Add your own inputs/outputs to the tessellation control shader. More...

virtual void modifyTessEvalIO (ShaderGenerator *_shader)
 Add your own inputs/outputs to the tessellation evaluation shader. More...

virtual void modifyFragmentIO (ShaderGenerator *_shader)
 Add your own inputs/outputs to the fragment shader. More...

virtual void modifyFragmentBeginCode (QStringList *_code)
 Append code the the fragment shader. More...

virtual void modifyFragmentEndCode (QStringList *_code)
 Append code the the fragment shader. More...

virtual void modifyLightingCode (QStringList *_code, int _lightId, ShaderGenLightType _lightType)
 Modify the default lighting code of the shader generator. More...

virtual bool replaceDefaultLightingCode ()
 Specify whether this modifier replaces or extends the default lighting code. More...

unsigned int getID ()
 Returns the modifier ID. More...

 operator std::vector< unsigned int > () const

std::vector< unsigned int > operator| (const std::vector< unsigned int > &_v) const


Static Public Member Functions

static ShaderModifier * loadFromFile (QString _filename)
 Load a modifier from file. More...


Private Attributes

unsigned int modifierID_


Friends

class ShaderProgGenerator


Detailed Description

A shader modifier can modify uniforms, in/outputs and glsl code of vertex and fragment shaders. This is useful for global effects like shadow mapping and depth peeling, where only little changes in code are necessary.

Usage:

  1. Derive a new subclass of ShaderModifier and implement necessary modify functions.
  2. Allocate a static instance of your modifier and register it to ShaderProgGenerator to get it's modifier-ID
  3. Create ShaderProgGenerator with a bitwise combination of modifier IDs to activate them.

Example:

// First modifier
class VertexShaderModifier1 : public ACG::ShaderModifier {
public:
void modifyVertexEndCode(QStringList* _code) {
_code->push_back("// Vertex End Code Modifier begin");
_code->push_back("< Some glsl code > ");
_code->push_back("// Vertex End Code Modifier end");
}
static VertexShaderModifier1 instance;
};
// Static instance required!
VertexShaderModifier YarnVertexShaderModifier::instance;
class VertexShaderModifier2 : public ACG::ShaderModifier {
public:
void modifyVertexEndCode(QStringList* _code) {
_code->push_back("// Vertex End Code Modifier 2 begin");
_code->push_back("< Some glsl code > ");
_code->push_back("// Vertex End Code Modifier 2 end");
}
static VertexShaderModifier2 instance;
};
VertexShaderModifier2 VertexShaderModifier2::instance;

To use the modifiers, you have to register them to the shader generator:

// Register the modifiers
ACG::ShaderProgGenerator::registerModifier(&VertexShaderModifier::instance);
ACG::ShaderProgGenerator::registerModifier(&VertexShaderModifier2::instance);
// Use them via the shader cache
GLSL::Program* prog = ACG::ShaderCache::getInstance()->getProgram(&shDesc,(VertexShaderModifier::instance.getID() | VertexShaderModifier2::instance.getID() ));

Definition at line 938 of file ShaderGenerator.hh.

Member Function Documentation

unsigned int ACG::ShaderModifier::getID ( )
inline

Returns the modifier ID.

Returns
Id of the modifier

Definition at line 1101 of file ShaderGenerator.hh.

ShaderModifier * ACG::ShaderModifier::loadFromFile ( QString  _filename)
static

Load a modifier from file.

Shader Mod text file format:

The file can begin with a glsl version directive (optionally): #version glsl_version

The rest of the file contains glsl code blocks, which are separated by keywords. Each keyword must be at the beginning of a line. Furthermore they end on a colon ':'. The keyword defines the meaning of the following code block.

IO code blocks are specified by the keywords: VertexIO:, TessControlIO:, TessEvalIO:, GeometryIO: and FragmentIO:

example

VertexIO: in vec3 customInputName; out vec3 custumOutputName; uniform vec4 param0;

Shader code modifications are done via the keywords: VertexBeginCode:, VertexEndCode:, FragmentBeginCode: and FragmentEndCode:

The returned modifier should not be deleted manually.

Parameters
_filenameabsolute or relative (from shaderdir) file name
Returns
pointer to shader modifier, 0 if loading failed

Definition at line 2695 of file ShaderGenerator.cc.

virtual void ACG::ShaderModifier::modifyFragmentBeginCode ( QStringList *  _code)
inlinevirtual

Append code the the fragment shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here

Parameters
_codestring list of shader code.

Reimplemented in ACG::ShaderModifierFile, PeelDualLayerModifier, and PeelLayerModifier.

Definition at line 1054 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyFragmentEndCode ( QStringList *  _code)
inlinevirtual

Append code the the fragment shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here.

Parameters
_codestring list of shader code.

Reimplemented in ACG::ShaderModifierFile, ACG::IRenderer::DepthMapPass, PeelDualInitModifier, PeelDualLayerModifier, PeelInitModifier, CelShadingModifier, PeelLayerModifier, and NormalFragmentModifier.

Definition at line 1070 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyFragmentIO ( ShaderGenerator *  _shader)
inlinevirtual

Add your own inputs/outputs to the fragment shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");
_shader->addUniform("vec4 shaderParam");
Parameters
_shadershader interface

Reimplemented in ACG::ShaderModifierFile, PeelDualLayerModifier, PeelInitModifier, CelShadingModifier, and PeelLayerModifier.

Definition at line 1038 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyGeometryIO ( ShaderGenerator *  _shader)
inlinevirtual

Add your own inputs/outputs to the geometry shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");
_shader->addUniform("vec4 shaderParam");
Parameters
_shadershader interface

Reimplemented in ACG::ShaderModifierFile.

Definition at line 999 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyLightingCode ( QStringList *  _code,
int  _lightId,
ShaderGenLightType  _lightType
)
inlinevirtual

Modify the default lighting code of the shader generator.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify.

Use

_code->push_back("...");

to insert your code here.

Parameters
_codestring list of shader code.
_lightIdlight index, use g_vLightDir__{_lightId}, etc. in shader code to use light parameters
_lightTypelight type: point, spot or directional light

Reimplemented in CelShadingModifier.

Definition at line 1089 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyTessControlIO ( ShaderGenerator *  _shader)
inlinevirtual

Add your own inputs/outputs to the tessellation control shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");
_shader->addUniform("vec4 shaderParam");
Parameters
_shadershader interface

Reimplemented in ACG::ShaderModifierFile.

Definition at line 1012 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyTessEvalIO ( ShaderGenerator *  _shader)
inlinevirtual

Add your own inputs/outputs to the tessellation evaluation shader.

your implementation may look like this:

_shader->addInput("sampler2D depthSampler");
_shader->addUniform("vec4 shaderParam");
Parameters
_shadershader interface

Reimplemented in ACG::ShaderModifierFile.

Definition at line 1025 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyVertexBeginCode ( QStringList *  _code)
inlinevirtual

Append code the the vertex shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here.

Parameters
_codestring list of shader code.

Reimplemented in ACG::ShaderModifierFile.

Definition at line 971 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyVertexEndCode ( QStringList *  _code)
inlinevirtual

Append code the the vertex shader.

Refer to the generation structure (Shader Generator ) to see where your code is added and which variables you can modify. Use

_code->push_back("...");

to insert your code here

Parameters
_codestring list of shader code.

Reimplemented in ACG::ShaderModifierFile.

Definition at line 986 of file ShaderGenerator.hh.

virtual void ACG::ShaderModifier::modifyVertexIO ( ShaderGenerator *  _shader)
inlinevirtual

Add your own inputs/outputs to the vertex shader.

Your implementation may look like this:

_shader->addInput("vec4 inTangent");
_shader->addUniform("vec4 shaderParam");
Parameters
_shadershader interface

Reimplemented in ACG::ShaderModifierFile, CelShadingModifier, and NormalFragmentModifier.

Definition at line 957 of file ShaderGenerator.hh.

virtual bool ACG::ShaderModifier::replaceDefaultLightingCode ( )
inlinevirtual

Specify whether this modifier replaces or extends the default lighting code.

Returns
return false if this modifier modifies an already computed lighting color, return true if this modifier replaces the default lighting color

Reimplemented in CelShadingModifier.

Definition at line 1095 of file ShaderGenerator.hh.
