This class vizualizes a property. More...

#include <Plugin-PropertyVis/PropertyVisualizer.hh>

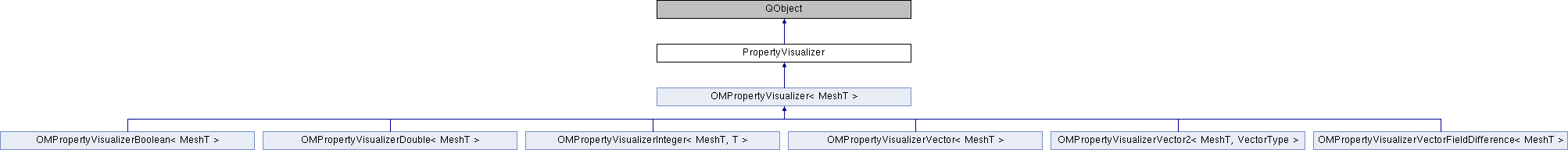

Inheritance diagram for PropertyVisualizer:

Signals
void	log (Logtype _type, QString _message)

void	log (QString _message)

Public Member Functions
	PropertyVisualizer (PropertyInfo _propertyInfo)
	Constructor. More...

virtual	~PropertyVisualizer ()
	Destructor.

virtual void	visualize (bool _setDrawMode, QWidget *_widget)
	Visualizes the property. More...

virtual void	removeProperty ()
	Removes the property. More...

virtual void	duplicateProperty ()
	Duplicates the property. More...

virtual void	clear ()
	Clears the property visualization. More...

virtual QString	getName ()
	Returns a beautiful name. More...

virtual QWidget *	getWidget ()
	Returns the visualizer's widget. More...

const PropertyInfo &	getPropertyInfo () const
	Returns the PropertyInfo.

virtual QString	getPropertyText (unsigned int i)=0
	Returns the value of a property in text form. More...

virtual void	setPropertyFromText (unsigned int index, QString text)=0
	Returns the value of a property in text form. More...

virtual int	getEntityCount ()=0
	Returns the number of entities.

virtual QString	getHeader ()=0
	Returns the header for saving.

Static Public Member Functions
static QString	toStr (bool b)

static QString	toStr (double d)

static QString	toStr (int i)

static QString	toStr (uint8_t i)

static QString	toStr (unsigned int i)

static QString	toStr (OpenMesh::Vec3d v)

static QString	toStr (OpenMesh::Vec2d v)

static QString	toStr (OpenMesh::Vec2f v)

static bool	strToBool (QString str)

static double	strToDouble (QString str)

static int	strToInt (QString str)

static unsigned int	strToUInt (QString str)

static OpenMesh::Vec3d	strToVec3d (QString str)

static OpenMesh::Vec2d	strToVec2d (QString str)

static OpenMesh::Vec2f	strToVec2f (QString str)

Public Attributes
QWidget *	widget

Protected Attributes
PropertyInfo	propertyInfo

Detailed Description

This class vizualizes a property.

For each property one object of this class is created. It is responsible for the visualization of that property. It provides a widget that can be used to set options for the visualization.

Definition at line 80 of file PropertyVisualizer.hh.

Constructor & Destructor Documentation

PropertyVisualizer::PropertyVisualizer ( PropertyInfo _propertyInfo )

inline

Constructor.

Parameters

_propertyInfo Information about the property this visualizer should visualize.

Definition at line 94 of file PropertyVisualizer.hh.

Member Function Documentation

void PropertyVisualizer::clear ( void )

virtual

Clears the property visualization.

This method should be implemented by a subclass that specializes on clearing property visualizations for a specific object type. This method here only implements a warning which will tell the user that clearing the property visualitaion is not implemented yet for that object type.

Reimplemented in OMPropertyVisualizer< MeshT >, OMPropertyVisualizerVector2< MeshT, VectorType >, and OMPropertyVisualizerVector< MeshT >.

Definition at line 95 of file PropertyVisualizer.cc.

void PropertyVisualizer::duplicateProperty ( )

virtual

Duplicates the property.

This method should be implemented by a subclass that specializes on duplicating properties for a specific object type. This method here only implements a warning which will tell the user that removing the property is not implemented yet for that object type.

Reimplemented in OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizer< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, and OMPropertyVisualizerBoolean< MeshT >.

Definition at line 83 of file PropertyVisualizer.cc.

virtual QString PropertyVisualizer::getName ( )

inlinevirtual

Returns a beautiful name.

The beautiful name consists of a symbol representing the entity type, the property's name and the property's type.

Reimplemented in OMPropertyVisualizerVectorFieldDifference< MeshT >.

Definition at line 122 of file PropertyVisualizer.hh.

virtual QString PropertyVisualizer::getPropertyText ( unsigned int i )

pure virtual

Returns the value of a property in text form.

Parameters

i	The id of the entity whose property we want to know.

Returns: The property value in text form.

Implemented in OMPropertyVisualizer< MeshT >, OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVectorFieldDifference< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, OMPropertyVisualizerDouble< MeshT >, and OMPropertyVisualizerBoolean< MeshT >.

virtual QWidget* PropertyVisualizer::getWidget ( )

inlinevirtual

Returns the visualizer's widget.

Returns the visualizer's widget that can be used to set some options for the visualization.

Definition at line 129 of file PropertyVisualizer.hh.

void PropertyVisualizer::removeProperty ( )

virtual

Removes the property.

This method should be implemented by a subclass that specializes on removing properties for a specific object type. This method here only implements a warning which will tell the user that removing the property is not implemented yet for that object type.

Reimplemented in OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVectorFieldDifference< MeshT >, OMPropertyVisualizer< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, and OMPropertyVisualizerBoolean< MeshT >.

Definition at line 71 of file PropertyVisualizer.cc.

virtual void PropertyVisualizer::setPropertyFromText	(	unsigned int	index,
		QString	text
	)

pure virtual

Returns the value of a property in text form.

Parameters

index	The id of the entity whose property should be set.
text	The value in text form.

This method sets the porperty of a given entity by transforming the text into the correct type. This is used when a property is loaded from a file.

Implemented in OMPropertyVisualizer< MeshT >.

void PropertyVisualizer::visualize	(	bool	_setDrawMode,
		QWidget *	_widget
	)

virtual

Visualizes the property.

This method should be implemented by a subclass that specializes on visualizing a specific property type for a specific object type. This method here only implements a warning which will tell the user that visualizing the property for that object type is not implemented yet.

Reimplemented in OMPropertyVisualizer< MeshT >.

Definition at line 59 of file PropertyVisualizer.cc.

The documentation for this class was generated from the following files:

Plugin-PropertyVis/PropertyVisualizer.hh
Plugin-PropertyVis/PropertyVisualizer.cc
