OpenVolumeMesh::HexVertexIter Class Reference

Iterate over all vertices of a hexahedron in a specific order. More...

#include <libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/HexahedralMeshIterators.hh>

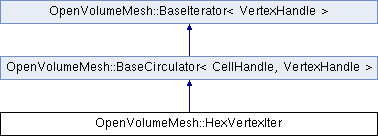

Inheritance diagram for OpenVolumeMesh::HexVertexIter:

Public Member Functions
	HexVertexIter (const CellHandle &_ref_h, const HexahedralMeshTopologyKernel *_mesh, int _max_laps=1)
HexVertexIter	operator++ (int)
HexVertexIter	operator-- (int)
HexVertexIter	operator+ (int _n)
HexVertexIter	operator- (int _n)
HexVertexIter &	operator+= (int _n)
HexVertexIter &	operator-= (int _n)
HexVertexIter &	operator++ ()
HexVertexIter &	operator-- ()
Public Member Functions inherited from OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle >
	BaseCirculator (const TopologyKernel *_mesh, const CellHandle &_ih, const VertexHandle &_oh, int _max_laps=1)
	BaseCirculator (const TopologyKernel *_mesh, const CellHandle &_ih, int _max_laps=1)
bool	operator== (const BaseCirculator &_c) const
bool	operator!= (const BaseCirculator &_c) const
bool	operator< (const BaseCirculator &_c) const
BaseCirculator &	operator= (const BaseCirculator &_c)
const CellHandle &	ref_handle () const
void	lap (int _lap)
int	lap () const
void	max_laps (int _max_laps)
int	max_laps () const
Public Member Functions inherited from OpenVolumeMesh::BaseIterator< VertexHandle >
	BaseIterator (const TopologyKernel *_mesh, const VertexHandle &_ch)
	BaseIterator (const TopologyKernel *_mesh)
bool	operator== (const BaseIterator &_c) const
bool	operator!= (const BaseIterator &_c) const
pointer	operator-> () const
reference	operator* () const
bool	operator< (const BaseIterator &_c) const
BaseIterator &	operator= (const BaseIterator &_c)
	operator bool () const
void	valid (bool _valid)
bool	valid () const
void	cur_handle (const VertexHandle &_h)
reference	cur_handle () const
const TopologyKernel *	mesh () const

Private Types
typedef BaseCirculator< CellHandle, VertexHandle >	BaseIter

Private Attributes
std::vector< VertexHandle >	vertices_
size_t	cur_index_

Additional Inherited Members
Public Types inherited from OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle >
typedef BaseIterator< VertexHandle >	BaseIter
Public Types inherited from OpenVolumeMesh::BaseIterator< VertexHandle >
typedef std::bidirectional_iterator_tag	iterator_category
typedef int	difference_type
typedef const VertexHandle	value_type
typedef const VertexHandle *	pointer
typedef const VertexHandle &	reference
Protected Attributes inherited from OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle >
int	lap_
int	max_laps_
CellHandle	ref_handle_

Detailed Description

Iterate over all vertices of a hexahedron in a specific order.

Vertices are addressed in the following order:

 5-------6
/|      /|

/ | / | 3----—2 | | 4-—|–7 | / | / |/ |/ 0----—1

Definition at line 177 of file HexahedralMeshIterators.hh.

---

The documentation for this class was generated from the following files:

• libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/HexahedralMeshIterators.hh
• libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/HexahedralMeshIterators.cc
