#include <Plugin-Datacontrol/DataControlPlugin.hh>

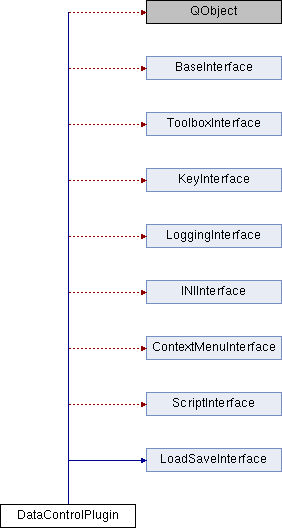

Inheritance diagram for DataControlPlugin:

Public Slots
QString	version ()

Signals
void	updateView ()

void	updatedObject (int _it, const UpdateType &_type)

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addContextMenuItem (QAction *_action, ContextMenuType _type)

void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)

void	deleteObject (int _id)

void	emptyObjectAdded (int _id)

void	copyObject (int _oldId, int &_newId)

void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)

void	objectsGrouped (IdList)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from ToolboxInterface
virtual void	addToolbox (QString _name, QWidget *_widget)
	Add a toolbox widget to the gui with the given name. More...

Signals inherited from KeyInterface
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ContextMenuInterface
virtual void	addContextMenuItem (QAction *_action, ContextMenuType _type)
	Add an entry for a context Menu. More...

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Public Member Functions
	DataControlPlugin ()
	Constructor.

	~DataControlPlugin ()
	Destructor.

QString	name ()
	Name of the Plugin.

QString	description ()
	Description of the Plugin.

Private Slots
void	initializePlugin ()

void	pluginsInitialized ()
	Plugin initialization. More...

void	slotVisibilityChanged (int _identifier)
	Update the model if the visibility of an object changed. More...

void	slotObjectSelectionChanged (int _identifier)
	update drawing of objects when the active object changed More...

void	slotObjectPropertiesChanged (int _identifier)
	Update the model if properties of an object changed. More...

void	slotObjectUpdated (int _identifier, const UpdateType &_type)

void	slotKeyEvent (QKeyEvent *_event)
	a key event occurred More...

void	loadIniFileOptionsLast (INIFile &_ini)
	Load Groups from ini file. More...

void	saveIniFileOptions (INIFile &_ini)
	Save groups to ini file. More...

void	saveOnExit (INIFile &_ini)
	Save settings before application is closed. More...

void	fileOpened (int _id)
	Update the model if a file has been opened. More...

void	addedEmptyObject (int _id)
	Update the model if an empty object has been added. More...

void	objectDeleted (int _id)
	an object was deleted. delete it internally More...

void	noguiSupported ()

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from KeyInterface
virtual void	slotKeyEvent (QKeyEvent *_event)
	Key Event from Main App. More...

Private Member Functions
void	slotObjectsGrouped (IdList _lst)
	update objects when they have been grouped More...

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from ToolboxInterface
virtual	~ToolboxInterface ()
	Destructor.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon)
	Add a toolbox widget to the gui with the given name and an icon. More...

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)
	Add a toolbox widget to the gui with the given name, icon and header area widget. More...

Private Member Functions inherited from KeyInterface
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor.

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from INIInterface
virtual	~INIInterface ()
	Destructor.

Private Member Functions inherited from ContextMenuInterface
virtual	~ContextMenuInterface ()
	Destructor.

virtual void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)
	Add an entry for a context Menu. More...

virtual void	hideContextMenu ()
	hide the main context menu

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Attributes
DatacontrolToolboxWidget *	tool_
	Widget for Toolbox.

QIcon *	toolIcon_

QGridLayout *	MeshDialogLayout_
	Layout for Toolbox.

QTableWidget *	objectList_
	Table containing Mesh information and status.

bool	locked
	Flag set to true if meshlist is updated, preventing signal for list udate to be called.

TreeModel *	model_
	The Treemodel organizing the data.

QTreeView *	view_
	Tree view.

QHeaderView *	viewHeader_
	Pointer to the header to the view widget.

DefaultObjectMarker	objectMarker
	Default marker to visualize "source" and "target" object flags.

Slots which are called if data changed
int	onlyDown_
	Gets called when the data in the table has changed. More...

int	onlyUp_
	Gets called when the data in the table has changed. More...

int	columnFromGUI_
	Gets called when the data in the table has changed. More...

void	slotDataChanged (int _id, int _column, const QVariant &_value)
	Gets called when the data in the table has changed. More...

void	slotMoveBaseObject (int _id, int _newParentId)
	Gets called when an object was moved via drag n drop. More...

void	propagateDownwards (BaseObject *_obj, int _column)
	Recursively update a column up to the root of the tree. More...

void	propagateUpwards (BaseObject *_obj, int _column)
	Recursively update a column up to the root of the tree. More...

Popup Menu related
QModelIndex	popupIndex_
	Index where a popup has been opened.

int	headerPopupType_
	Defines the section of the Popup.

void	slotCustomContextMenuRequested (const QPoint &_pos)
	Display a custom context window for the TreeView. More...

void	slotPopupRemove ()
	Called by the popup menu to remove an object/group. More...

void	slotUngroup ()
	Called by the popup menu to ungroup items. More...

void	slotGroup ()
	Called by the popup menu to group items. More...

void	slotCopy ()
	Called by the popup menu to copy items. More...

void	slotRename ()
	Called by the popup menu to rename items. More...

void	slotZoomTo ()
	Called by the popup menu to zoom to an object. More...

void	slotSwitchLight ()
	Called by the popup menu in order to turn lights on/off. More...

void	slotEditLight ()
	Called by the popup menu in order to edit lights. More...

void	slotMaterialProperties ()
	Called by the popup menu to set material properties.

void	slotCopyMaterialToTargeted ()
	Called by the popup menu to copy material properties. More...

void	slotCopyMaterialToClipboard ()
	Called by the popup menu to copy material properties to clipboard.

void	slotPasteMaterialFromClipboard ()
	Called by the popup menu to paste material properties from clipboard.

void	slotNodeChanged (ACG::SceneGraph::BaseNode *_node)
	Called when the material properties were changed inside the material dialog. More...

void	slotShowLightSources (bool _state)
	Hide/Show all light sources if checkbox has been checked.

void	slotShowLightSources ()
	Index where a popup has been opened.

void	slotHeaderCustomContextMenuRequested (const QPoint &_pos)
	Display a custom context window for the TreeViews header. More...

GL Area Context Menu related slots
QAction *	targetAction_
	Hide an object.

QAction *	sourceAction_
	Hide an object.

QAction *	removeAction_
	Hide an object.

QToolButton *	advancedSettingsBtn_
	Hide an object.

void	slotContextMenuHide ()
	Hide an object.

void	slotContextMenuTarget ()
	Target Selection.

void	slotContextMenuSource ()
	Source Selection.

void	slotContextMenuRemove ()
	Remove Selected Item.

void	slotUpdateContextMenu (int _objectId)
	Update the context Menus for the given id.

Bounding box related slots/functions
void	slotBoundingBoxChange ()
	Bounding box selection changed. More...

void	updateBoundingBox (BaseObjectData *_obj)
	Updates bounding box. More...

Scripting functions
void	setDescriptions ()

QString	getObjectName (int objectId)
	Get the Objects name from the id. More...

void	objectDelete (int objectId)
	Delete the given object. More...

int	copyObject (int objectId)
	Creates an object copy. More...

int	getObject (QString _name)
	Get the id of an object by its name. More...

DataType	dataType (int objectId)
	Get the DataType of a given object.

void	hideObject (int objectId)
	Hide the given Object. More...

void	showObject (int objectId)
	Show the given Object. More...

void	setTarget (int objectId, bool _target)
	set the given Object as target More...

void	setSource (int objectId, bool _source)
	set the given Object as source More...

void	setObjectName (int objectId, QString _name)
	set the name of the given object More...

void	setAllTarget ()
	Makes all available objects target. More...

void	setAllSource ()
	Makes all available objects source. More...

void	clearAllTarget ()
	Unselect all objects. More...

void	clearAllSource ()
	remove source selection from all objects More...

void	showAll ()
	Shows all objects. More...

void	hideAll ()
	Hides all objects. More...

int	addEmptyGroup (QString _groupName="", int _parentGroupId=0)
	Create new empty group. More...

int	groupObjects (IdList _objectIDs, QString _groupName="")
	Group given Objects together. More...

bool	addObjectToGroup (int _objectId, int _groupId)
	add an object to an existing group More...

bool	unGroupObject (int _id)

IdList	getTargetObjects (DataType _type)
	Get all target objects of given type. More...

IdList	getSourceObjects (DataType _type)
	Get all source objects of given type. More...

unsigned int	groupCount () const
	Returns the number of groups. More...

QStringList	availableDataTypeNames () const
	Returns a list of all available DataTypes. More...

void	printObjectInfoToLog ()
	Print information about all open objects to the console. More...

IdList	getGroupElements (int _groupId)
	Get all elements of the given group. More...

void	showReducedUi (bool reduced)

Detailed Description

Plugin for controlling the Object data structures (Show,hide Object, Target, Source selection

Definition at line 75 of file DataControlPlugin.hh.

Member Function Documentation

void DataControlPlugin::addedEmptyObject ( int _id )

privateslot

Update the model if an empty object has been added.

Parameters

_id	id of an object

Definition at line 444 of file DataControlPlugin.cc.

int DataControlPlugin::addEmptyGroup	(	QString	_groupName = `""`,
		int	_parentGroupId = `0`
	)

slot

Create new empty group.

Create and add an empty group.

Parameters

_groupName	Name of the new group. If it is an empty string, a default name based on group id will be generated.
_parentGroupId	Parent object under which the new group is created. If _parentGroupId is zero, the corresponding object does not exist or it is not a group, the new group is created as toplevel.
_groupName	name of the new group
_parentGroupId	id of the parent. -1, if the new group will have no parent

Definition at line 334 of file DataControlPluginScripting.cc.

bool DataControlPlugin::addObjectToGroup	(	int	_objectId,
		int	_groupId
	)

slot

add an object to an existing group

add the object with _objectId to the group with _groupId

Returns: success

Definition at line 668 of file DataControlPluginScripting.cc.

QStringList DataControlPlugin::availableDataTypeNames ( ) const

slot

Returns a list of all available DataTypes.

Return available dataType.

Returns a space separated list of all available DataTypes

Returns: List of available data types

Definition at line 651 of file DataControlPluginScripting.cc.

void DataControlPlugin::clearAllSource ( )

slot

remove source selection from all objects

Clear Source Selection for all objects.

Definition at line 519 of file DataControlPluginScripting.cc.

void DataControlPlugin::clearAllTarget ( )

slot

Unselect all objects.

Clear Target Selection for all objects.

Definition at line 497 of file DataControlPluginScripting.cc.

int DataControlPlugin::copyObject ( int objectId )

slot

Creates an object copy.

Generate a copy of an object.

Parameters

objectId id of an object

Returns: id of the generated object

Definition at line 179 of file DataControlPluginScripting.cc.

void DataControlPlugin::fileOpened ( int _id )

privateslot

Update the model if a file has been opened.

Parameters

_id	id of an object

Definition at line 419 of file DataControlPlugin.cc.

IdList DataControlPlugin::getGroupElements ( int _groupId )

slot

Get all elements of the given group.

get all objects of an given group

get all objects of an given group with id _groupId

Returns: id list of group elements

Definition at line 702 of file DataControlPluginScripting.cc.

int DataControlPlugin::getObject ( QString _name )

slot

Get the id of an object by its name.

Returns the id of an object with given name.

Parameters

_name name of an object

Returns: the id

Definition at line 161 of file DataControlPluginScripting.cc.

QString DataControlPlugin::getObjectName ( int objectId )

slot

Get the Objects name from the id.

Returns the name of an object with given id.

Parameters

objectId id of an object

Returns: name of the given object

Definition at line 196 of file DataControlPluginScripting.cc.

IdList DataControlPlugin::getSourceObjects ( DataType _type )

slot

Get all source objects of given type.

Definition at line 606 of file DataControlPluginScripting.cc.

IdList DataControlPlugin::getTargetObjects ( DataType _type )

slot

Get all target objects of given type.

Definition at line 591 of file DataControlPluginScripting.cc.

unsigned int DataControlPlugin::groupCount ( ) const

slot

Returns the number of groups.

get number of groups

Returns the number of groups that are in the scene

Returns: Number of groups

Definition at line 635 of file DataControlPluginScripting.cc.

int DataControlPlugin::groupObjects	(	IdList	_objectIDs,
		QString	_groupName = `""`
	)

slot

Group given Objects together.

Group objects together

Returns: object id of new group or -1 if failed

Parameters

_objectIDs	list of object ids
_groupName	the name of the new group

Definition at line 368 of file DataControlPluginScripting.cc.

void DataControlPlugin::hideAll ( )

slot

Hides all objects.

Hide all objects.

Definition at line 541 of file DataControlPluginScripting.cc.

void DataControlPlugin::hideObject ( int objectId )

slot

Hide the given Object.

Hide object with the given id.

Parameters

objectId id of an object

Definition at line 227 of file DataControlPluginScripting.cc.

void DataControlPlugin::loadIniFileOptionsLast ( INIFile & _ini )

privateslot

Load Groups from ini file.

Parameters

_ini	an ini file

Definition at line 597 of file DataControlPlugin.cc.

void DataControlPlugin::objectDelete ( int objectId )

slot

Delete the given object.

Delete an object.

Parameters

objectId id of the object that should be deleted

Definition at line 295 of file DataControlPluginScripting.cc.

void DataControlPlugin::objectDeleted ( int _id )

privateslot

an object was deleted. delete it internally

Parameters

_id	id of the object

Definition at line 454 of file DataControlPlugin.cc.

void DataControlPlugin::pluginsInitialized ( )

privateslot

Plugin initialization.

Definition at line 96 of file DataControlPlugin.cc.

void DataControlPlugin::printObjectInfoToLog ( )

slot

Print information about all open objects to the console.

Prints information about all open objects to the Log.

Definition at line 621 of file DataControlPluginScripting.cc.

void DataControlPlugin::propagateDownwards	(	BaseObject *	_obj,
		int	_column
	)

private

Recursively update a column up to the root of the tree.

Parameters

_obj	object to start with
_column	Column to be propagated

Definition at line 825 of file DataControlPlugin.cc.

void DataControlPlugin::propagateUpwards	(	BaseObject *	_obj,
		int	_column
	)

private

Recursively update a column up to the root of the tree.

Parameters

_obj	Object to start with
_column	Column to propagate

Definition at line 761 of file DataControlPlugin.cc.

void DataControlPlugin::saveIniFileOptions ( INIFile & _ini )

privateslot

Save groups to ini file.

Parameters

_ini	an ini file

Definition at line 686 of file DataControlPlugin.cc.

void DataControlPlugin::saveOnExit ( INIFile & _ini )

privateslot

Save settings before application is closed.

Parameters

_ini	reference to ini file

Definition at line 914 of file DataControlPlugin.cc.

void DataControlPlugin::setAllSource ( )

slot

Makes all available objects source.

Set Source Selection for all objects.

Definition at line 475 of file DataControlPluginScripting.cc.

void DataControlPlugin::setAllTarget ( )

slot

Makes all available objects target.

Set Target Selection for all objects.

Definition at line 453 of file DataControlPluginScripting.cc.

void DataControlPlugin::setDescriptions ( )

privateslot

This function sets the slot descriptions for this plugin which will be visible in the script editor

Definition at line 58 of file DataControlPluginScripting.cc.

void DataControlPlugin::setObjectName	(	int	objectId,
		QString	_name
	)

slot

set the name of the given object

set the name of the given Object

Parameters

objectId	id of an object
_name	new name

Definition at line 280 of file DataControlPluginScripting.cc.

void DataControlPlugin::setSource	(	int	objectId,
		bool	_source
	)

slot

set the given Object as source

Parameters

objectId	id of an object
_source	set object as source?

Definition at line 263 of file DataControlPluginScripting.cc.

void DataControlPlugin::setTarget	(	int	objectId,
		bool	_target
	)

slot

set the given Object as target

Parameters

objectId	id of an object
_target	set object as target?

Definition at line 247 of file DataControlPluginScripting.cc.

void DataControlPlugin::showAll ( )

slot

Shows all objects.

Show all objects.

Definition at line 567 of file DataControlPluginScripting.cc.

void DataControlPlugin::showObject ( int objectId )

slot

Show the given Object.

Show object with the given id.

Parameters

objectId id of an object

Definition at line 314 of file DataControlPluginScripting.cc.

void DataControlPlugin::showReducedUi ( bool reduced )

slot

This function sets the slot descriptions for this plugin which will be visible in the script editor

Definition at line 920 of file DataControlPlugin.cc.

void DataControlPlugin::slotBoundingBoxChange ( )

privateslot

Bounding box selection changed.

Bounding box visibility selection changed.

Definition at line 871 of file DataControlPlugin.cc.

void DataControlPlugin::slotCopy ( )

privateslot

Called by the popup menu to copy items.

Slot for Copy action in ContextMenu.

Definition at line 126 of file Popup.cc.

void DataControlPlugin::slotCopyMaterialToTargeted ( )

privateslot

Called by the popup menu to copy material properties.

show the material properties dialog

Definition at line 450 of file Popup.cc.

void DataControlPlugin::slotCustomContextMenuRequested ( const QPoint & _pos )

privateslot

Display a custom context window for the TreeView.

ContextMenu requested - creates the contextMenu.

Parameters

_pos	Position where it was requested

Definition at line 183 of file Popup.cc.

void DataControlPlugin::slotDataChanged	(	int	_id,
		int	_column,
		const QVariant &	_value
	)

privateslot

Gets called when the data in the table has changed.

emit the right updates when the model changed

Parameters

_id	Object id that was changed
_column	Which column changed
_value	What is the new value?

Definition at line 500 of file DataControlPlugin.cc.

void DataControlPlugin::slotEditLight ( )

privateslot

Called by the popup menu in order to edit lights.

Edit the light source's parameters.

Definition at line 670 of file Popup.cc.

void DataControlPlugin::slotGroup ( )

privateslot

Called by the popup menu to group items.

Slot for Group action in ContextMenu.

Definition at line 156 of file Popup.cc.

void DataControlPlugin::slotHeaderCustomContextMenuRequested ( const QPoint & _pos )

privateslot

Display a custom context window for the TreeViews header.

Generate a ContextMenu for the header of the TreeView.

Parameters

_pos	Position where the Menu has to be created

Definition at line 317 of file Popup.cc.

void DataControlPlugin::slotKeyEvent ( QKeyEvent * _event )

privateslot

a key event occurred

Parameters

_event the event that occurred

Definition at line 468 of file DataControlPlugin.cc.

void DataControlPlugin::slotMoveBaseObject	(	int	_id,
		int	_newParentId
	)

privateslot

Gets called when an object was moved via drag n drop.

Parameters

_id	id of the object
_newParentId	id of the new parent

Definition at line 546 of file DataControlPlugin.cc.

void DataControlPlugin::slotNodeChanged ( ACG::SceneGraph::BaseNode * _node )

privateslot

Called when the material properties were changed inside the material dialog.

Parameters

_node unused

Definition at line 631 of file Popup.cc.

void DataControlPlugin::slotObjectPropertiesChanged ( int _identifier )

privateslot

Update the model if properties of an object changed.

Parameters

_identifier id of an object

Definition at line 404 of file DataControlPlugin.cc.

void DataControlPlugin::slotObjectSelectionChanged ( int _identifier )

privateslot

update drawing of objects when the active object changed

Definition at line 271 of file DataControlPlugin.cc.

void DataControlPlugin::slotObjectsGrouped ( IdList _lst )

private

update objects when they have been grouped

Definition at line 250 of file DataControlPlugin.cc.

void DataControlPlugin::slotPopupRemove ( )

privateslot

Called by the popup menu to remove an object/group.

Slot for Remove action in ContextMenu.

Definition at line 66 of file Popup.cc.

void DataControlPlugin::slotRename ( )

privateslot

Called by the popup menu to rename items.

show a rename dialog for object names

Definition at line 420 of file Popup.cc.

void DataControlPlugin::slotSwitchLight ( )

privateslot

Called by the popup menu in order to turn lights on/off.

Switch light source on or off.

Definition at line 640 of file Popup.cc.

void DataControlPlugin::slotUngroup ( )

privateslot

Called by the popup menu to ungroup items.

Slot for Ungroup action in ContextMenu.

Definition at line 109 of file Popup.cc.

void DataControlPlugin::slotVisibilityChanged ( int _identifier )

privateslot

Update the model if the visibility of an object changed.

Parameters

_identifier id of an object

Definition at line 341 of file DataControlPlugin.cc.

void DataControlPlugin::slotZoomTo ( )

privateslot

Called by the popup menu to zoom to an object.

Zoom to an object.

Definition at line 698 of file Popup.cc.

bool DataControlPlugin::unGroupObject ( int _id )

slot

remove an object from its group and place it at the toplevel group

Returns: successfull

Definition at line 420 of file DataControlPluginScripting.cc.

void DataControlPlugin::updateBoundingBox ( BaseObjectData * _obj )

private

Updates bounding box.

Update state of bounding box node.

Parameters

_obj object

Definition at line 886 of file DataControlPlugin.cc.

Member Data Documentation

int DataControlPlugin::columnFromGUI_

private

Gets called when the data in the table has changed.

emit the right updates when the model changed

Parameters

_id	Object id that was changed
_column	Which column changed
_value	What is the new value?

Definition at line 207 of file DataControlPlugin.hh.

int DataControlPlugin::onlyDown_

private

Gets called when the data in the table has changed.

emit the right updates when the model changed

Parameters

_id	Object id that was changed
_column	Which column changed
_value	What is the new value?

Definition at line 203 of file DataControlPlugin.hh.

int DataControlPlugin::onlyUp_

private

Gets called when the data in the table has changed.

emit the right updates when the model changed

Parameters

_id	Object id that was changed
_column	Which column changed
_value	What is the new value?

Definition at line 204 of file DataControlPlugin.hh.

The documentation for this class was generated from the following files:

Plugin-Datacontrol/DataControlPlugin.hh
Plugin-Datacontrol/ContextMenuDataControl.cc
Plugin-Datacontrol/DataControlPlugin.cc
Plugin-Datacontrol/DataControlPluginScripting.cc
Plugin-Datacontrol/Popup.cc

Public Slots

Signals

Public Member Functions

Private Slots

Private Member Functions

Private Attributes

Slots which are called if data changed

Popup Menu related

GL Area Context Menu related slots

Bounding box related slots/functions

Scripting functions

Detailed Description

Member Function Documentation

Member Data Documentation
