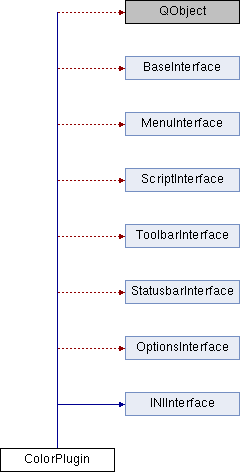

Inheritance diagram for ColorPlugin:

Public Slots
Scriptable functions to set colors
void	setDefaultColor ()
	set the defaultColor preset More...

void	setPresentationColor ()
	Set the presentation color preset. More...

void	setPaperColor ()
	set the paperColor Preset More...

void	setBackgroundColor (Vector _color)
	Set the backgroundColor. More...

void	setObjectEmissiveColor (int _objectId, Vector4 _color)

void	setObjectAmbientColor (int _objectId, Vector4 _color)

void	setObjectDiffuseColor (int _objectId, Vector4 _color)

void	setObjectSpecularColor (int _objectId, Vector4 _color)

Other scriptable functions
QString	version ()

Signals
void	updateView ()

void	scriptInfo (QString _functionName)

void	addMenubarAction (QAction *_action, QString _type)

void	addToolbar (QToolBar *_toolbar)

void	removeToolbar (QToolBar *_toolbar)

void	showStatusMessage (QString _message, int _timeout=0)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from MenuInterface
virtual void	getMenubarMenu (QString _name, QMenu *&_menu, bool _create)
	Get a existing top level menu pointer or create a new one. More...

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from ToolbarInterface
virtual void	addToolbar (QToolBar *_toolbar)
	Adds a Toolbar to the main widget. More...

Signals inherited from StatusbarInterface
virtual void	showStatusMessage (QString _message, int _timeout=0)
	Show a message in the status bar. More...

Public Member Functions
bool	initializeOptionsWidget (QWidget *&_widget)
	generate an optionsWidget to change color presets More...

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

	ColorPlugin ()
	ConstructorOptionsInterface. More...

Private Slots
void	pluginsInitialized ()
	initialize the toolbar and menubar More...

void	applyOptions ()
	Store the changed color presets when the apply Button was hit. More...

void	loadIniFileOptions (INIFile &_ini)
	read color preset from ini file More...

void	saveIniFileOptions (INIFile &_ini)
	Store current color preset to an ini file. More...

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Show Colors in Options and Store them in INI files
ColorOptions *	optionsWidget_
	the options widget to set colors

OpenMesh::Vec4f	backgroundColorDefault_
	the options widget to set colors

OpenMesh::Vec4f	backgroundColorPaper_
	the options widget to set colors

OpenMesh::Vec4f	backgroundColorPresentation_
	the options widget to set colors

OpenMesh::Vec4f	baseColorDefault_
	the options widget to set colors

OpenMesh::Vec4f	baseColorPaper_
	the options widget to set colors

OpenMesh::Vec4f	baseColorPresentation_
	the options widget to set colors

OpenMesh::Vec4f	materialColorDefault_
	the options widget to set colors

OpenMesh::Vec4f	materialColorPaper_
	the options widget to set colors

OpenMesh::Vec4f	materialColorPresentation_
	the options widget to set colors

double	lineWidthDefault_
	the options widget to set colors

double	lineWidthPaper_
	the options widget to set colors

double	lineWidthPresentation_
	the options widget to set colors

void	getColorDialog ()
	display a color dialog More...

QIcon	generateIcon (QRgb _color)
	generate an icon from a given color More...

QIcon	generateIcon (OpenMesh::Vec4f _color)
	generate an icon from a given color More...

QRgb	getIconColor (QIcon _icon)
	get the color from a given icon More...

void	setNewColor (QIcon _icon, OpenMesh::Vec4f &_color)
	set the color of a color vector to the one in the given icon More...

void	convertColor (uint _color, OpenMesh::Vec4f &_vector)
	convert betweeen uint and Vec4f More...

uint	convertColor (OpenMesh::Vec4f &_vector)
	convert betweeen uint and Vec4f More...

Additional Inherited Members
Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from MenuInterface
virtual	~MenuInterface ()
	Destructor.

virtual void	addMenubarAction (QAction *_action, QString _name)
	Adds an action to the menubar. More...

virtual void	addMenubarActions (std::vector< QAction * > &_actions, QString _name)
	Add multiple actions to the menu bar. More...

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from ToolbarInterface
virtual	~ToolbarInterface ()
	Destructor.

virtual void	removeToolbar (QToolBar *_toolbar)
	Remove a Toolbar from the main widget. More...

virtual void	getToolBar (QString _name, QToolBar *&_toolbar)
	Get a pointer to a Toolbar of the given name or 0 if it does not exist. More...

Private Member Functions inherited from StatusbarInterface
virtual	~StatusbarInterface ()
	Destructor.

void	setStatus (ApplicationStatus::applicationStatus _status)
	Sets the status icon of the StatusBar. More...

void	clearStatusMessage ()
	Removes the current message from the statusBar. More...

void	addWidgetToStatusbar (QWidget *_widget)
	Add a widget on the right side of the statusBar. More...

Private Member Functions inherited from OptionsInterface
virtual	~OptionsInterface ()
	Destructor.

virtual void	applyOptions ()=0
	Apply changes to options. More...

Private Member Functions inherited from INIInterface
virtual	~INIInterface ()
	Destructor.

Detailed Description

Definition at line 70 of file ColorPlugin.hh.

Constructor & Destructor Documentation

ColorPlugin::ColorPlugin ( )

ConstructorOptionsInterface.

Constructor.

Definition at line 66 of file ColorPlugin.cc.

Member Function Documentation

void ColorPlugin::applyOptions ( )

privateslot

Store the changed color presets when the apply Button was hit.

Definition at line 515 of file ColorPlugin.cc.

void ColorPlugin::convertColor	(	uint	_color,
		OpenMesh::Vec4f &	_vector
	)

private

convert betweeen uint and Vec4f

convert between uint and Vec4f

Parameters

_color	given color
_vector	color vector to convert to

Definition at line 542 of file ColorPlugin.cc.

uint ColorPlugin::convertColor ( OpenMesh::Vec4f & _vector )

private

convert betweeen uint and Vec4f

convert between uint and Vec4f

Parameters

_vector reference to a color vector

Returns: same color as uint

Definition at line 561 of file ColorPlugin.cc.

QString ColorPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 123 of file ColorPlugin.hh.

QIcon ColorPlugin::generateIcon ( QRgb _color )

private

generate an icon from a given color

Generate an icon with given color.

Parameters

_color a color

Returns: the icon

Definition at line 395 of file ColorPlugin.cc.

QIcon ColorPlugin::generateIcon ( OpenMesh::Vec4f _color )

private

generate an icon from a given color

Generate an icon with given color.

Parameters

_color a color vector

Returns: an icon

Definition at line 376 of file ColorPlugin.cc.

void ColorPlugin::getColorDialog ( )

privateslot

display a color dialog

show a colorDialog and store the chosen value in the icon of the sender()

Definition at line 443 of file ColorPlugin.cc.

QRgb ColorPlugin::getIconColor ( QIcon _icon )

private

get the color from a given icon

Get the color of an icon.

Parameters

_icon an icon

Returns: its color

Definition at line 413 of file ColorPlugin.cc.

bool ColorPlugin::initializeOptionsWidget ( QWidget *& _widget )

virtual

generate an optionsWidget to change color presets

Parameters

_widget reference to the generated widget

Returns: return true if the widget was successfully generated

Implements OptionsInterface.

Definition at line 467 of file ColorPlugin.cc.

void ColorPlugin::loadIniFileOptions ( INIFile & _ini )

privateslot

read color preset from ini file

Parameters

_ini	file to read from

Definition at line 576 of file ColorPlugin.cc.

QString ColorPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 122 of file ColorPlugin.hh.

void ColorPlugin::pluginsInitialized ( )

privateslot

initialize the toolbar and menubar

Definition at line 93 of file ColorPlugin.cc.

void ColorPlugin::saveIniFileOptions ( INIFile & _ini )

privateslot

Store current color preset to an ini file.

Parameters

_ini	file to store color presets in

Definition at line 622 of file ColorPlugin.cc.

void ColorPlugin::setBackgroundColor ( Vector _color )

slot

Set the backgroundColor.

Sets the background color of the scene

Parameters

_color a color

Definition at line 286 of file ColorPlugin.cc.

void ColorPlugin::setDefaultColor ( )

slot

set the defaultColor preset

Applies Default colors to the whole scene

Definition at line 147 of file ColorPlugin.cc.

void ColorPlugin::setNewColor	(	QIcon	_icon,
		OpenMesh::Vec4f &	_color
	)

private

set the color of a color vector to the one in the given icon

convert an icons color to a Vec4f

Parameters

_icon	an icon
_color	reference to a color vector

Definition at line 428 of file ColorPlugin.cc.

void ColorPlugin::setObjectAmbientColor	(	int	_objectId,
		Vector4	_color
	)

slot

Sets the ambient color of an object

Parameters

_objectId	Id of an Object
_color	Color to be set

Definition at line 325 of file ColorPlugin.cc.

void ColorPlugin::setObjectDiffuseColor	(	int	_objectId,
		Vector4	_color
	)

slot

Sets the diffuse color of an object

Parameters

_objectId	Id of an Object
_color	Color to be set

Definition at line 342 of file ColorPlugin.cc.

void ColorPlugin::setObjectEmissiveColor	(	int	_objectId,
		Vector4	_color
	)

slot

Sets the emissive color of an object

Parameters

_objectId	Id of an Object
_color	Color to be set

Definition at line 306 of file ColorPlugin.cc.

void ColorPlugin::setObjectSpecularColor	(	int	_objectId,
		Vector4	_color
	)

slot

Sets the specular color of an object

Parameters

_objectId	Id of an Object
_color	Color to be set

Definition at line 359 of file ColorPlugin.cc.

void ColorPlugin::setPaperColor ( )

slot

set the paperColor Preset

Applies colors for papers

Definition at line 239 of file ColorPlugin.cc.

void ColorPlugin::setPresentationColor ( )

slot

Set the presentation color preset.

Applies colors for presentations to the scene

Definition at line 193 of file ColorPlugin.cc.

QString ColorPlugin::version ( )

inlineslot

Version info of the color plugin

Definition at line 227 of file ColorPlugin.hh.

The documentation for this class was generated from the following files:

Plugin-Color/ColorPlugin.hh
Plugin-Color/ColorPlugin.cc

Public Slots

Signals

Public Member Functions

Private Slots

Show Colors in Options and Store them in INI files

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
